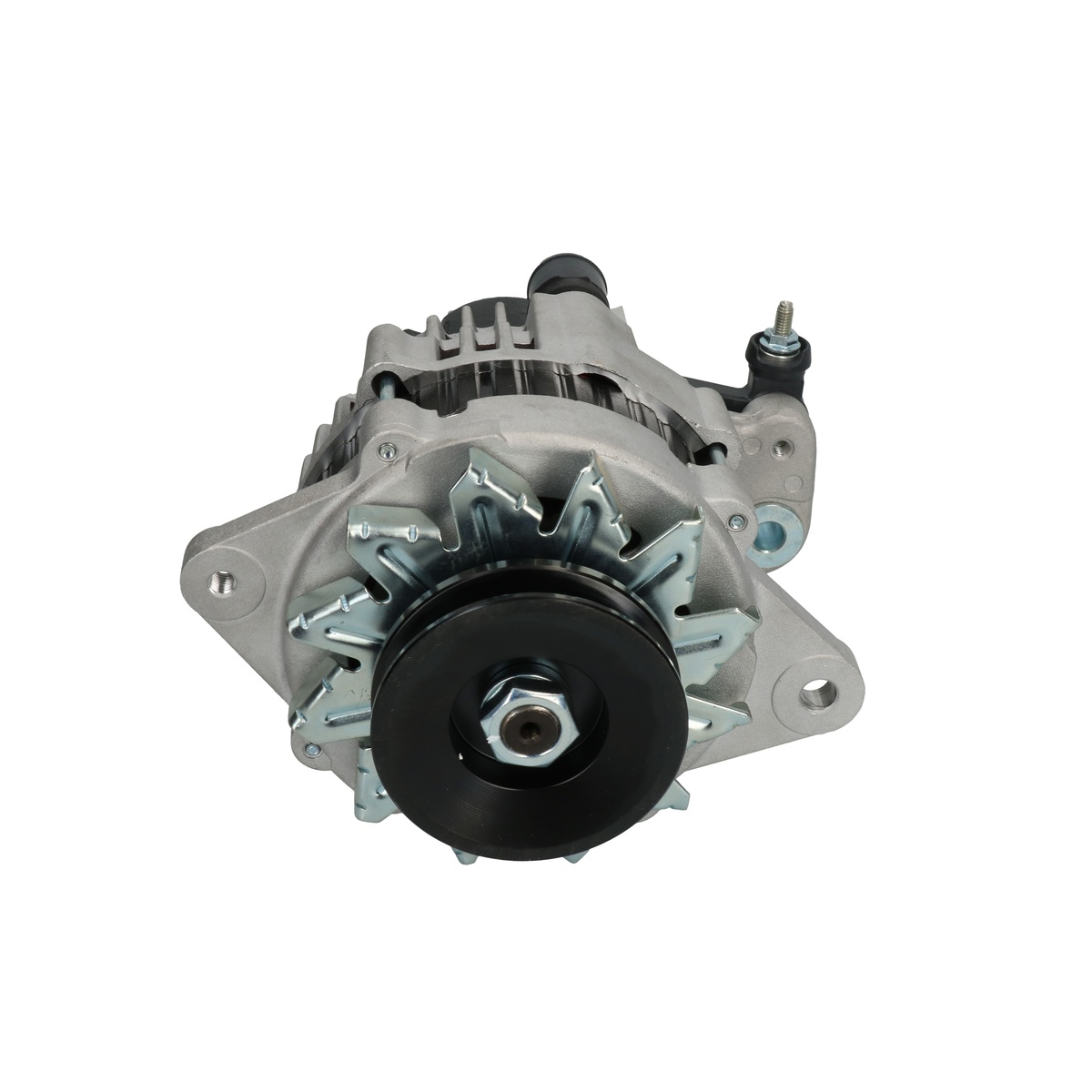

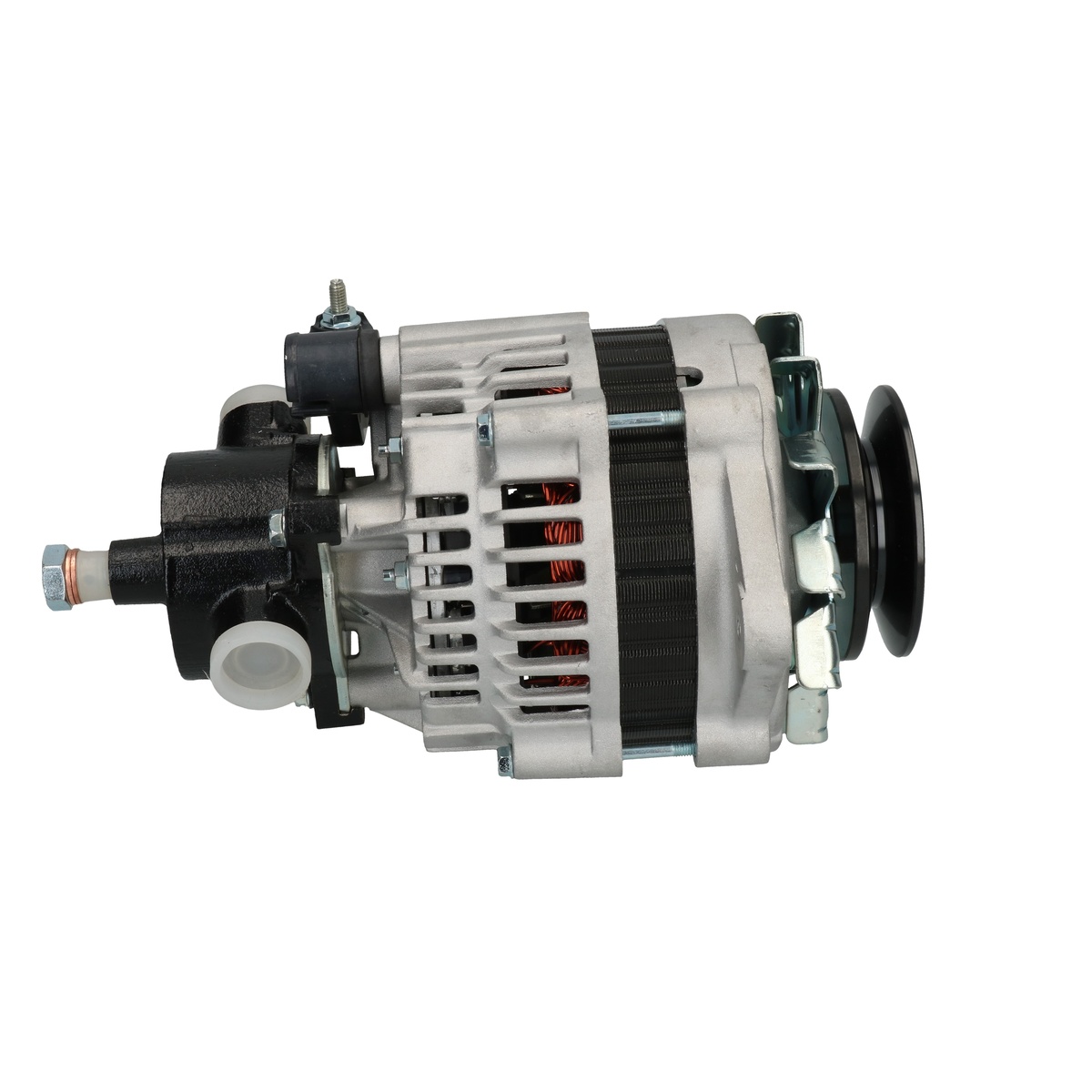

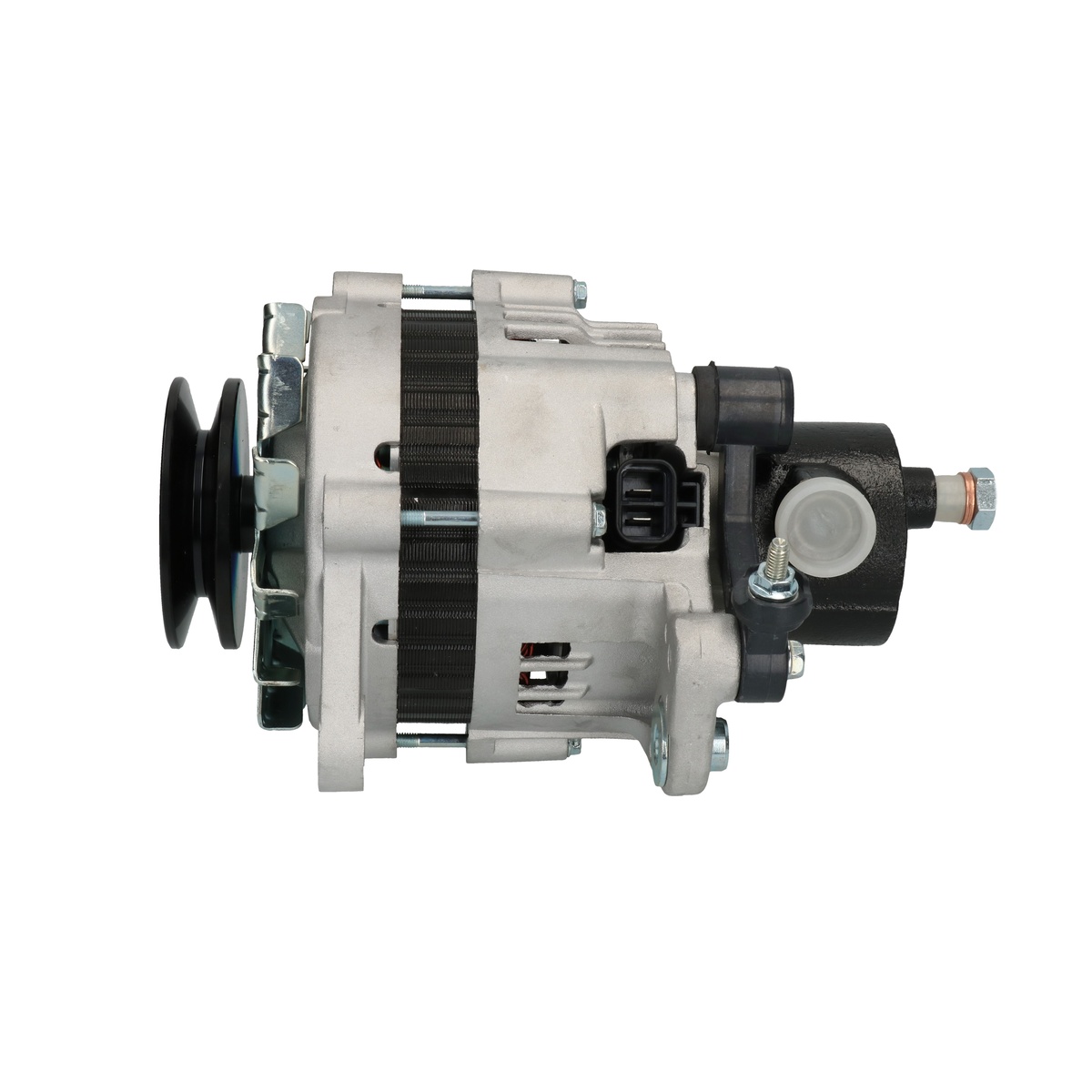

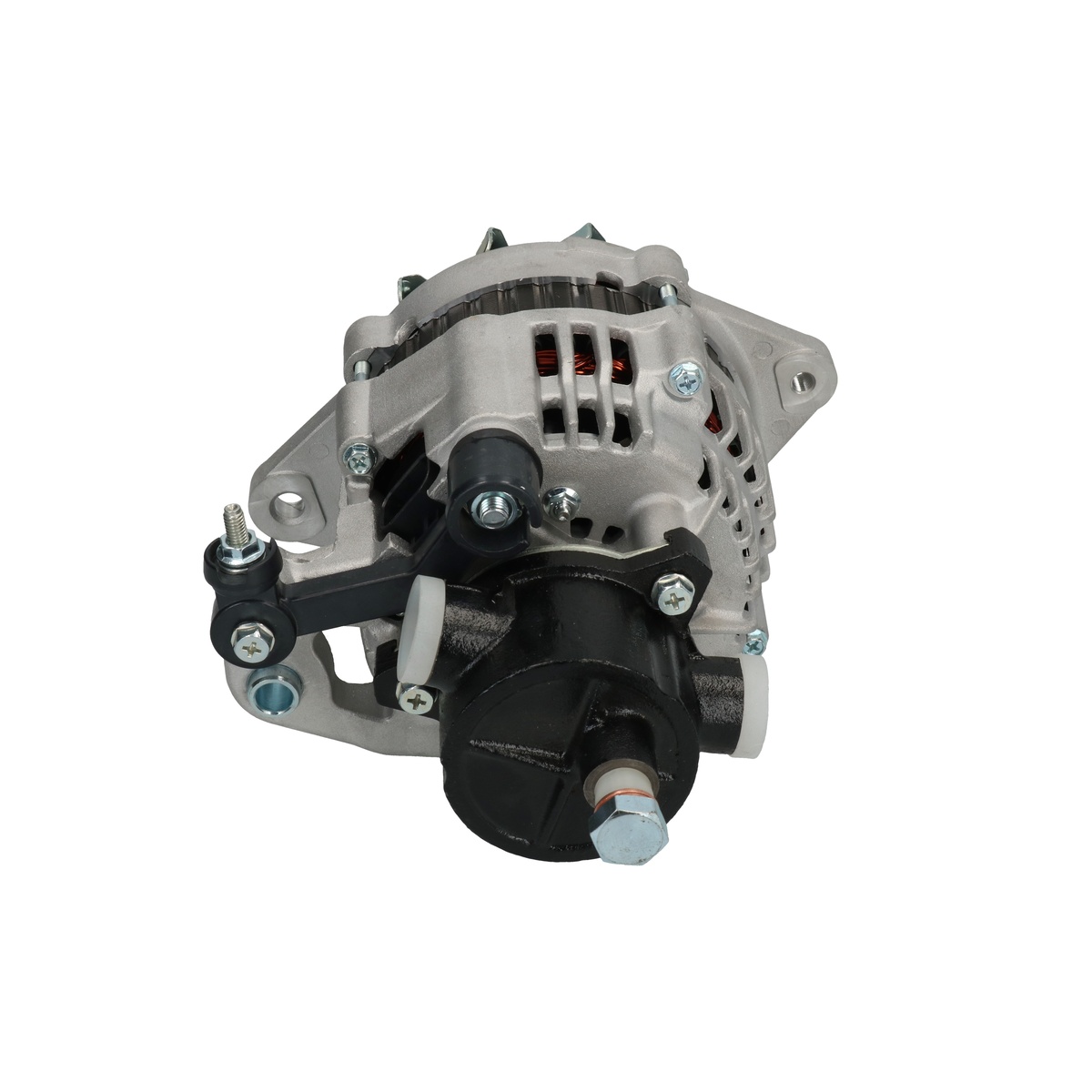

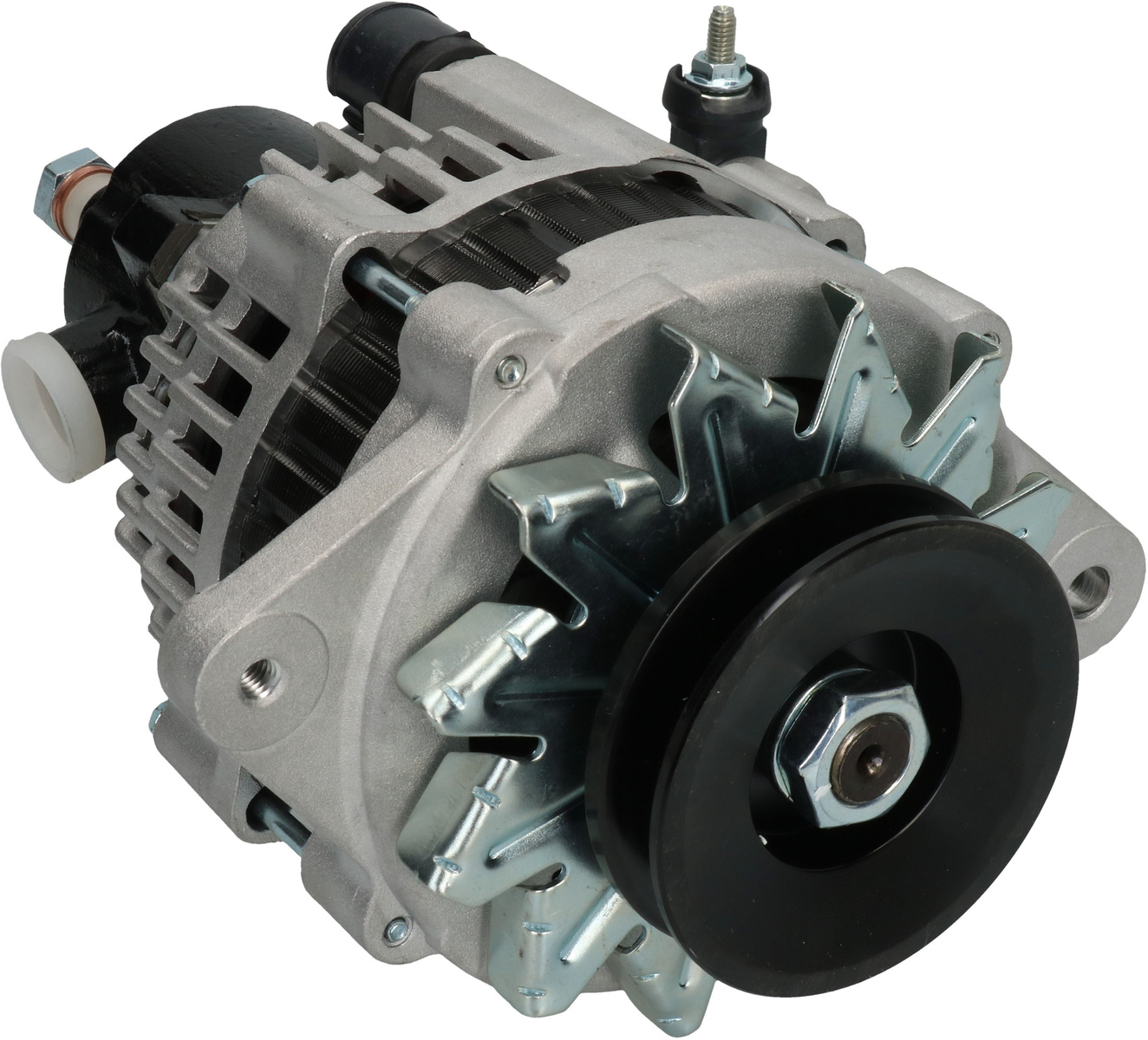

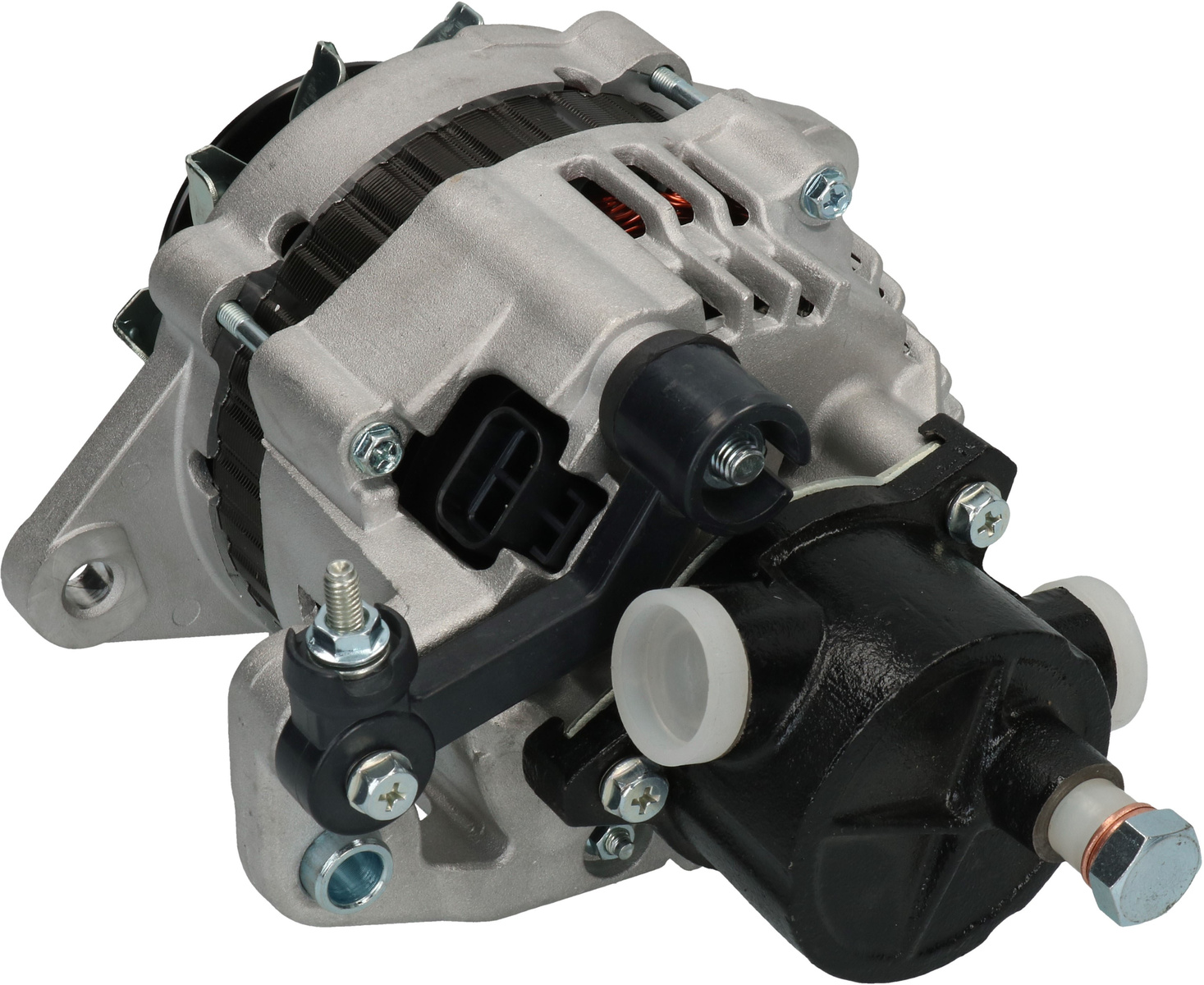

F032116495 - Alternator
Trade number 116495
Replacing and BOMs
OEM number
- R2S218300MAZDA
- R2S218300BMAZDA
Competitor References
- 553926RIAD KÜHNER
- A2078SAUTOSTARTER POLAND
- CAL20230CASCO SRL
- 145811070CV PSH
- 283942ELSTOCK
- 12060882EUROTEC
- 116495HC-CARGO
- LR170510HITACHI
Trade number 116495
Details & description
Voltage 14, Amp 70, Pulley P, Pulley Diameter 84.00, Bracket Hole Size Rear M8, Nipple Vaccum Pump Position 39, Pulley Distance 50.60, Vac. pump Yes, Mounting Bracket Distance 84.50, Radius 90.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 1, Regulator type IR, Bracket Hole Size 1 10.30, Vacumm Pump Position 3, Holder Arm Width 12.70, B+ M6, Fan EF, Radius 2 85.00, Plug no. 1 PL07, Rotation CW, B+ Position 37, Belt Adjustment Bracket Hole Position 60, Total Length 258.00
Product information
Electrical information
- Voltage14
- Amp70
Catalogue information
- Vac. pumpYes
Physical information
- PulleyP
- Pulley Diameter84.00
- Bracket Hole Size RearM8
- Nipple Vaccum Pump Position39
- Pulley Distance50.60
- Mounting Bracket Distance84.50
- Radius90.00
- Belt Adjustment Bracket Hole 110.50
- Grooves/pulley1
Replacing and BOMs
OEM number
- R2S218300MAZDA
- R2S218300BMAZDA
Competitor References
- 553926RIAD KÜHNER
- A2078SAUTOSTARTER POLAND
- CAL20230CASCO SRL
- 145811070CV PSH
- 283942ELSTOCK
- 12060882EUROTEC
- 116495HC-CARGO
- LR170510HITACHI
