F032116500 - Alternator

Trade number 116500

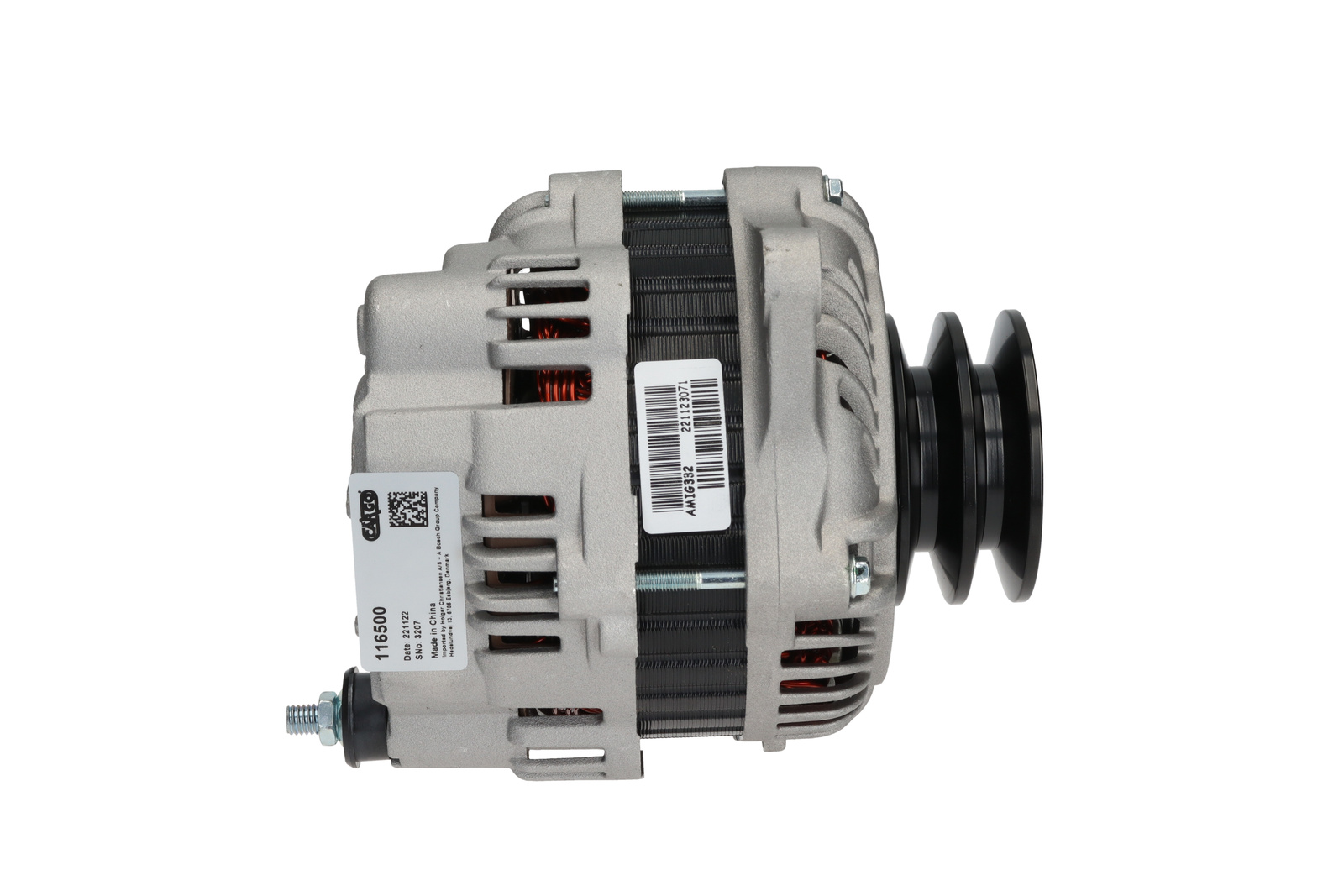

Product image - main
Trade number 116500

Details & description

Voltage 14, Amp 140, Pulley DP, Bracket Hole Size 1 12.50, Pulley Diameter 74.00, Bracket Hole Size Rear 12.50, Terminal type G-S-L-F, D+ Size Plug, Holder Arm Width 13.00, Pulley Distance 43.00, B+ M8, Fan IF, Radius 2 87.50, Plug no. 1 PL68, Mounting Bracket Distance 60.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 2, Regulator type IR, B+ Position 14, Belt Adjustment Bracket Hole Position 3, Total Length 188.00

Product information

Electrical information

  • Voltage14
  • Amp140

Physical information

  • PulleyDP
  • Bracket Hole Size 112.50
  • Pulley Diameter74.00
  • Bracket Hole Size Rear12.50
  • Terminal typeG-S-L-F
  • D+ SizePlug
  • Holder Arm Width13.00
  • Pulley Distance43.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 1800A116MITSUBISHI
    • A003TG4579MITSUBISHI
    • A003TG4579AMMITSUBISHI
    • A003TG4579ZZ9MITSUBISHI
    • A3TG4579MITSUBISHI

    Competitor References

    • A5088AUTOSTARTER POLAND
    • A5355AUTOSTARTER POLAND
    • CAL35286CASCO SRL
    • 155571120CV PSH
    • 155571140CV PSH
    • 2261911402DRI
    • 286646ELSTOCK
    • 209363ERA SPA
    • 209363AERA SPA

    • Compatible products
