F032116504 - Alternator

Trade number 116504

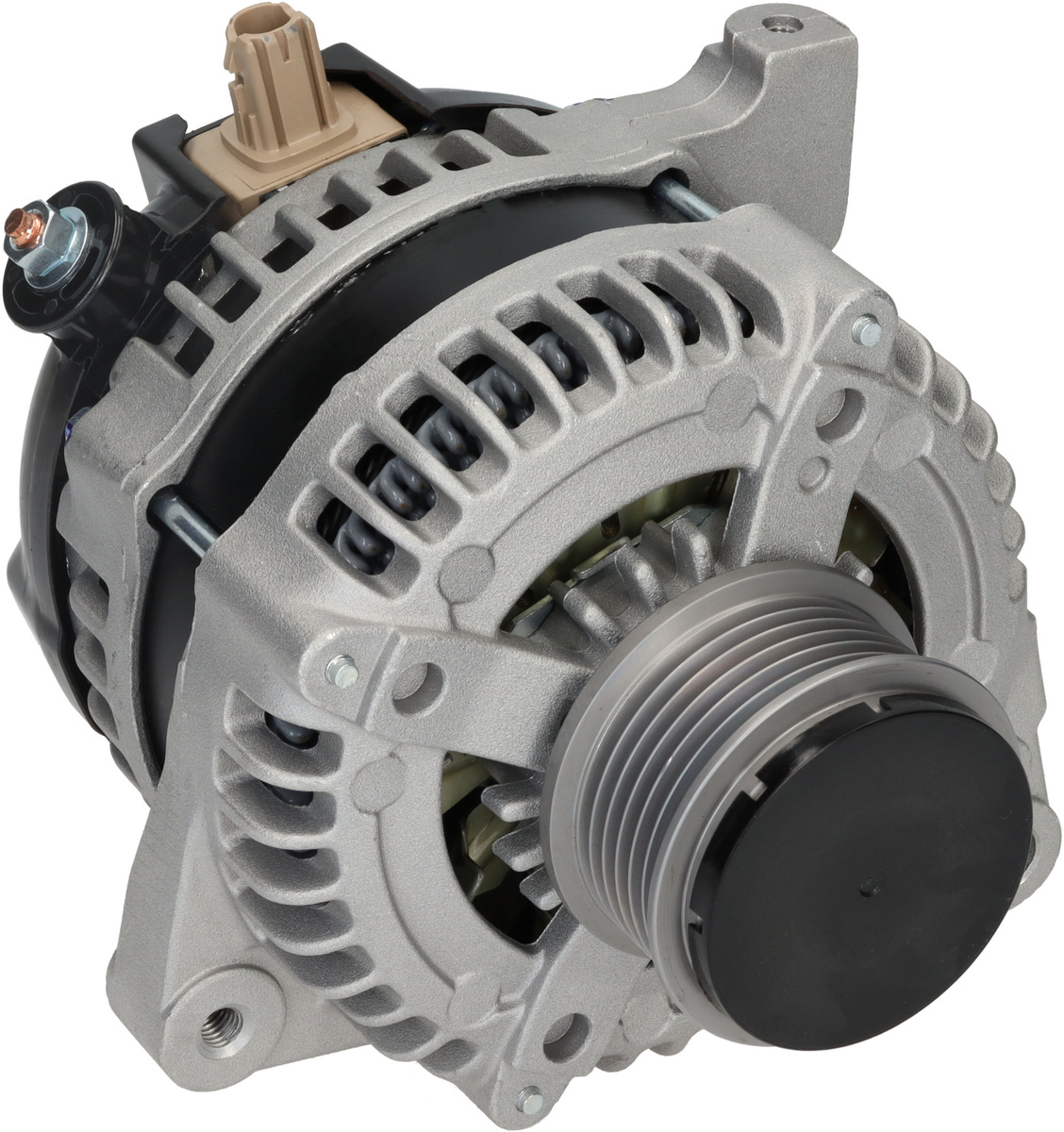

Product image - main
Trade number 116504

Details & description

Voltage 14, Amp 100, Communication LIN, Pulley SP/FW, Bracket Hole Size 1 11.00, Pulley Diameter 58.40, Bracket Hole Size Rear M10, Holder Arm Width 20.00, Pulley Distance 48.00, B+ M6, Fan IF, Radius 2 82.00, Plug no. 1 PL204, Mounting Bracket Distance 43.00, Radius 86.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, B+ Position 60, Belt Adjustment Bracket Hole Position 45, Total Length 167.00

Product information

Electrical information

  • Voltage14
  • Amp100

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Bracket Hole Size 111.00
  • Pulley Diameter58.40
  • Bracket Hole Size RearM10
  • Holder Arm Width20.00
  • Pulley Distance48.00
  • B+M6
  • FanIF

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 270600N090TOYOTA
    • 270600N100TOYOTA
    • 2706033110TOYOTA
    • 270600N140TOYOTA
    • 1042113780TOYOTA

    Competitor References

    • DRA1095AC DELCO
    • 553910RIAD KÜHNER
    • A6337AUTOSTARTER POLAND
    • 0986085130BOSCH
    • 1986A00641BOSCH
    • CAL40377CASCO SRL
    • 195971090CV PSH
    • 195971100CV PSH
    • DRA1095DELCO REMY
