F032116506 - Alternator

Trade number 116506

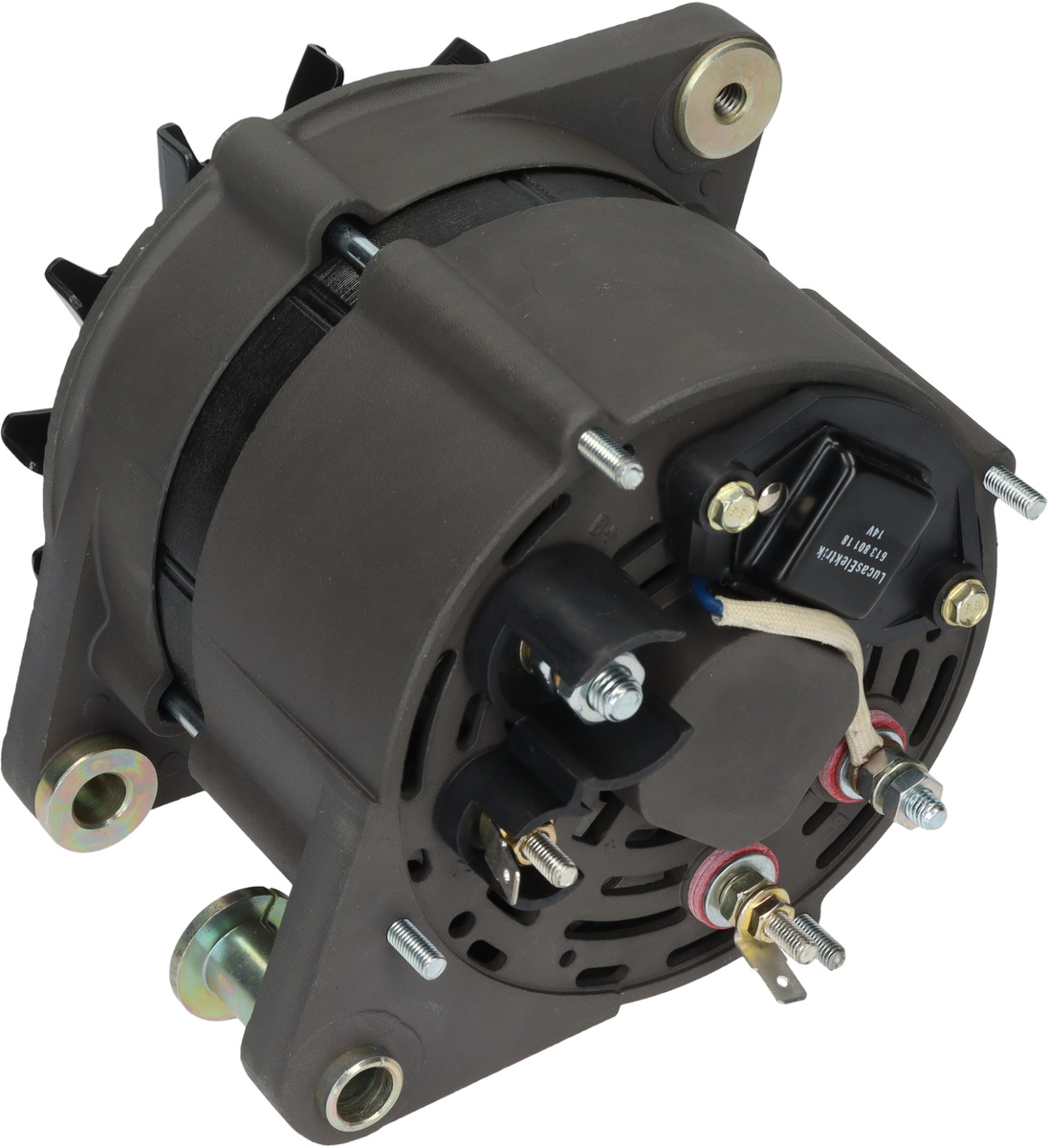

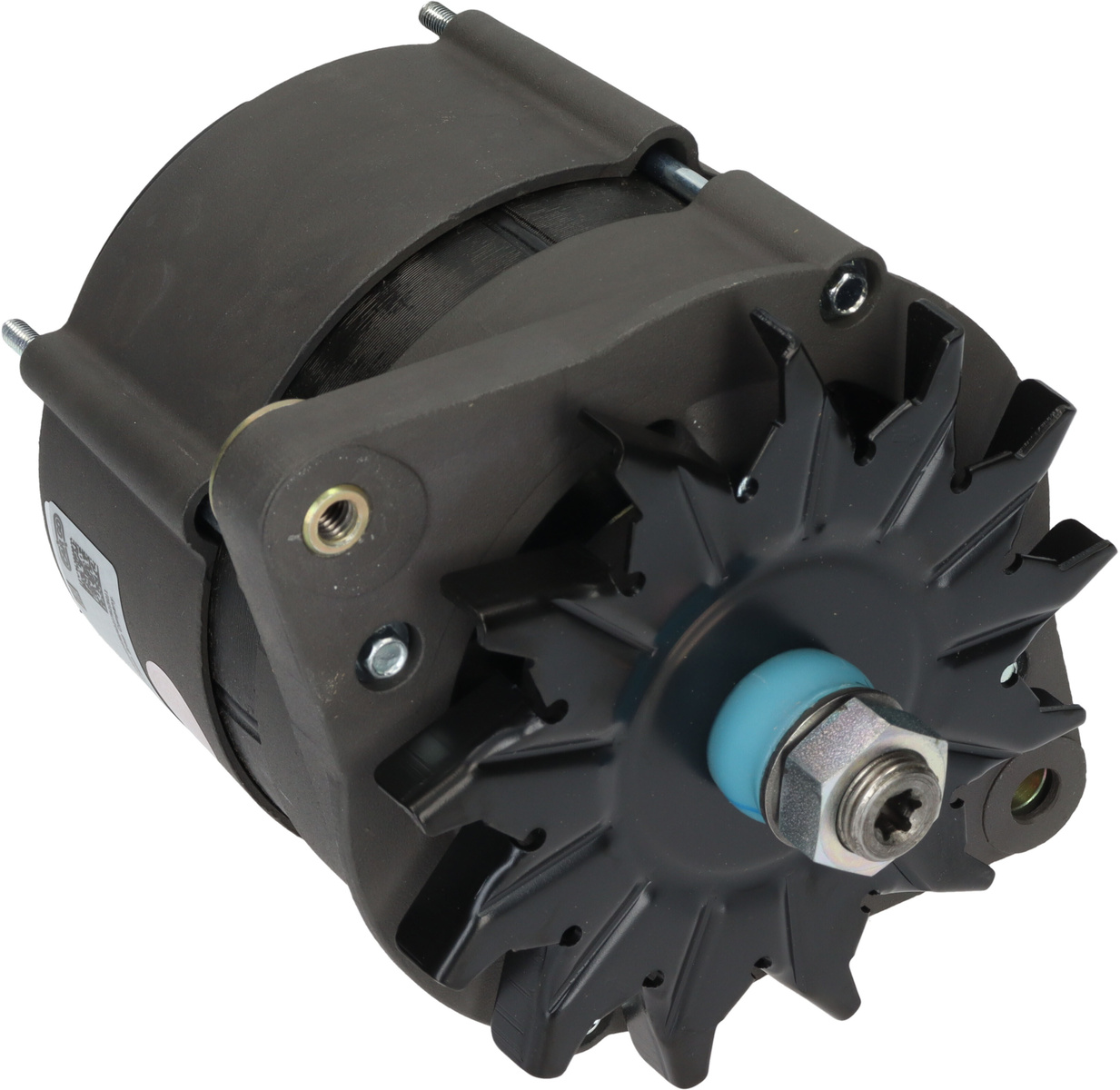

Product image - main
Trade number 116506

Details & description

Insulated return Yes, Voltage 14, Amp 120, Pulley w/o, W plug type M5-6.30, Bracket Hole Size 1 10.20, Bracket Hole Size Rear 10.70, D+ Size M5-6.30, D+ Position 35, Holder Arm Width 20.20, B+ M8, Fan EF, Radius 2 86.00, Mounting Bracket Distance 71.50, Radius 85.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Regulator type IR, Remarks Dustproof., B+ Position 43, Belt Adjustment Bracket Hole Position 60, Total Length 192.00

Product information

Electrical information

  • Insulated returnYes
  • Voltage14
  • Amp120

Catalogue information

  • RemarksDustproof.

Physical information

  • Pulleyw/o
  • W plug typeM5-6.30
  • Bracket Hole Size 110.20
  • Bracket Hole Size Rear10.70
  • D+ SizeM5-6.30
  • D+ Position35
  • Holder Arm Width20.20
  • B+M8
  • FanEF
  • Suggested Products

    Replacing and BOMs

    Competitor References

    • DRA0748AC DELCO
    • 554296RIAD KÜHNER
    • CAL21183CASCO SRL
    • 705008100CV PSH
    • 705008120CV PSH
    • 5001951002DRI
    • 286926ELSTOCK
    • 116506HC-CARGO
    • 48201109HC-CARGO
