F032116515 - Alternator

Trade number 116515

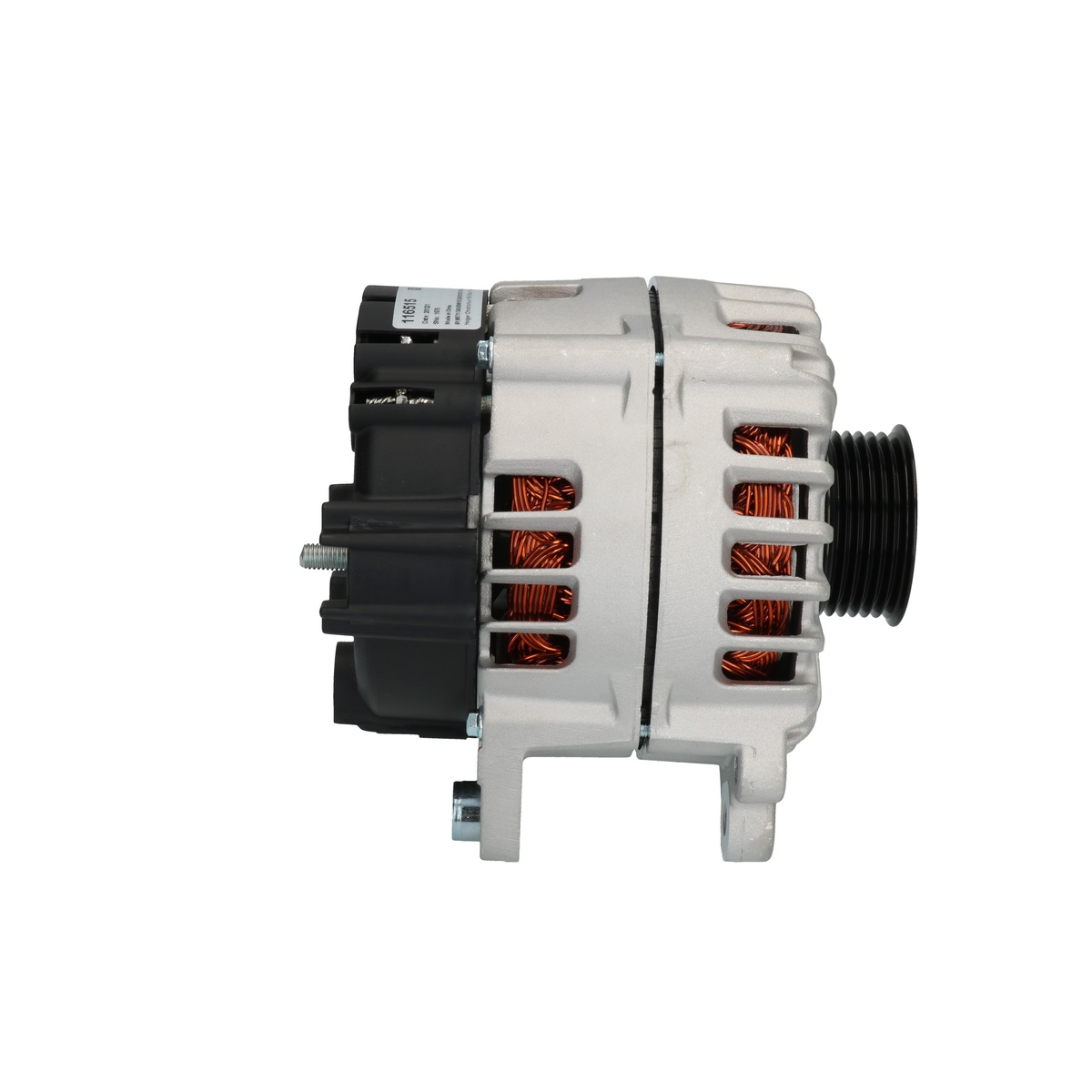

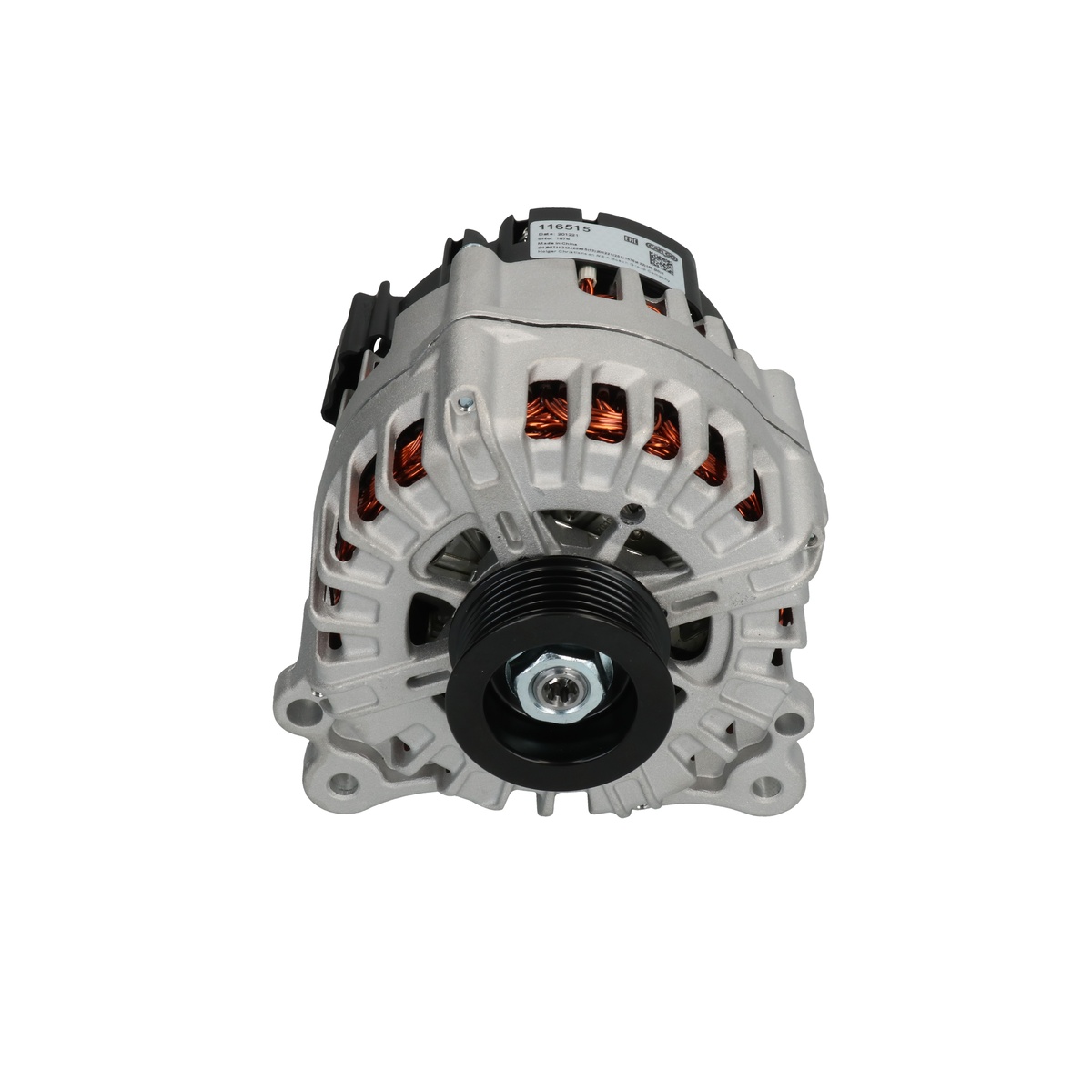

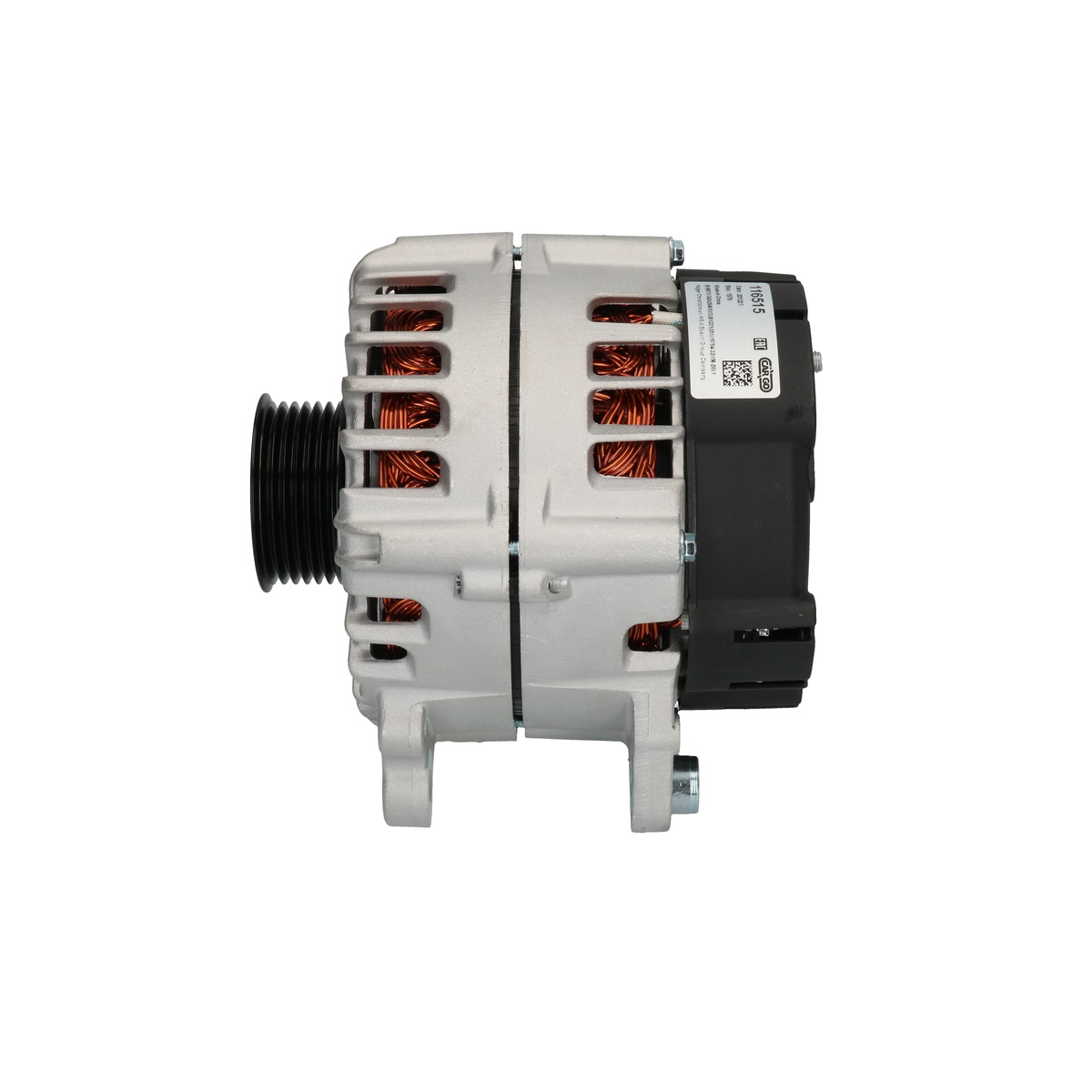

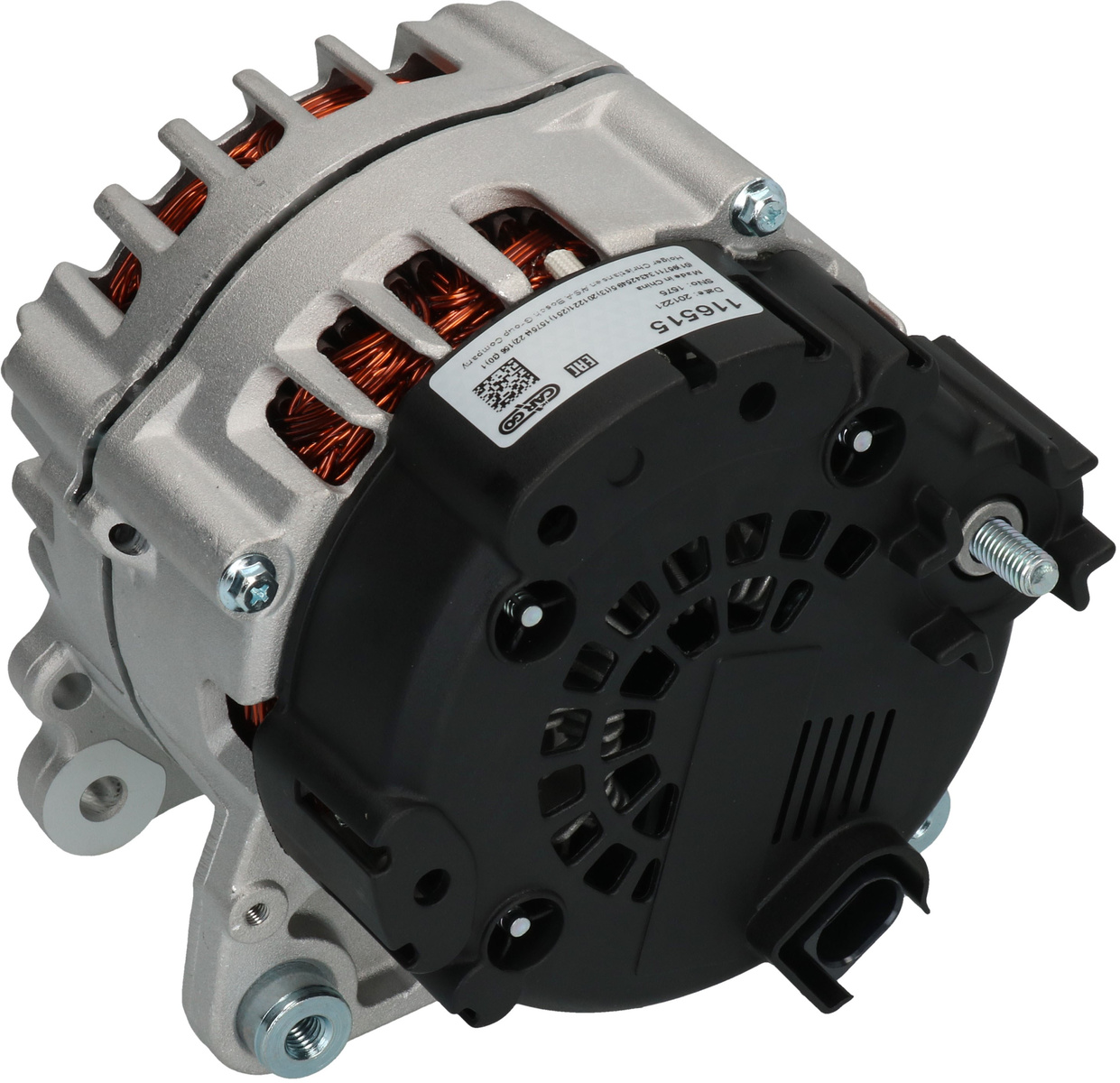

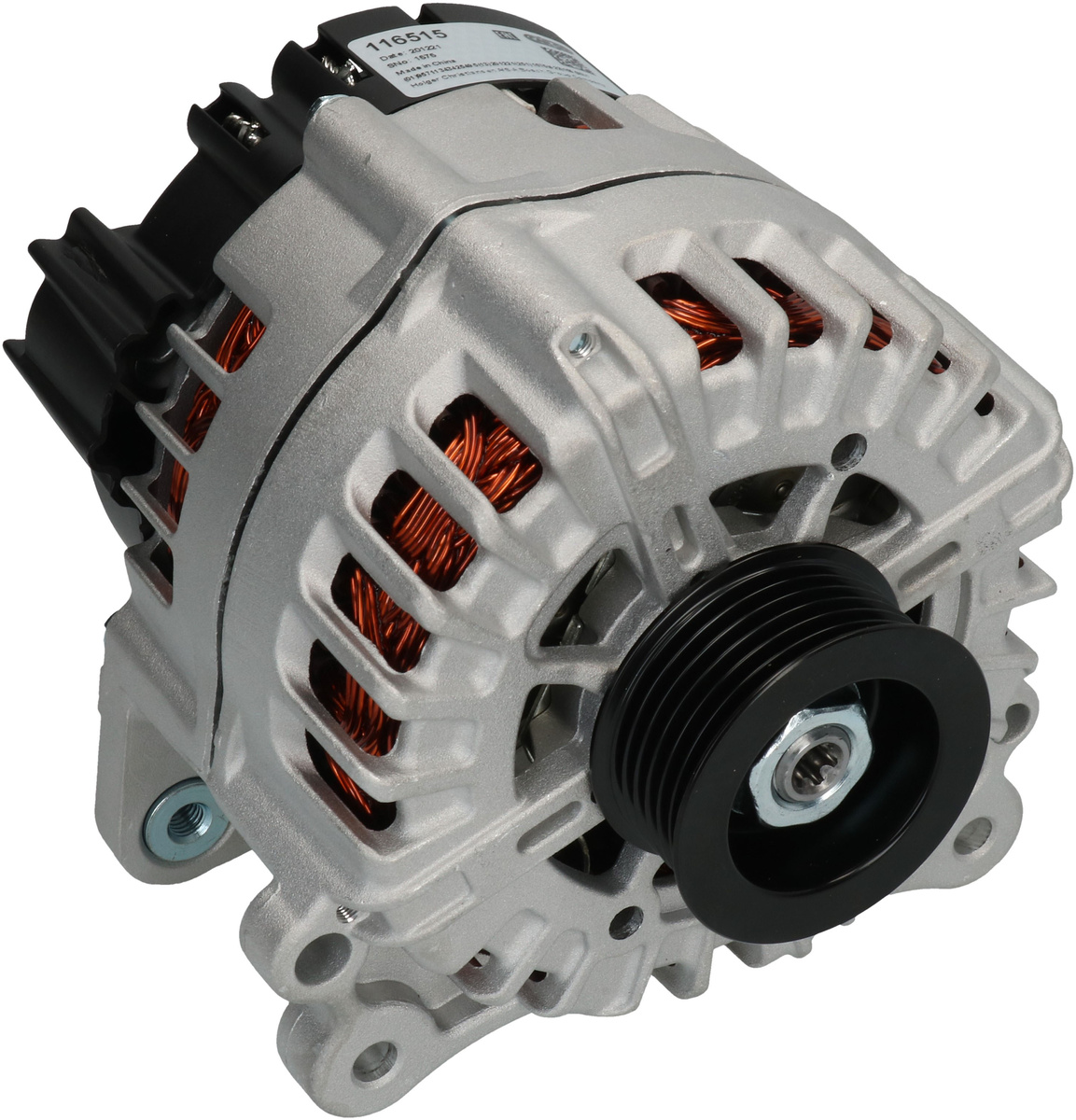

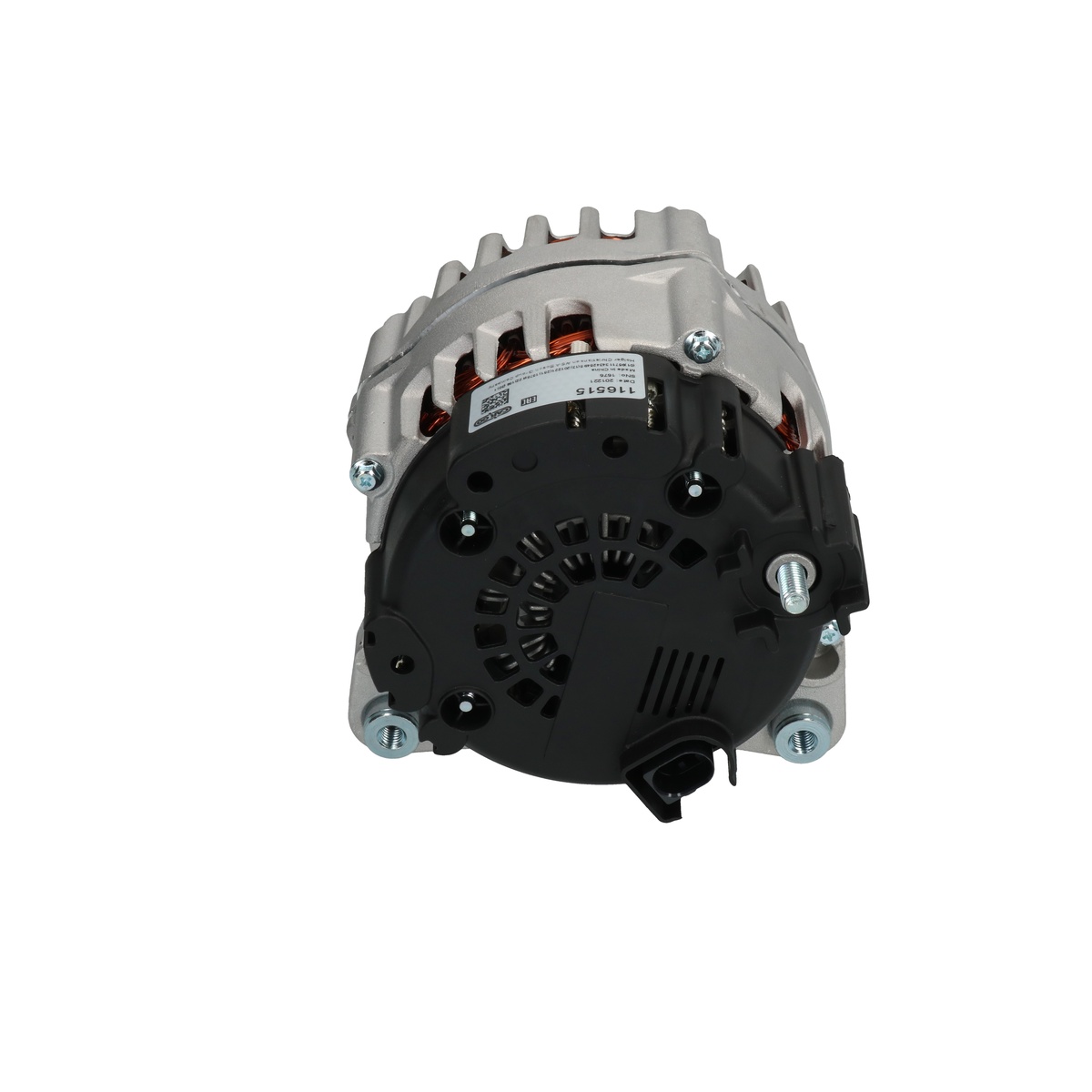

Product image - main
Trade number 116515

Details & description

Voltage 14, Amp 220, Communication LIN, Pulley SP, Pulley Diameter 60.00, Bracket Hole Size Rear M8, Pulley Distance 29.70, ID Code 57, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 60.40, Radius 90.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL86, Rotation CW, B+ Position 5, Belt Adjustment Bracket Hole Position 45, Total Length 177.00

Product information

Electrical information

  • Voltage14
  • Amp220

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP
  • Pulley Diameter60.00
  • Bracket Hole Size RearM8
  • Pulley Distance29.70
  • ID Code57
  • Mounting Bracket Distance60.40
  • Radius90.00
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 95860312200PORSCHE
    • 059903023JXVW (VOLKSWAGEN)
    • 059903023JVW (VOLKSWAGEN)

    Competitor References

    • DRA0811AC DELCO
    • 553443RIAD KÜHNER
    • A3194SAUTOSTARTER POLAND
    • A3194VALEOAUTOSTARTER POLAND
    • A3194PRAUTOSTARTER POLAND
    • CAL15436CASCO SRL
    • 305589220CV PSH
    • DRA0811DELCO REMY
    • 2113552202DRI
