F032116517 - Starter

Trade number 116517

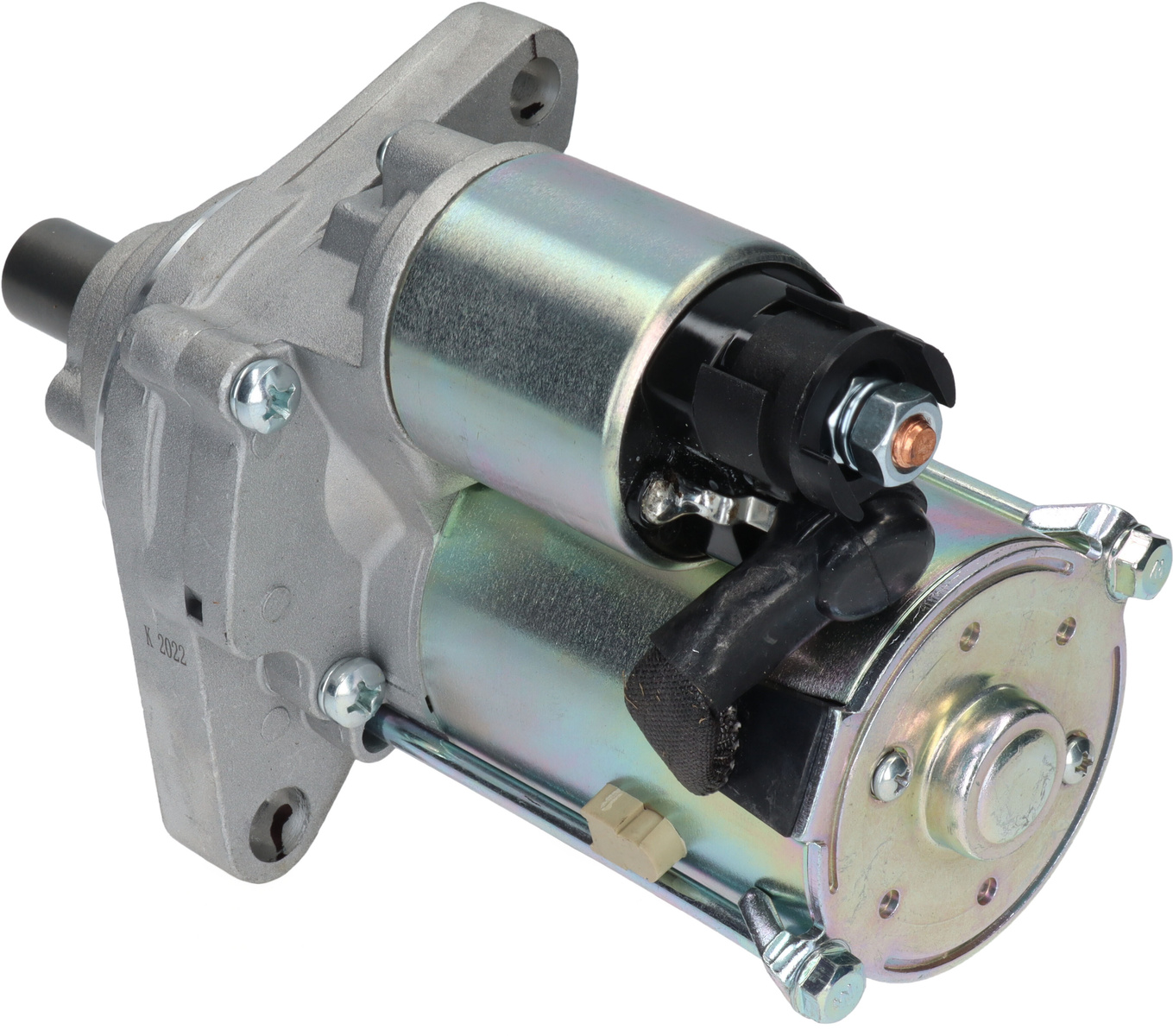

Product image - main
Trade number 116517

Details & description

kW 1.0, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 11.50, Rear Distance 139.00, Gear type GR, Front Distance 64.00, Drive Distance 40.00, No./teeth 9, B+ M8, Terminal 50 6.30, Mounting Flange 75.00, Distance 129.00, Rotation CW, Position 50, Mounting Hole 1 13.50, B+ Position 10, Amount of Mounting Holes 2 (0), Total Length 203.00

Product information

Electrical information

  • kW1.0
  • Voltage12

Physical information

  • No./mount. holes2 (0)
  • Mounting Hole 211.50
  • Rear Distance139.00
  • Gear typeGR
  • Front Distance64.00
  • Drive Distance40.00
  • No./teeth9
  • B+M8
  • Terminal 506.30

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 31200PEL004HONDA
    • 31200PEL014HONDA

    Competitor References

    • DRS0281AC DELCO
    • 0986JR0847BOSCH
    • 0986020481BOSCH
    • DRS0281DELCO REMY
    • 253427ELSTOCK
    • 11040887EUROTEC
    • 106591FACROM
    • 116517HC-CARGO
    • SM44225MITSUBA ELECTRIC

    • Compatible products
