F032116524 - Alternator

Trade number 116524

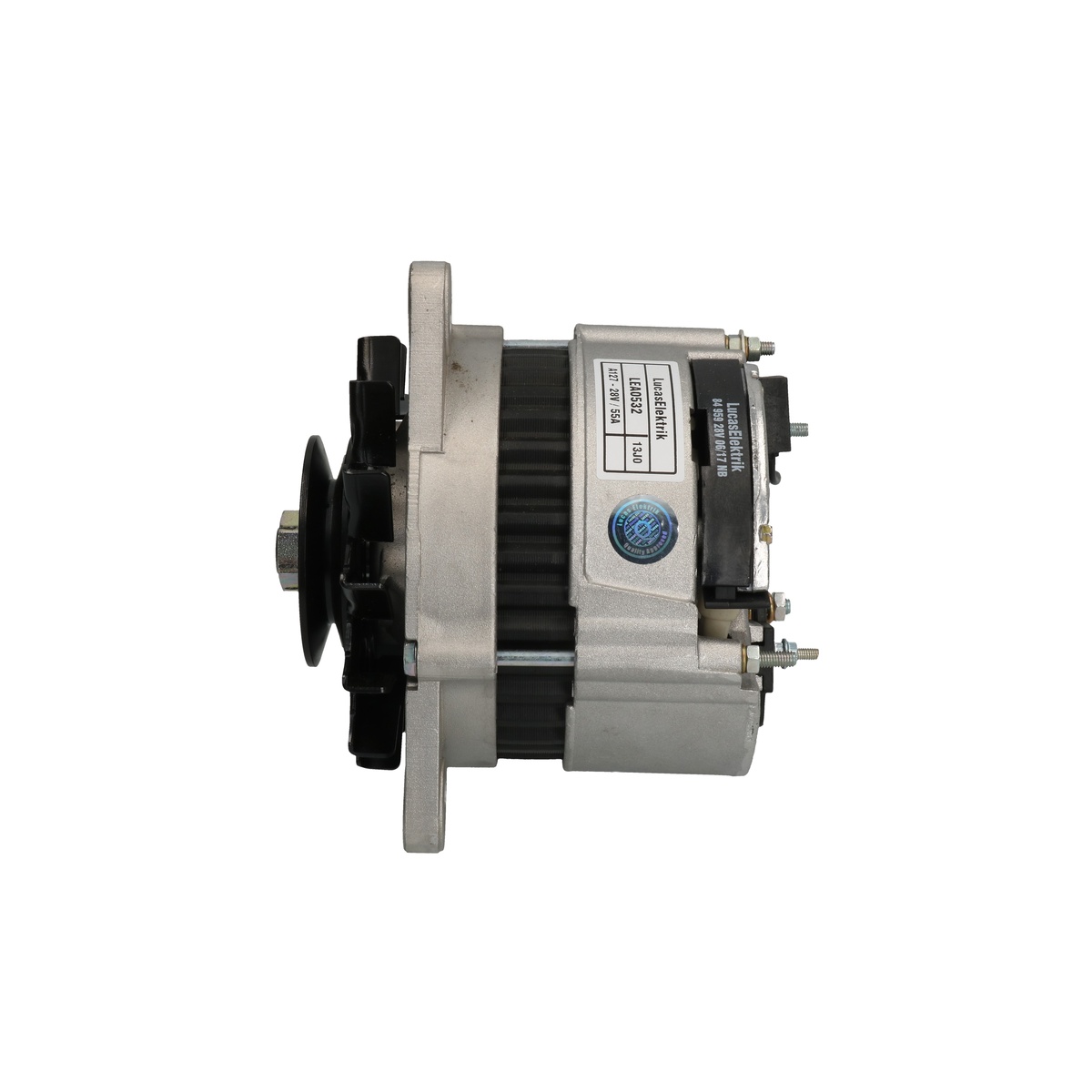

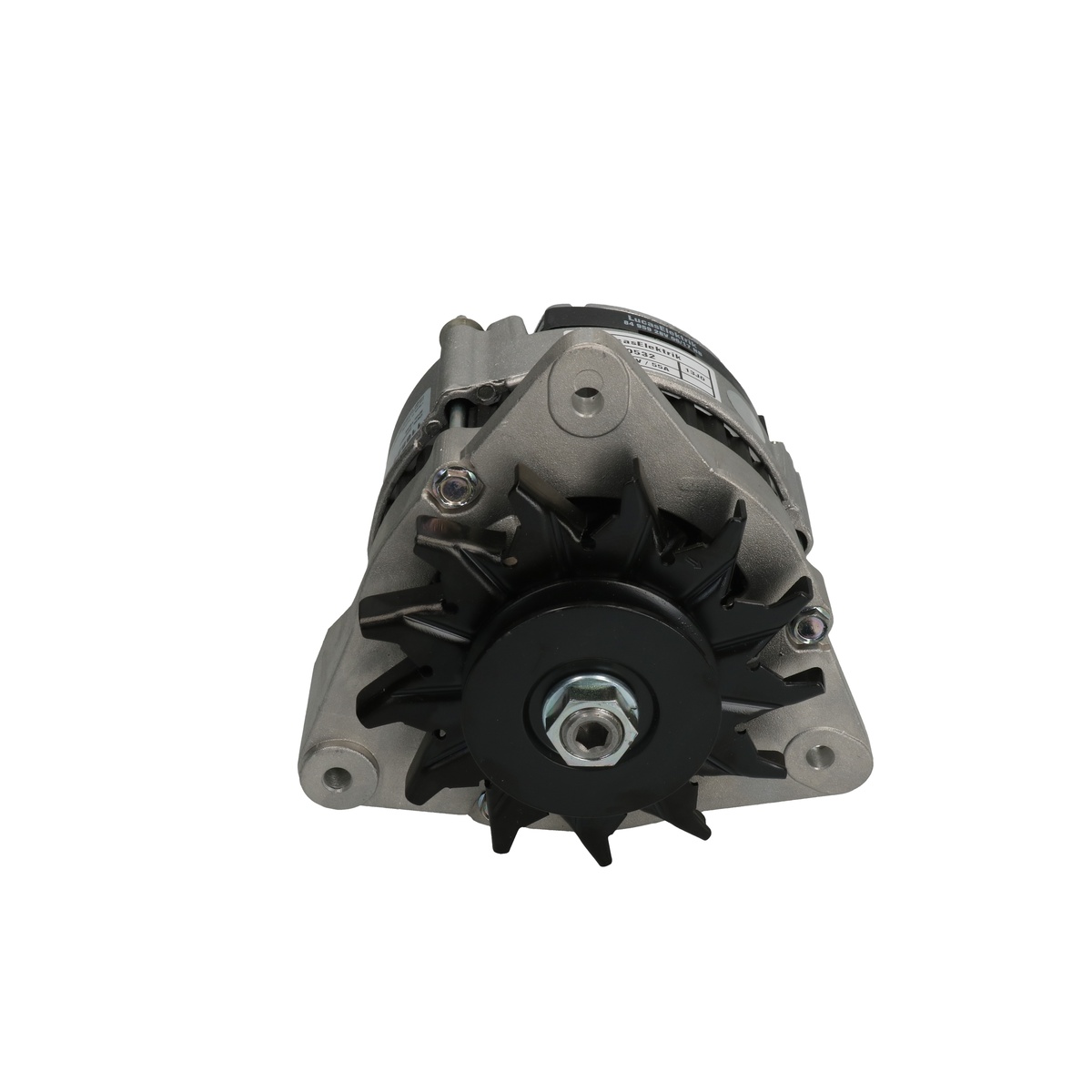

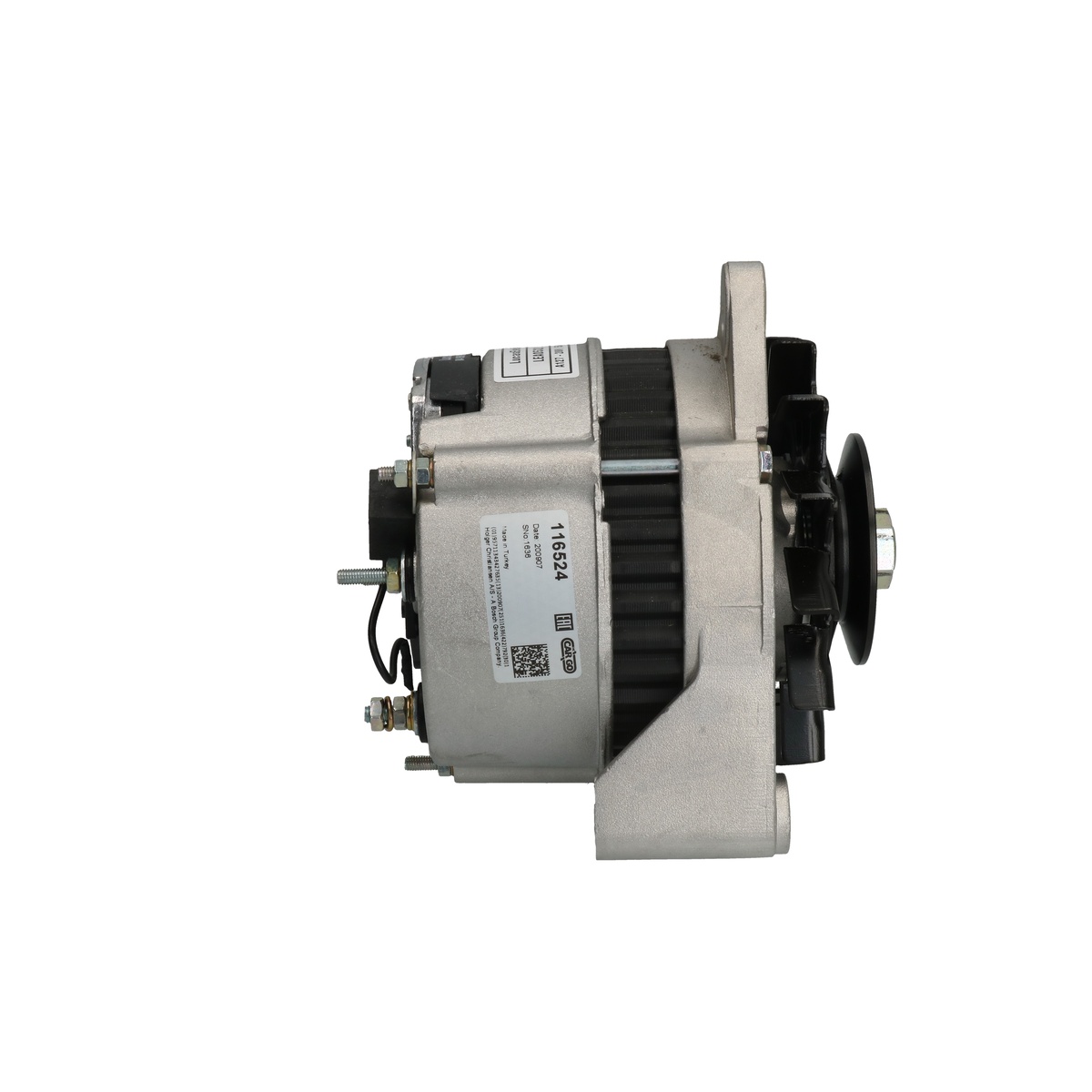

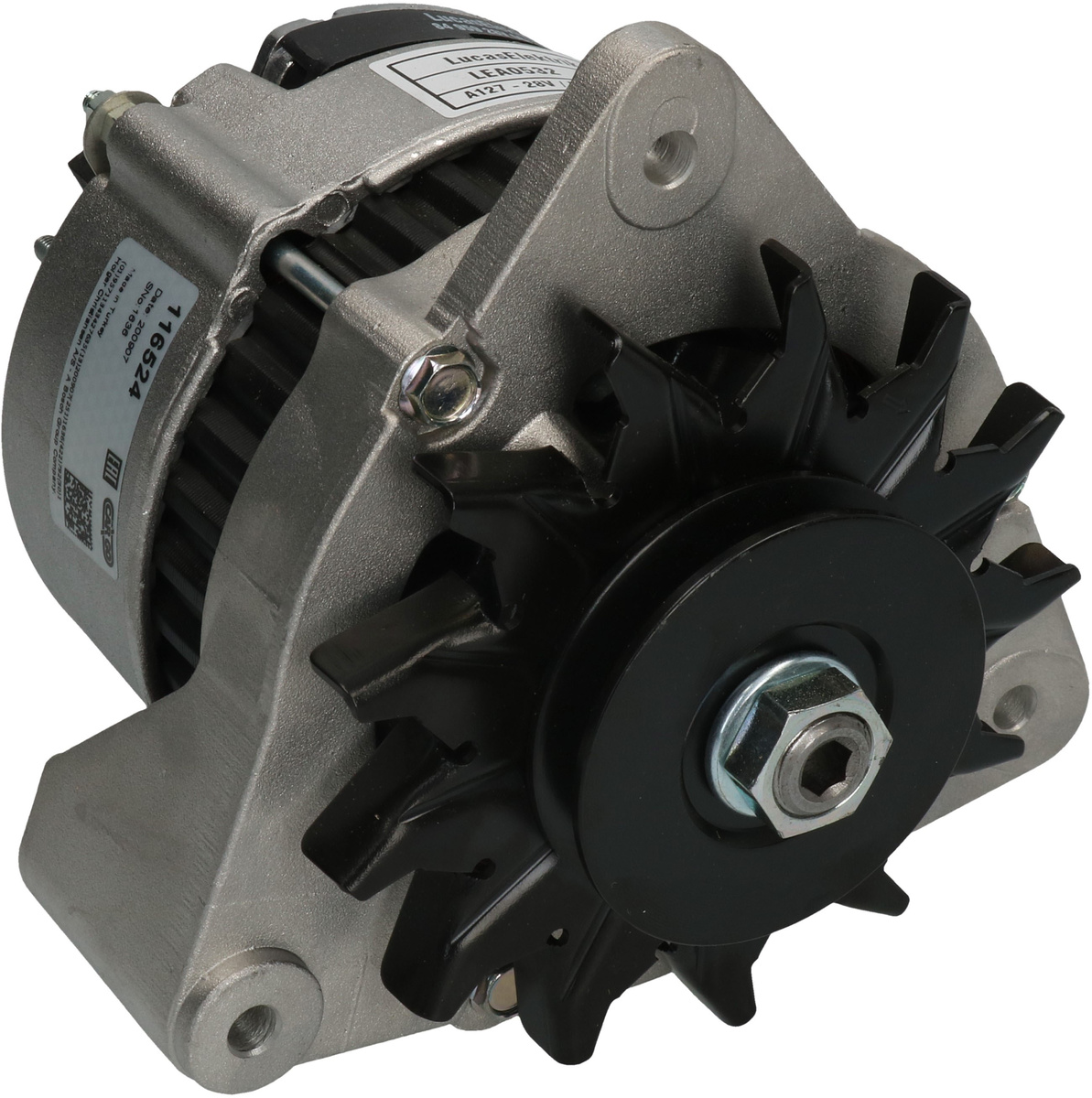

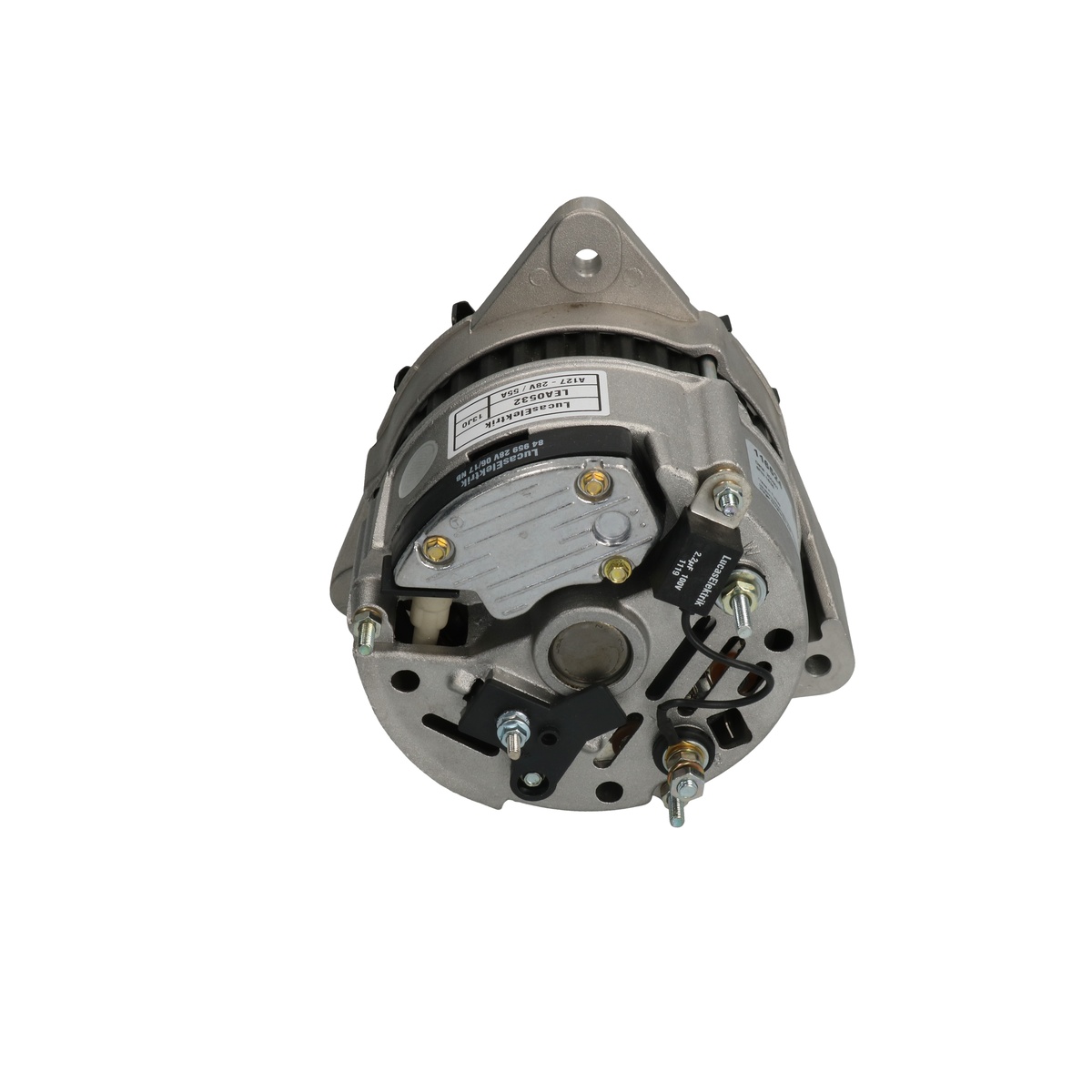

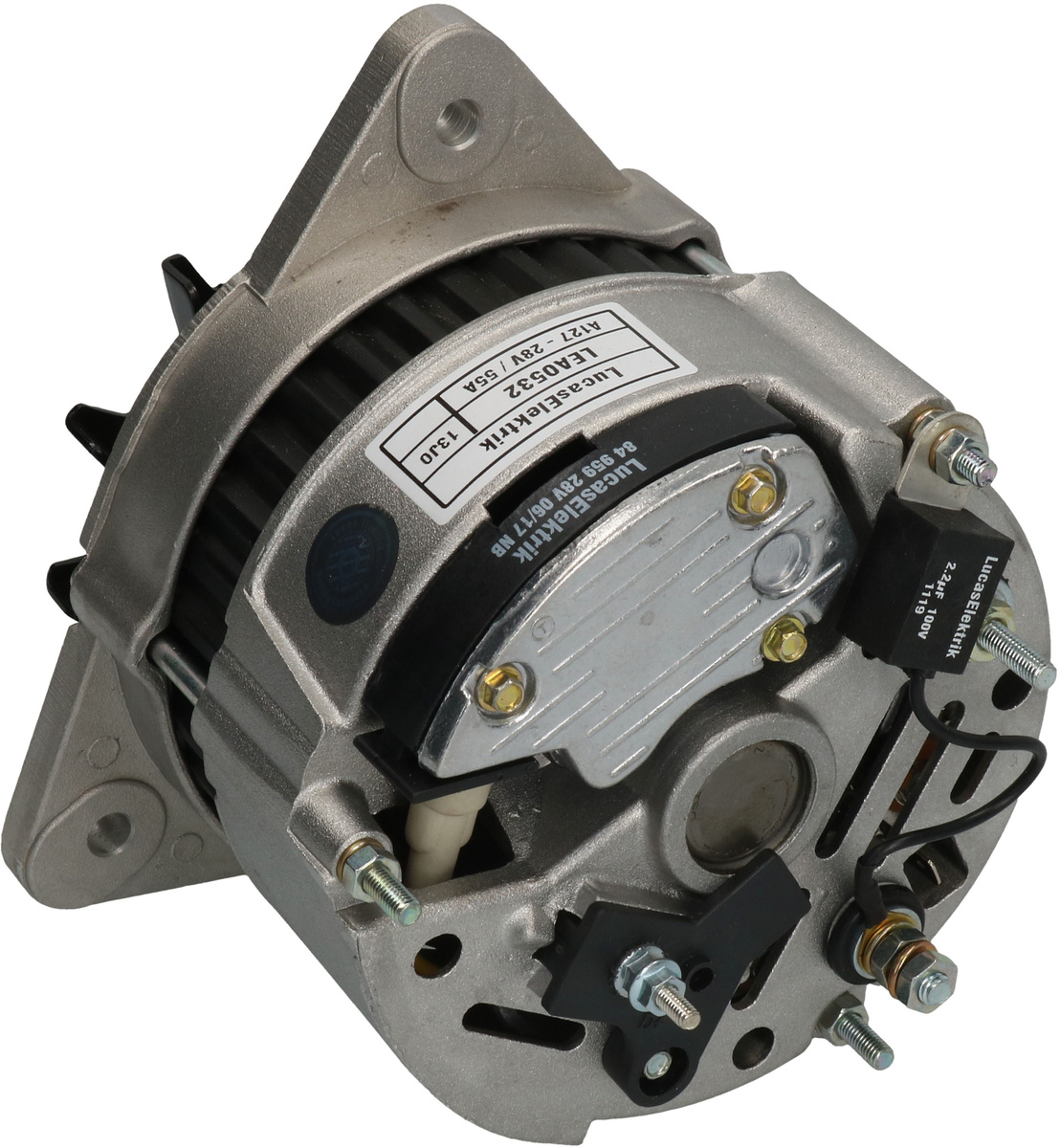

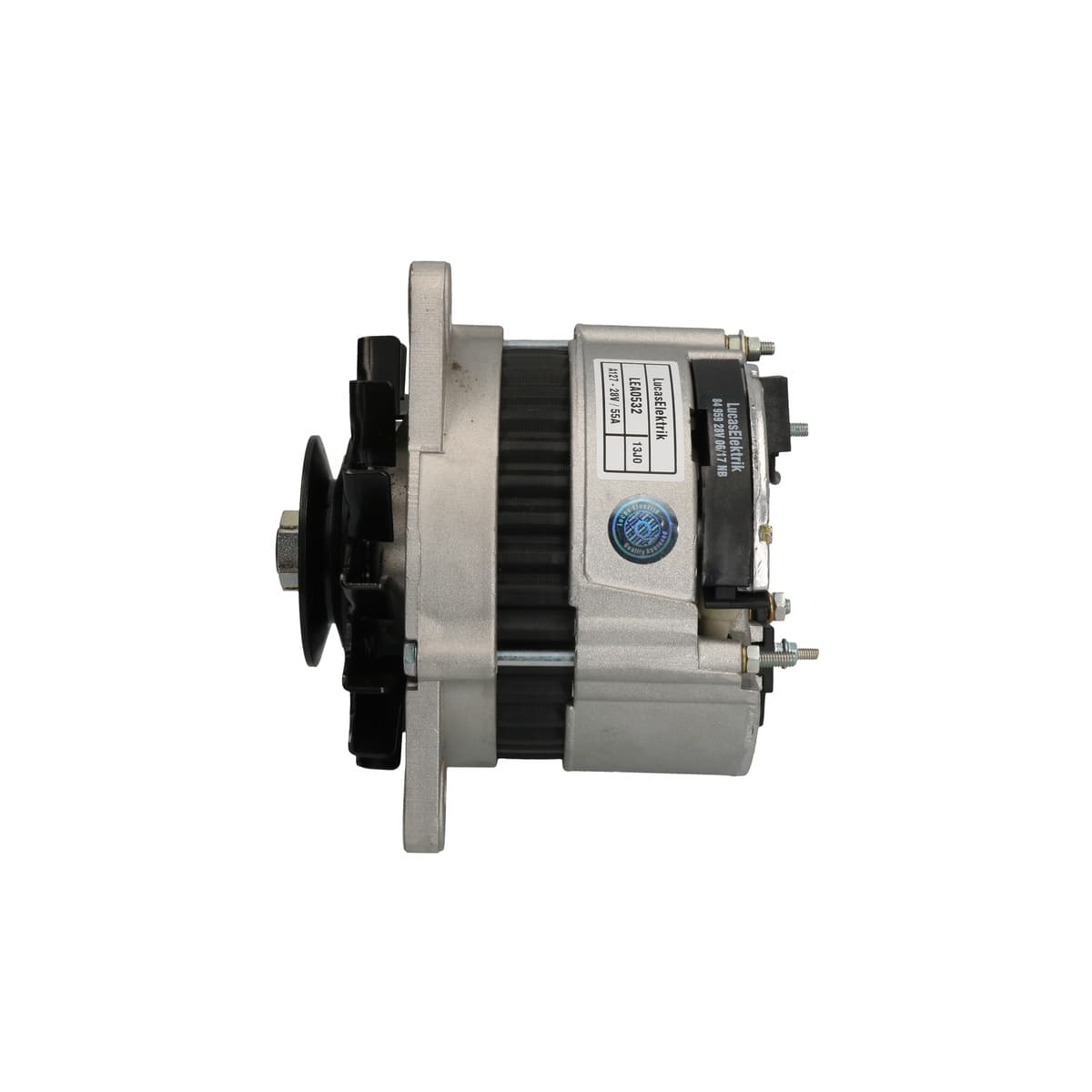

Product image - main
Trade number 116524

Details & description

Voltage 28, Amp 55, Pulley P, Bracket Hole Size 1 8.20, Pulley Diameter 72.00, Belt Adjustment Bracket Hole 2 8.20, Bracket Hole Size Rear 8.20, D+ Size M4, D+ Position 47, Holder Arm Width 56.00, Pulley Distance 77.00, Radius 3 80.00, B+ M6, Fan EF, Radius 2 80.00, Radius 86.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.20, Grooves/pulley 1, B+ Position 34, Belt Adjustment Bracket Hole Position 10;50, Total Length 168.00

Product information

Electrical information

  • Voltage28
  • Amp55

Physical information

  • PulleyP
  • Bracket Hole Size 18.20
  • Pulley Diameter72.00
  • Belt Adjustment Bracket Hole 28.20
  • Bracket Hole Size Rear8.20
  • D+ SizeM4
  • D+ Position47
  • Holder Arm Width56.00
  • Pulley Distance77.00
  • Suggested Products

    Replacing and BOMs

    Competitor References

    • 554187RIAD KÜHNER
    • A9209AUTOSTARTER POLAND
    • CAL10644CASCO SRL
    • CAL21607CASCO SRL
    • 116524HC-CARGO
    • 11201742ISKRABOM
    • IA1376ISKRA
    • IA0742ISKRA
    • AAK1381ISKRABOM
  • Compatible products
