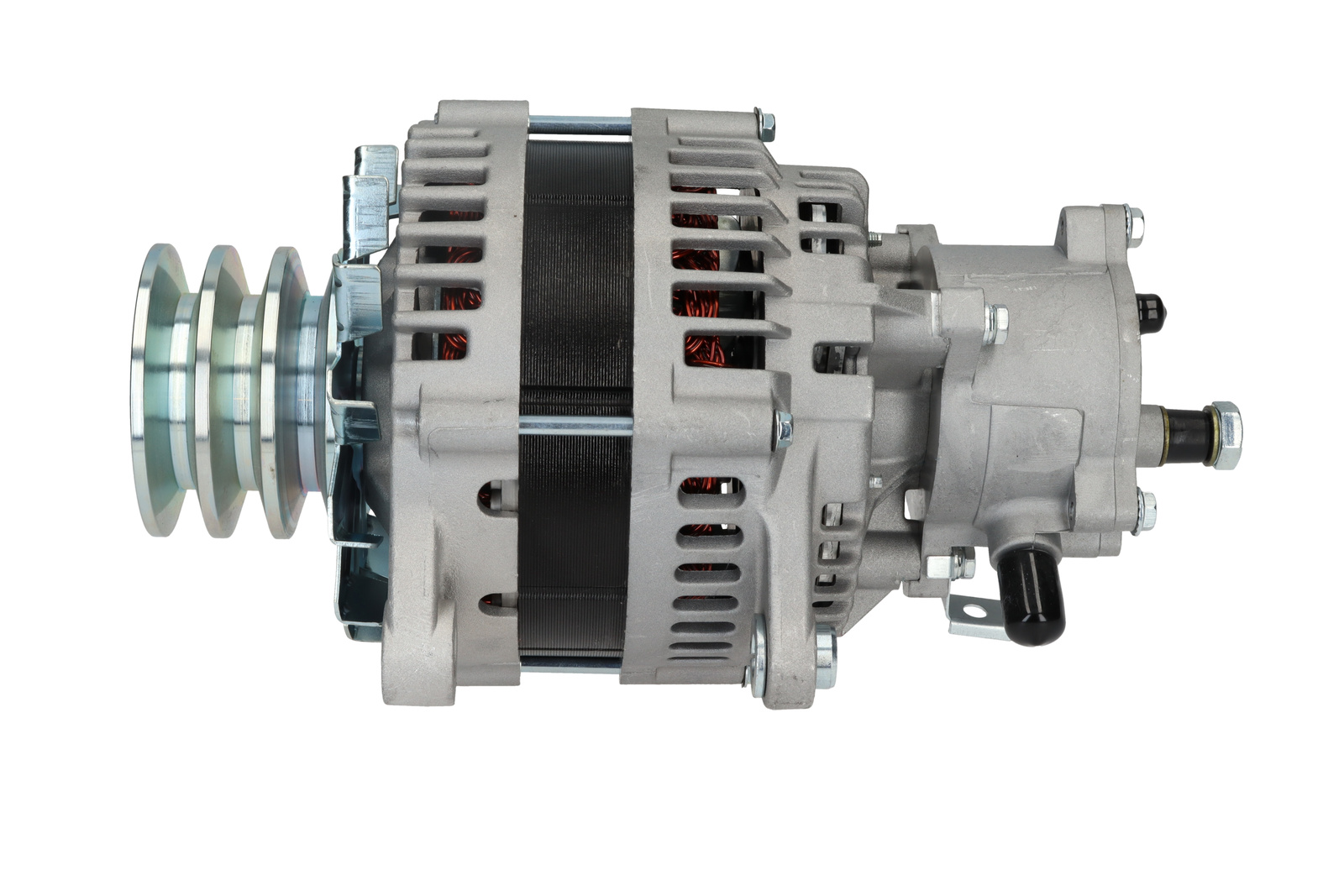

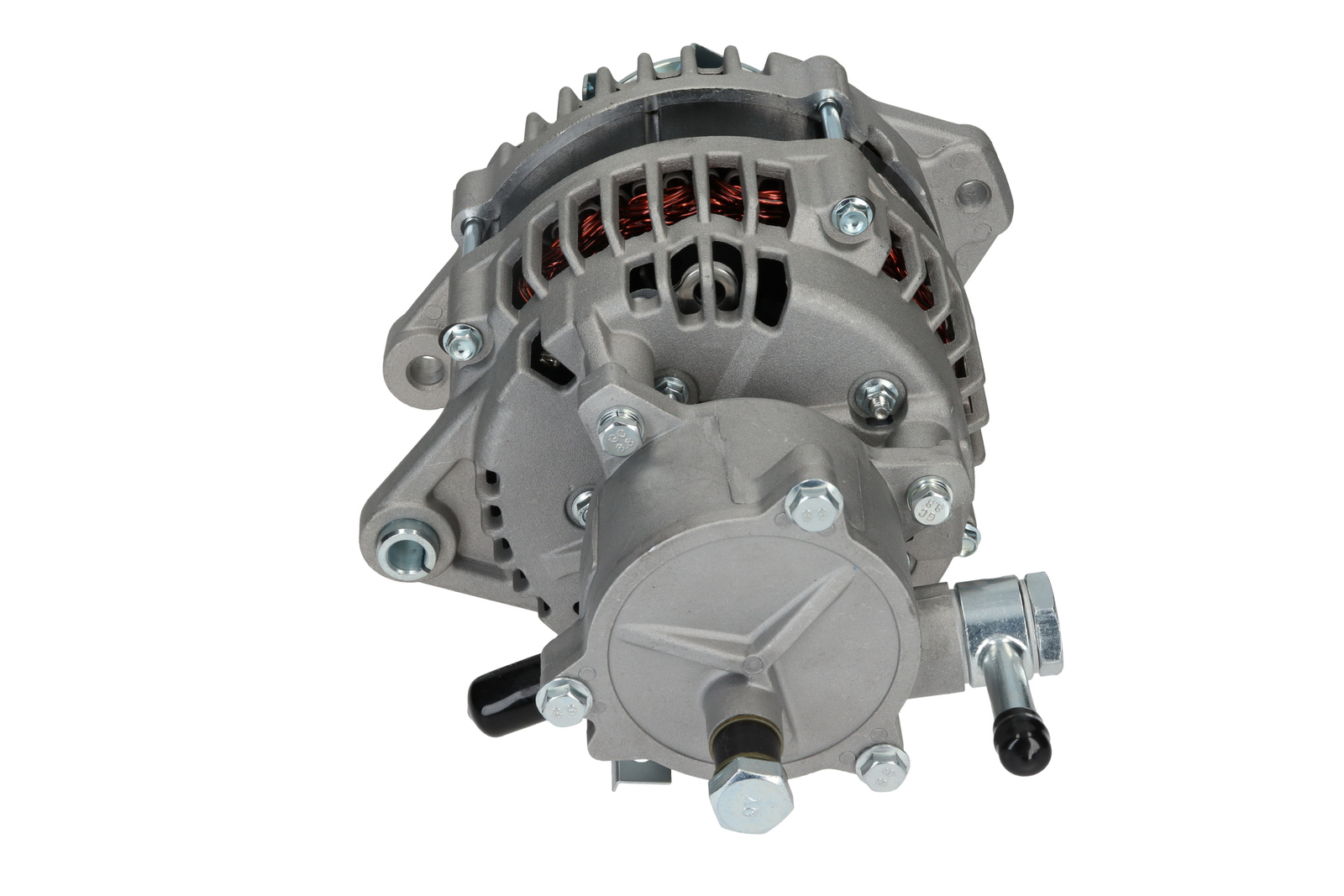

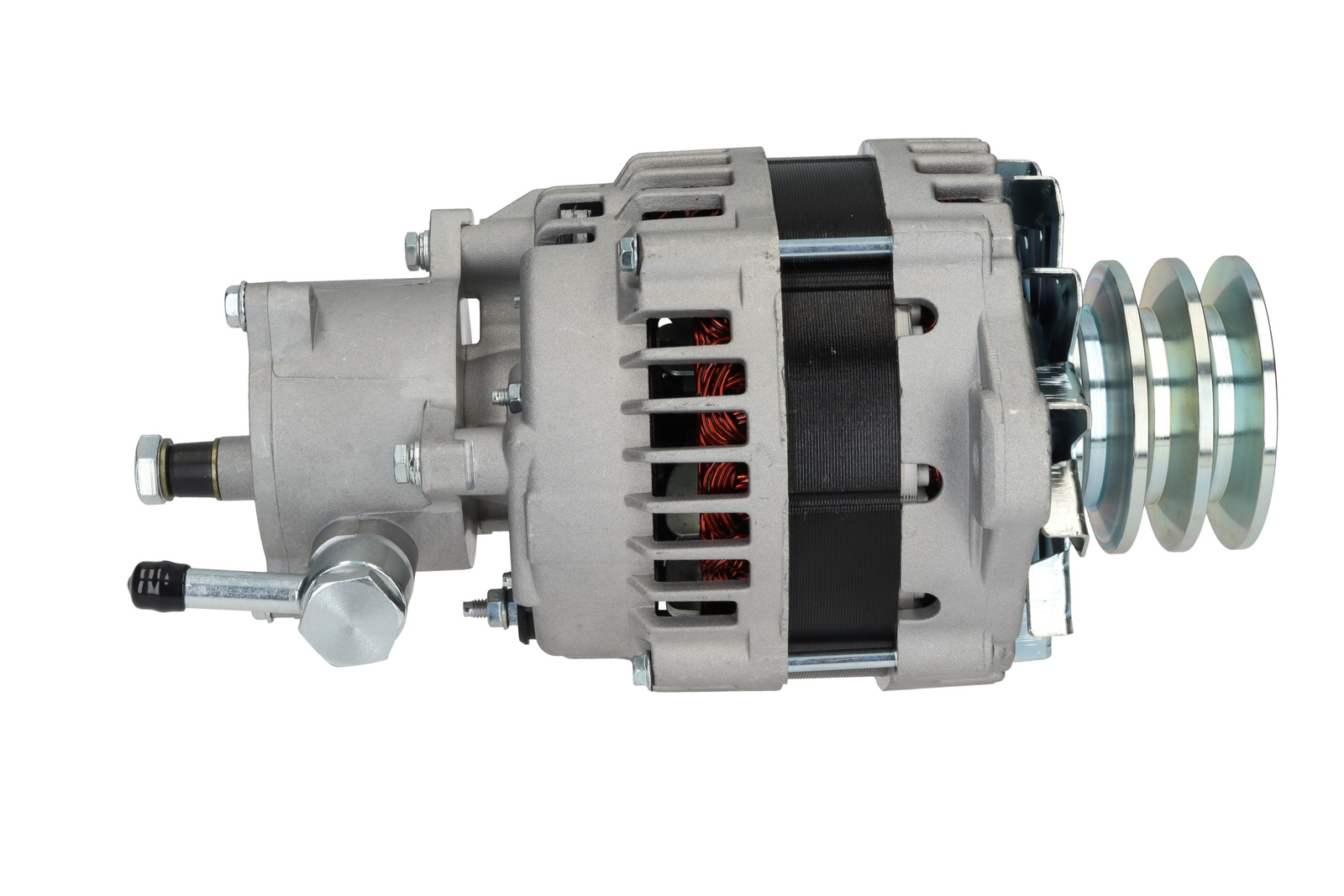

F032116531 - Alternator

Trade number 116531
Product image - main
Trade number 116531

Details & description

Voltage 28, Amp 80, Pulley Triple Pulley, Pulley Diameter 82.00, Bracket Hole Size Rear 10.20, Nipple Vaccum Pump Position 28, Pulley Distance 42.30, Vac. pump Yes, Mounting Bracket Distance 75.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.20, Grooves/pulley 3, Bracket Hole Size 1 10.20, Terminal type L-S, Vacumm Pump Position 5, D+ Size Plug, Holder Arm Width 18.00, B+ M6, Fan EF, Radius 2 84.00, Plug no. 1 PL07, Rotation CW, B+ Position 16, Belt Adjustment Bracket Hole Position 60, Total Length 302.00

Product information

Electrical information

  • Voltage28
  • Amp80

Catalogue information

  • Vac. pumpYes

Physical information

  • PulleyTriple Pulley
  • Pulley Diameter82.00
  • Bracket Hole Size Rear10.20
  • Nipple Vaccum Pump Position28
  • Pulley Distance42.30
  • Mounting Bracket Distance75.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.20
  • Grooves/pulley3
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 8972489141ISUZU
    • 8973515740ISUZU

    Competitor References

    • A2046AUTOSTARTER POLAND
    • A2055AUTOSTARTER POLAND
    • CAL20608CASCO SRL
    • CAL2068CASCO SRL
    • 136804080CV PSH
    • 113204FACROM
    • 116531HC-CARGO
    • LR280508HITACHIBOM
    • LR280506HITACHIBOM
  • Compatible products
