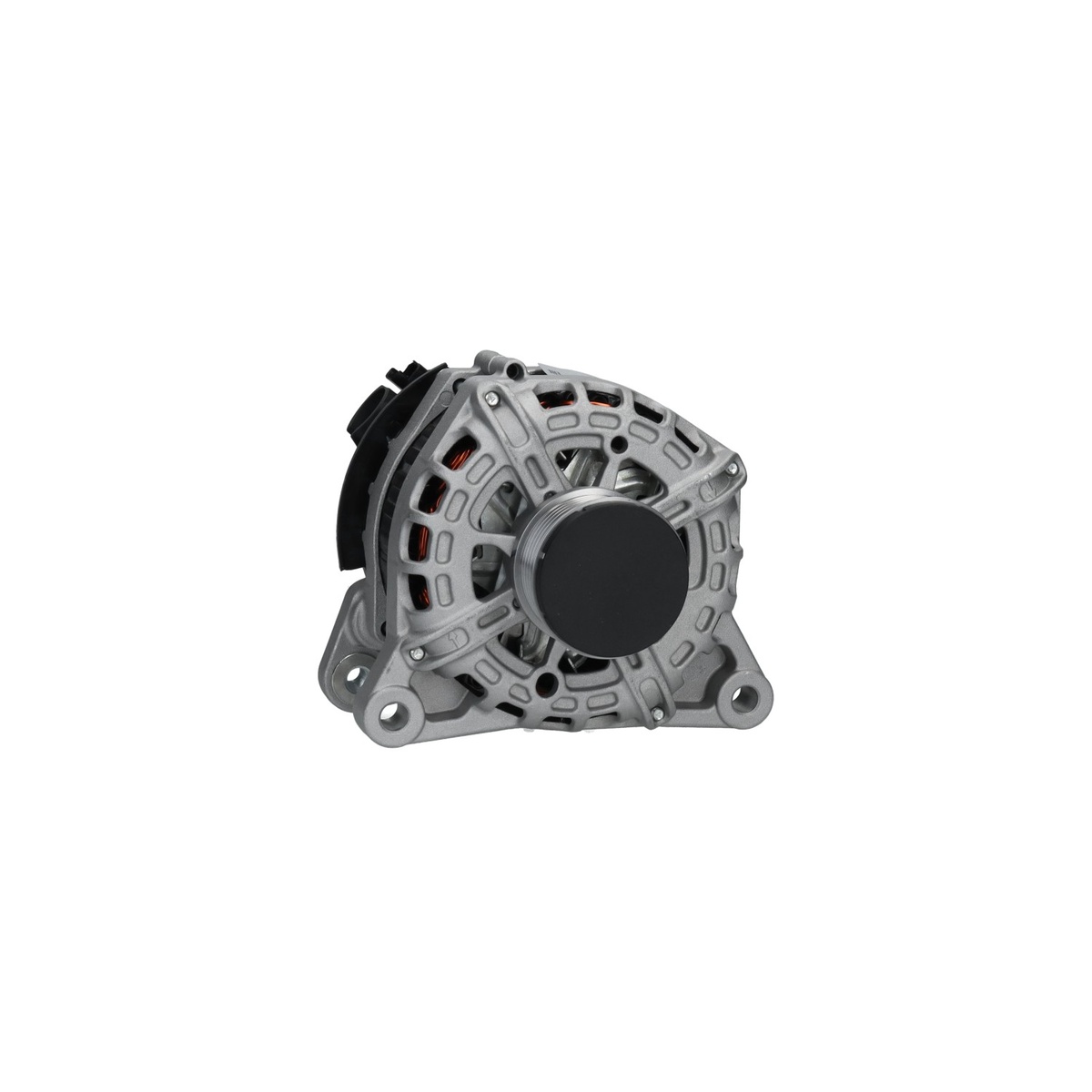

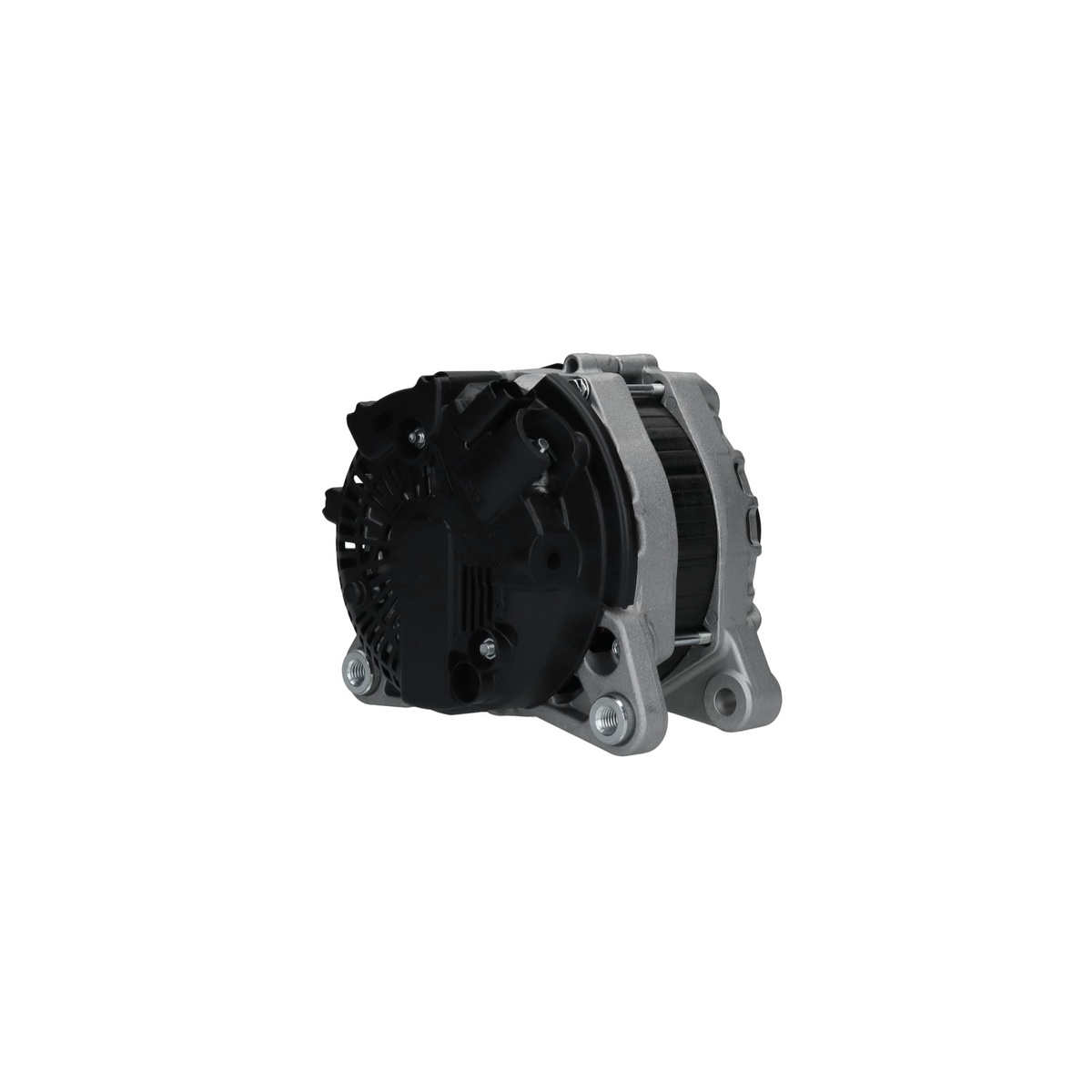

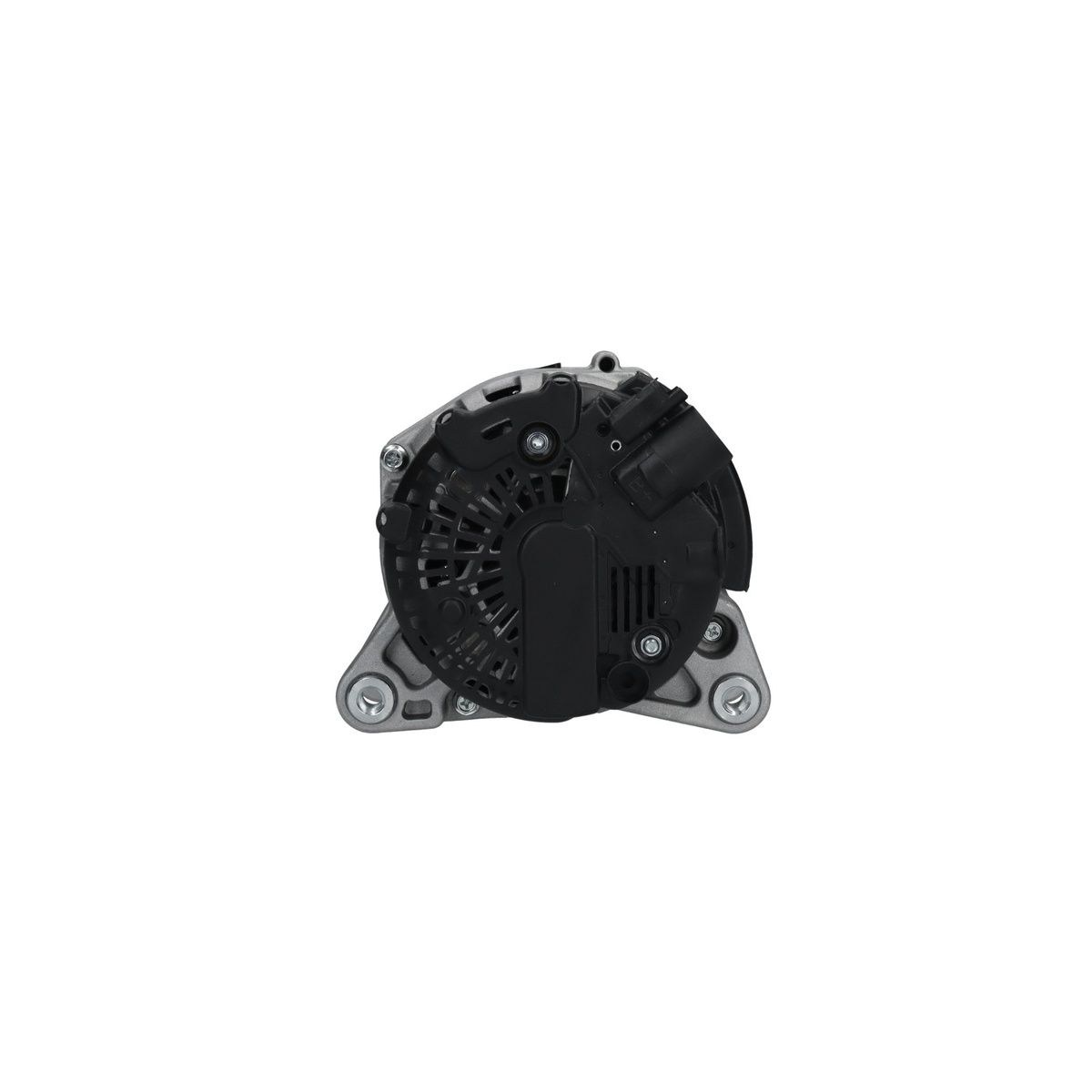

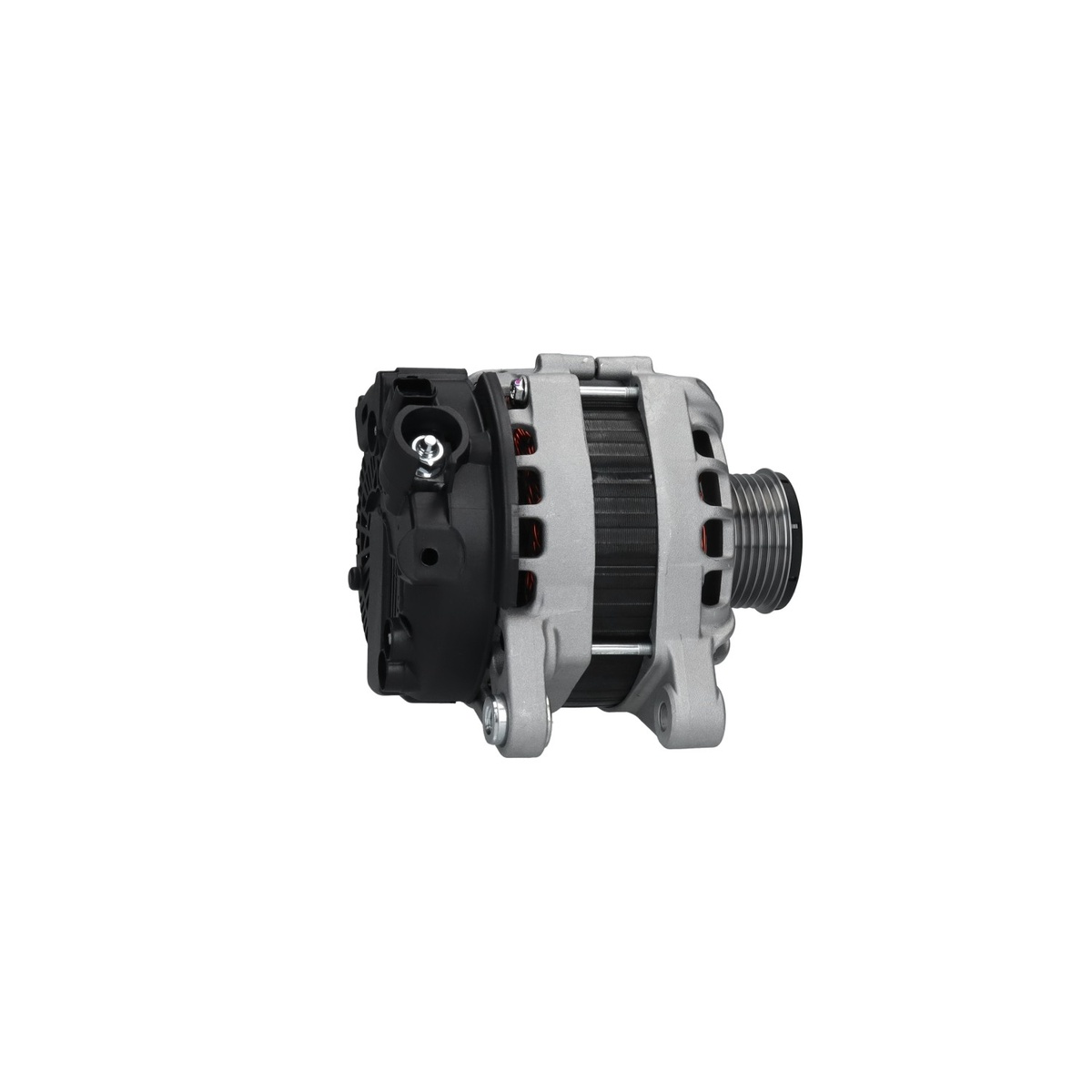

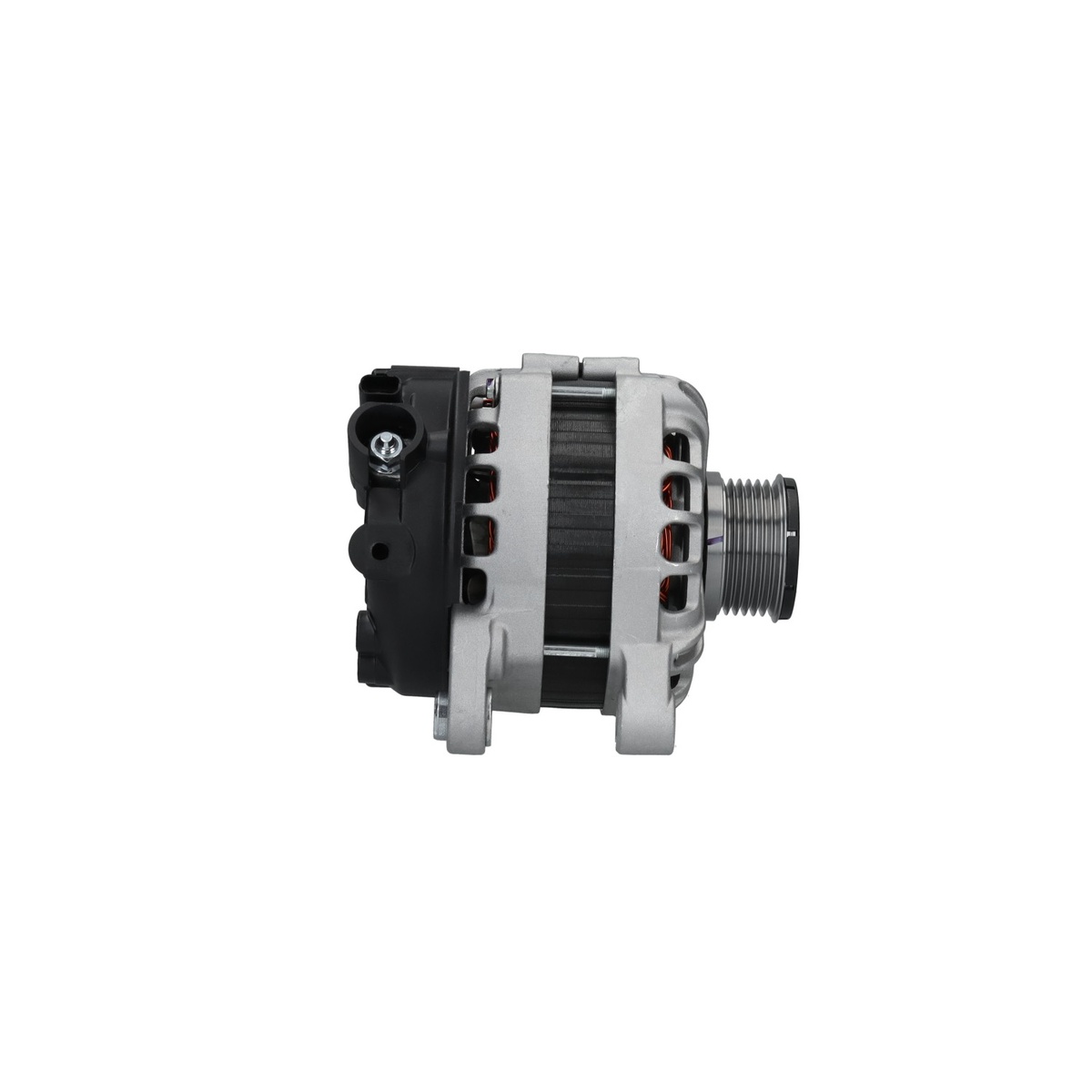

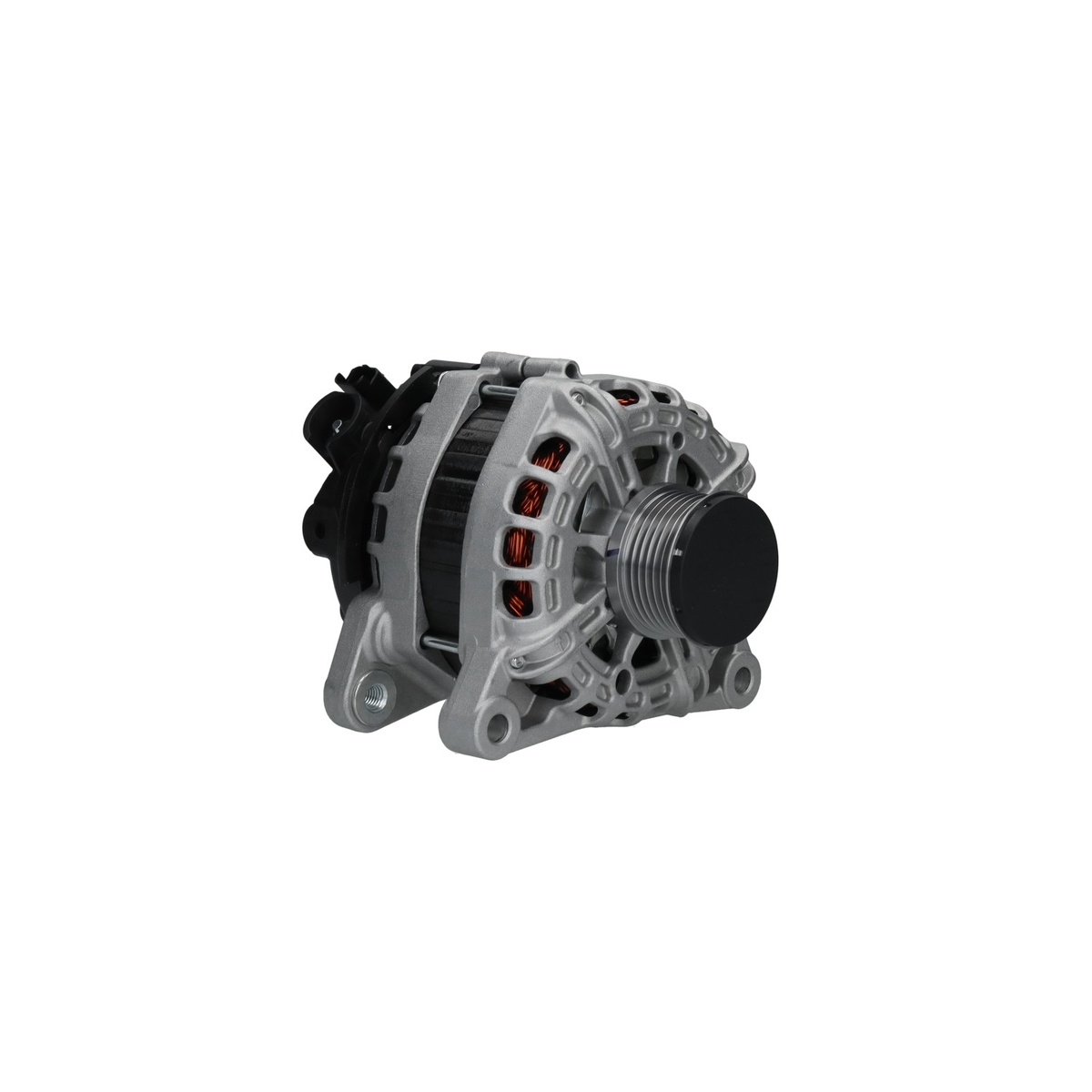

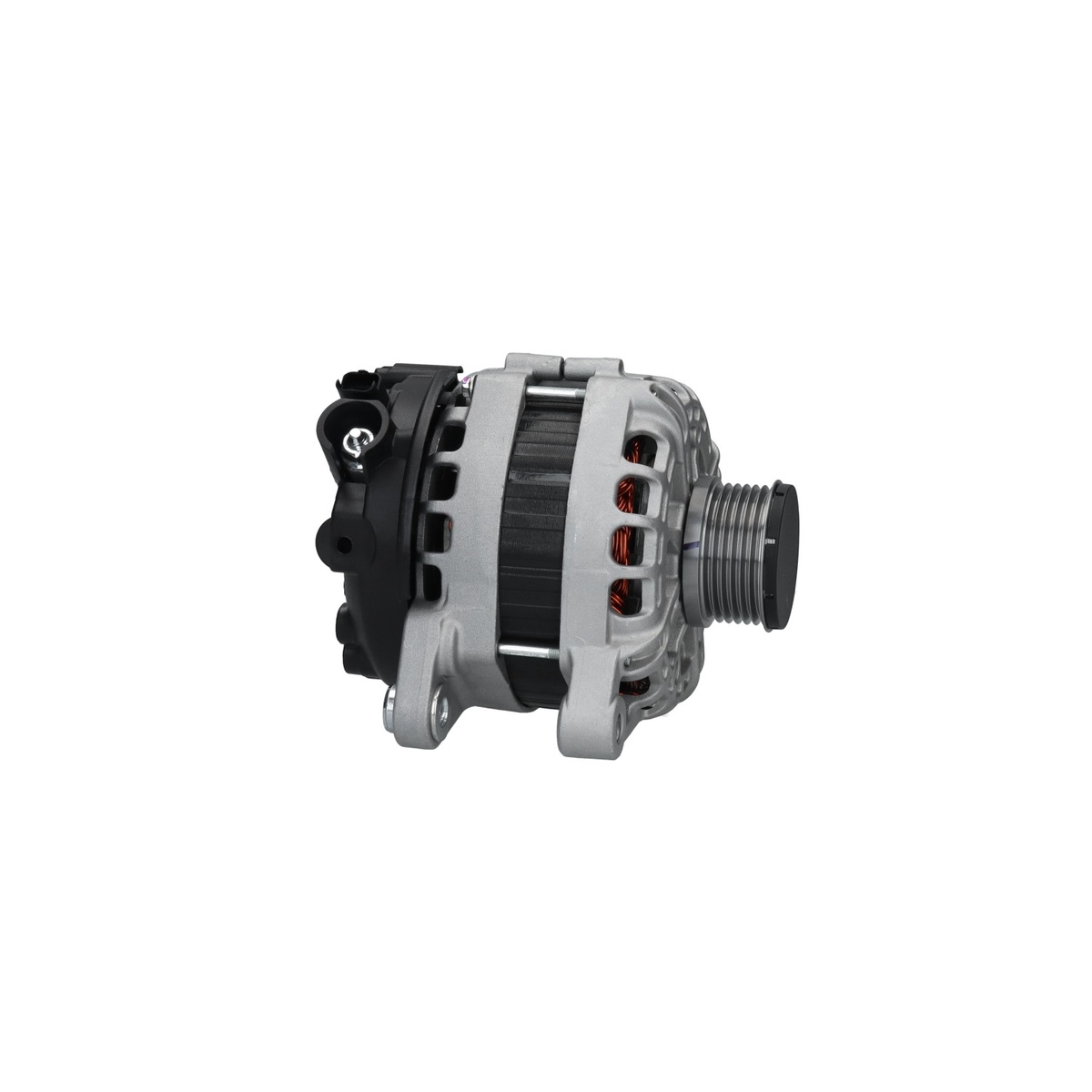

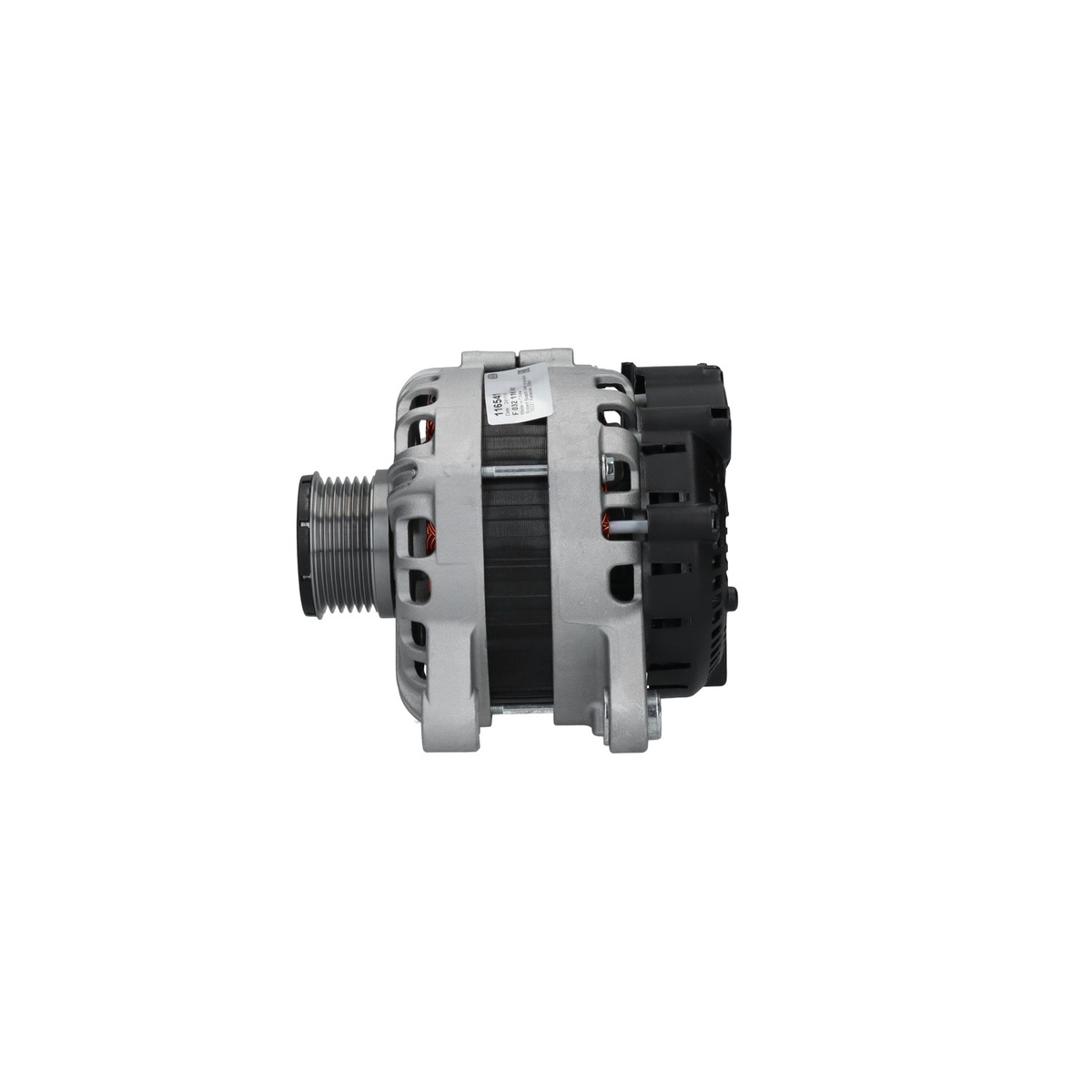

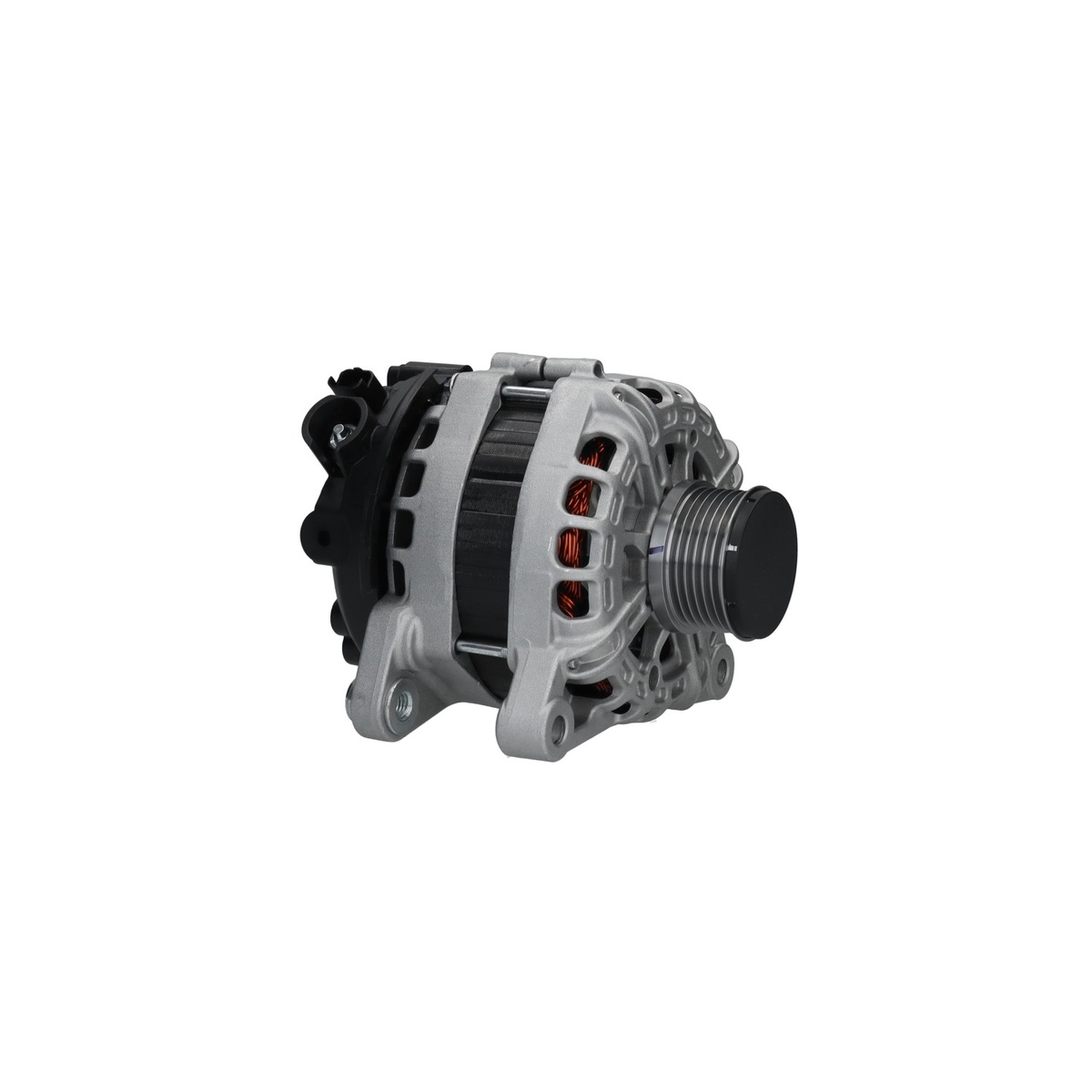

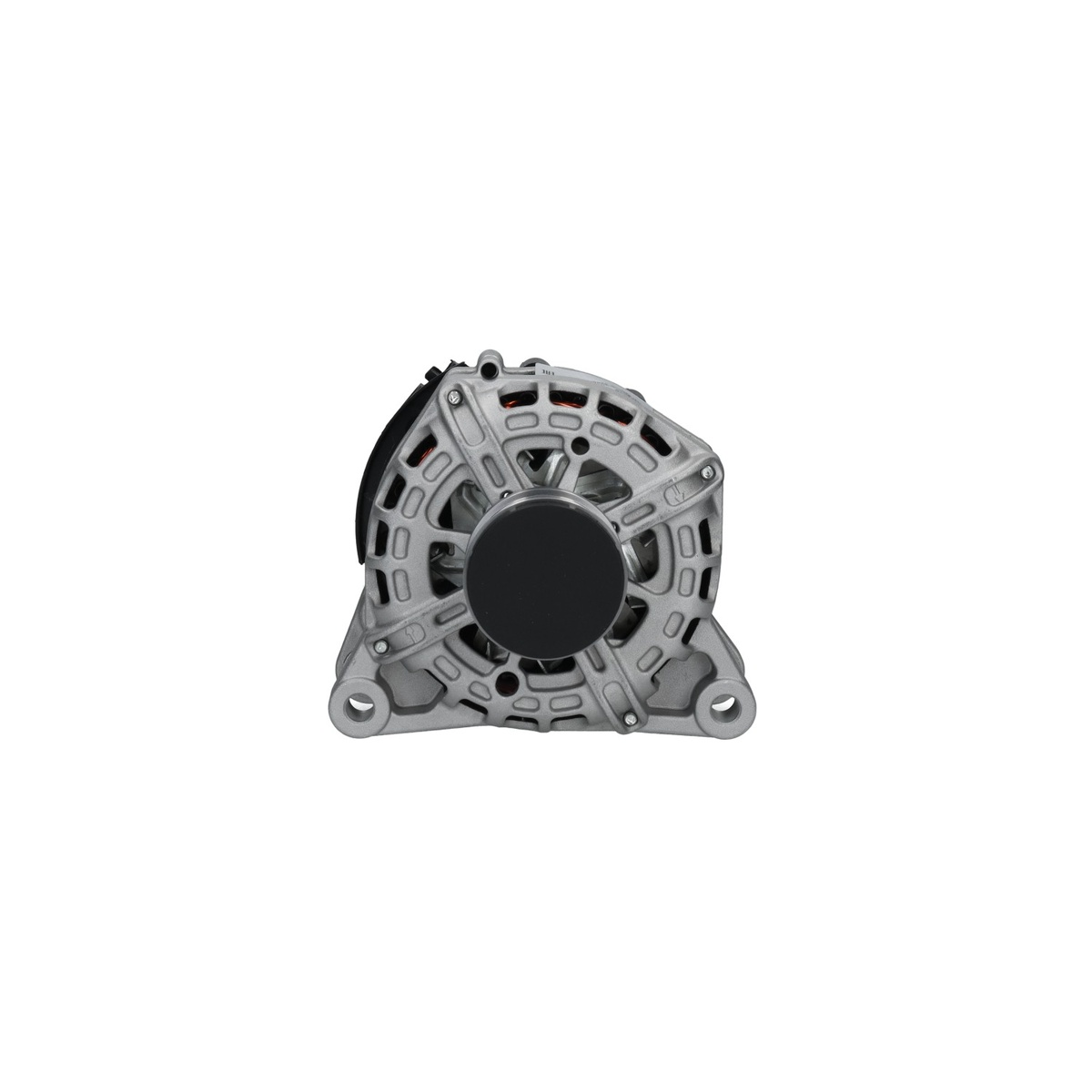

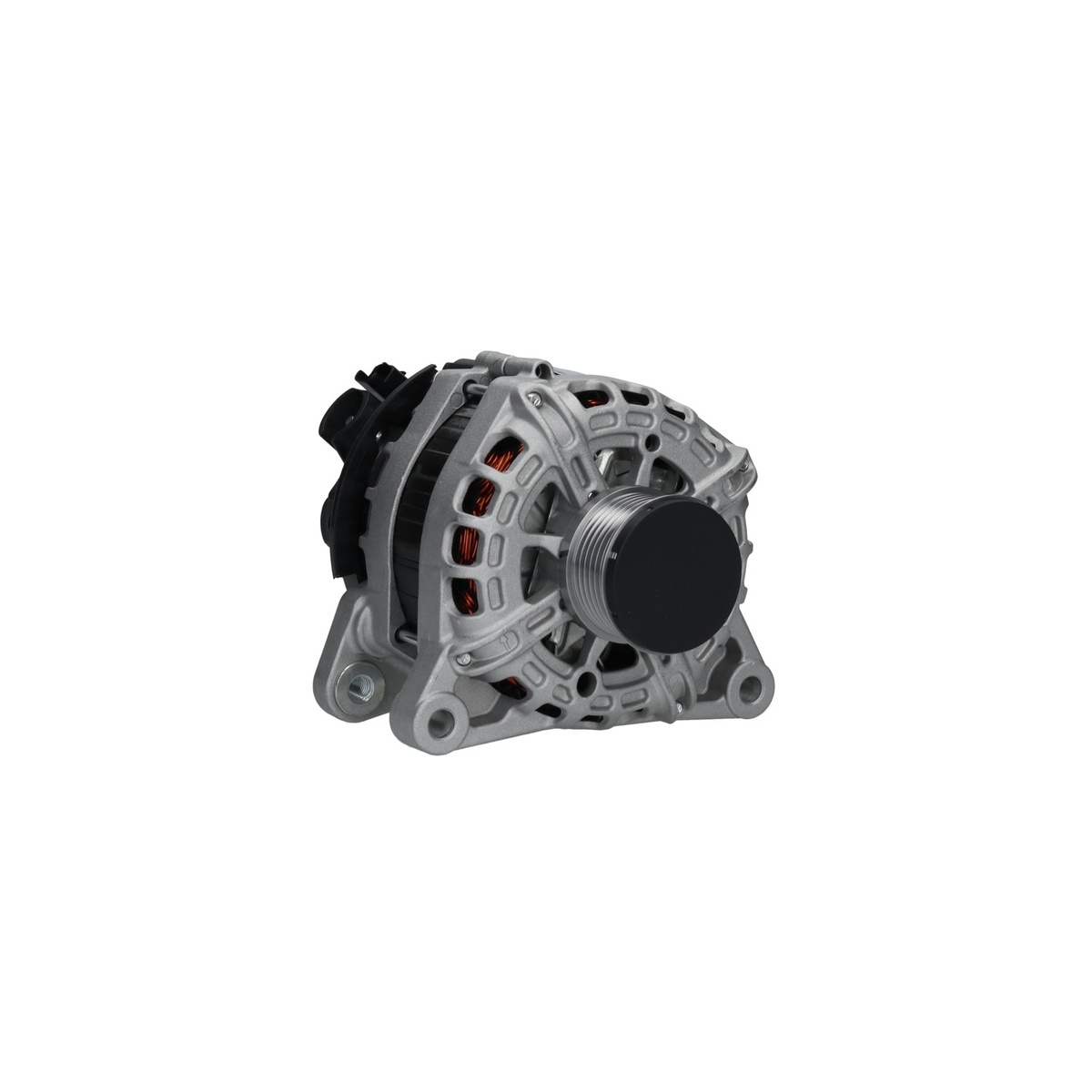

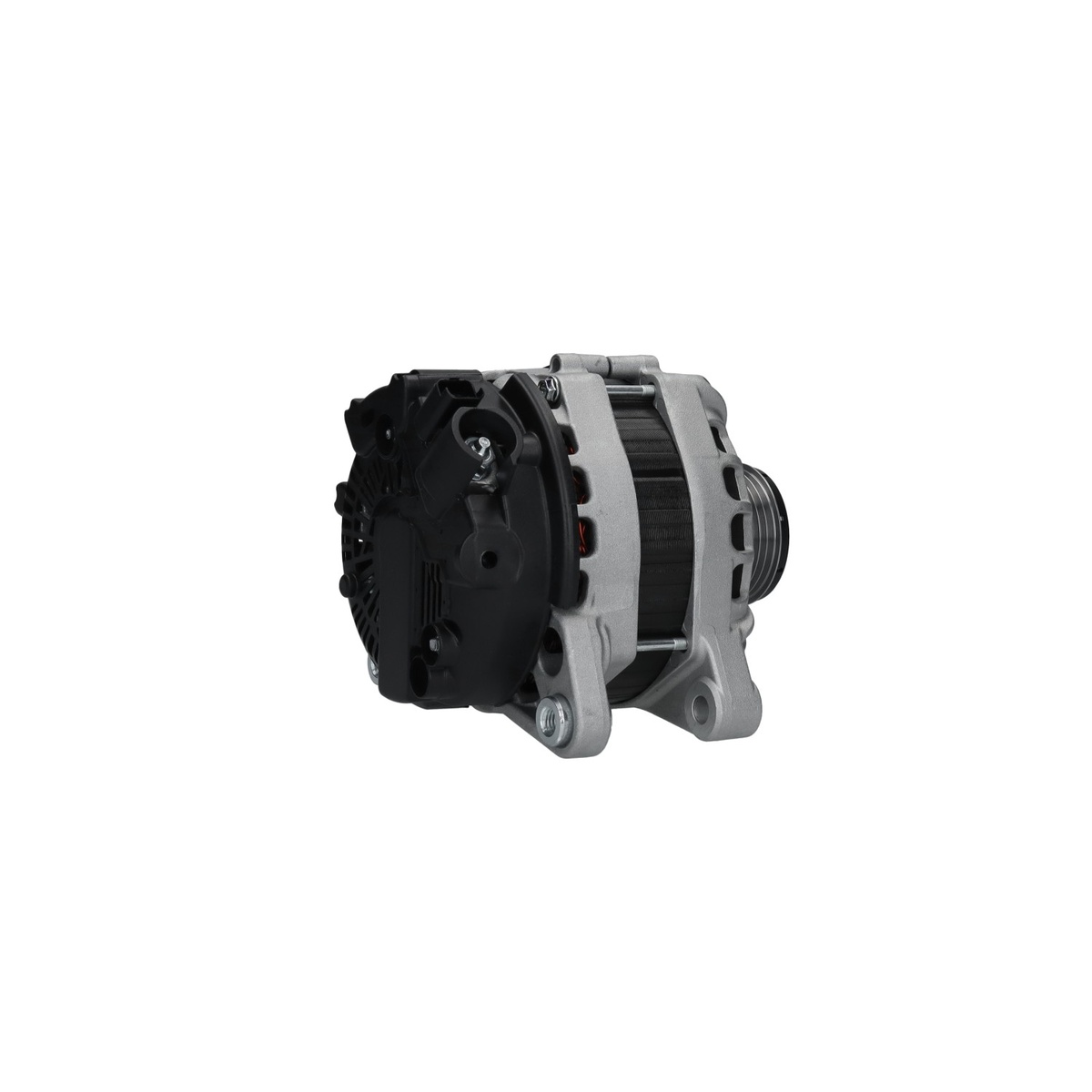

F032116541 - Alternator

Trade number 116541
Trade number 116541

Details & description

Voltage 14, Amp 120, Communication LIN, Pulley SP/FW, Pulley Diameter 54.30, Bracket Hole Size Rear M10, Pulley Distance 42.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 46.00, Radius 90.00, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 21.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL132, Rotation CW, B+ Position 60, Belt Adjustment Bracket Hole Position 47, Total Length 173.00

Product information

Electrical information

  • Voltage14
  • Amp120

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter54.30
  • Bracket Hole Size RearM10
  • Pulley Distance42.00
  • Mounting Bracket Distance46.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 110.50
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 3648696OPEL
    • 9809391880PEUGEOT

    Competitor References

    • 555266RIVAD KÜHNER
    • A3455SAUTOSTARTER POLAND
    • A3472VALEOAUTOSTARTER POLAND
    • 0986086910BOSCH
    • 225582120CV PSH
    • 288580ELSTOCK
    • 116541HC-CARGO
    • LRA04471LUCAS
    • 2625767AVALEO
