- Catalogue
- F032116547 - Alternator

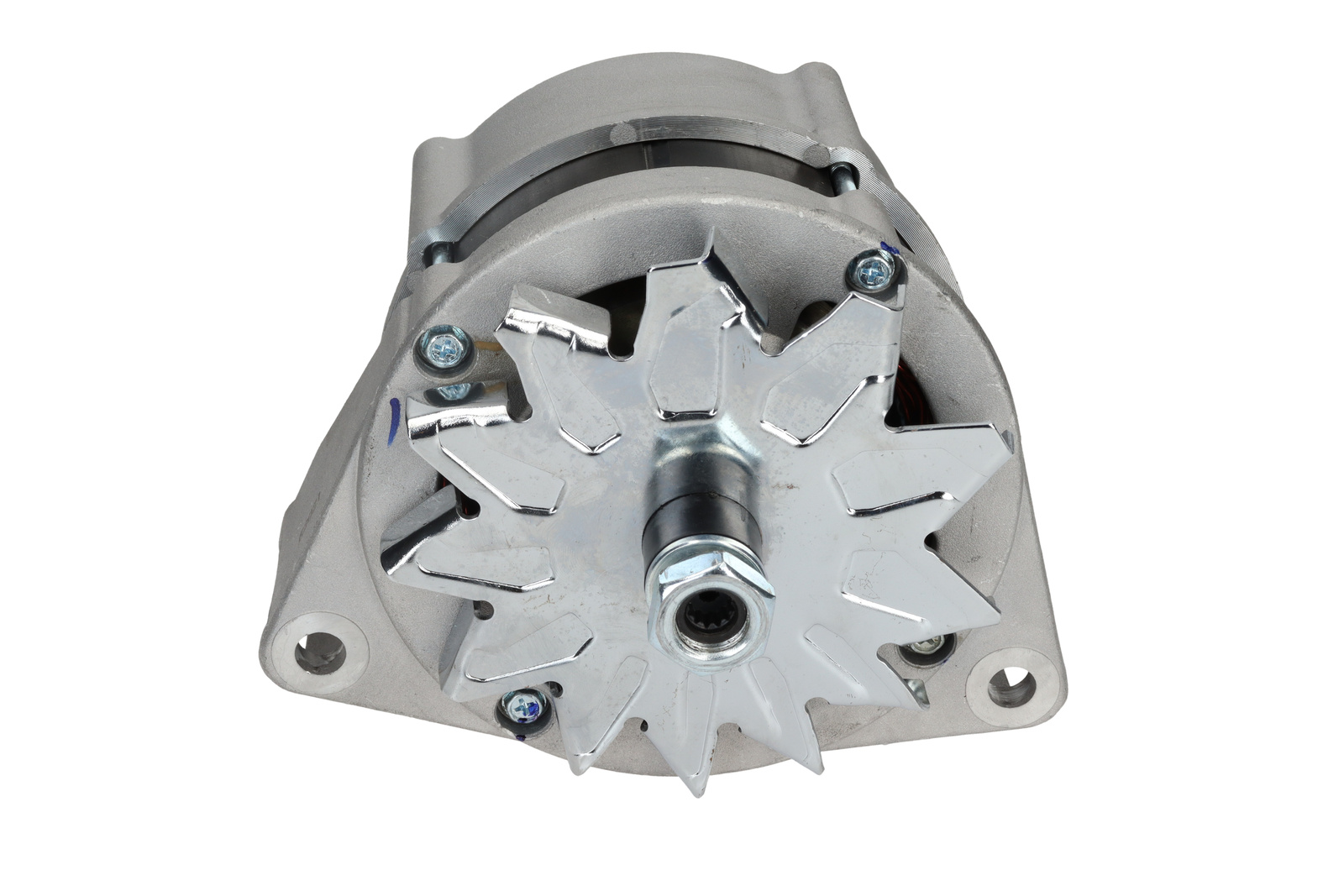

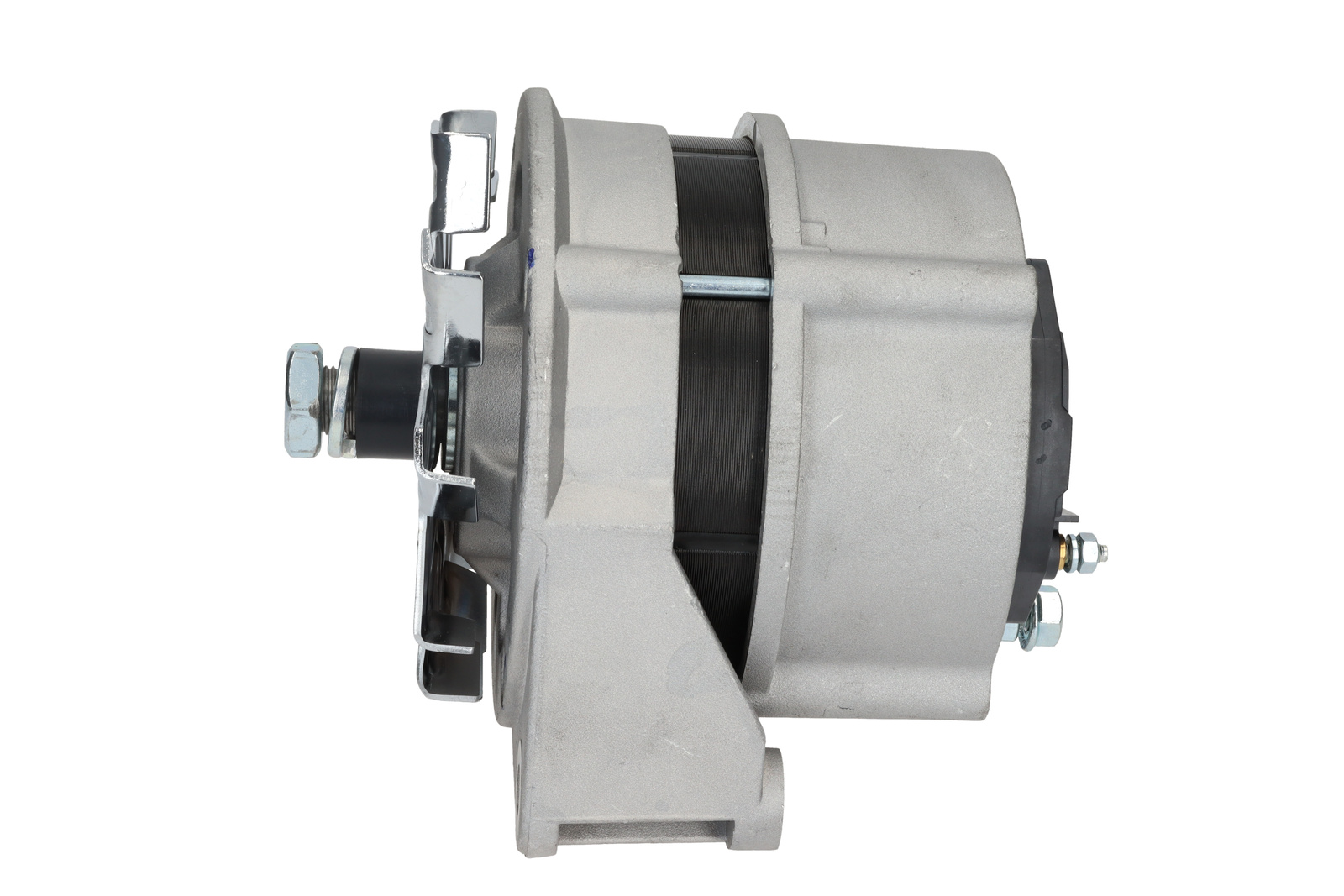

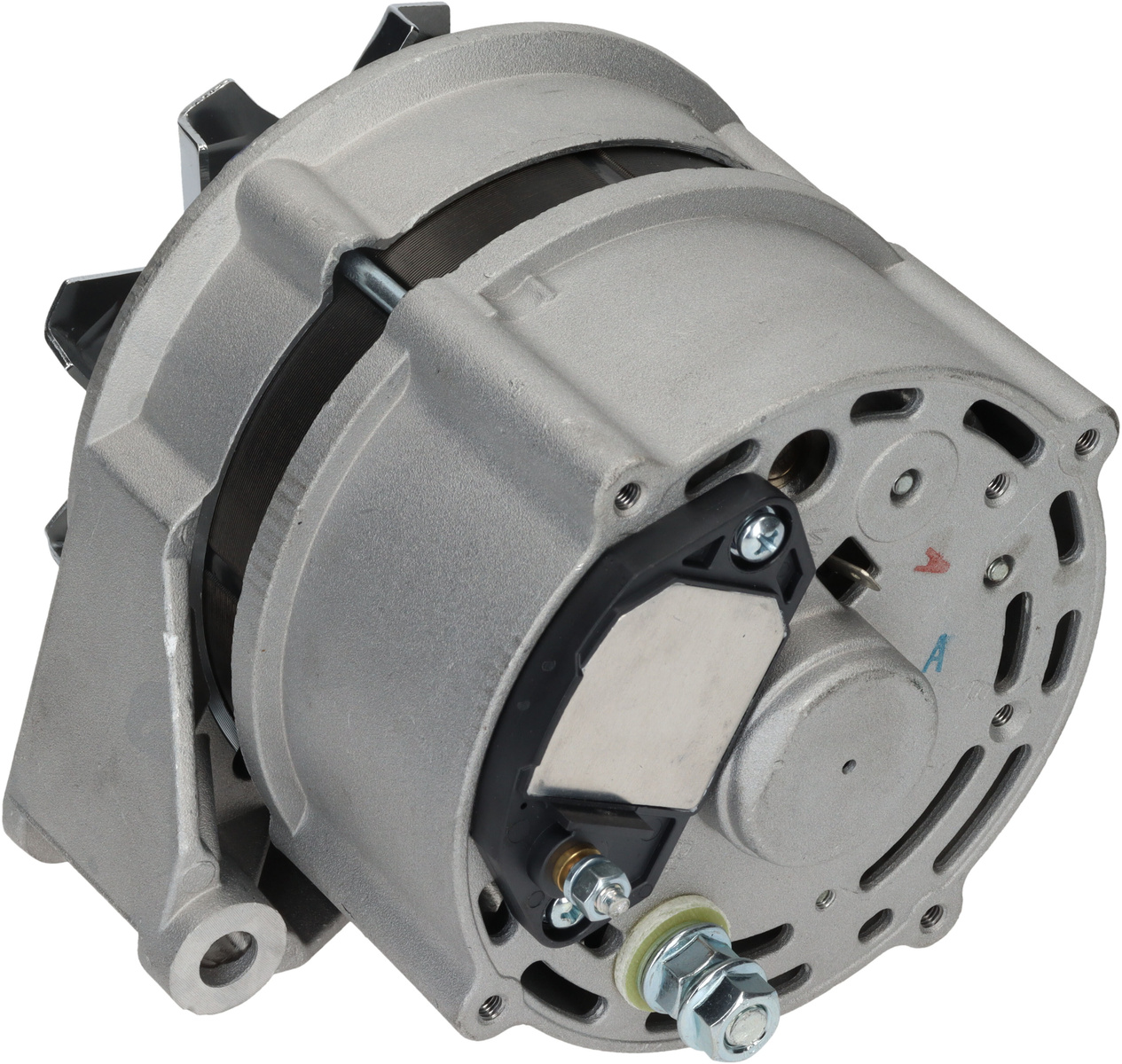

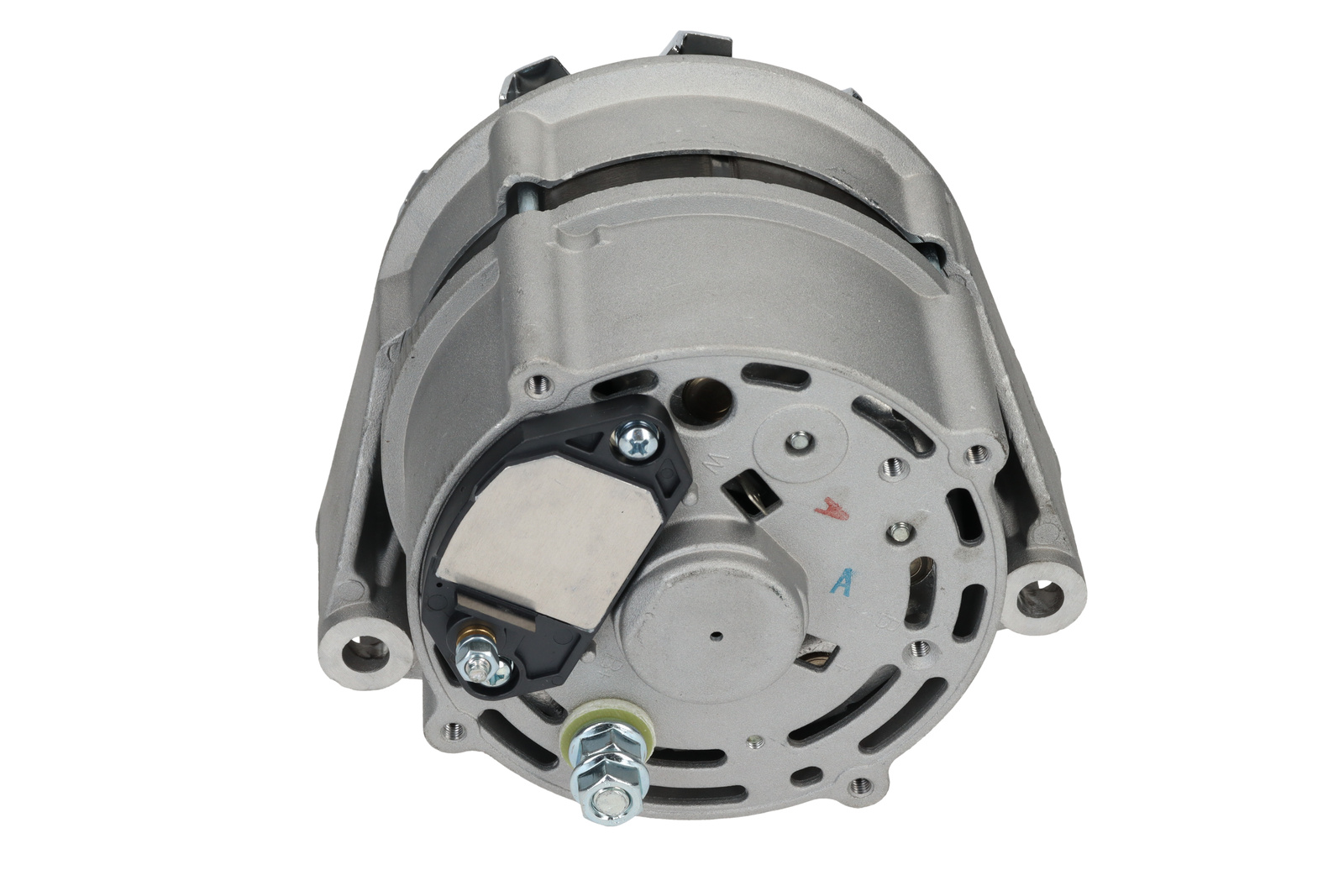

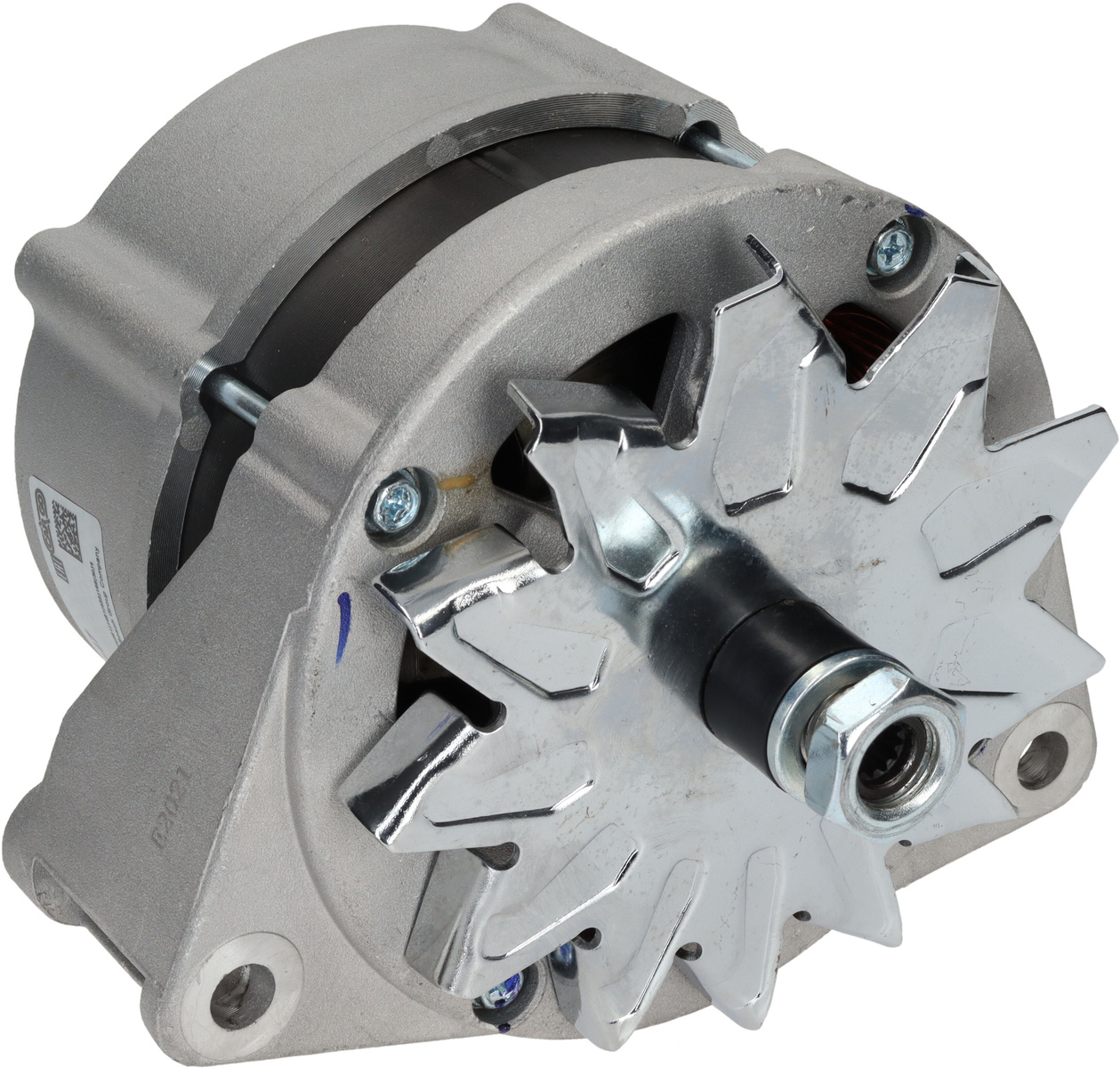

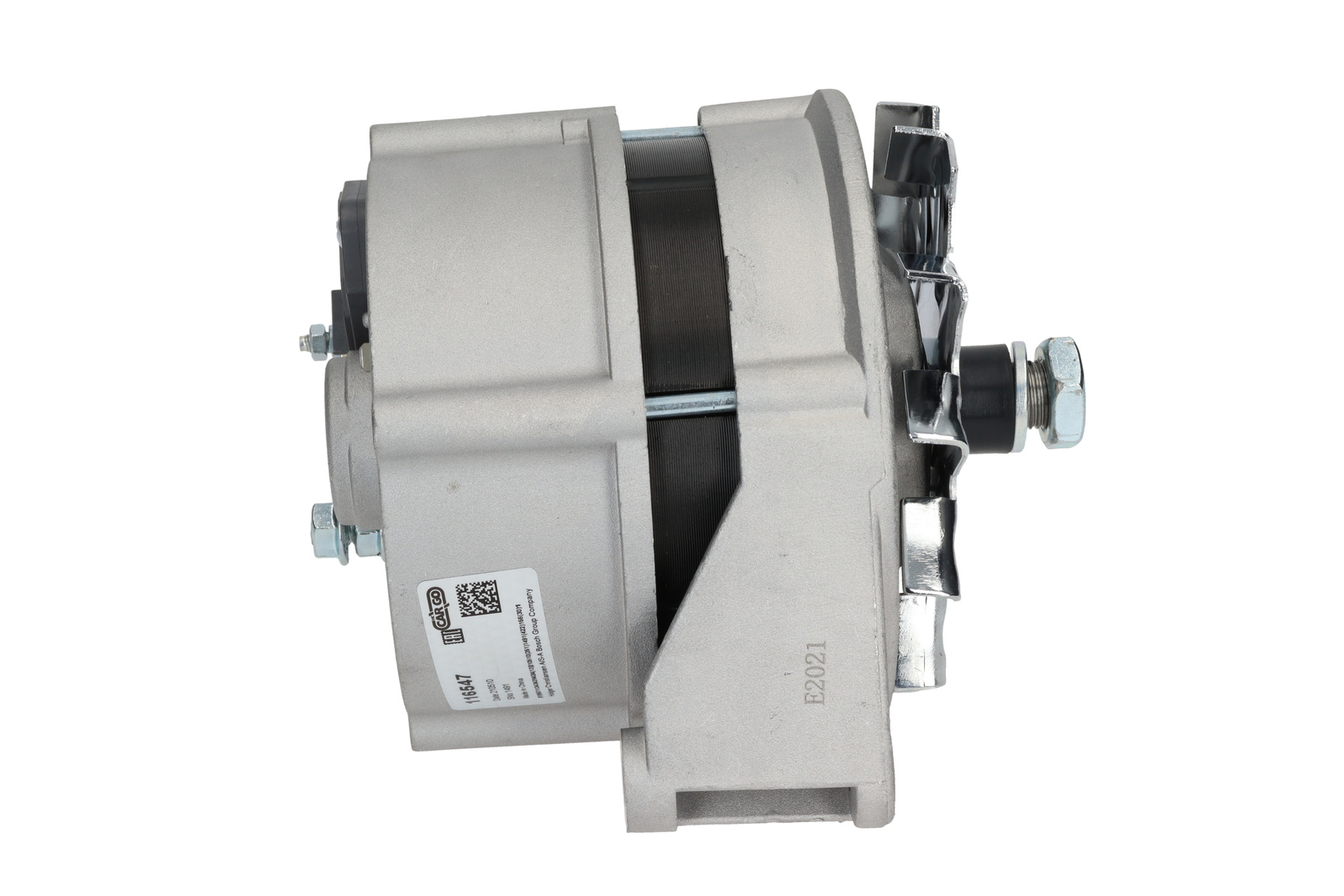

F032116547 - Alternator
Trade number 116547
Replacing and BOMs
OEM number
- 3972863M1AGCO (DEUTZ-ALLIS)
- 01183887DEUTZ-FAHR
- 01183868KHD
- 04123607KHD
- 04124784KHD
- 1183868KHD
- 4123607KHD
- 4124784KHD
Competitor References
- A9253LETRIKAAUTOSTARTER POLAND
- CAL21171CASCO SRL
- 515005120CV PSH
- 287915ELSTOCK
- 116547HC-CARGO
- 8EL015643521HELLA
- 11204137ISKRA
- 11204717ISKRA
- 11204779ISKRA
Trade number 116547
Details & description
Voltage 14, Amp 120, Pulley w/o, W plug type 6.30, Bracket Hole Size 1 10.30, Lamp type Active, D+ Size M5, D+ Position 55, Holder Arm Width 56.00, B+ M8, Fan EF, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.30, Regulator type IR, B+ Position 45, Belt Adjustment Bracket Hole Position 10, Total Length 175.00
Product information
Electrical information
- Voltage14
- Amp120
Physical information
- Pulleyw/o
- W plug type6.30
- Bracket Hole Size 110.30
- Lamp typeActive
- D+ SizeM5
- D+ Position55
- Holder Arm Width56.00
- B+M8
- FanEF
