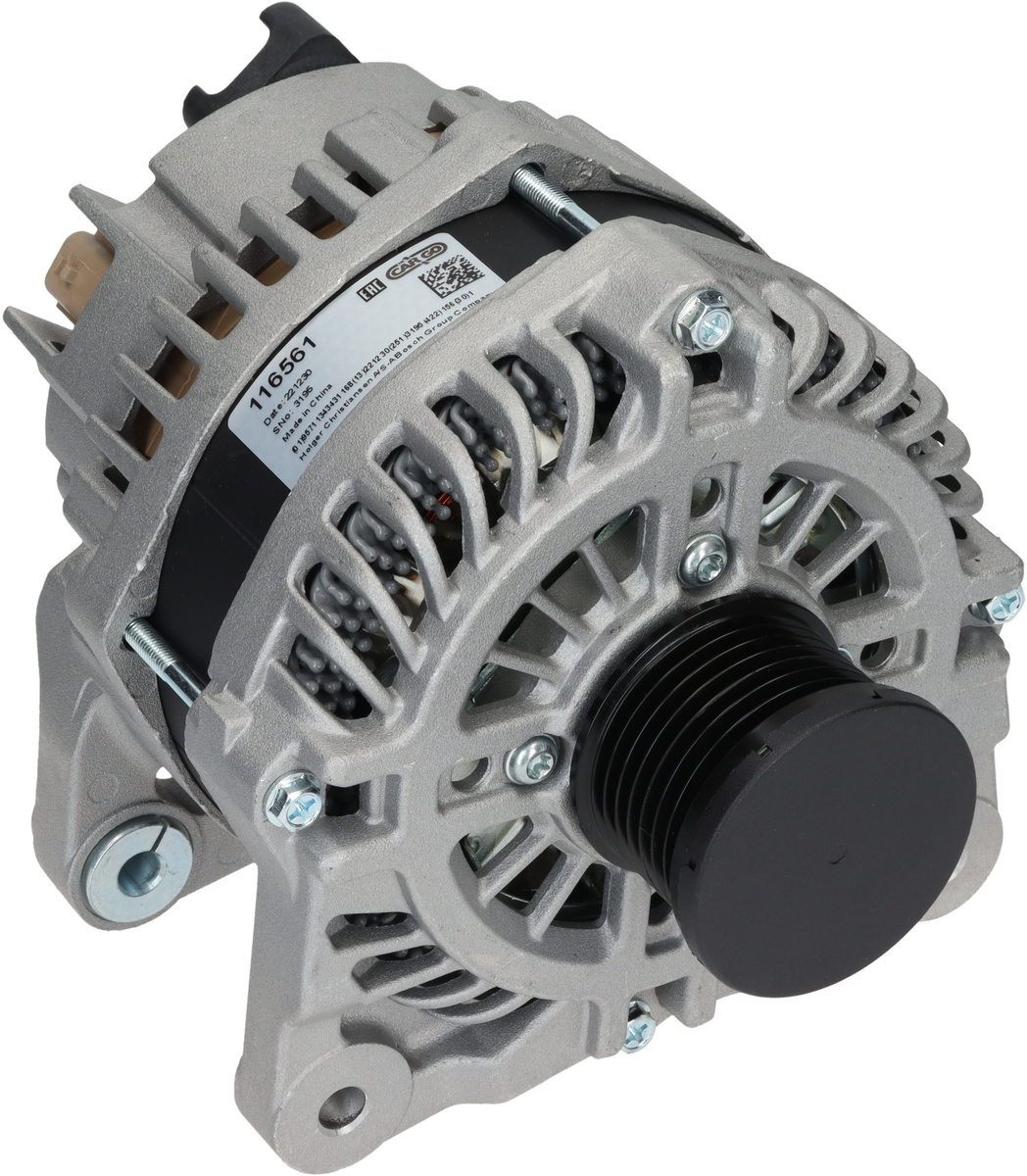

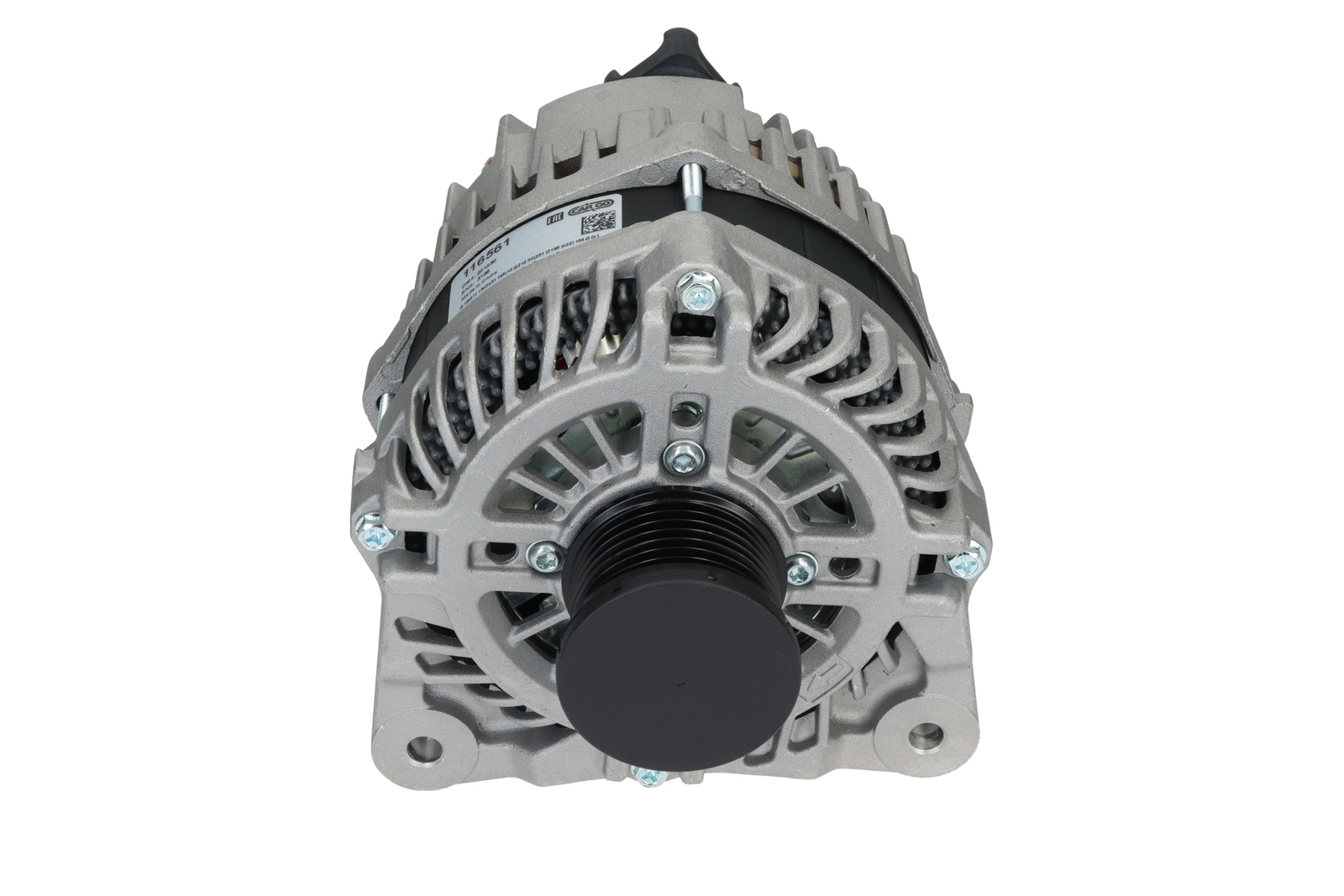

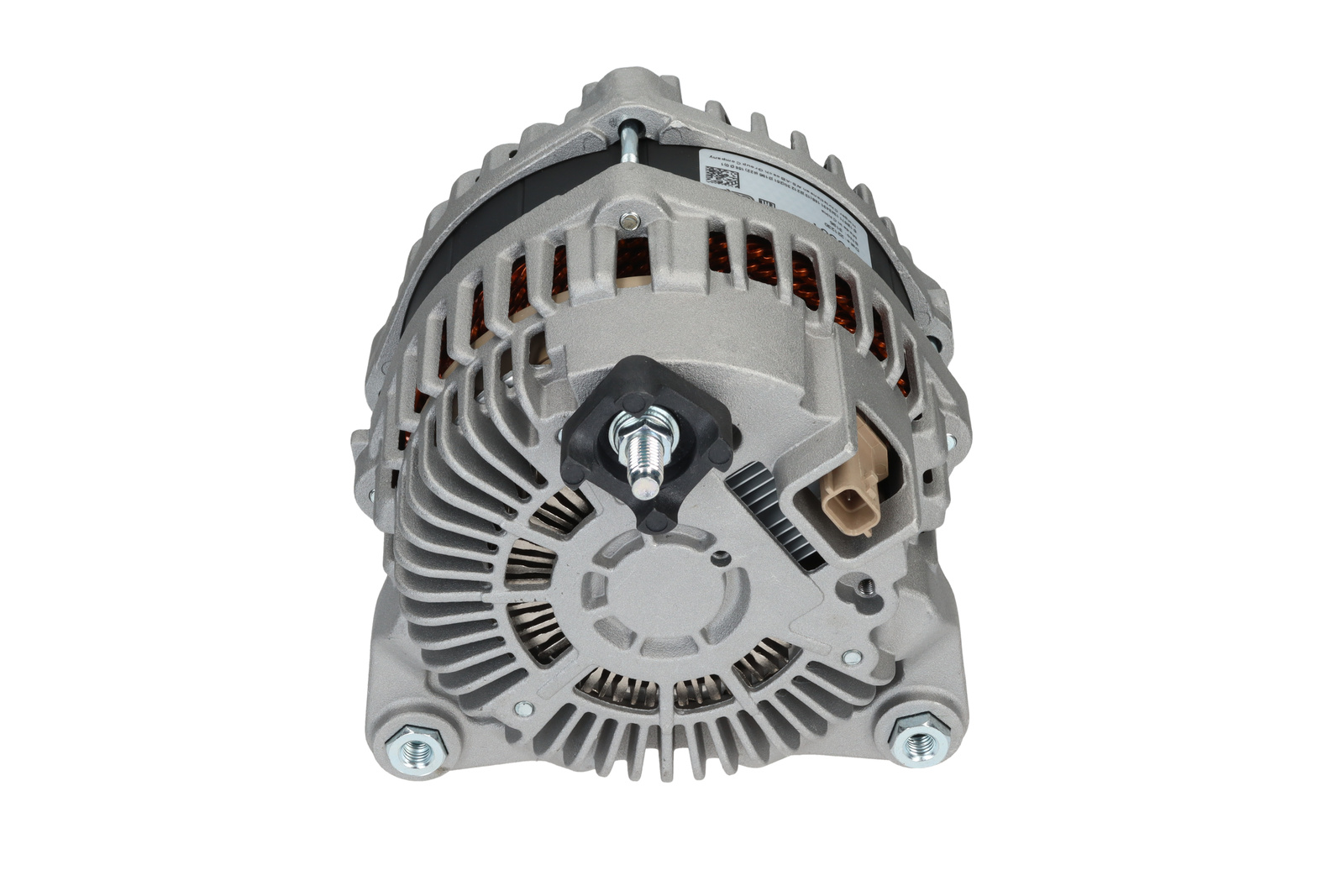

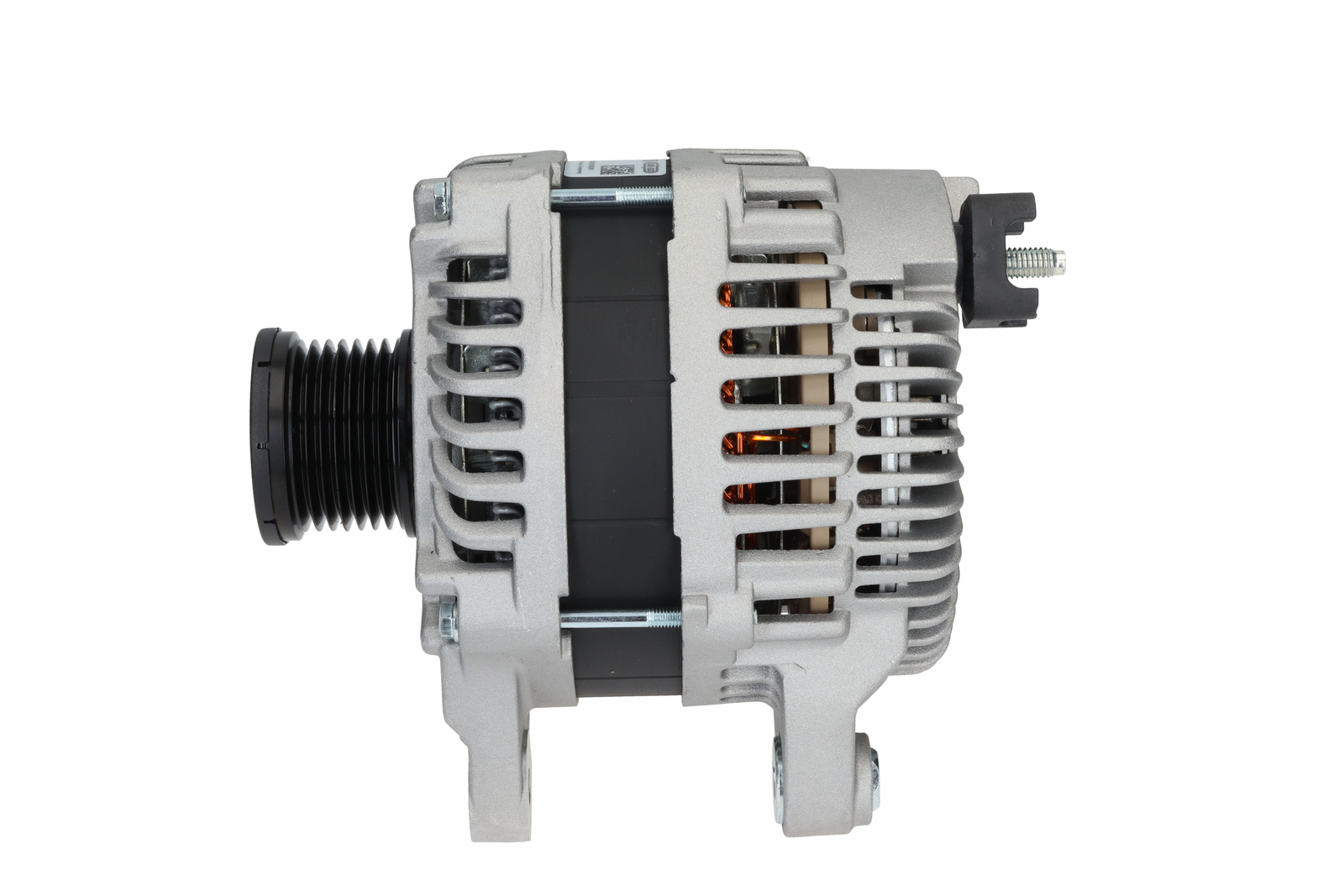

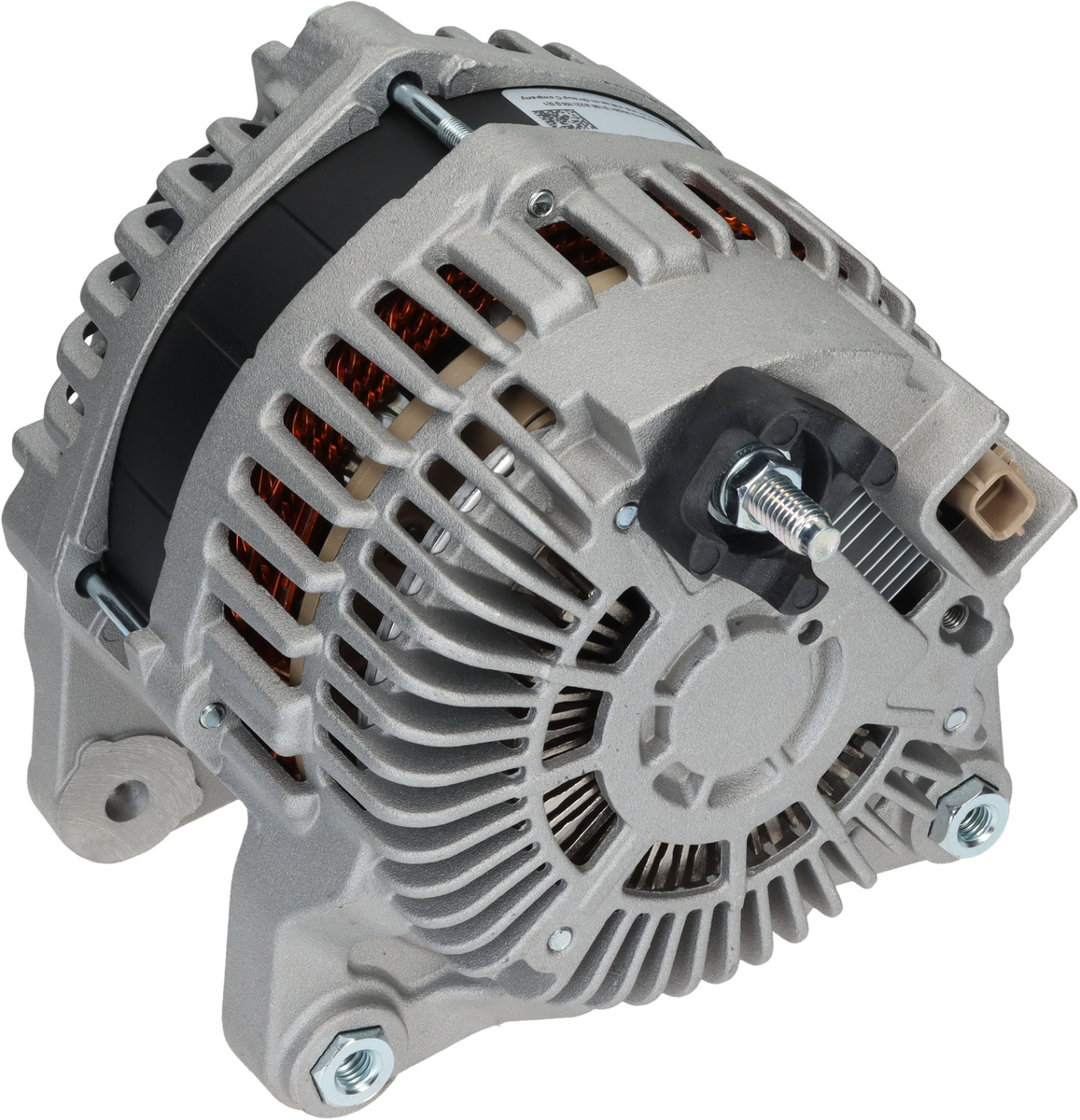

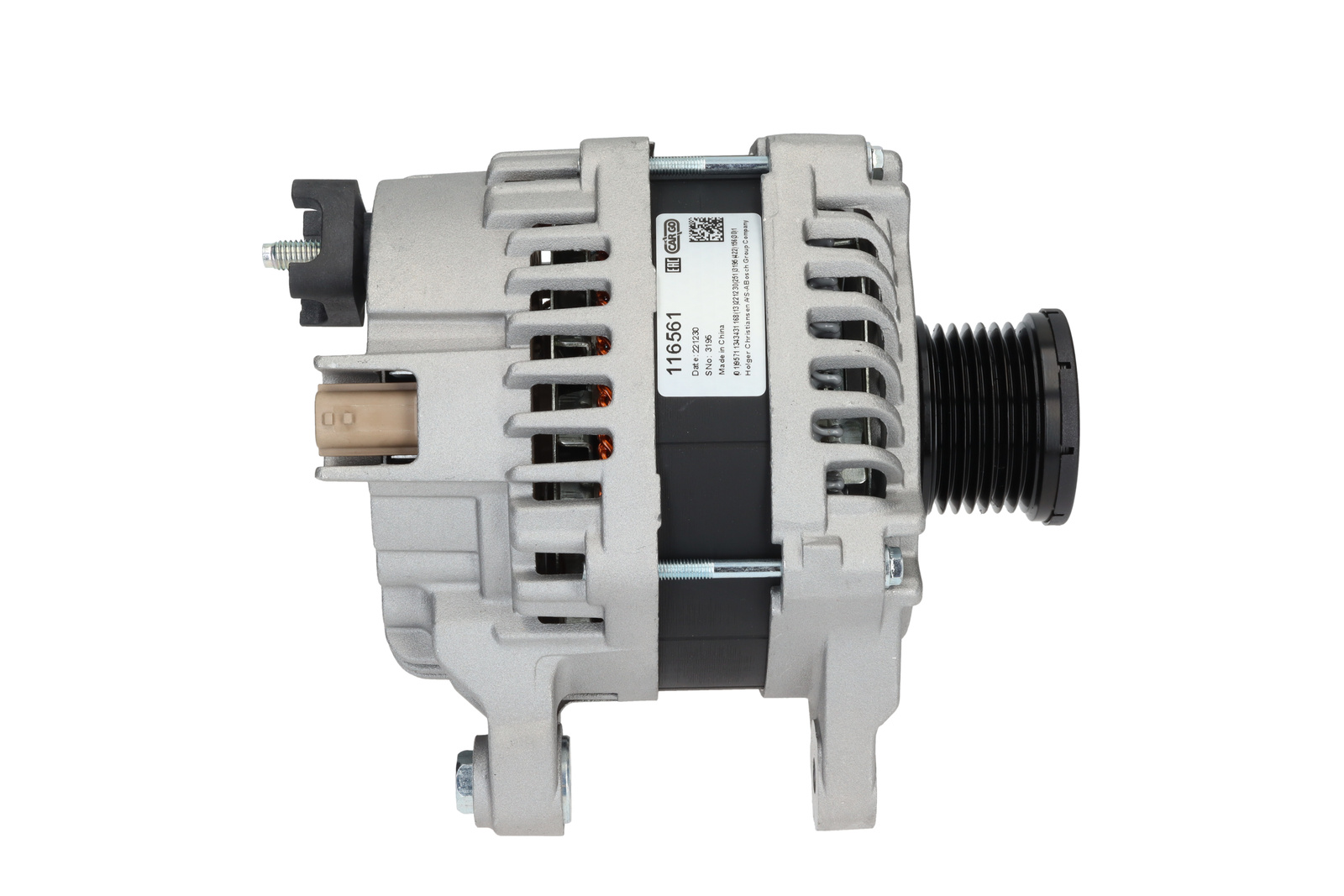

F032116561 - Alternator
Trade number 116561
Replacing and BOMs
OEM number
- 6000616552FIAT
- K6000616552FIAT
- K6000620578FIAT
- 6000620578FIAT
- A003TX1781MITSUBISHI
- A003TX2581MITSUBISHI
Competitor References
- DRA1475AC DELCO
- 554283RIAD KÜHNER
- A5412SAUTOSTARTER POLAND
- 0986085200BOSCH
- 1986A00570BOSCH
- 1986A00688BOSCH
- CAL35382CASCO SRL
- 4493CEVAM
- 165903185CV PSH
Trade number 116561
Details & description
Terminal IF, Voltage 14, Amp 185, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., ID Code 141, Grooves/pulley 7, Regulator type IR, Belt Adjustment Bracket Hole 1 8.70, Mounting Bracket Distance 62.50, Radius 90.00, Pulley Diameter 49.00, Bracket Hole Size Rear M8, Communication LIN, Pulley SP/FW, Pulley Distance 33.00, Plug no. 1 PL131, Fan IF, Radius 2 90.00, B+ M8, Rotation CW, Bracket Hole Size 1 8.70, Terminal type COM, Holder Arm Width 14.50, Belt Adjustment Bracket Hole Position 45, Total Length 200.00, B+ Position 52
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp185
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- ID Code141
- Grooves/pulley7
- Regulator typeIR
- Belt Adjustment Bracket Hole 18.70
- Mounting Bracket Distance62.50
- Radius90.00
- Pulley Diameter49.00
- Bracket Hole Size RearM8
- CommunicationLIN
Replacing and BOMs
OEM number
- 6000616552FIAT
- K6000616552FIAT
- K6000620578FIAT
- 6000620578FIAT
- A003TX1781MITSUBISHI
- A003TX2581MITSUBISHI
Competitor References
- DRA1475AC DELCO
- 554283RIAD KÜHNER
- A5412SAUTOSTARTER POLAND
- 0986085200BOSCH
- 1986A00570BOSCH
- 1986A00688BOSCH
- CAL35382CASCO SRL
- 4493CEVAM
- 165903185CV PSH
