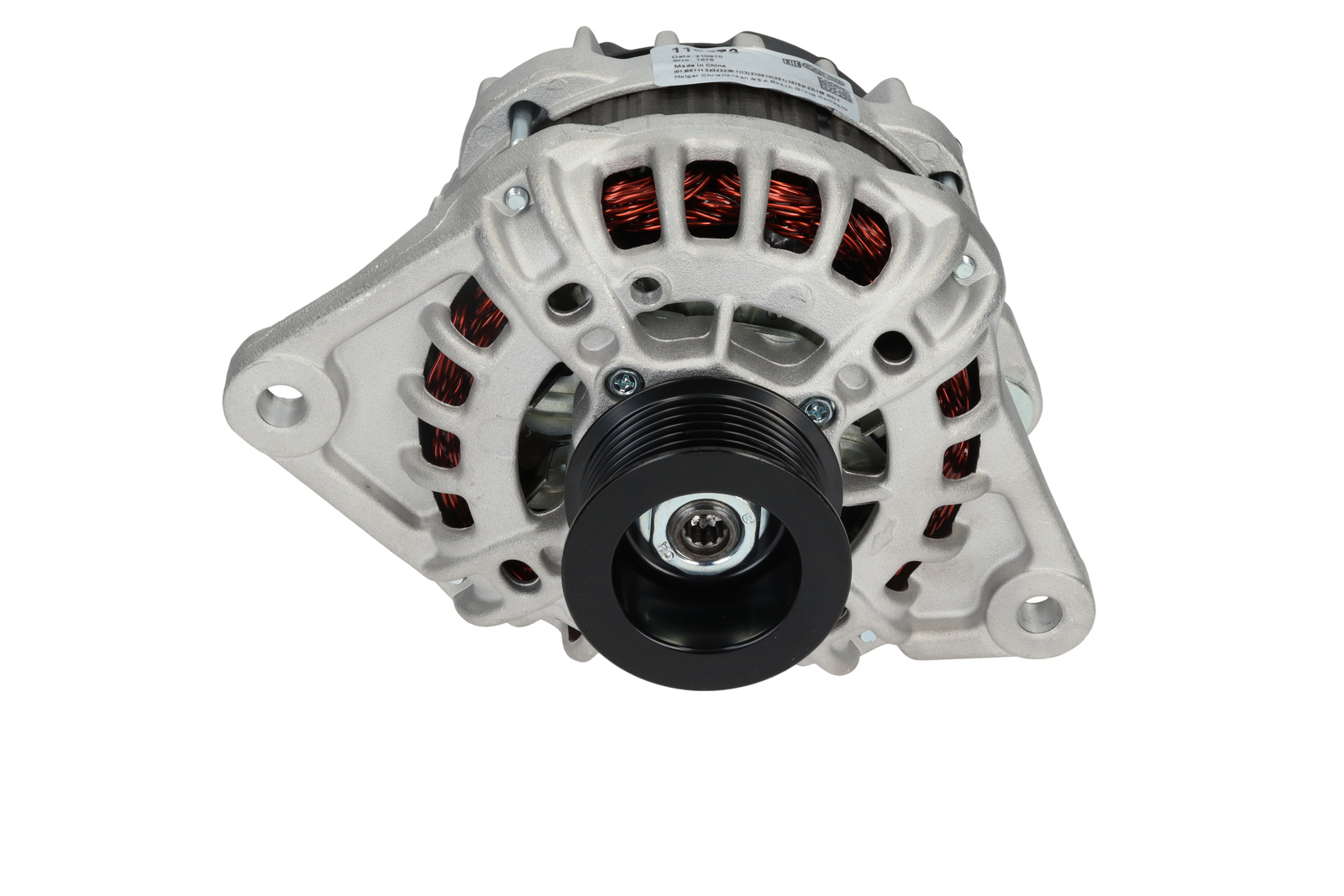

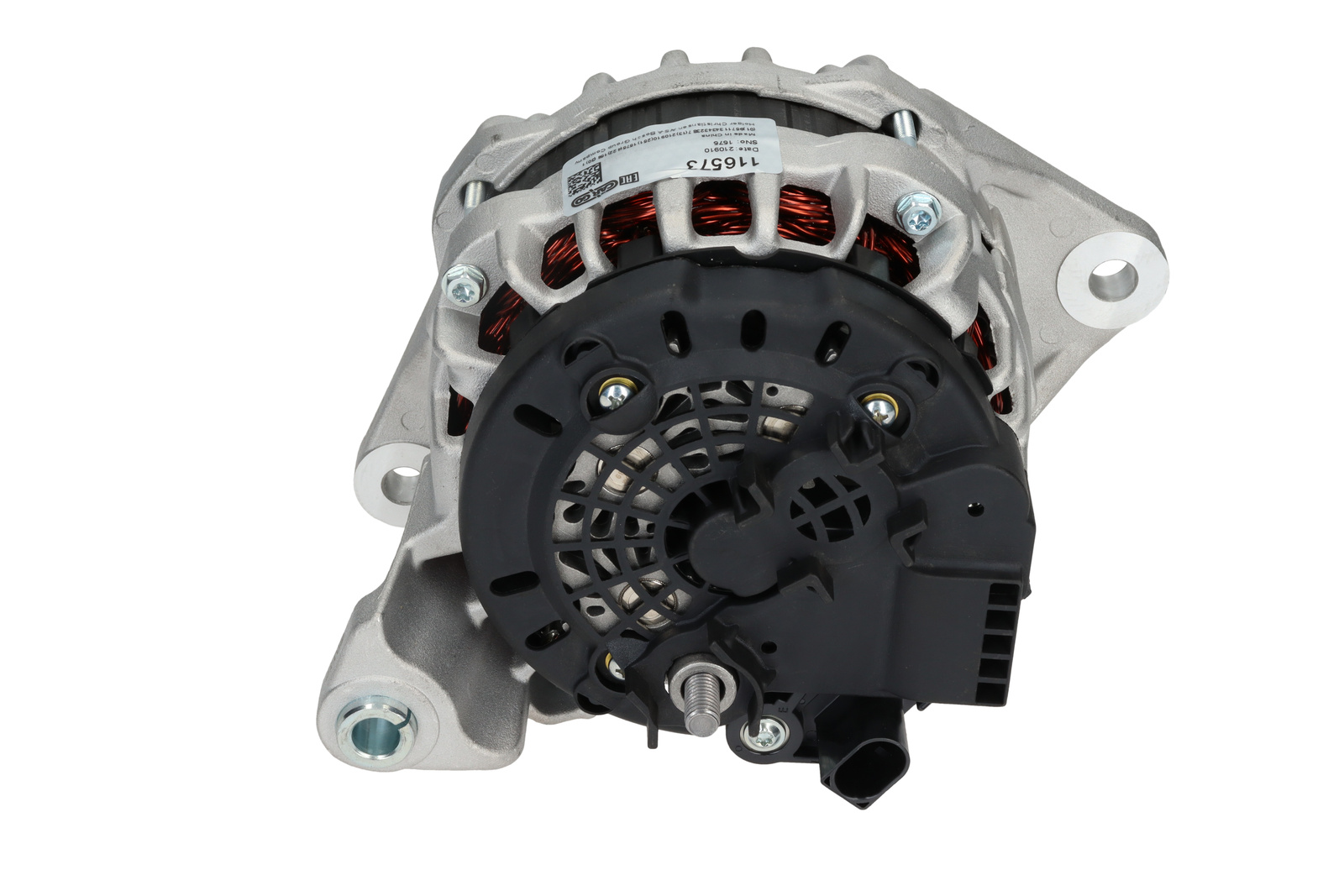

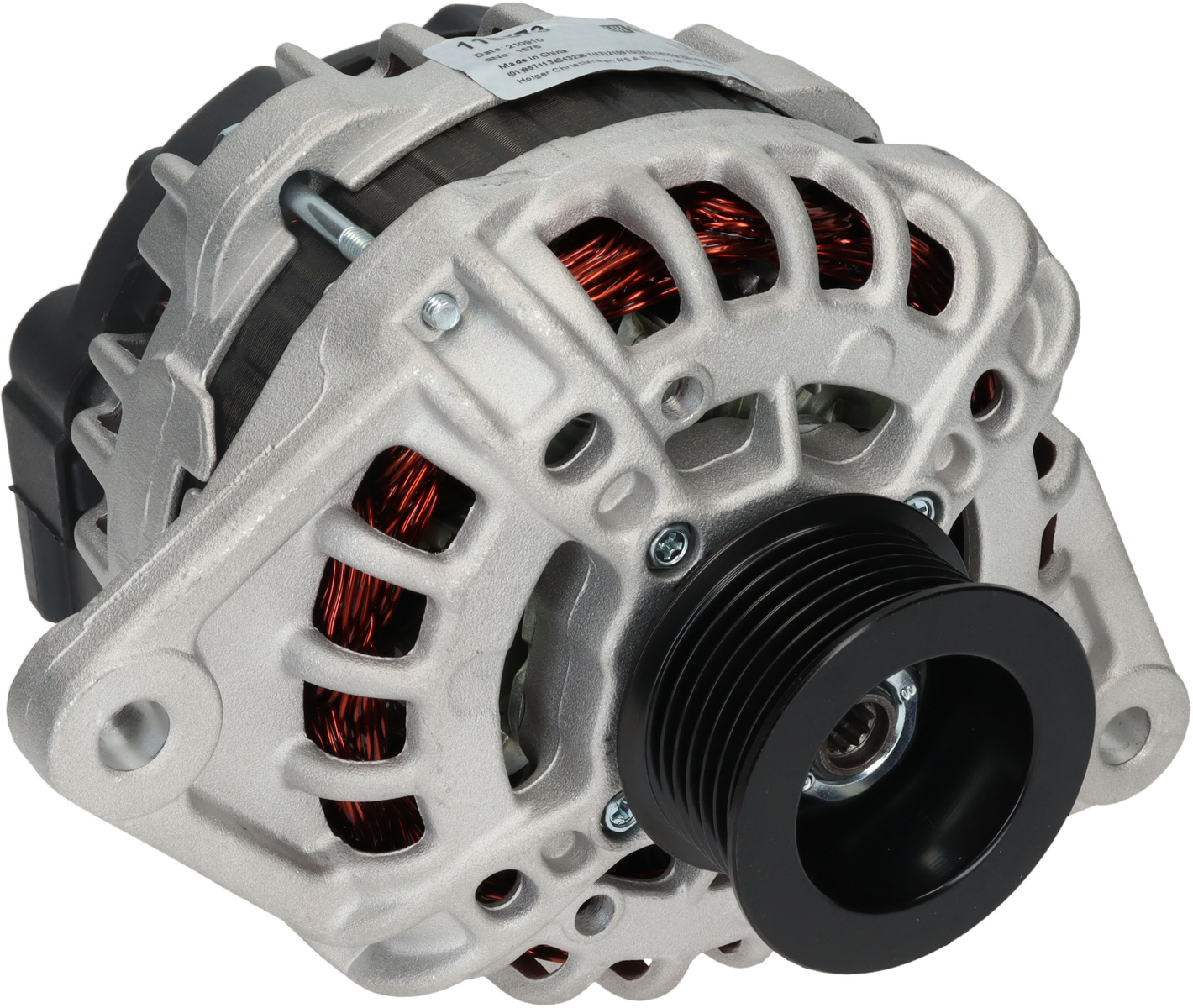

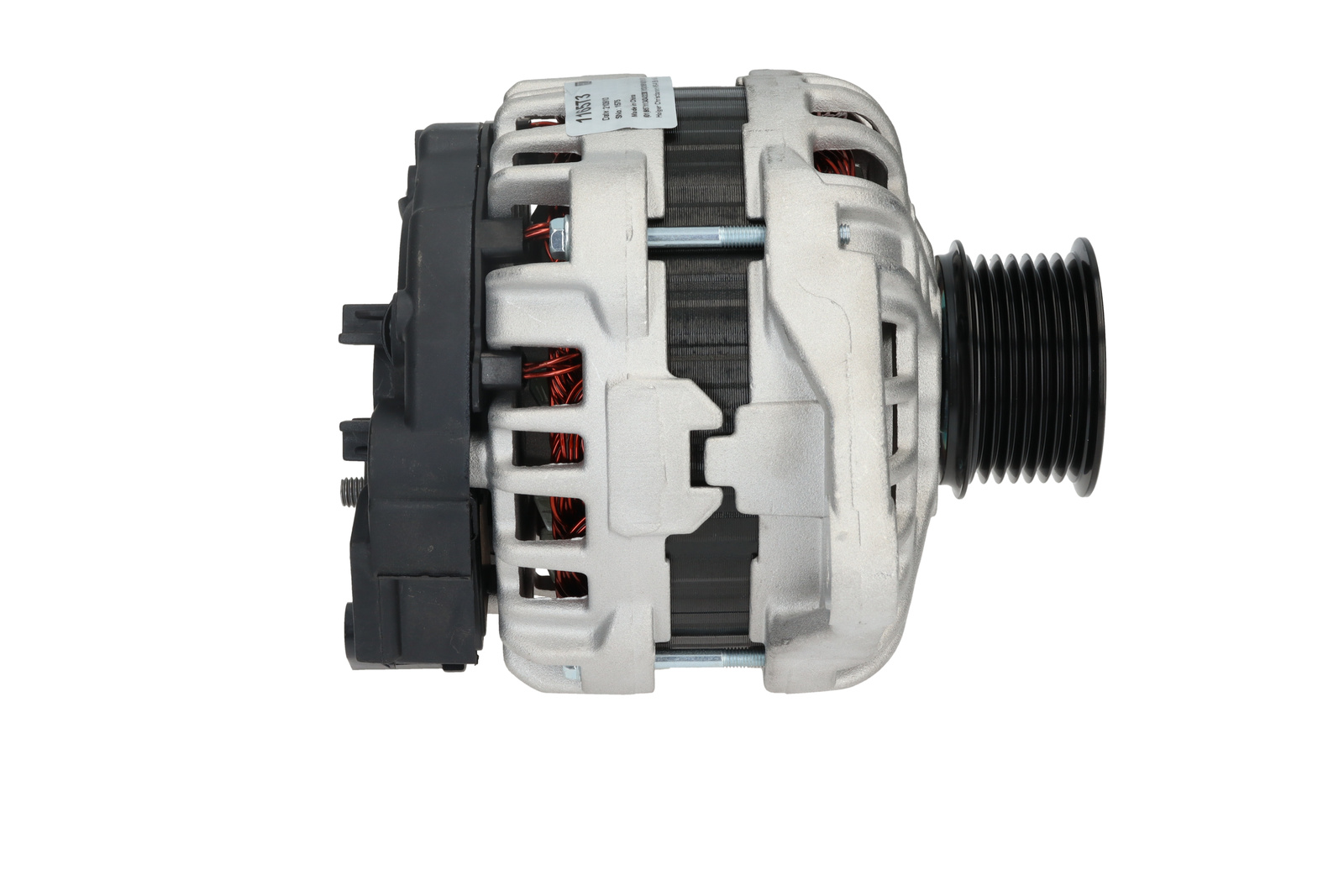

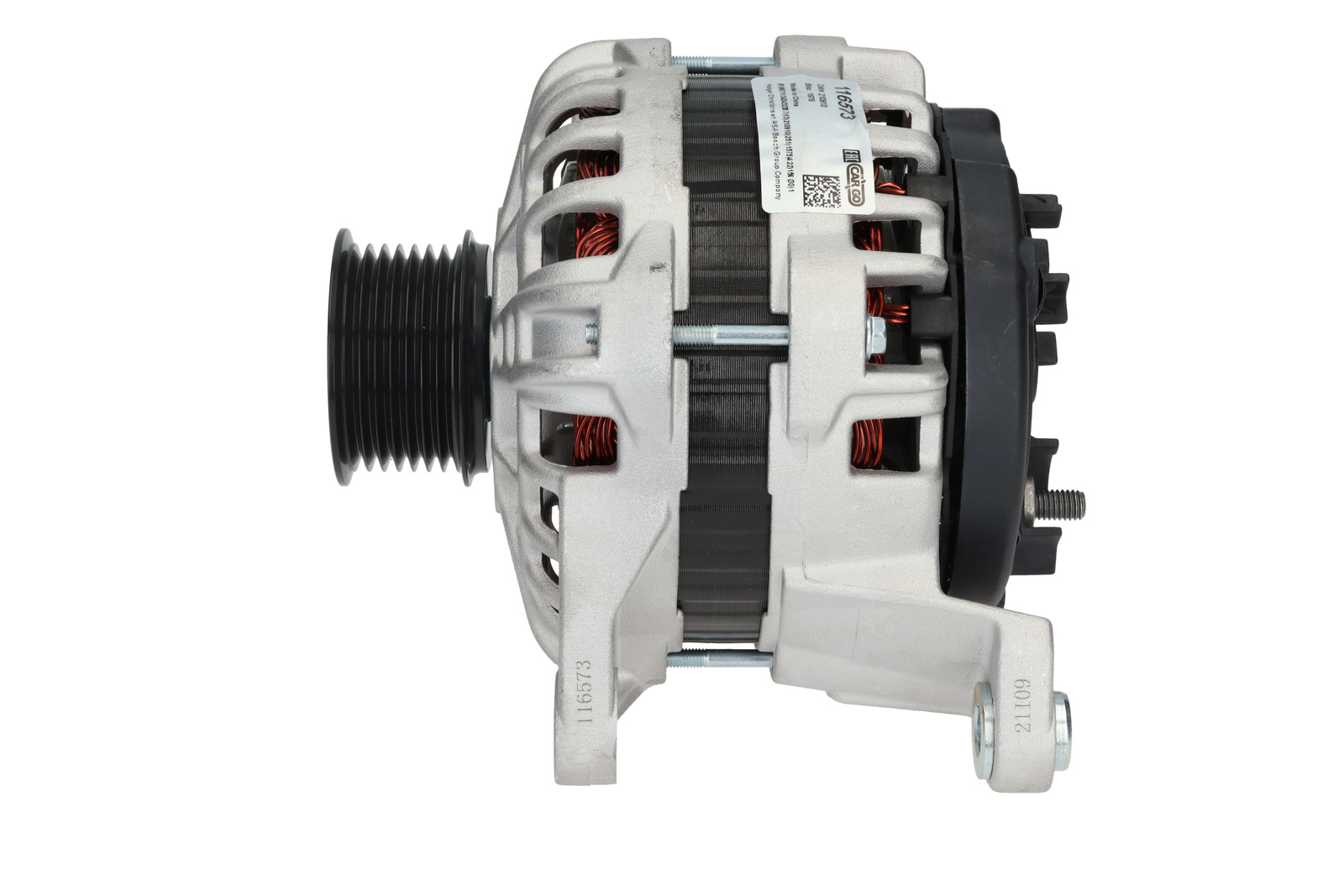

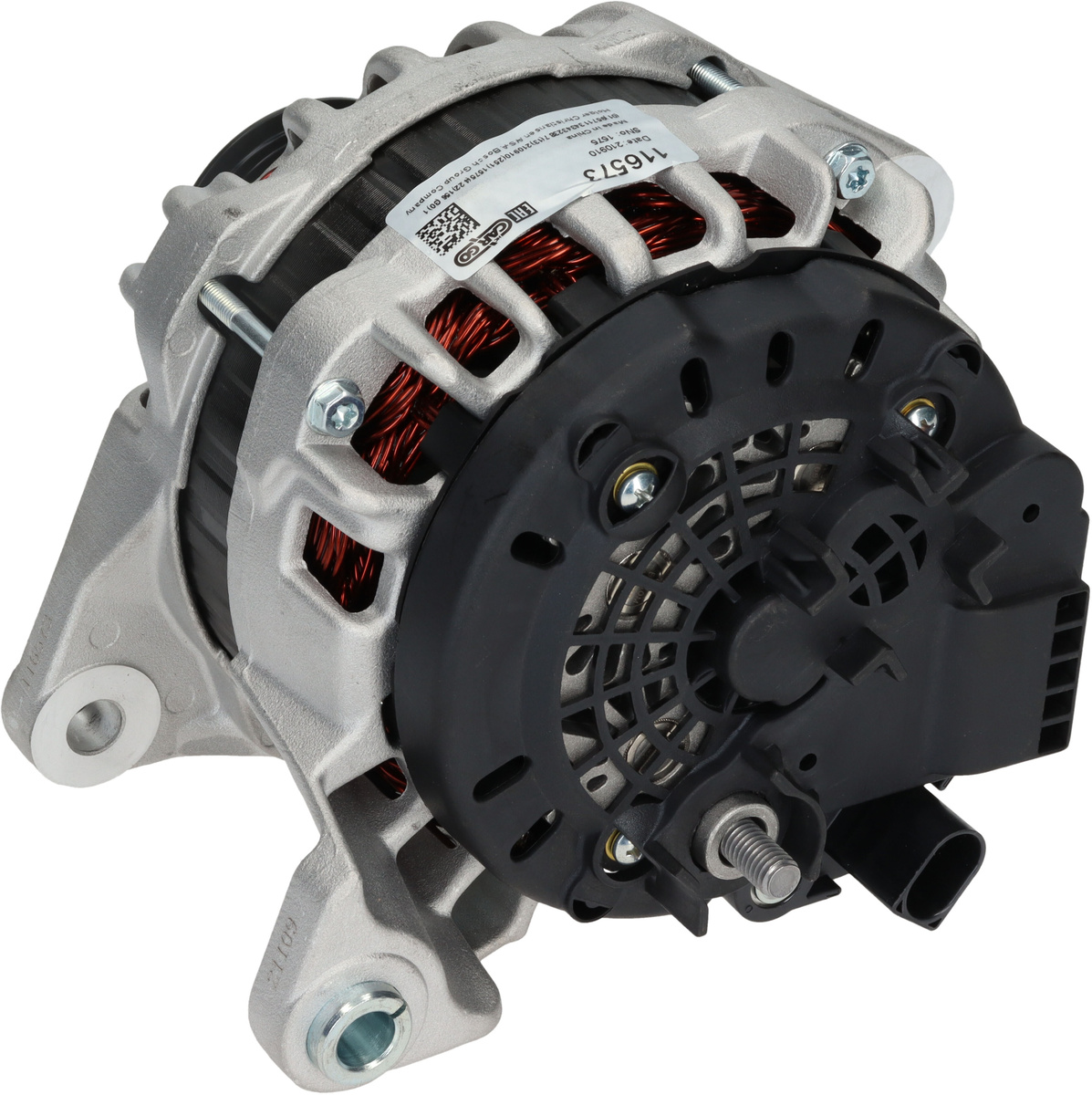

F032116573 - Alternator
Trade number 116573
F032116573 - Alternator
Details & description
Voltage 14, Amp 150, Communication LIN, Pulley SP, Pulley Diameter 55.00, Bracket Hole Size Rear 10.50, Pulley Distance 41.40, ID Code 24, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 83.40, Radius 95.00, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 14.20, B+ M8, Radius 2 95.00, Plug no. 1 PL174, Rotation CW, B+ Position 22, Belt Adjustment Bracket Hole Position 55, Total Length 180.00
Product information
Voltage:14
Amp:150
Communication:LIN
Pulley:SP
Pulley Diameter:55.00
Bracket Hole Size Rear:10.50
Pulley Distance:41.40
ID Code:24
Remarks 3:This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Mounting Bracket Distance:83.40
Radius:95.00
Belt Adjustment Bracket Hole 1:11.00
Grooves/pulley:7
Regulator type:IR
Bracket Hole Size 1:10.50
Terminal type:COM
Holder Arm Width:14.20
B+:M8
Radius 2:95.00
Plug no. 1:PL174
Rotation:CW
B+ Position:22
Belt Adjustment Bracket Hole Position:55
Total Length:180.00
