F032116574 - Alternator

Trade number 116574

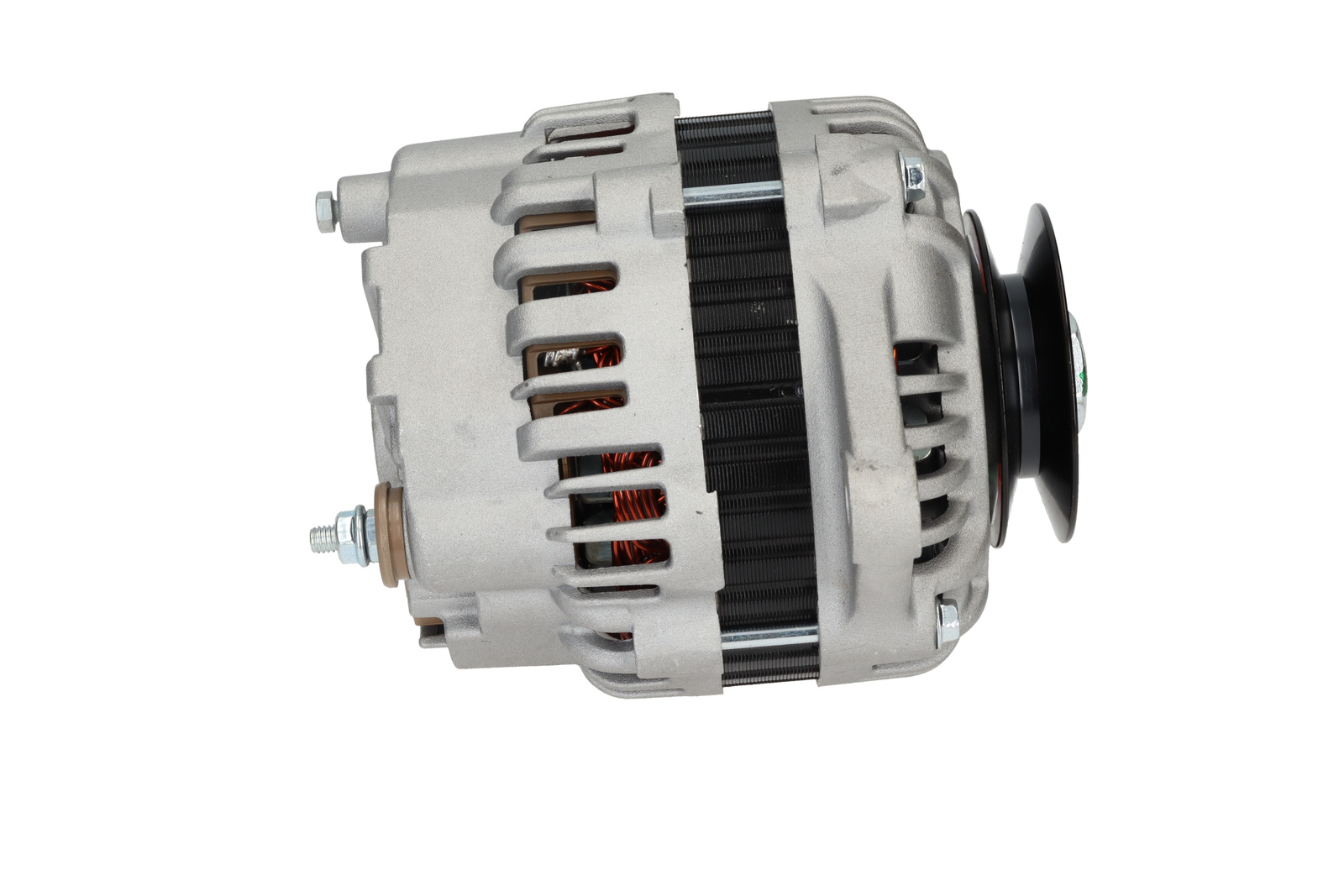

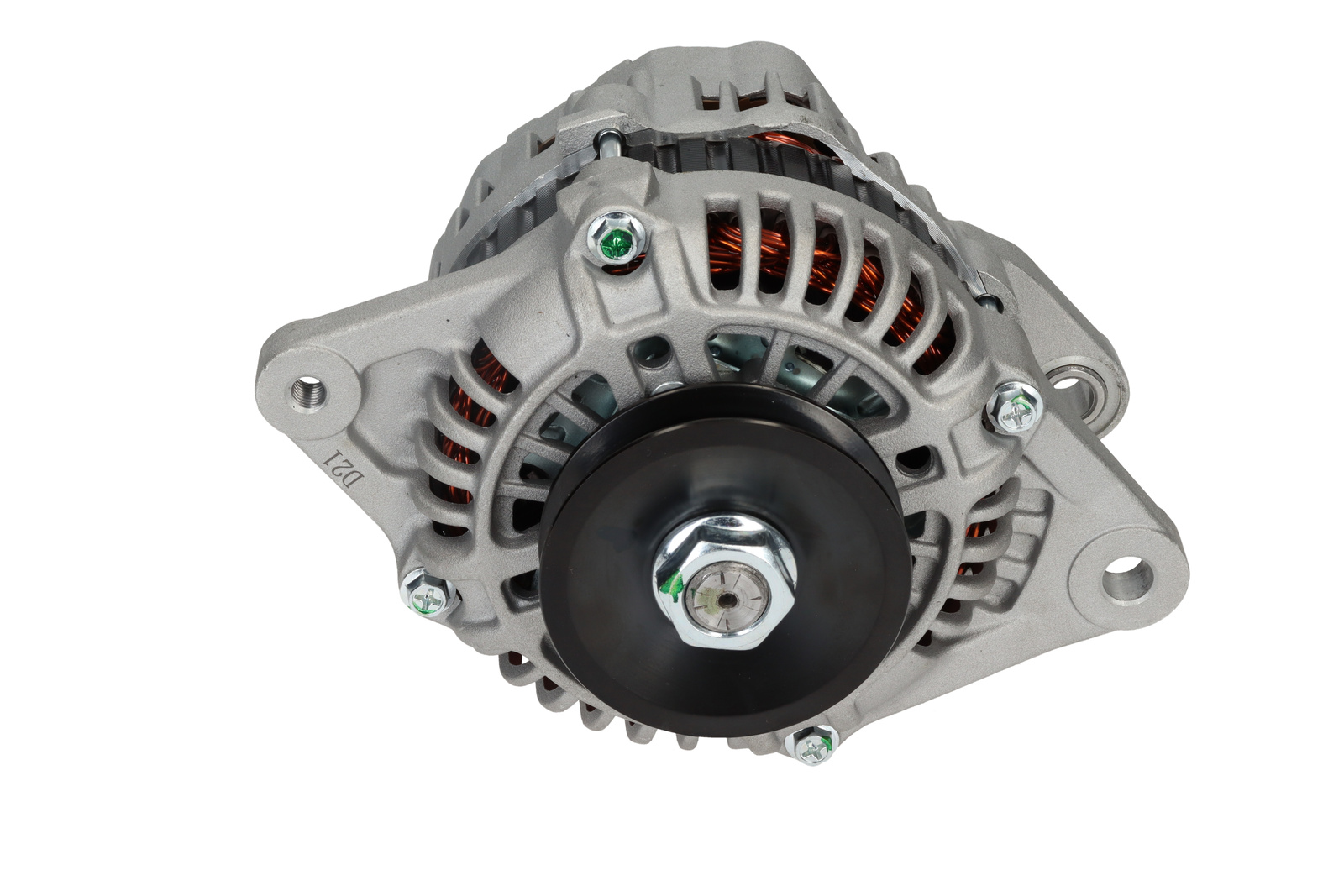

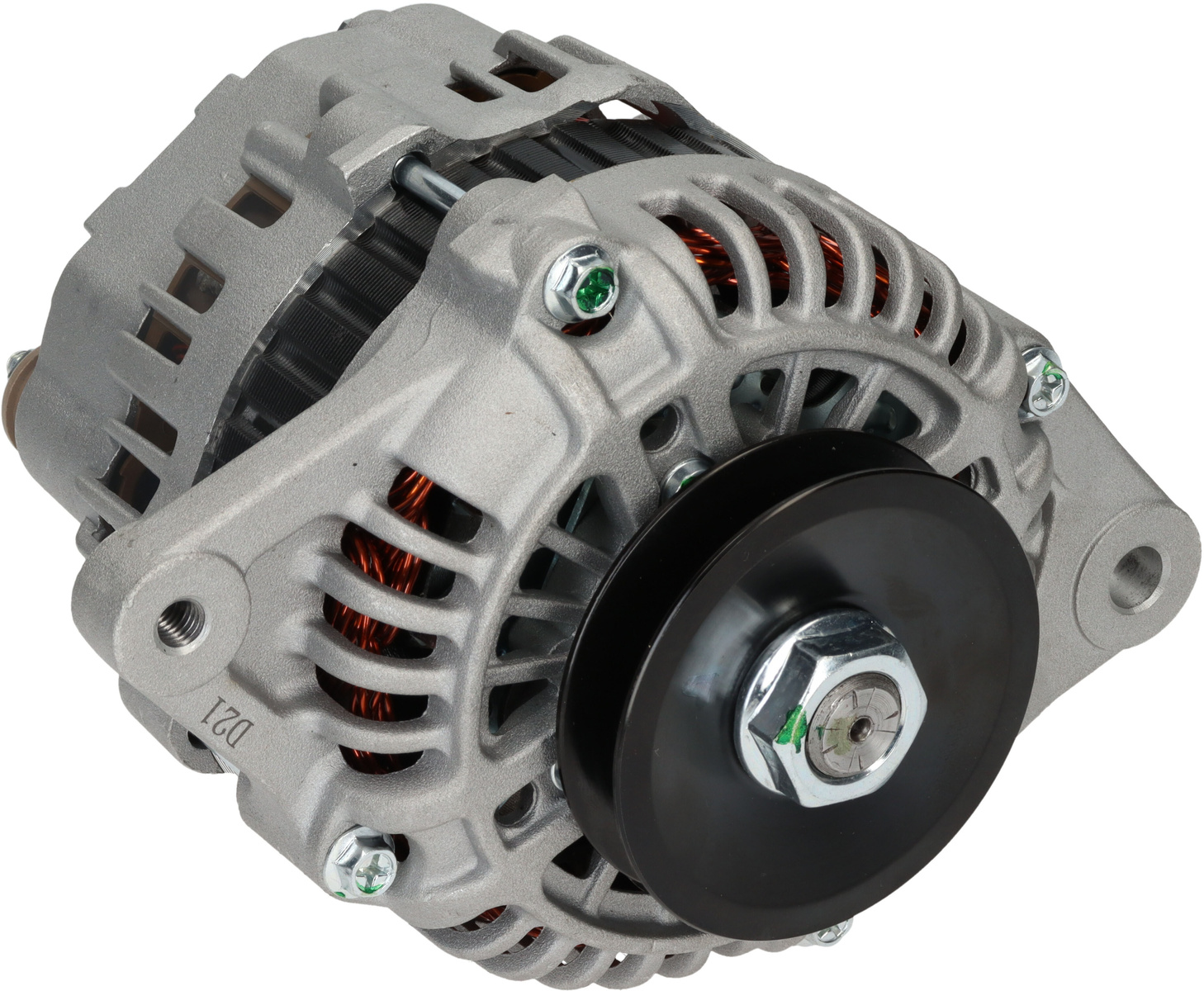

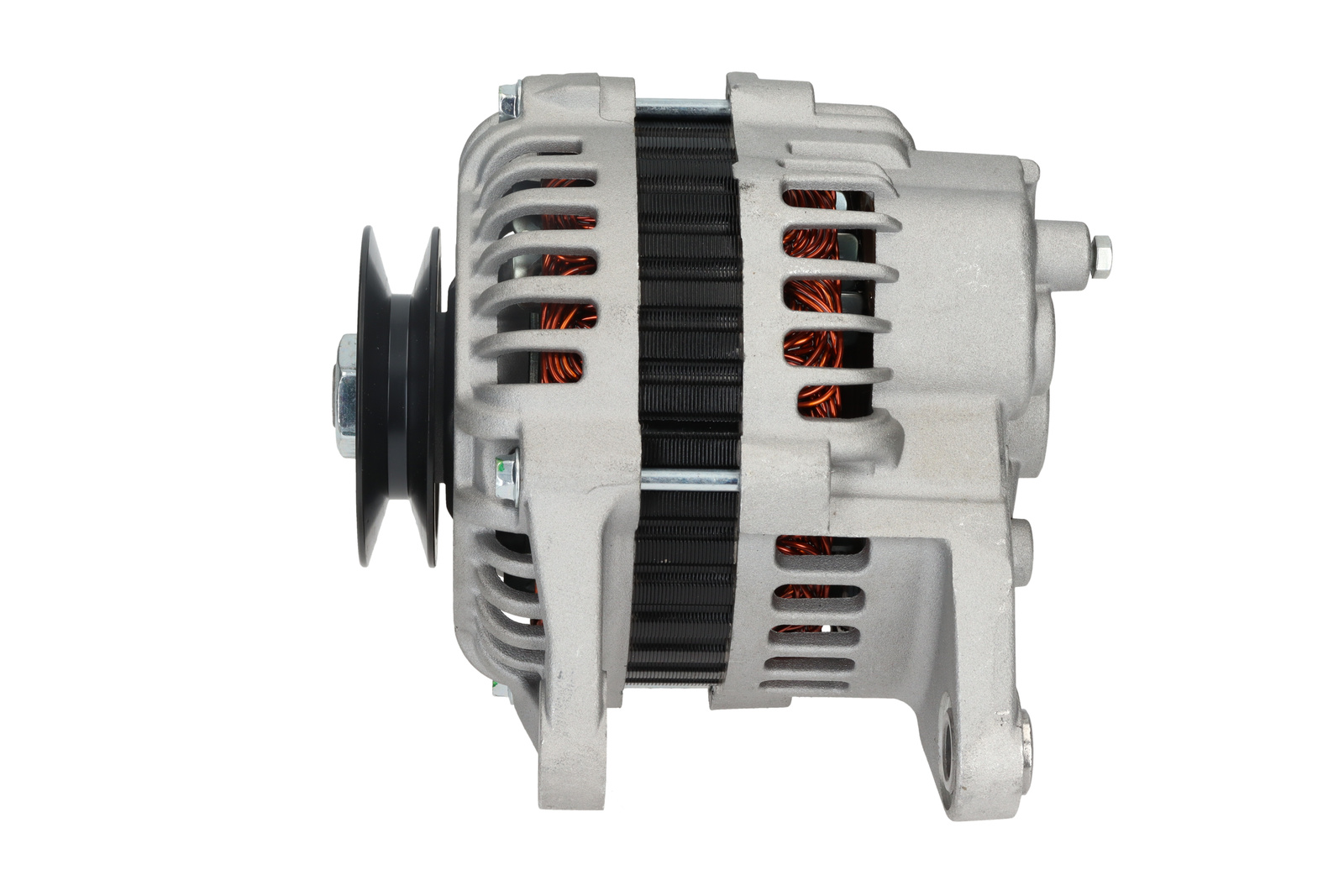

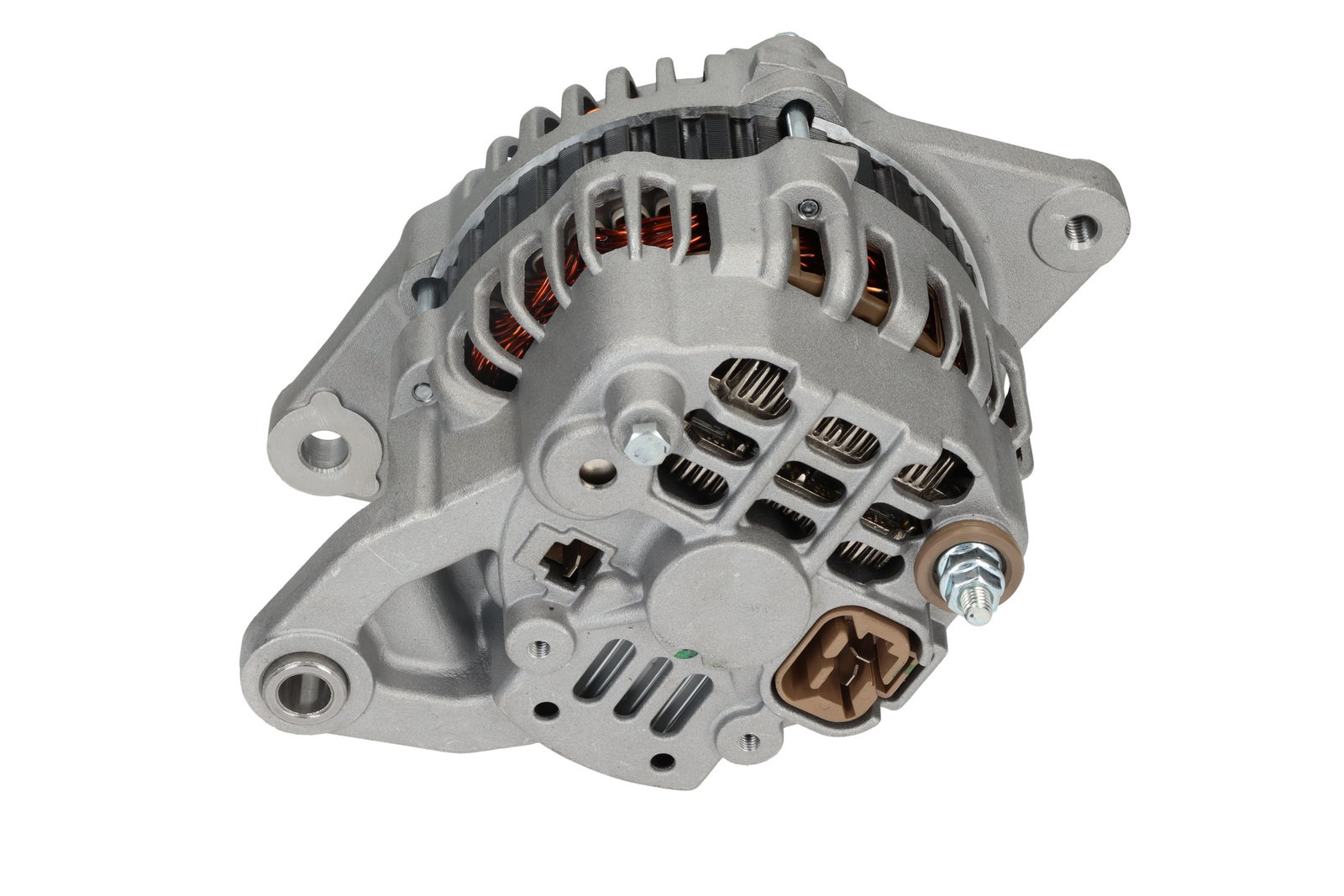

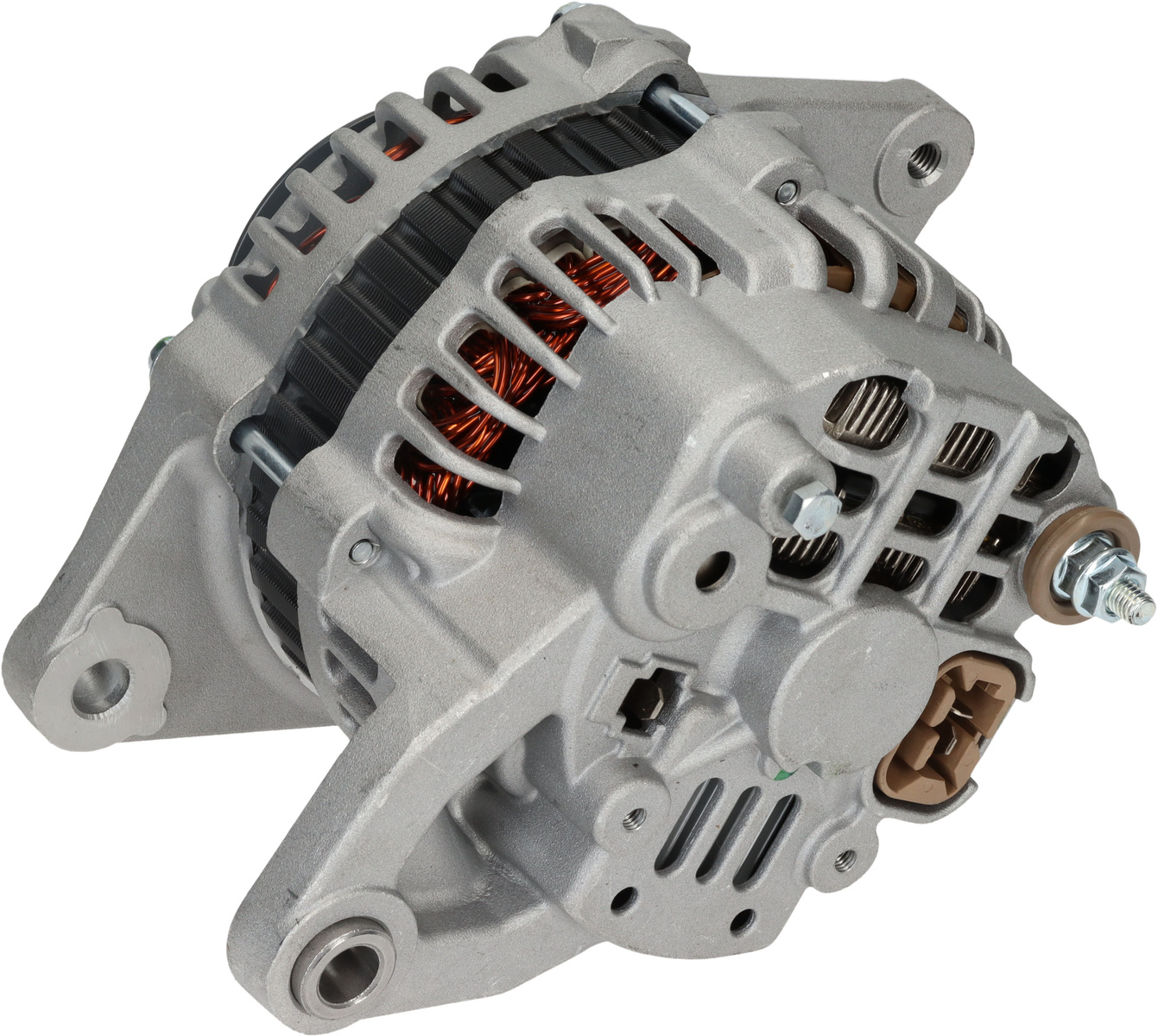

Product image - main
Trade number 116574

Details & description

Voltage 14, Amp 80, Pulley P, Bracket Hole Size 1 10.50, Lamp type Inactive, Pulley Diameter 73.00, Bracket Hole Size Rear 10.50, Terminal type R-L, D+ Size Plug, D+ Position 9, Holder Arm Width 13.00, Pulley Distance 42.60, B+ M6, Radius 2 85.00, Plug no. 1 PL194, Mounting Bracket Distance 67.20, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 1, B+ Position 2, Belt Adjustment Bracket Hole Position 60

Product information

Electrical information

  • Voltage14
  • Amp80

Physical information

  • PulleyP
  • Bracket Hole Size 110.50
  • Lamp typeInactive
  • Pulley Diameter73.00
  • Bracket Hole Size Rear10.50
  • Terminal typeR-L
  • D+ SizePlug
  • D+ Position9
  • Holder Arm Width13.00
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 3N30164011KUBOTA
    • 3R60064011KUBOTA
    • 3R60064012KUBOTA
    • A005TA5977MITSUBISHI
    • A005TA5977BMITSUBISHI
    • A005TA5977CMITSUBISHI
    • A5TA5977MITSUBISHI
    • A5TA5977BMITSUBISHI
    • A5TA5977CMITSUBISHI

    Competitor References

    • A5171AUTOSTARTER POLAND
    • CAL35371CASCO SRL
    • 695526080CV PSH
    • 286743ELSTOCK
    • 12061088EUROTEC
    • 113437FACROM
    • 116574HC-CARGO
    • LRA03682LUCAS
