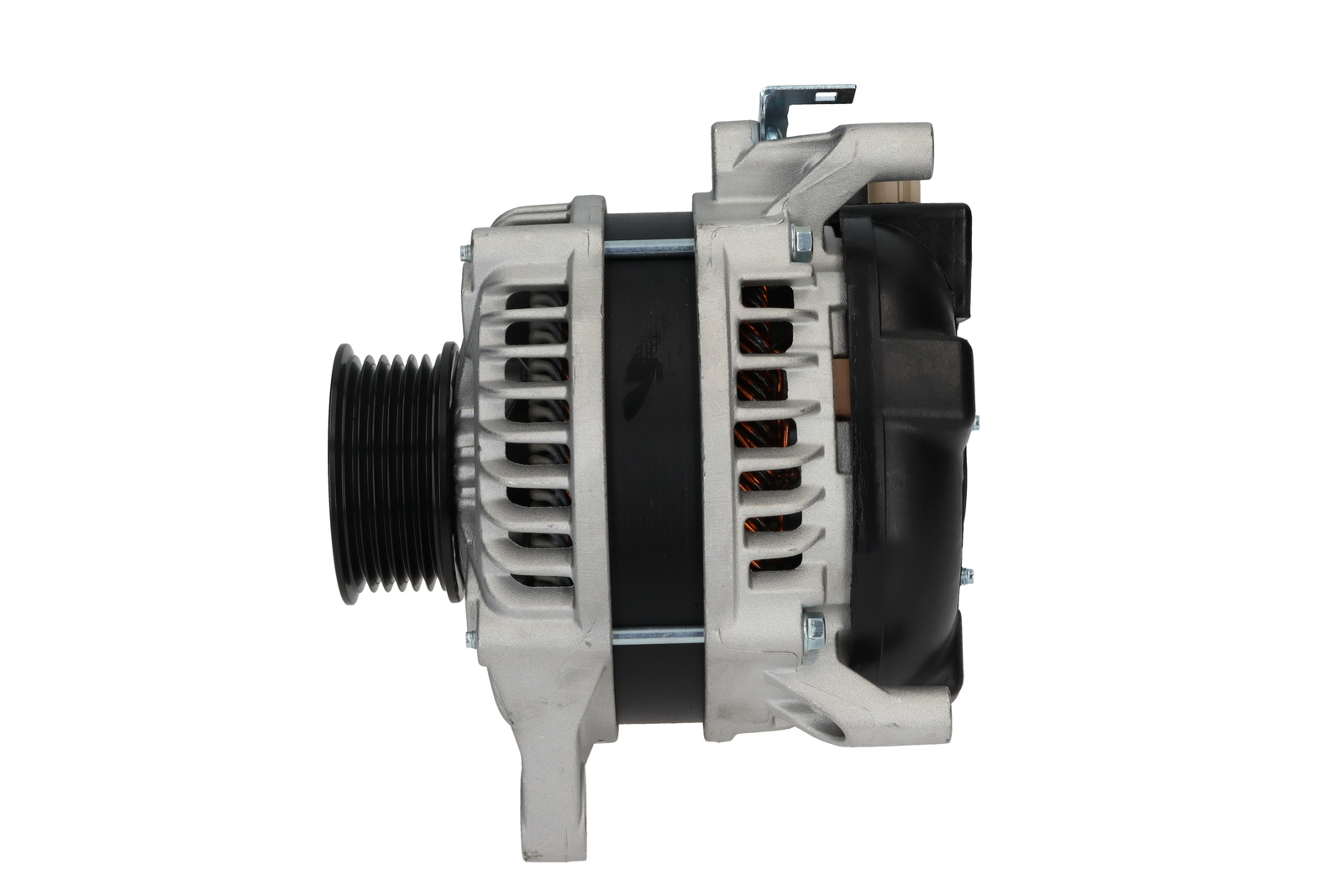

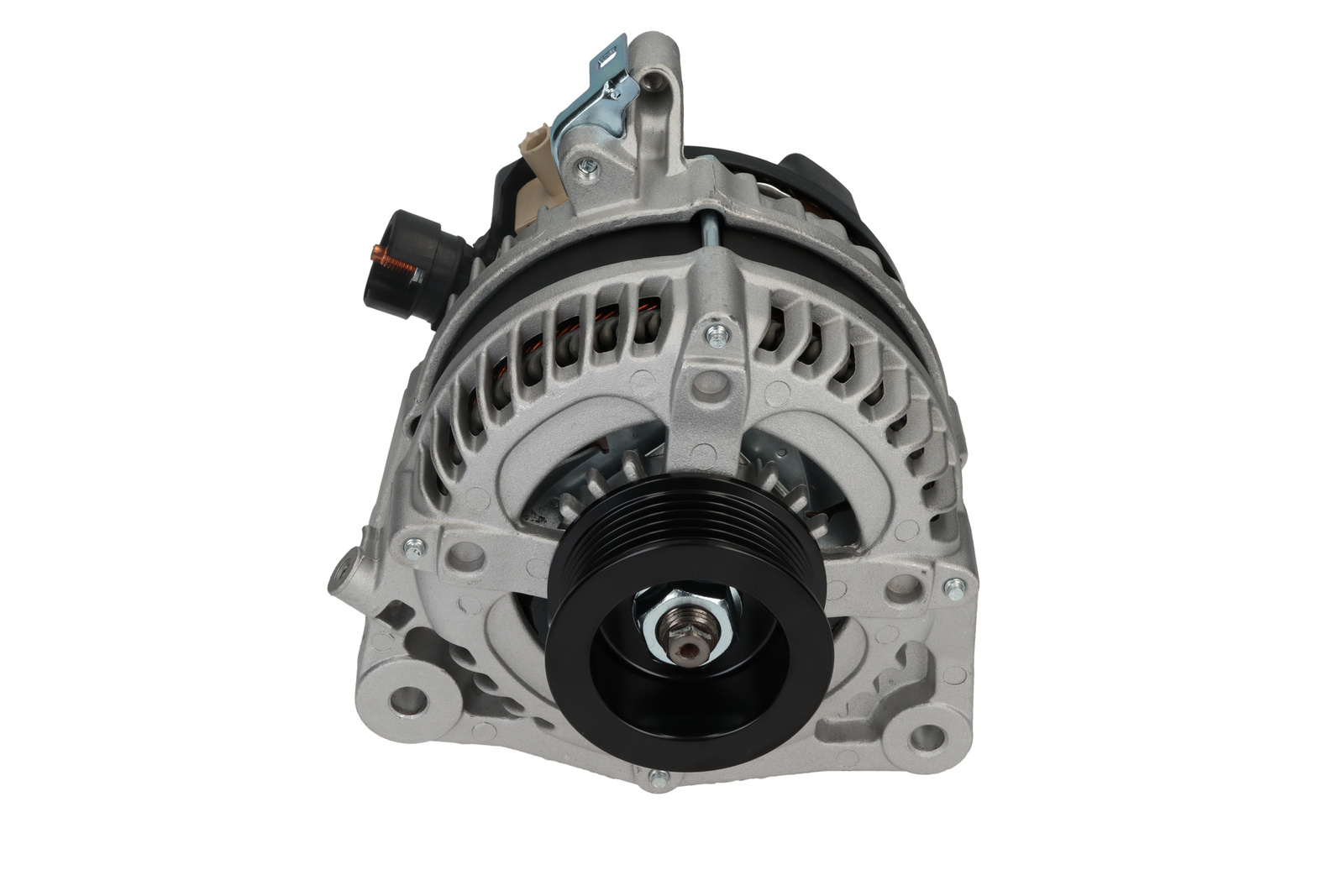

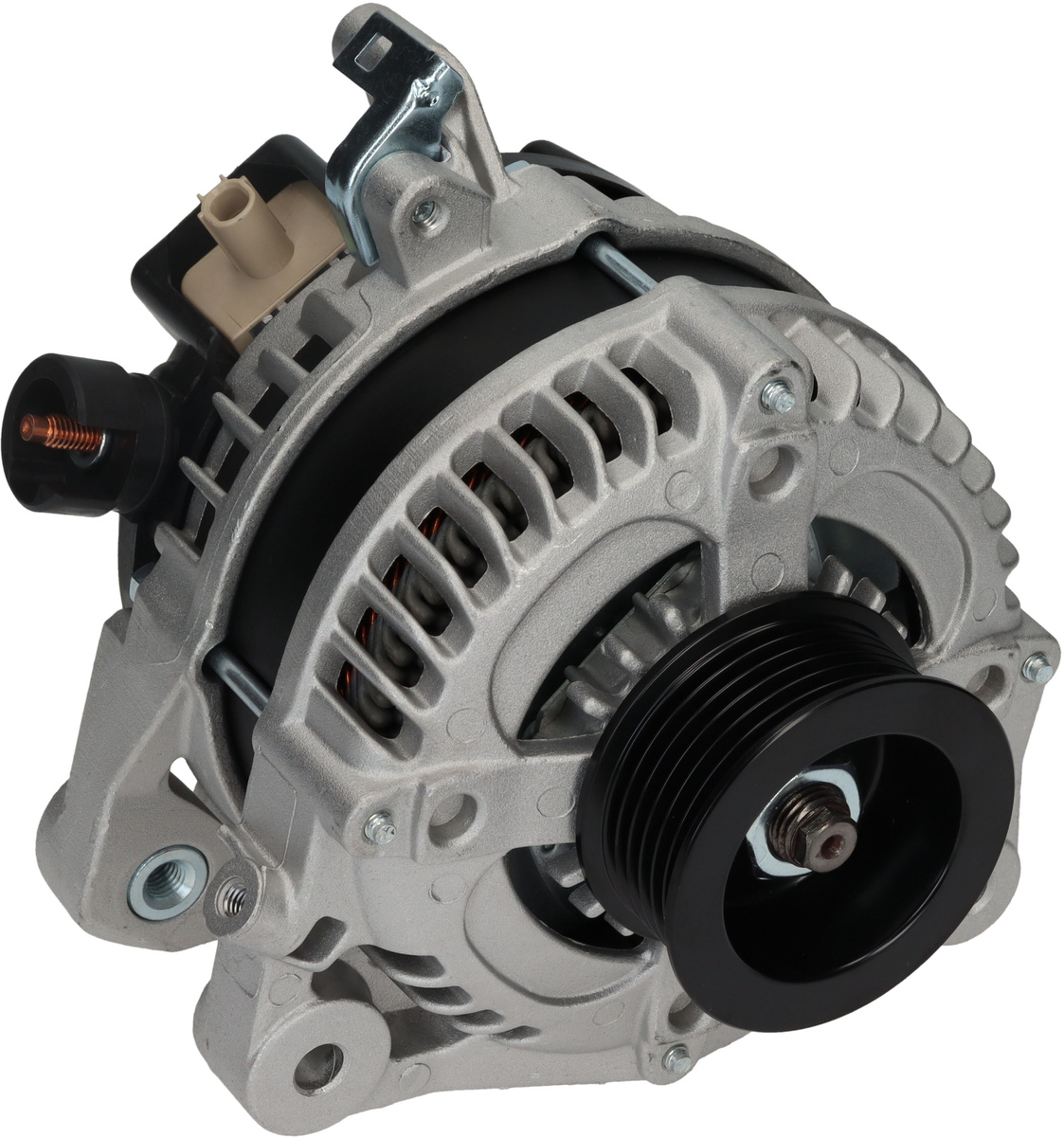

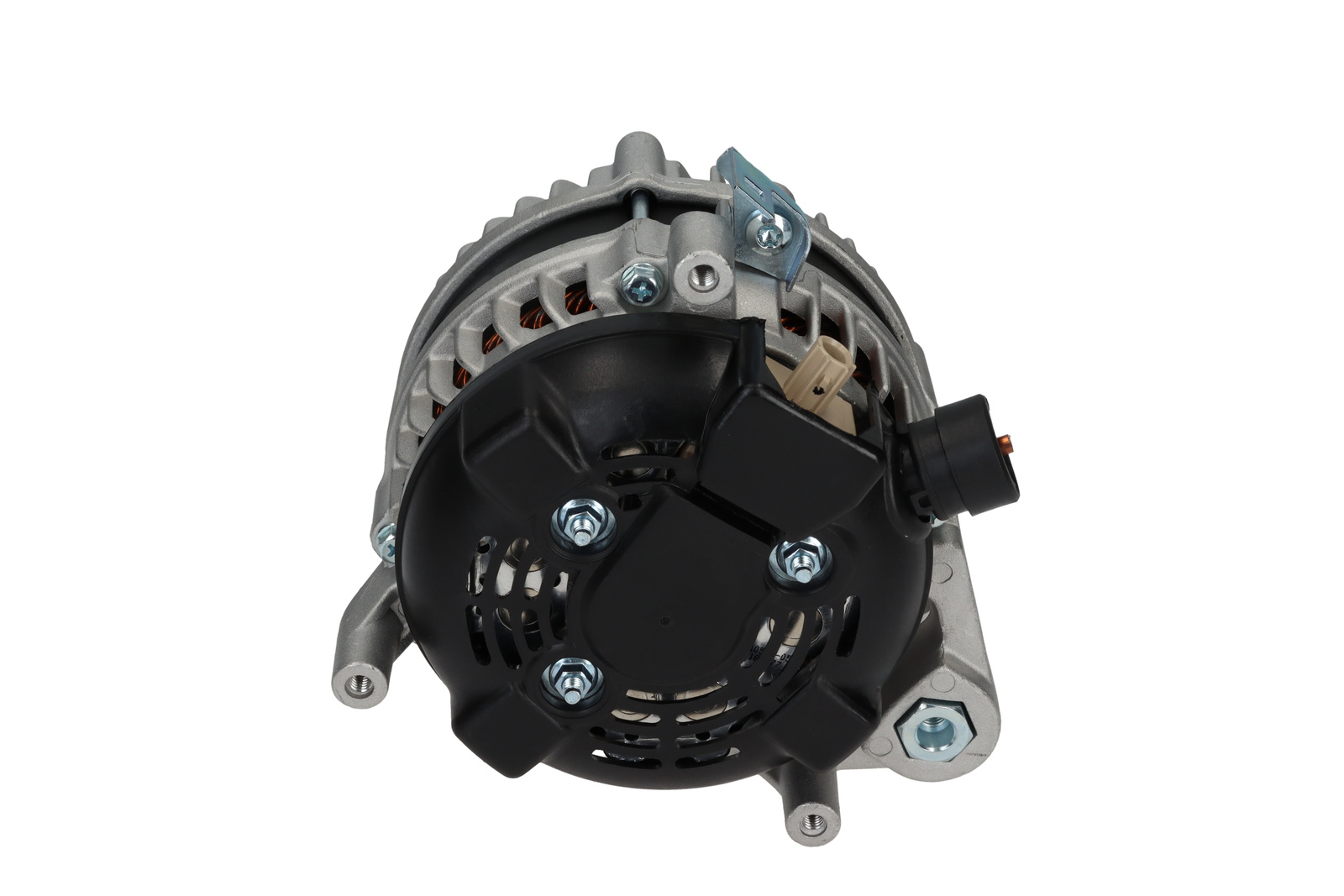

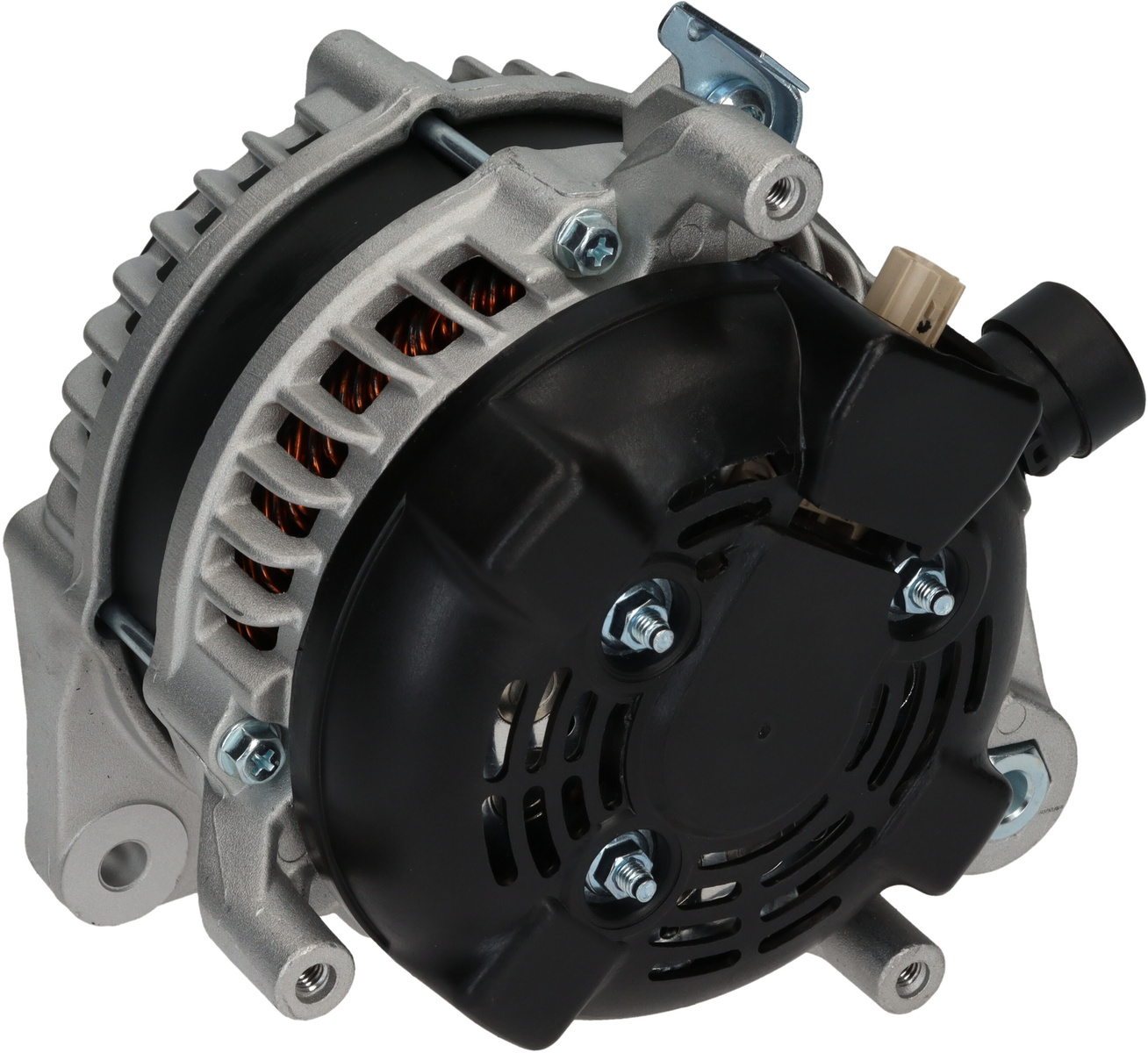

F032116590 - Alternator

Trade number 116590
Product image - main
Trade number 116590

Details & description

Voltage 14, Amp 105, Communication LIN, Pulley SP, Pulley Diameter 60.30, Bracket Hole Size Rear M8, Pulley Distance 46.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 38.00, Radius 85.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.00, Terminal type COM, Holder Arm Width 20.00, B+ M6, Fan IF, Radius 2 86.00, Plug no. 1 PL205, Rotation CW, B+ Position 20, Belt Adjustment Bracket Hole Position 13, Total Length 158.00

Product information

Electrical information

  • Voltage14
  • Amp105

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP
  • Pulley Diameter60.30
  • Bracket Hole Size RearM8
  • Pulley Distance46.00
  • Mounting Bracket Distance38.00
  • Radius85.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 31100R1PH01HONDA
    • CSJ54HONDA

    Competitor References

    • DRA1192AC DELCO
    • 554980AD KÜHNER
    • A6232AUTOSTARTER POLAND
    • CAL40520CASCO SRL
    • 40211CEVAM
    • 125582105CV PSH
    • DRA1192DELCO REMY
    • 1042101540DENSO
    • DAN1370DENSO
