F032116595 - Alternator

Trade number 116595

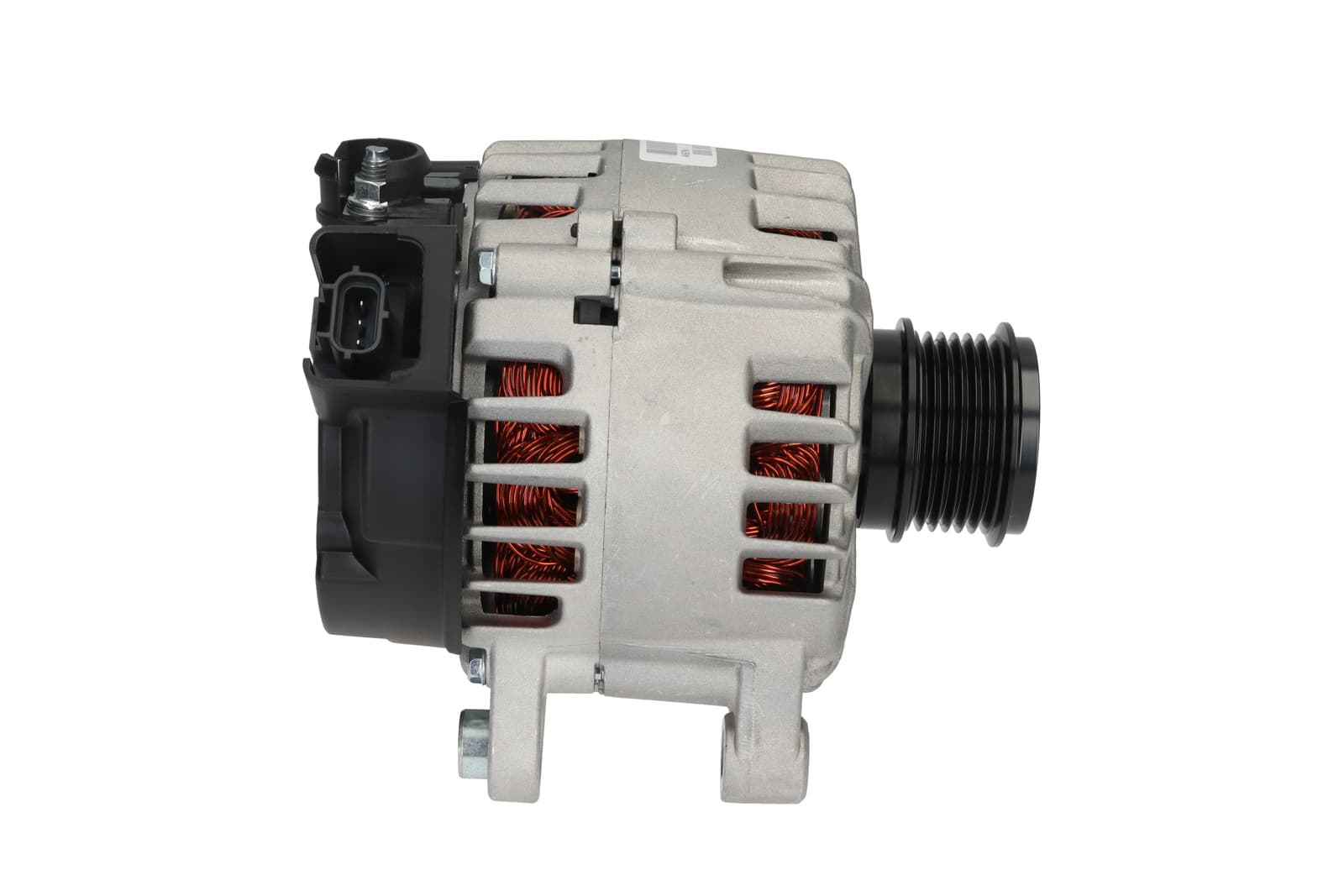

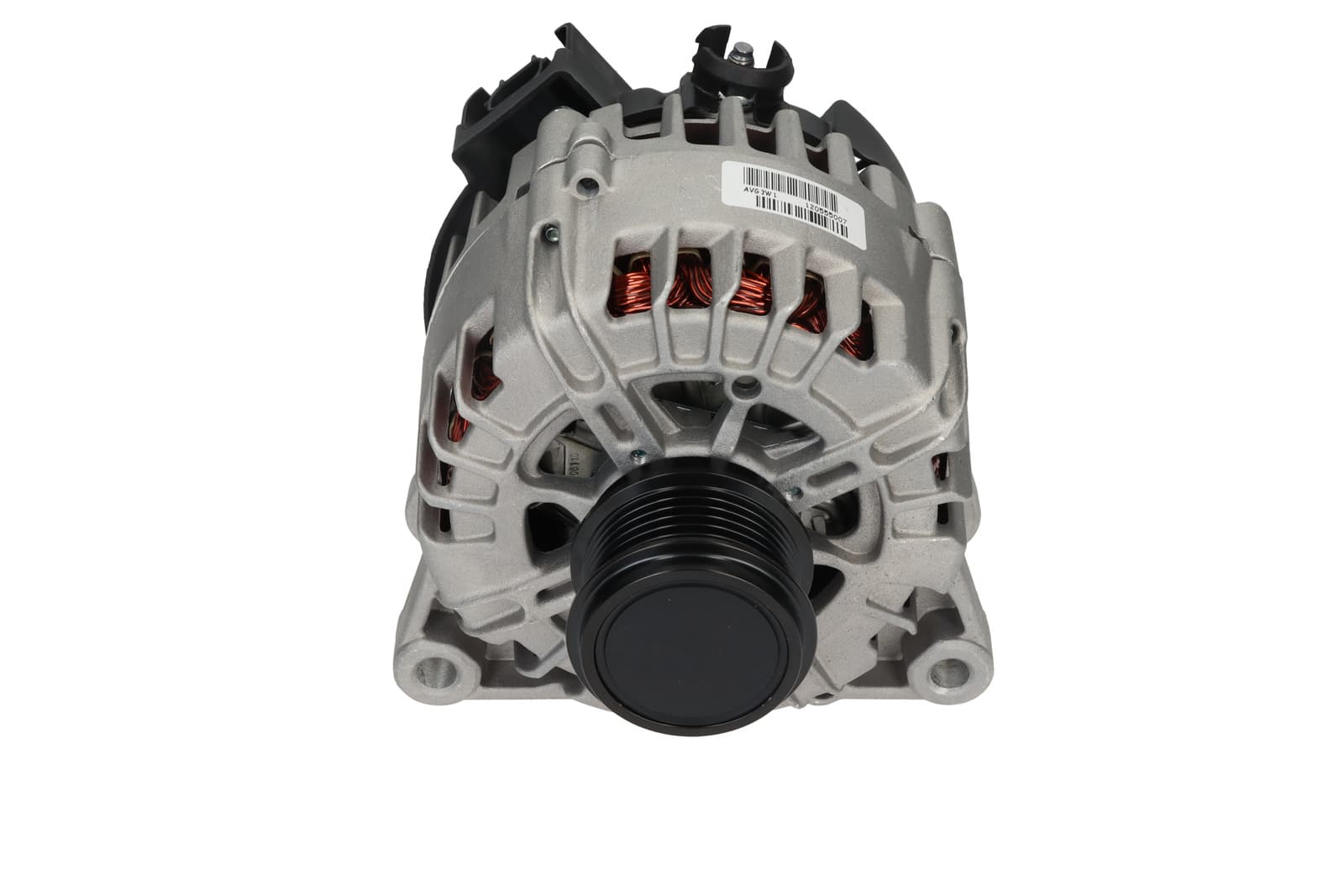

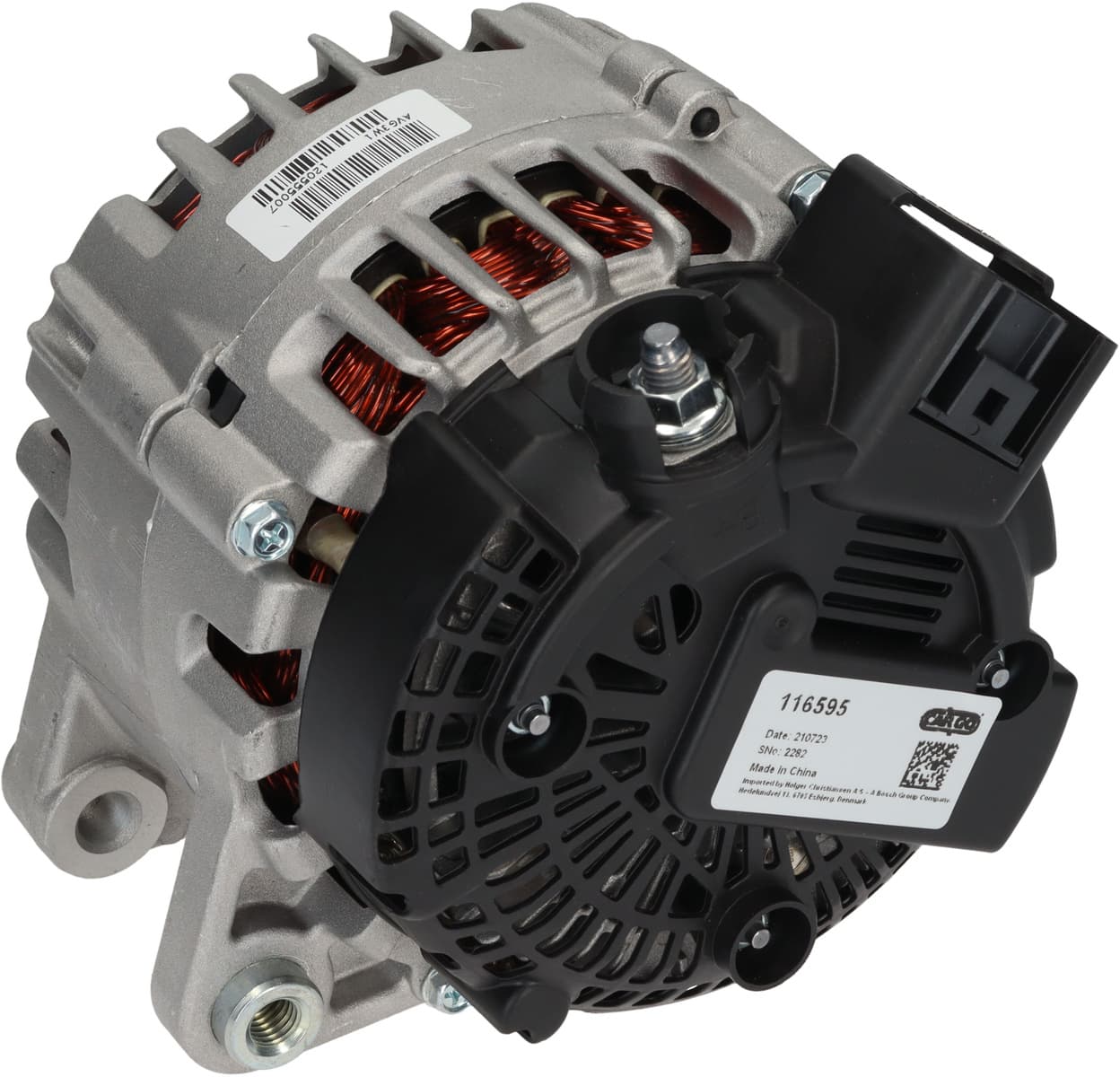

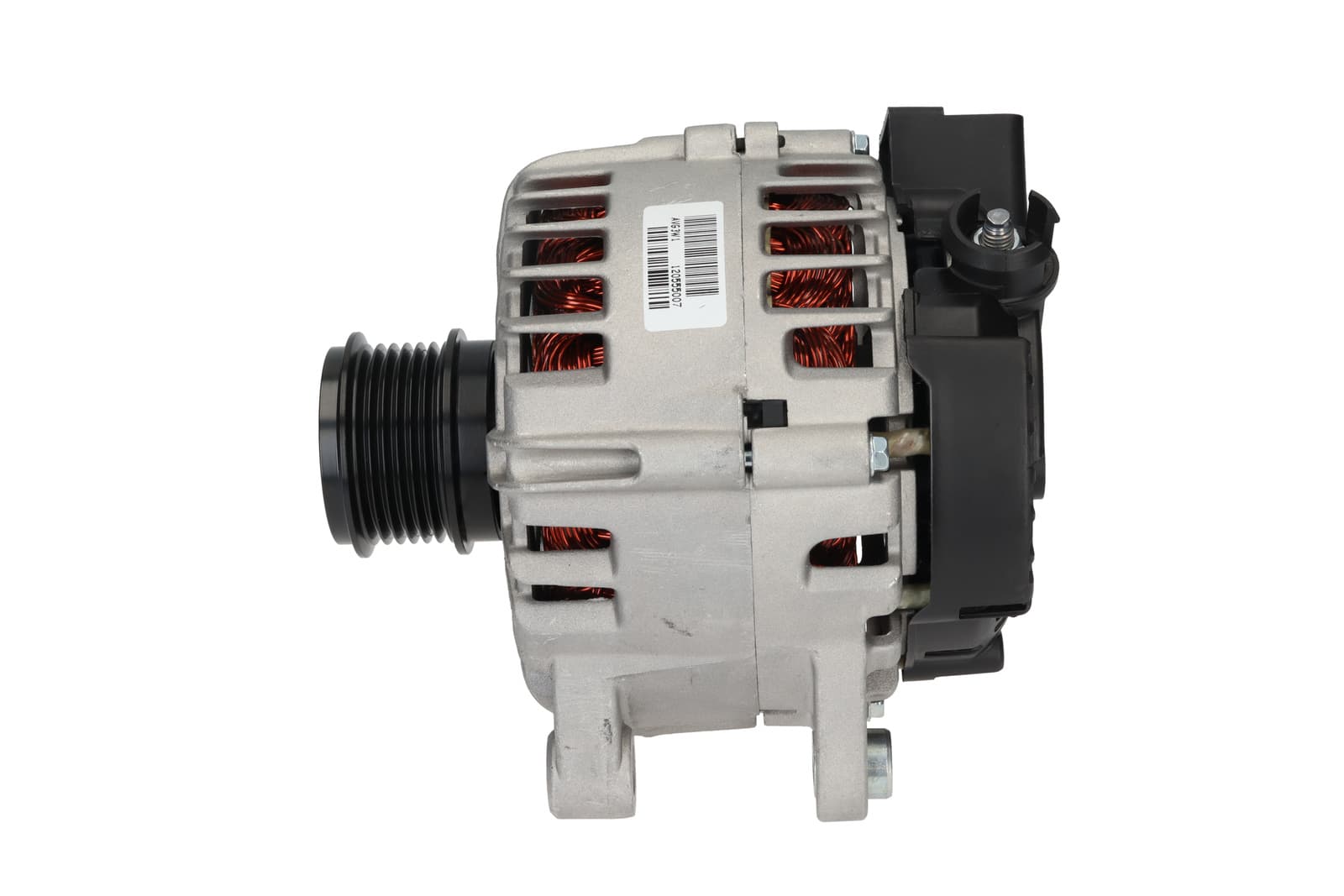

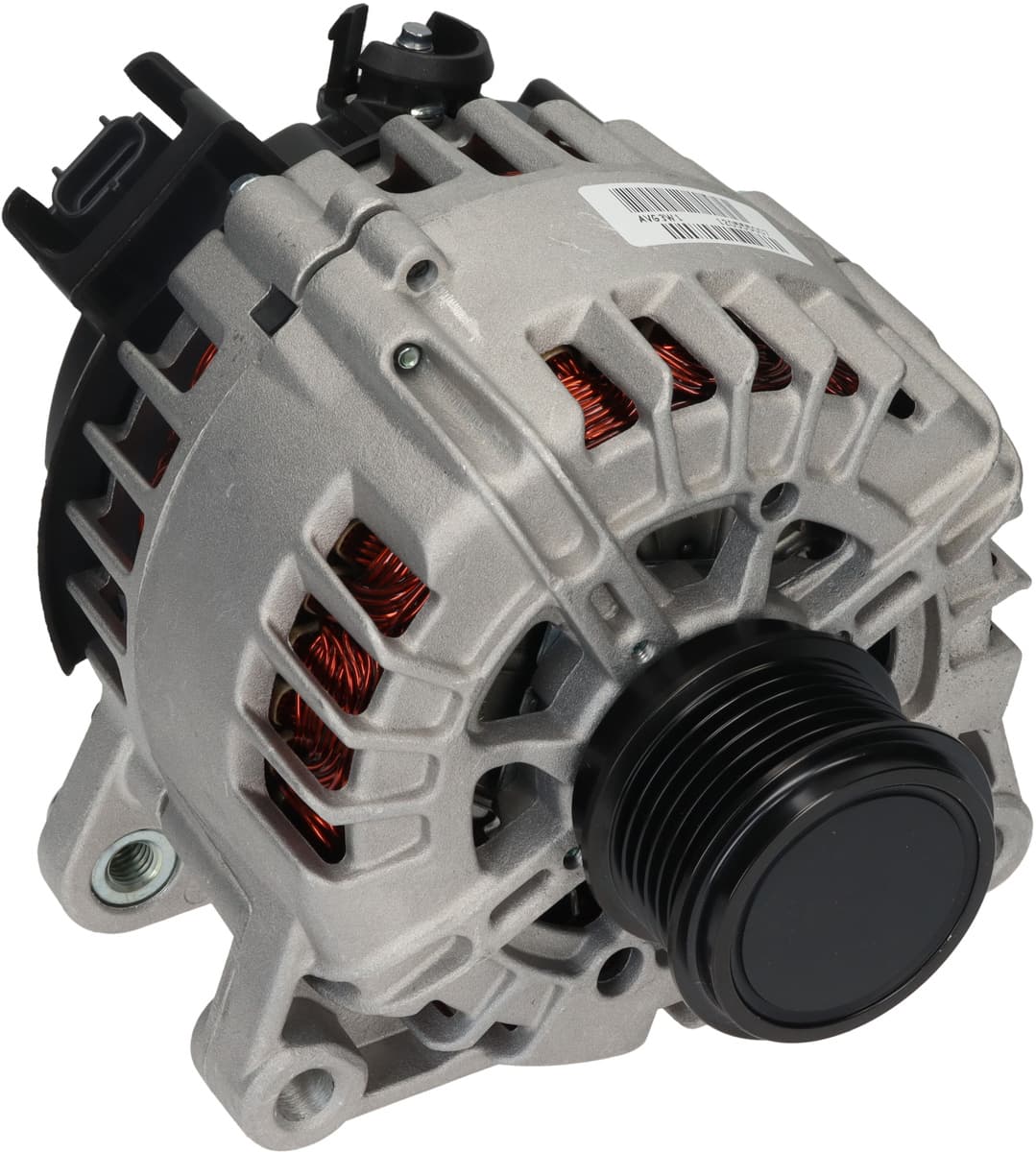

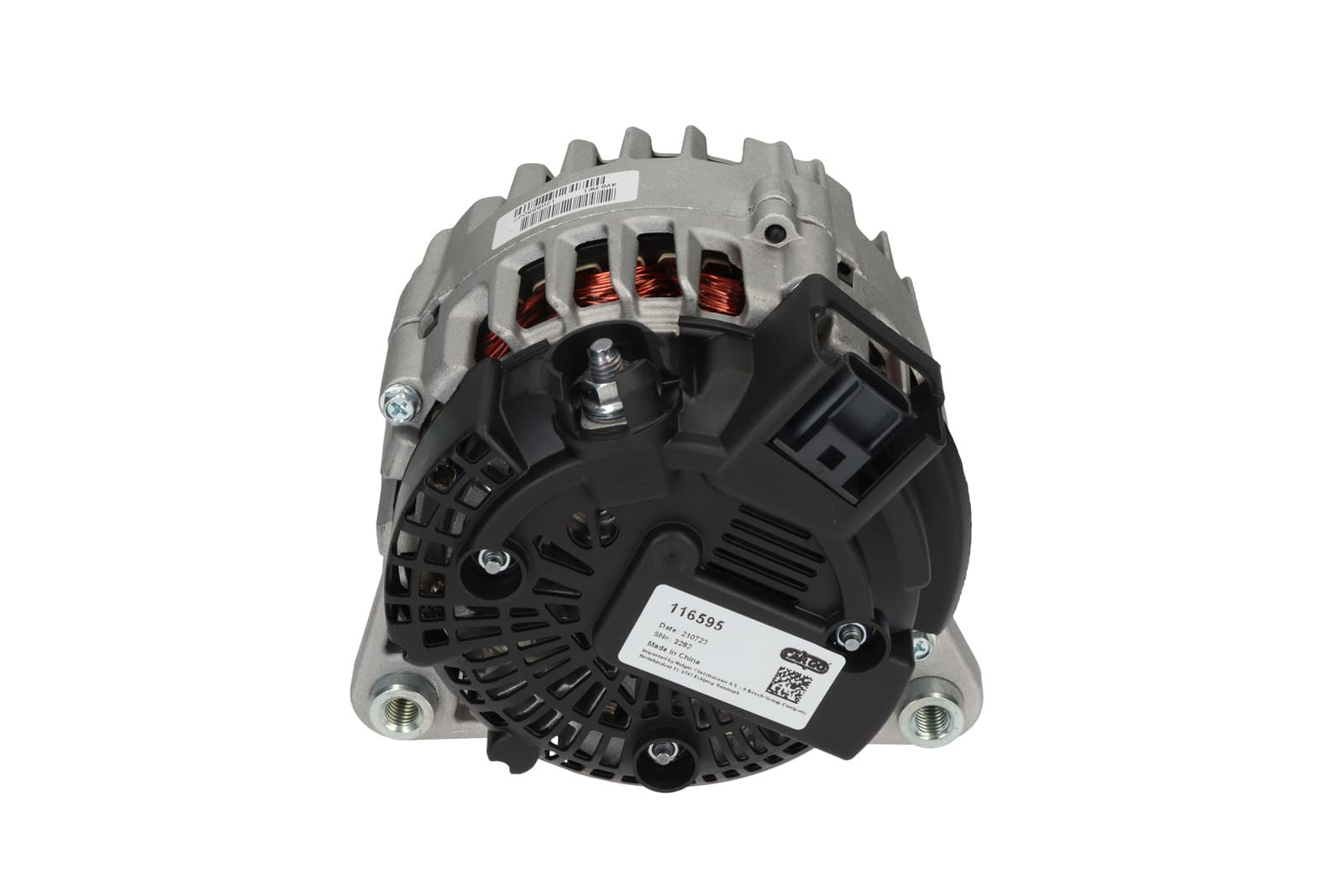

Product image - main
Trade number 116595

Details & description

Voltage 14, Amp 180, Pulley SP/FW, Bracket Hole Size 1 10.80, Pulley Diameter 54.20, Bracket Hole Size Rear M8, D+ Size Plug, D+ Position 58, Holder Arm Width 21.60, Pulley Distance 48.60, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL57, Mounting Bracket Distance 47.30, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.80, Grooves/pulley 6, Regulator type IR, B+ Position 50, Belt Adjustment Bracket Hole Position 47, Total Length 190.00

Product information

Electrical information

  • Voltage14
  • Amp180

Physical information

  • PulleySP/FW
  • Bracket Hole Size 110.80
  • Pulley Diameter54.20
  • Bracket Hole Size RearM8
  • D+ SizePlug
  • D+ Position58
  • Holder Arm Width21.60
  • Pulley Distance48.60
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 1870357FORD
    • DS7T10300KCFORD
    • DS7T10300KDFORD
    • DS7T10300KBFORD

    Competitor References

    • 554706RIVAD KÜHNER
    • CAL15049CASCO SRL
    • 4554CEVAM
    • 595579180CV PSH
    • 2193251802DRI
    • 287530ELSTOCK
    • 209313ERA SPA
    • 209313AERA SPA
    • 12090872EUROTEC
