F032116607 - Alternator

Trade number 116607

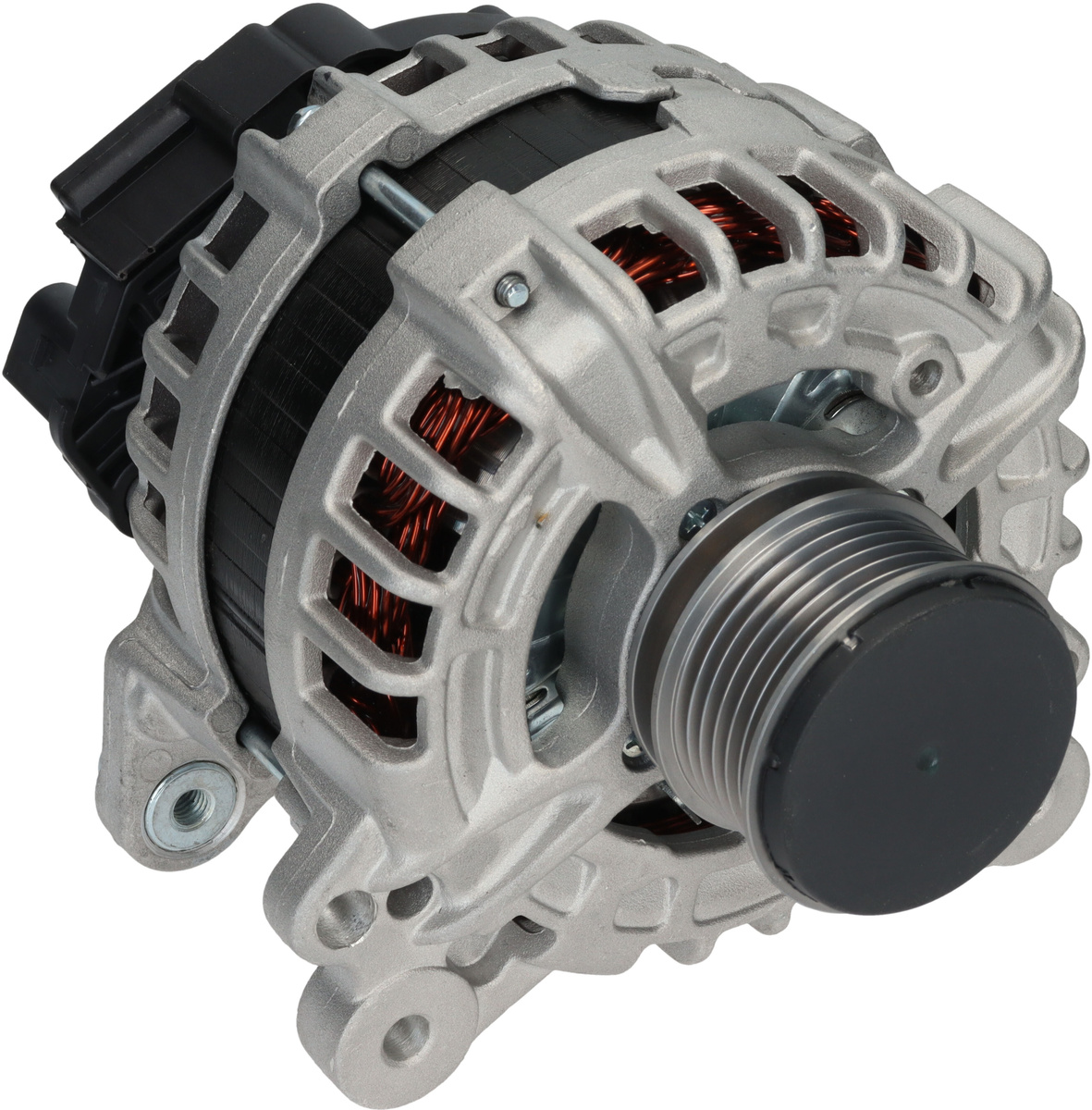

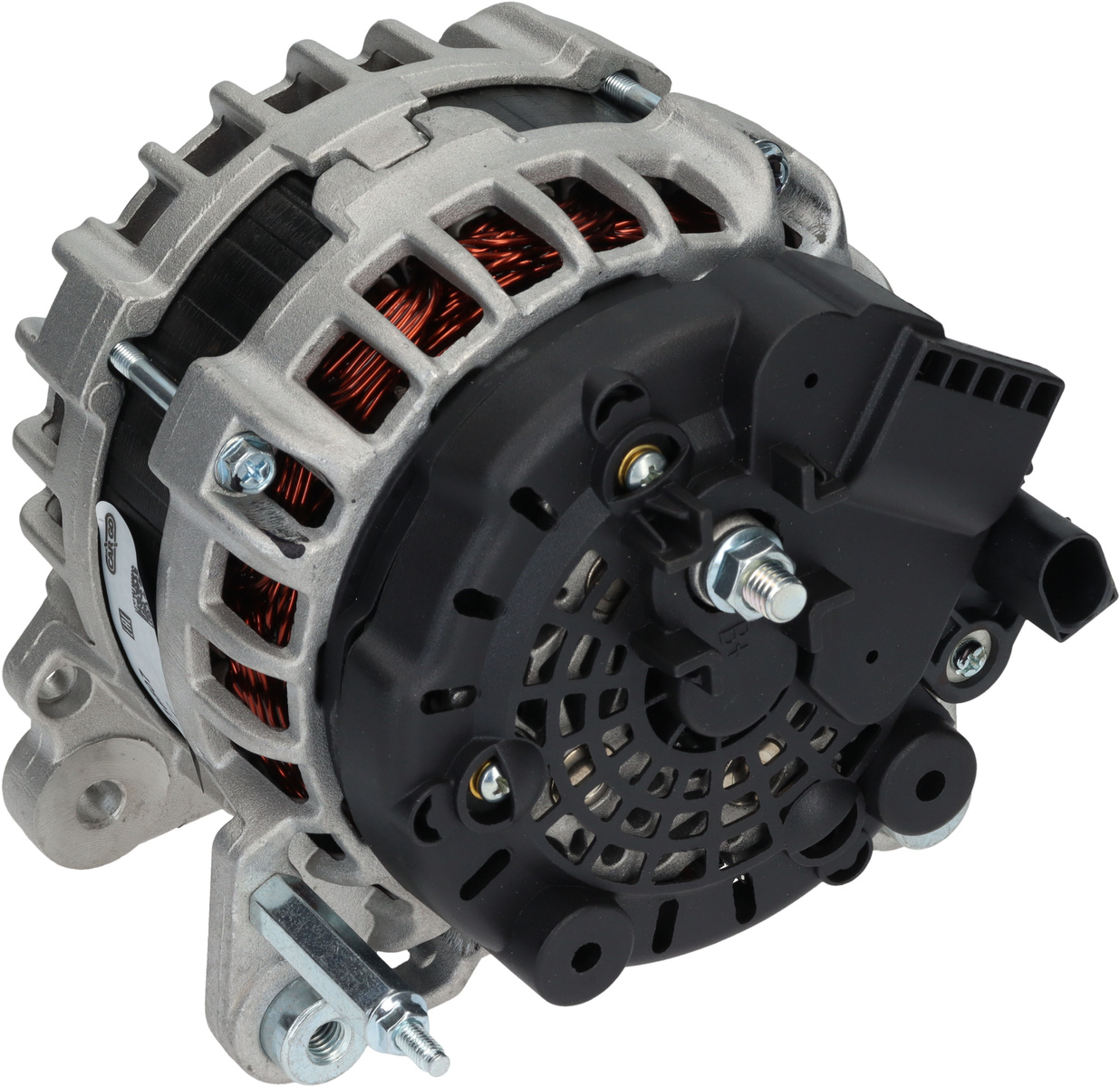

Product image - main
Trade number 116607

Details & description

Voltage 14, Amp 140, Communication LIN, Bracket Hole Size 1 8.50, Pulley Diameter 56.00, Bracket Hole Size Rear M8, Terminal type COM, Holder Arm Width 14.00, Pulley Distance 39.50, B+ M8, Fan IF, Radius 2 90.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL125, Mounting Bracket Distance 61.50, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, B+ Position 52, Belt Adjustment Bracket Hole Position 45, Total Length 191.00

Product information

Electrical information

  • Voltage14
  • Amp140

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • Bracket Hole Size 18.50
  • Pulley Diameter56.00
  • Bracket Hole Size RearM8
  • Terminal typeCOM
  • Holder Arm Width14.00
  • Pulley Distance39.50
  • B+M8
  • FanIF
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 04B903023DVW (VOLKSWAGEN)
    • 04B903023BXVW (VOLKSWAGEN)
    • 06K903026BVW (VOLKSWAGEN)
    • 04B903023BVW (VOLKSWAGEN)
    • 04B903023DXVW (VOLKSWAGEN)

    Competitor References

    • 1986A00634BOSCH
    • F000BL08E1BOSCHBOM
    • F000BL08E2BOSCHBOM
    • F000BL08F7BOSCHBOM
    • F000BL08F8BOSCHBOM
    • 0986085040BOSCH
    • F000BL08S6BOSCH
    • 1986A01248BOSCH
    • 305950140CV PSH
