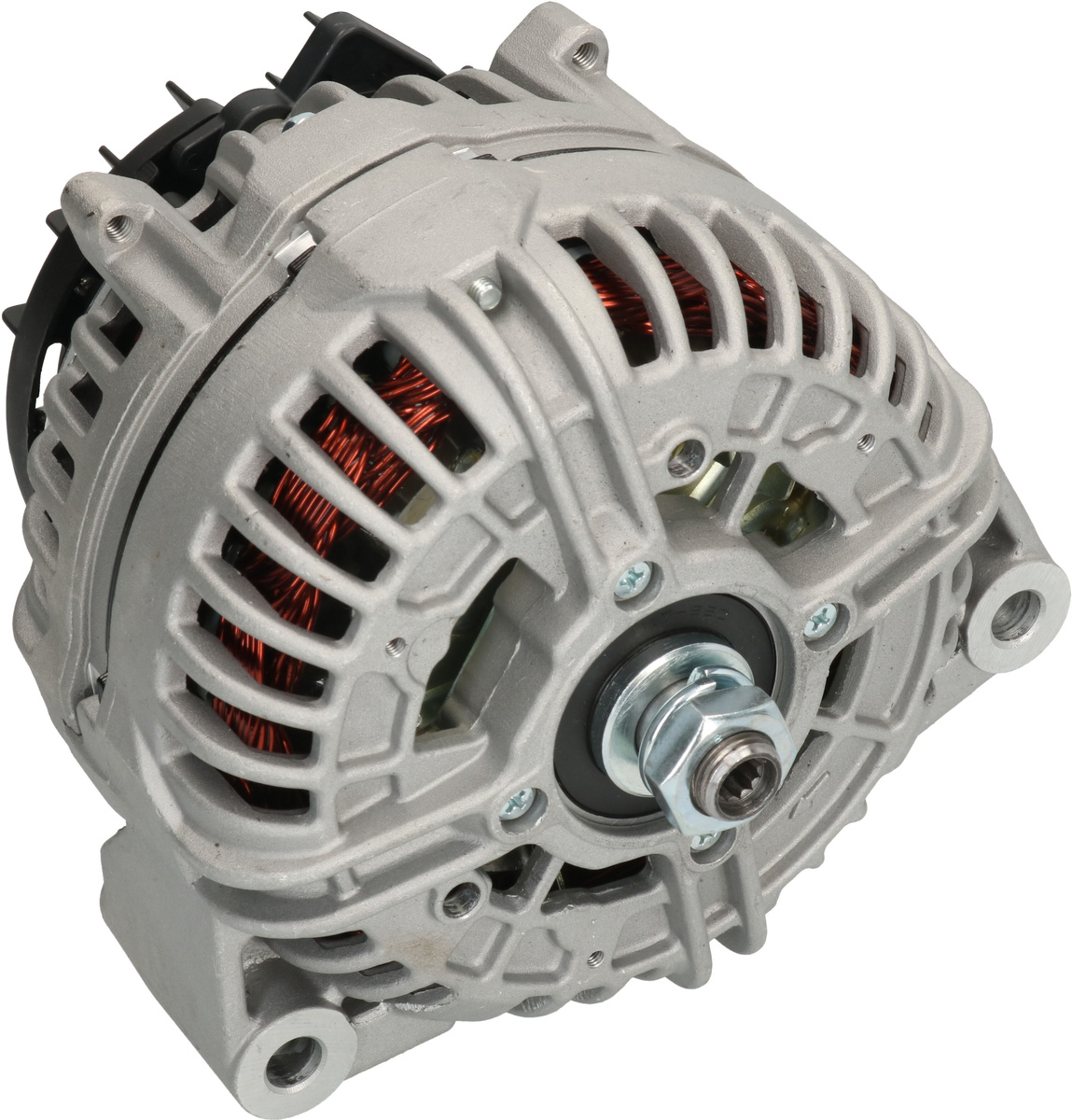

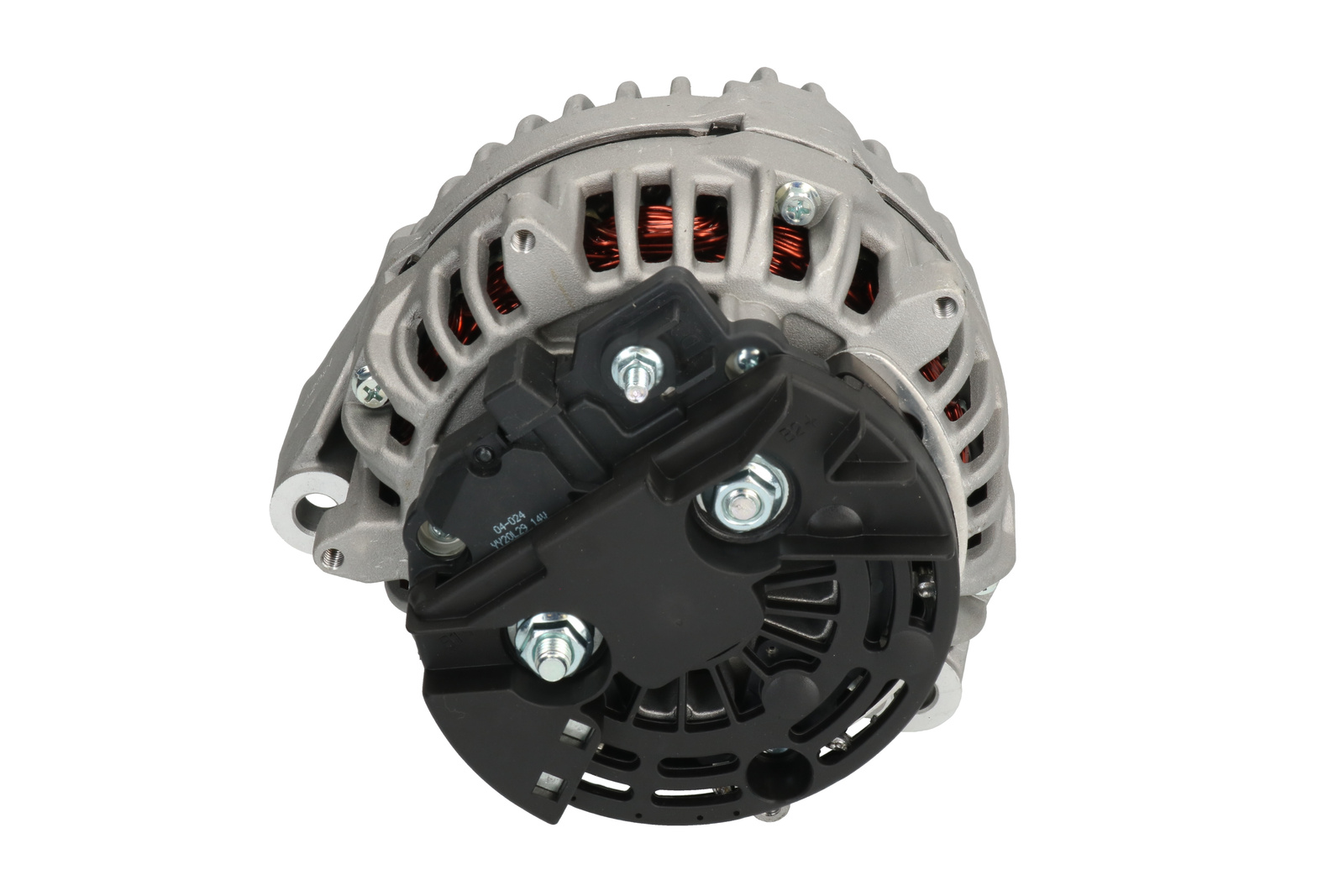

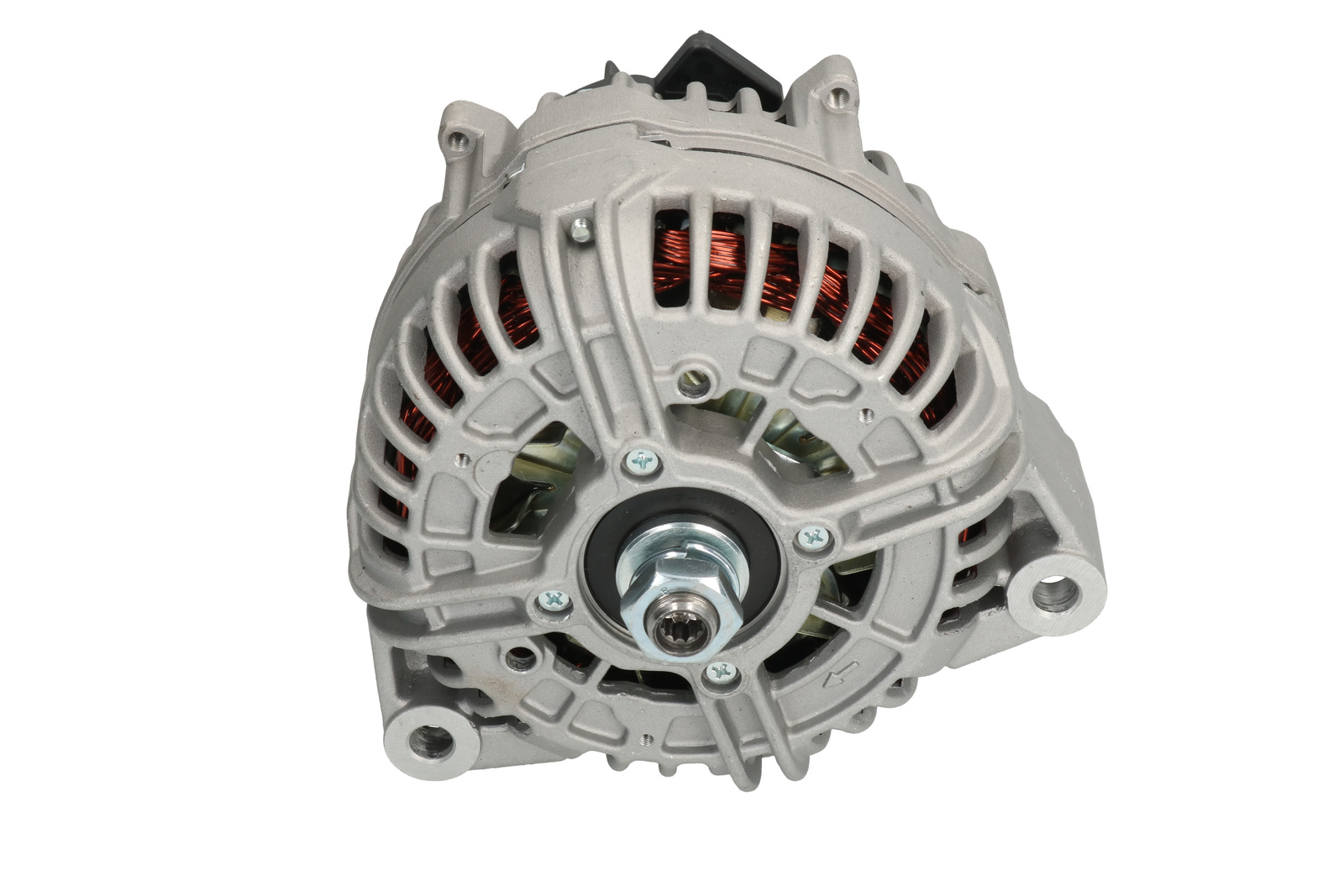

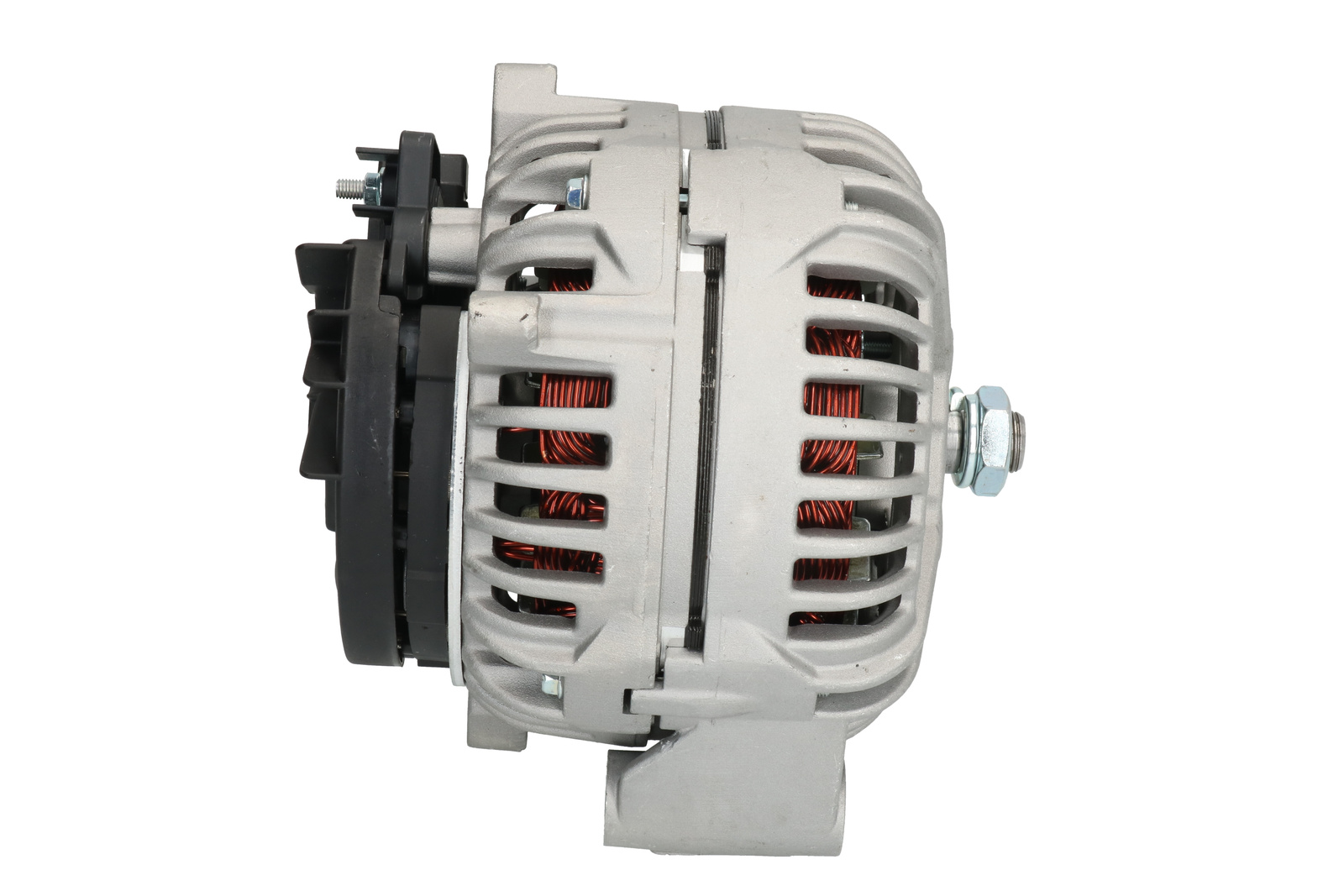

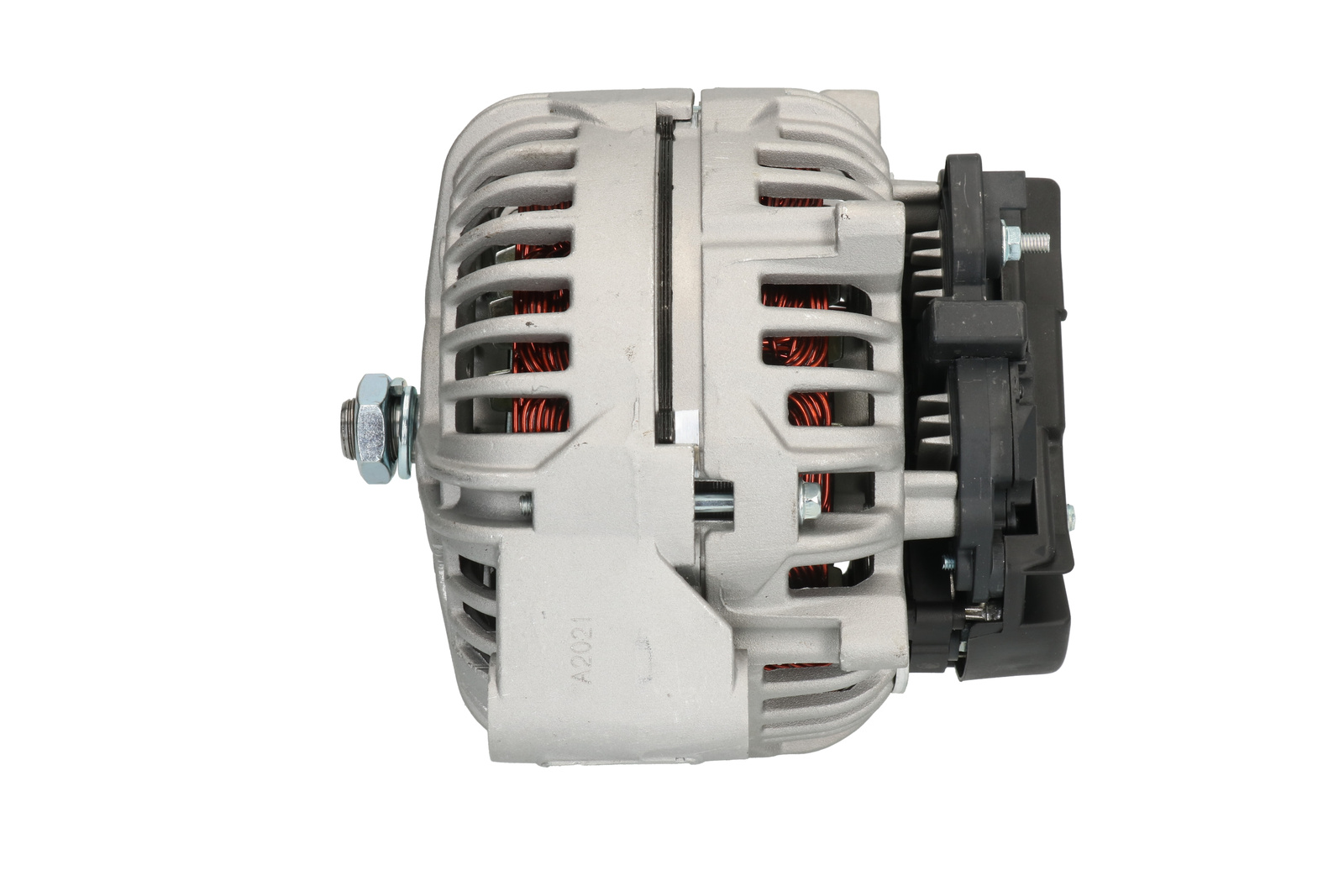

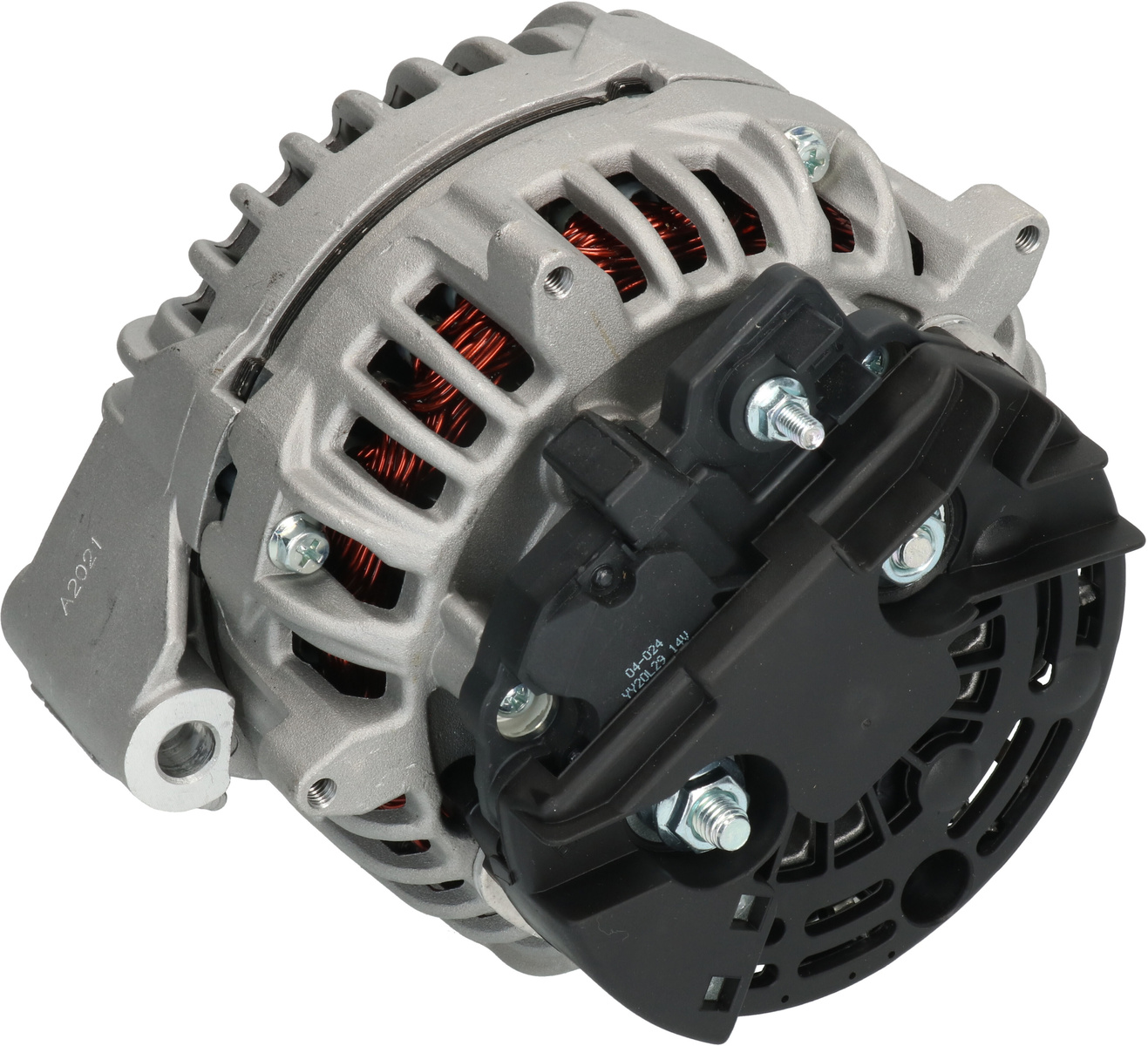

F032116623 - Alternator

Trade number 116623
Product image - main
Trade number 116623

Details & description

Voltage 14, Amp 200, Pulley w/o, Bracket Hole Size 1 10.50, D+ Size M5, D+ Position 45, Holder Arm Width 56.00, B+ M8, Fan IF, Radius 2 90.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.50, Regulator type IR, B+ Position 28, Belt Adjustment Bracket Hole Position 50, Total Length 176.00

Product information

Electrical information

  • Voltage14
  • Amp200

Physical information

  • Pulleyw/o
  • Bracket Hole Size 110.50
  • D+ SizeM5
  • D+ Position45
  • Holder Arm Width56.00
  • B+M8
  • FanIF
  • Radius 290.00
  • Radius90.00
  • Suggested Products

    Replacing and BOMs

    OEM number

    • V836673431AGCO (DEUTZ-ALLIS)
    • SE502775JOHN DEERE

    Competitor References

    • DRA0829AC DELCO
    • 553404RIAD KÜHNER
    • A0711SAUTOSTARTER POLAND
    • 0124625031BOSCHBOM
    • 0124625171BOSCHBOM
    • 1986A00957BOSCH
    • 1986A01115BOSCH
    • 0986083033BOSCH
    • 0124625172BOSCHBOM
