F032116627 - Alternator

Trade number 116627

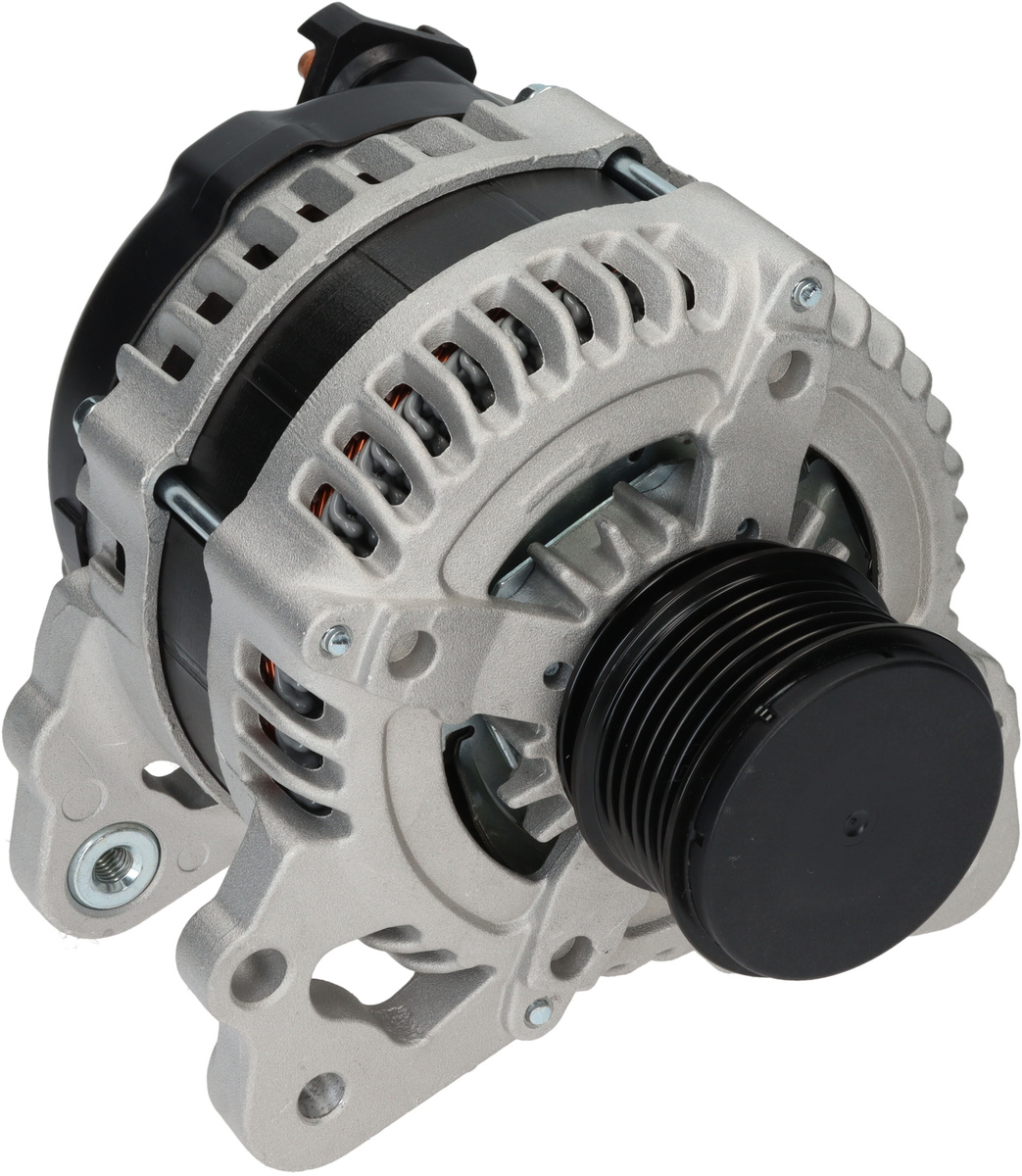

Product image - main
Trade number 116627

Details & description

Voltage 14, Amp 140, Pulley SP/FW, Pulley Diameter 56.20, Pulley Distance 39.50, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 60.50, Radius 90.00, Regulator w/, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Belt Adjustment Bracket Hole 2 M8, Terminal type COM, Holder Arm Width 13.80, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL181, Rotation CW, B+ Position 60, Belt Adjustment Bracket Hole Position 45, Total Length 200.00

Product information

Electrical information

  • Voltage14
  • Amp140

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
  • Regulatorw/

Physical information

  • PulleySP/FW
  • Pulley Diameter56.20
  • Pulley Distance39.50
  • Mounting Bracket Distance60.50
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley6
  • Regulator typeIR
  • Bracket Hole Size 18.50
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 03L903024VW (VOLKSWAGEN)
    • 03L903024XVW (VOLKSWAGEN)

    Competitor References

    • DRA1484AC DELCO
    • 554465RIAD KÜHNER
    • A6506SAUTOSTARTER POLAND
    • CAL40439CASCO SRL
    • 305935140CV PSH
    • DRA1484DELCO REMY
    • 1042118380DENSO
    • DAN1328DENSO
    • 286984ELSTOCK
