F032116658 - Alternator

Trade number 116658

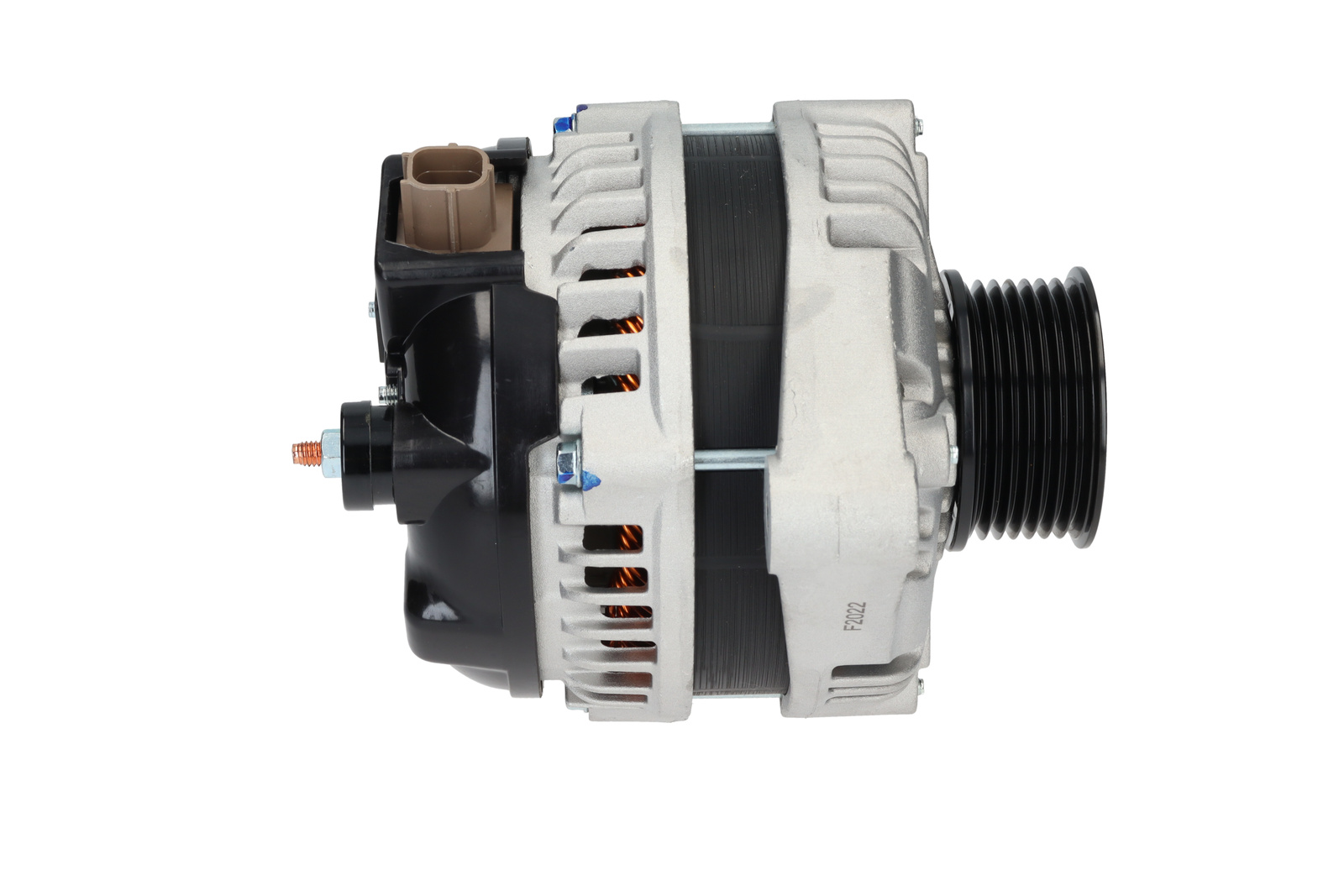

Product image - main
Trade number 116658

Details & description

Voltage 14, Amp 130, Pulley SP, Bracket Hole Size 1 11.00, Pulley Diameter 60.00, Bracket Hole Size Rear M10-1.25, Terminal type L-IG-FR-C, Holder Arm Width 15.00, Pulley Distance 42.90, B+ M6, Fan IF, Radius 2 90.00, Plug no. 1 PL193, Mounting Bracket Distance 34.50, Radius 81.50, Rotation CW, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, B+ Position 3, Belt Adjustment Bracket Hole Position 57, Total Length 176.00

Product information

Electrical information

  • Voltage14
  • Amp130

Physical information

  • PulleySP
  • Bracket Hole Size 111.00
  • Pulley Diameter60.00
  • Bracket Hole Size RearM10-1.25

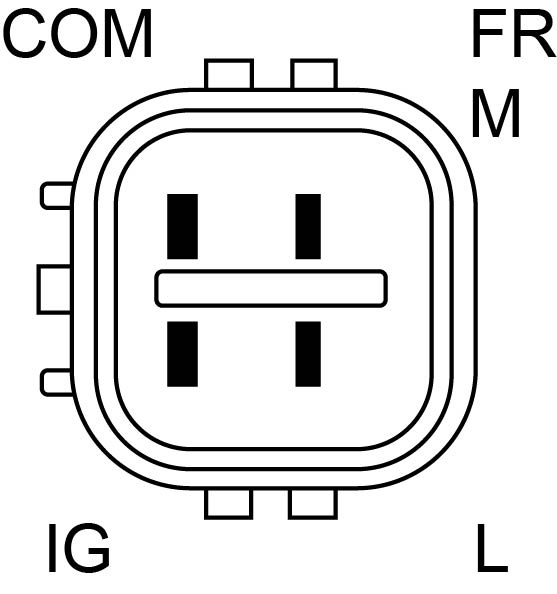

  • Terminal typeL-IG-FR-C
  • Holder Arm Width15.00
  • Pulley Distance42.90
  • B+M6
  • FanIF

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 31100R40A01HONDA

    Competitor References

    • DRA0927AC DELCO
    • 553935RIAD KÜHNER
    • A6300AUTOSTARTER POLAND
    • CAL40338CASCO SRL
    • 10194CEVAM
    • 125567130CV PSH
    • DRA0927DELCO REMY
    • 1042105890DENSOBOM
    • DAN1376DENSO

    • Compatible products
