F032116670 - Alternator

Trade number 116670

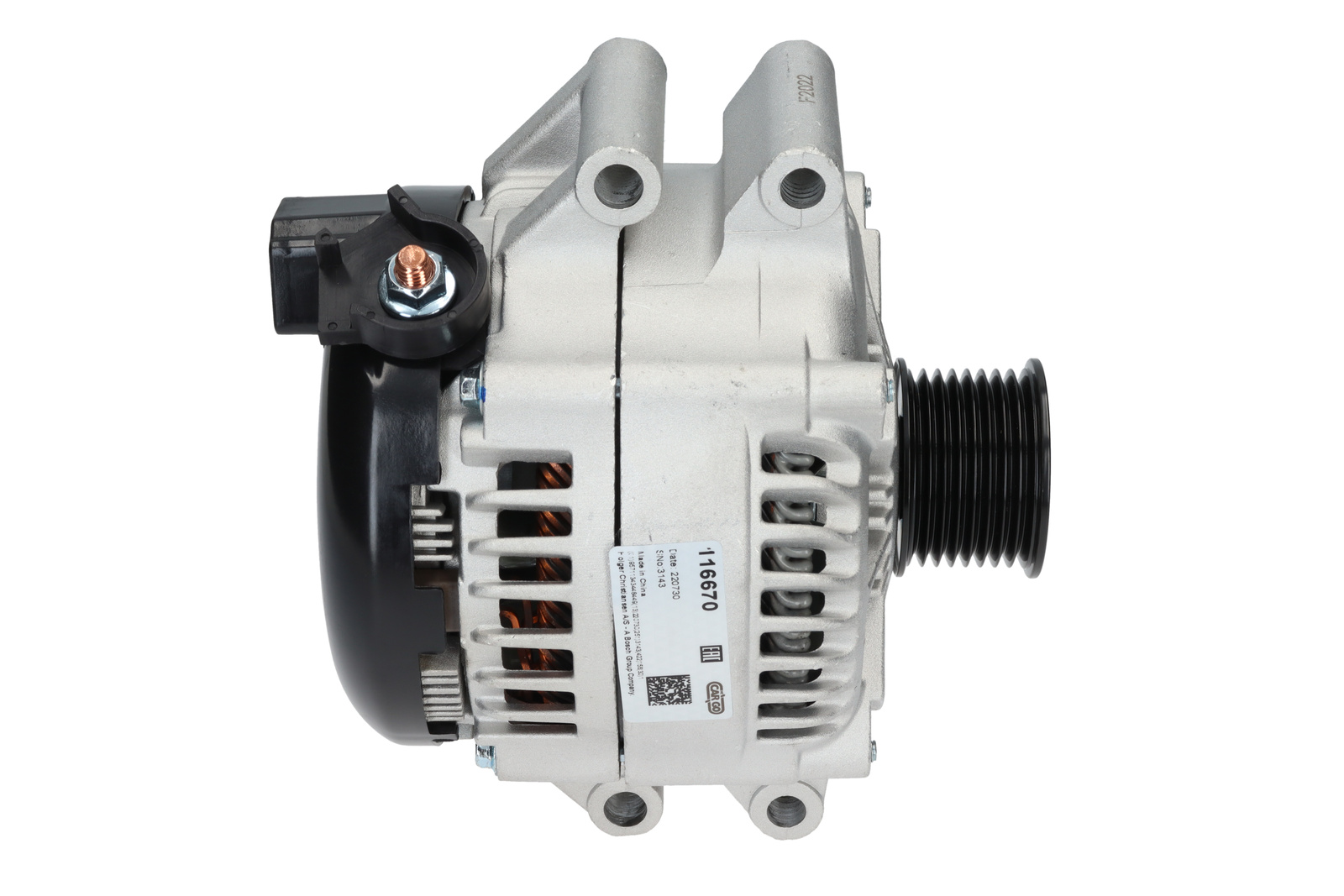

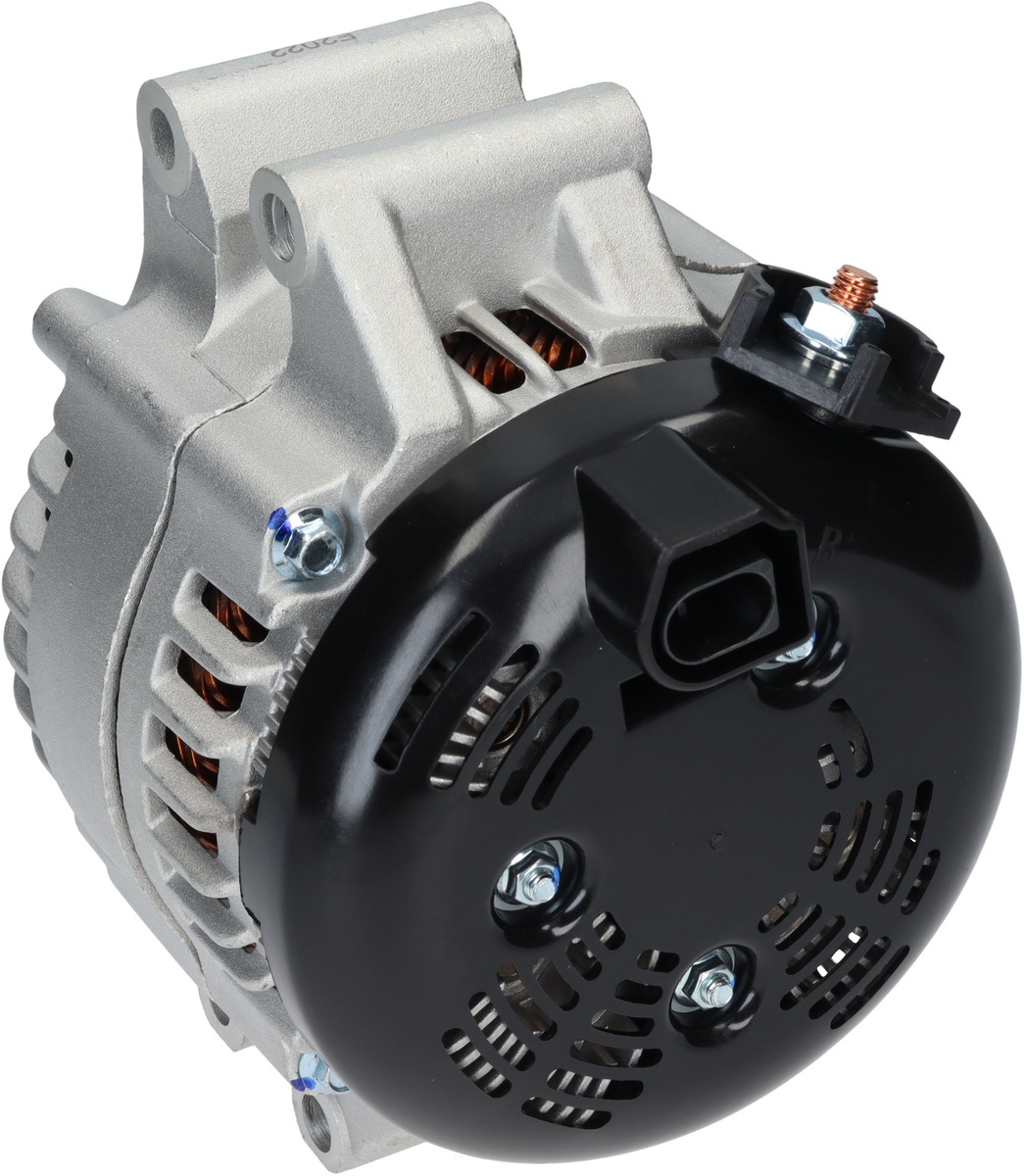

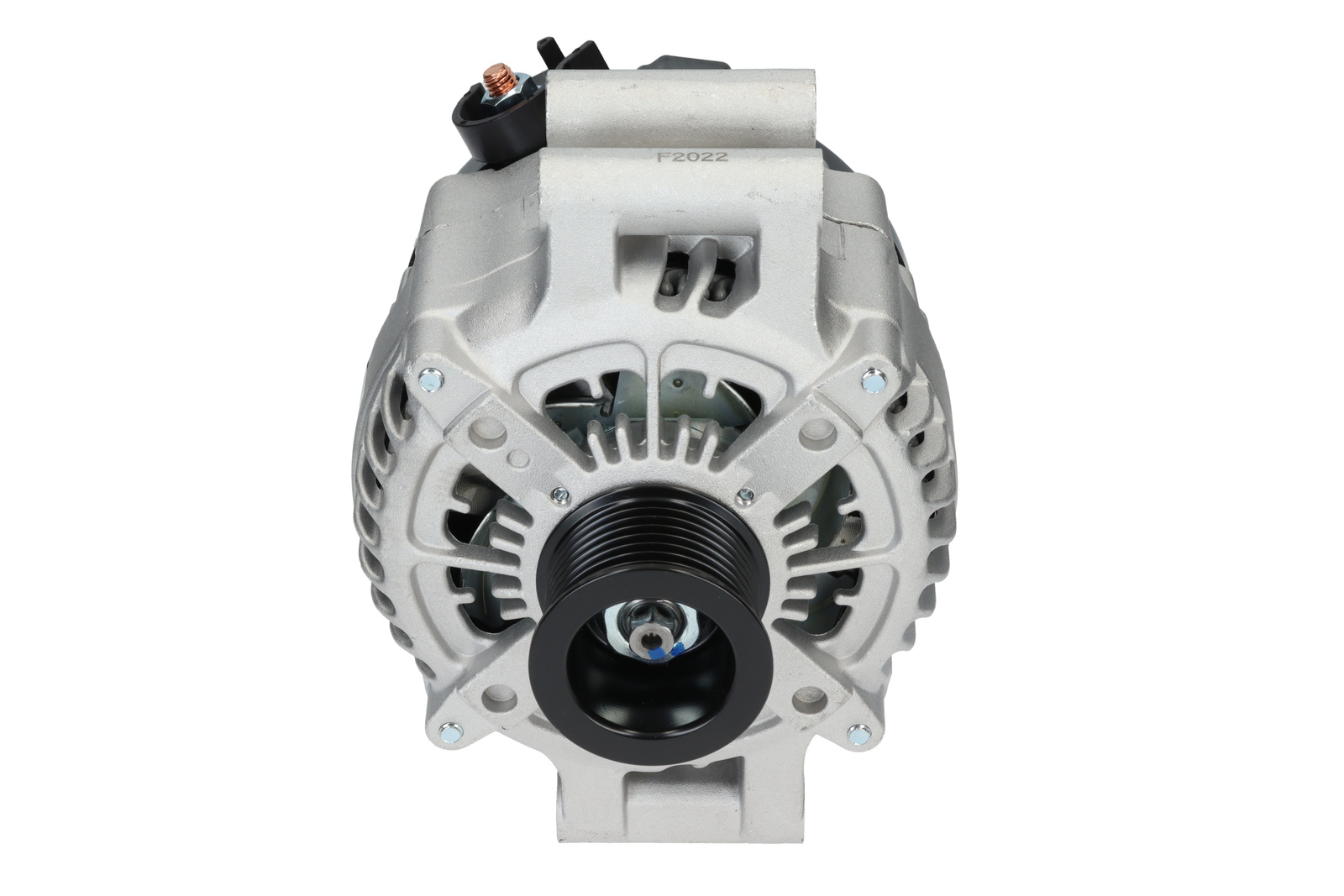

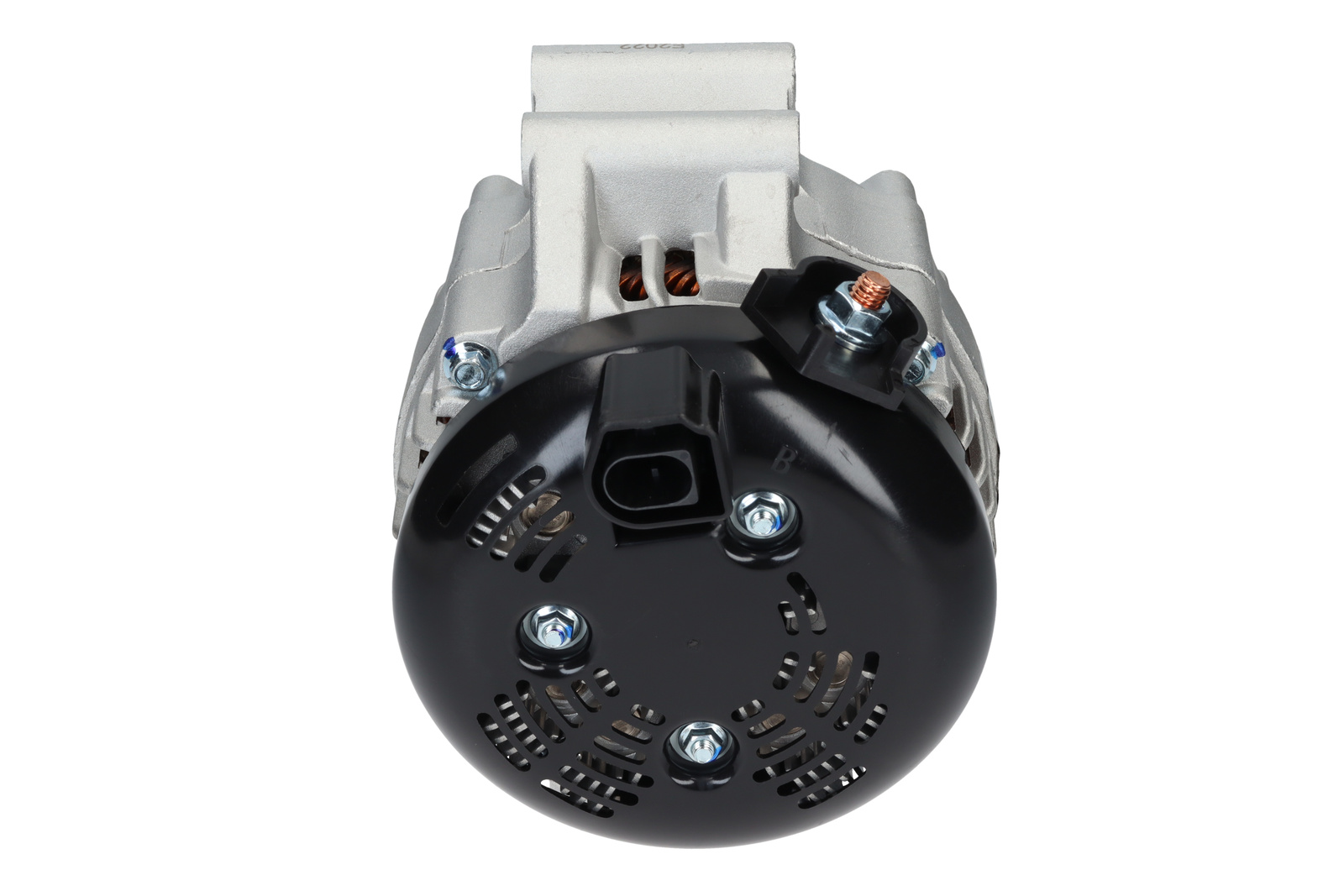

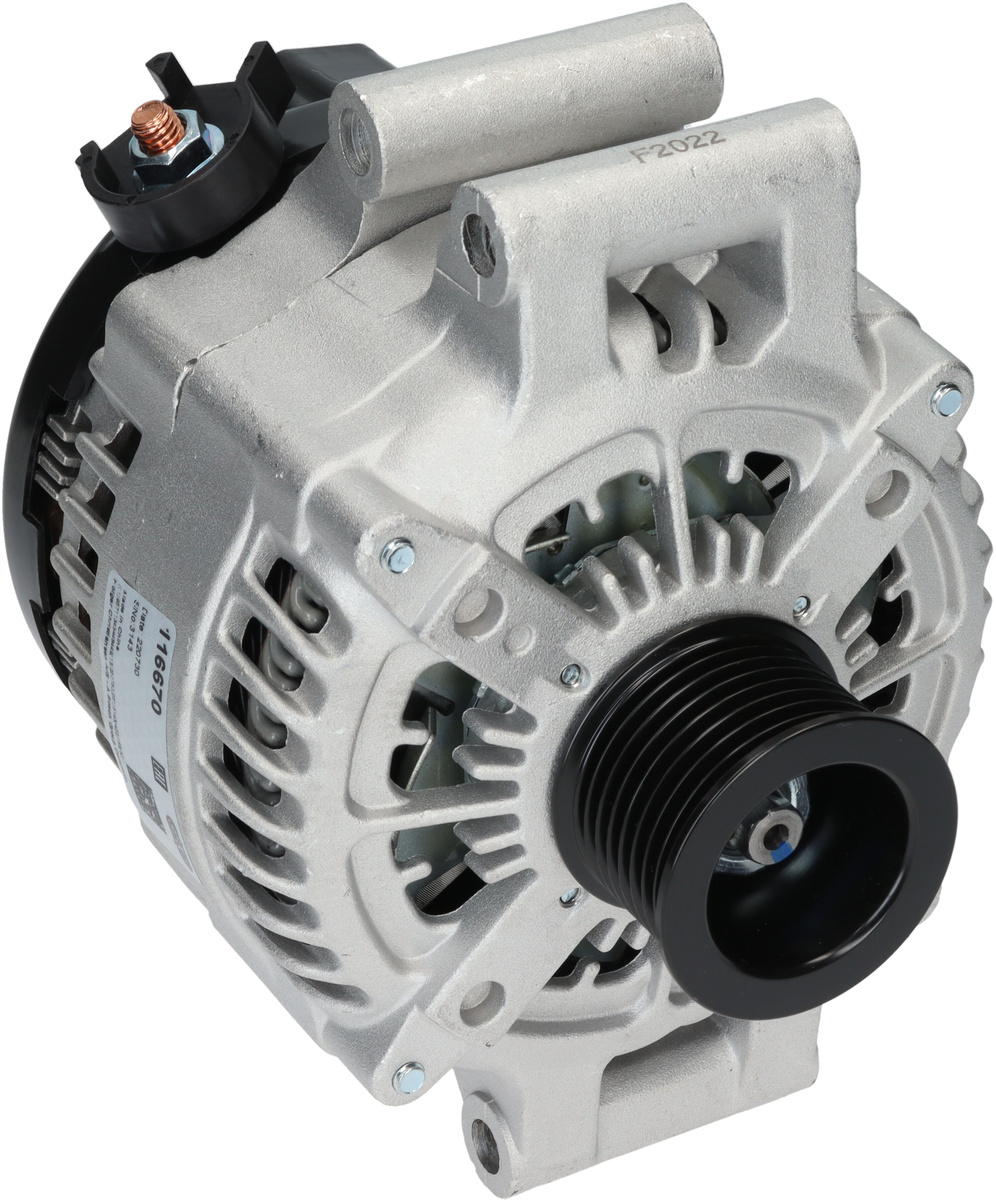

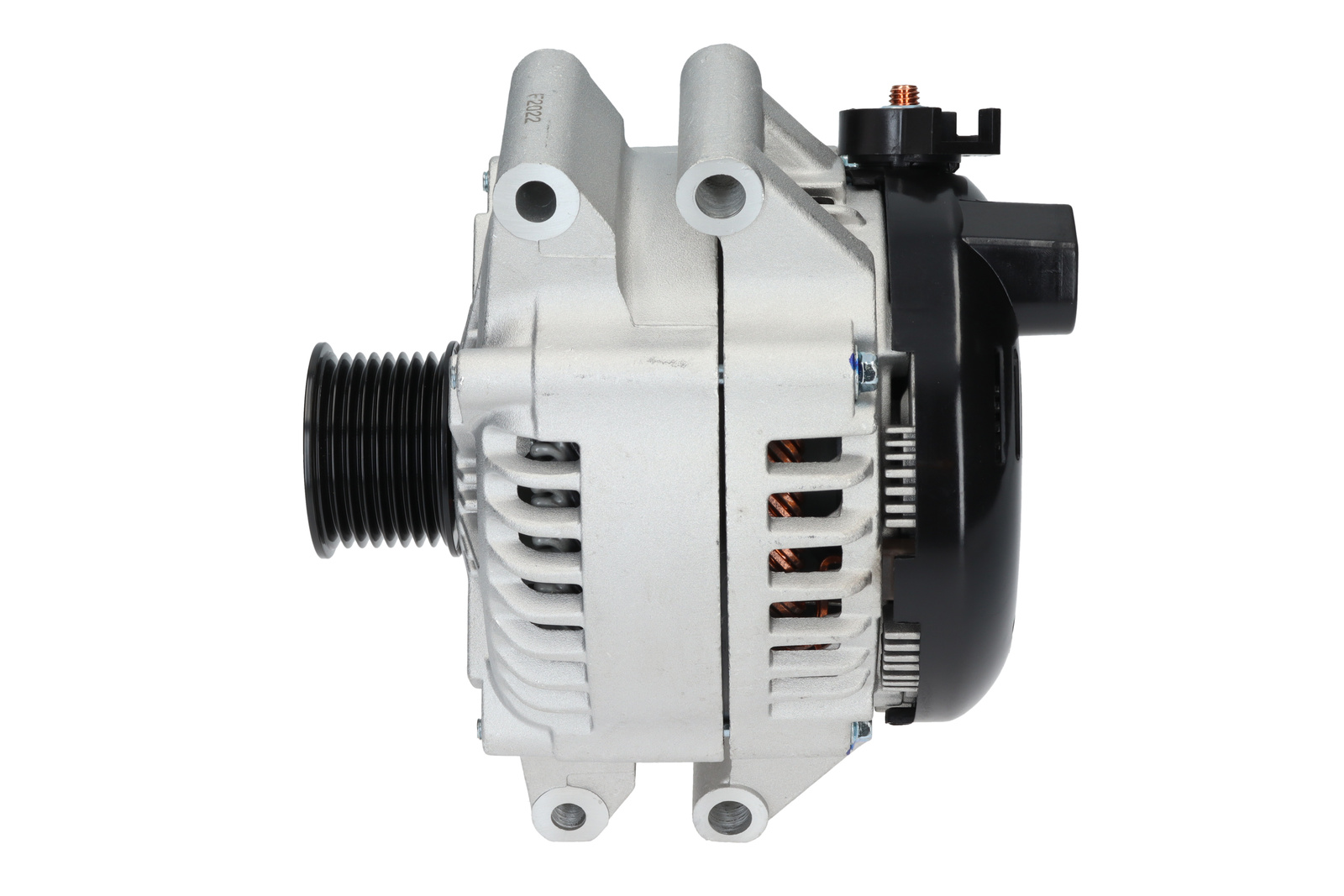

Product image - main
Trade number 116670

Details & description

Voltage 14, Amp 210, Communication BSS, Pulley SP, Bracket Hole Size 1 8.00, Pulley Diameter 49.00, Bracket Hole Size Rear 10.50, Terminal type COM, Holder Arm Width 62.50, Pulley Distance 30.00, B+ M8, Fan IF, Radius 2 87.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL125, Mounting Bracket Distance 40.50, Radius 87.00, Rotation CW, Belt Adjustment Bracket Hole 1 8.00x9.50, Grooves/pulley 8, Regulator type IR, B+ Position 5, Total Length 183.00

Product information

Electrical information

  • Voltage14
  • Amp210

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationBSS
  • PulleySP
  • Bracket Hole Size 18.00
  • Pulley Diameter49.00
  • Bracket Hole Size Rear10.50
  • Terminal typeCOM
  • Holder Arm Width62.50
  • Pulley Distance30.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 12317591529BMW
    • 12317591530BMW
    • 7591529BMW
    • 7591530BMW

    Competitor References

    • DRA1779AC DELCO
    • 554842RIRAD KÜHNER
    • A6378AUTOSTARTER POLAND
    • CAL40455CASCO SRL
    • 40456CEVAM
    • 215572210CV PSH
    • DRA1779DELCO REMY
    • 1042106070DENSO
    • 1042106072DENSO
