F032116682 - Starter

Trade number 116682

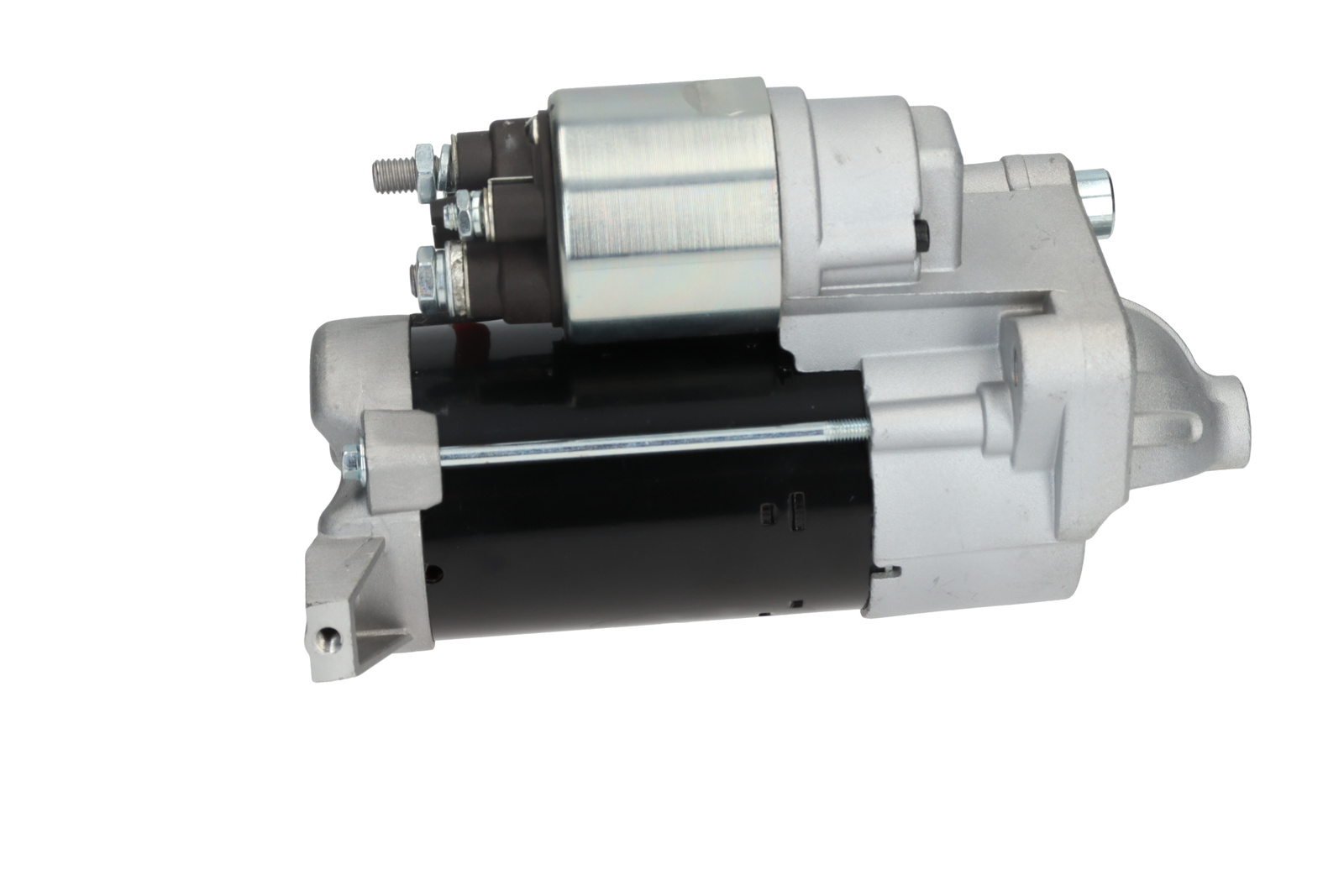

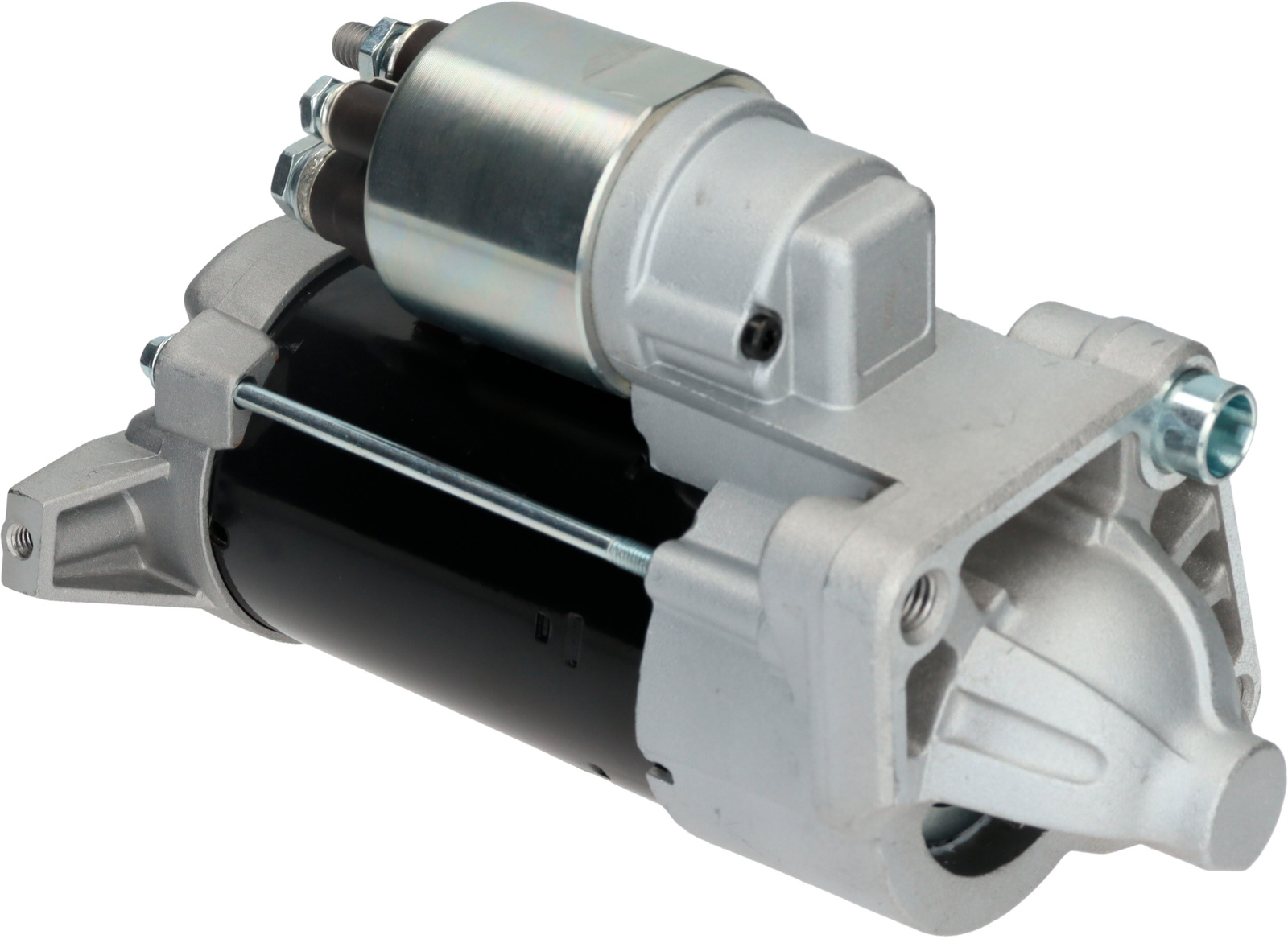

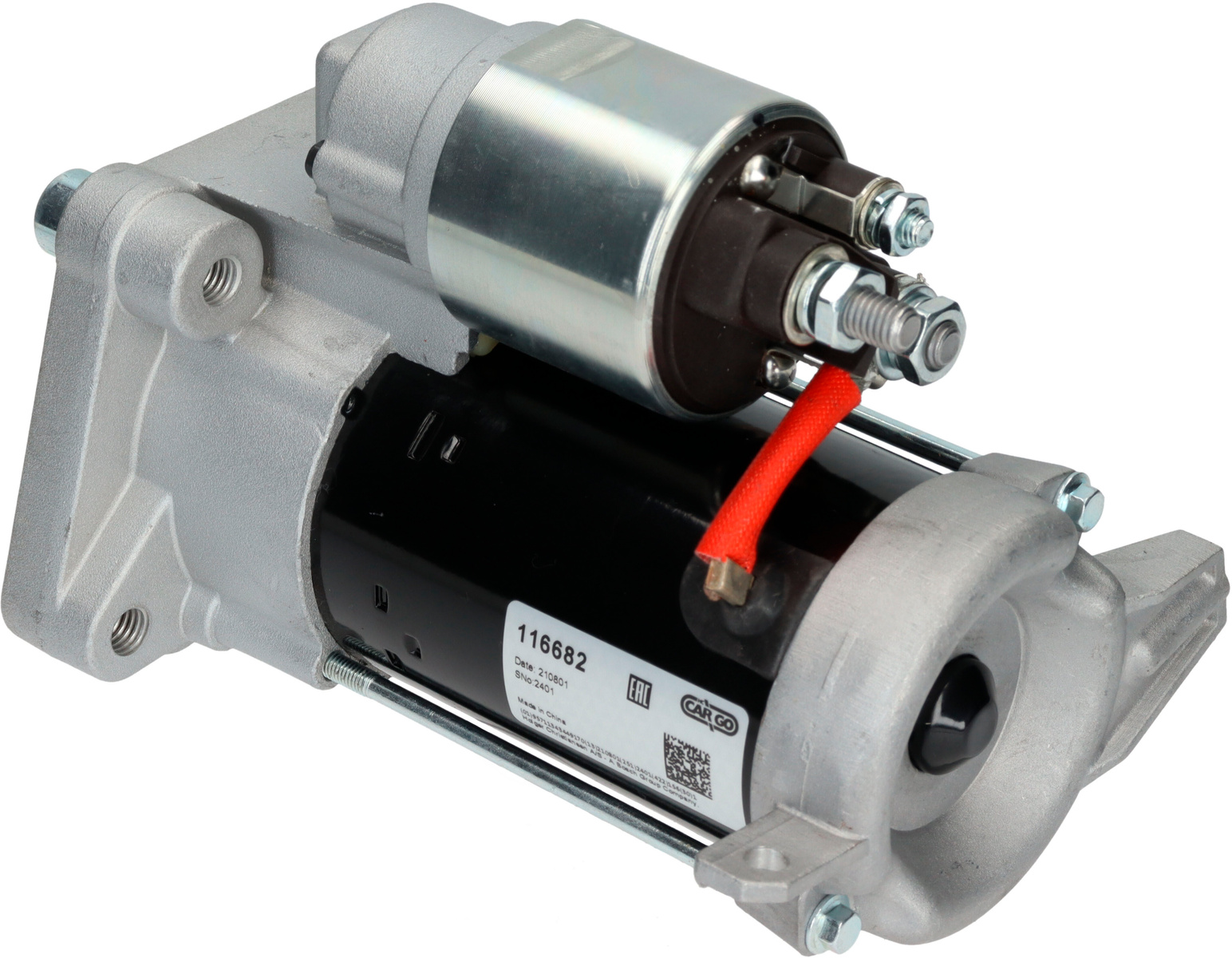

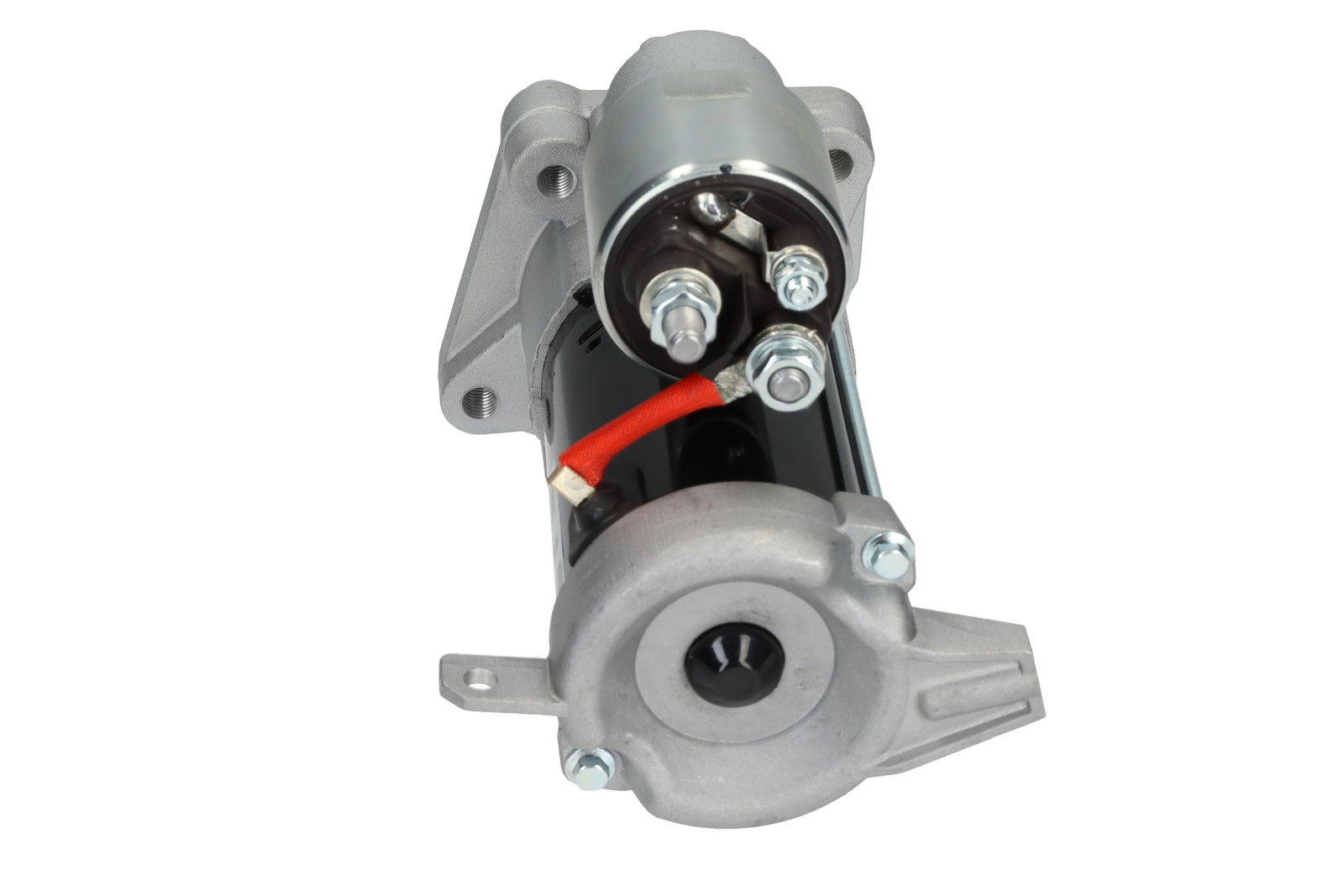

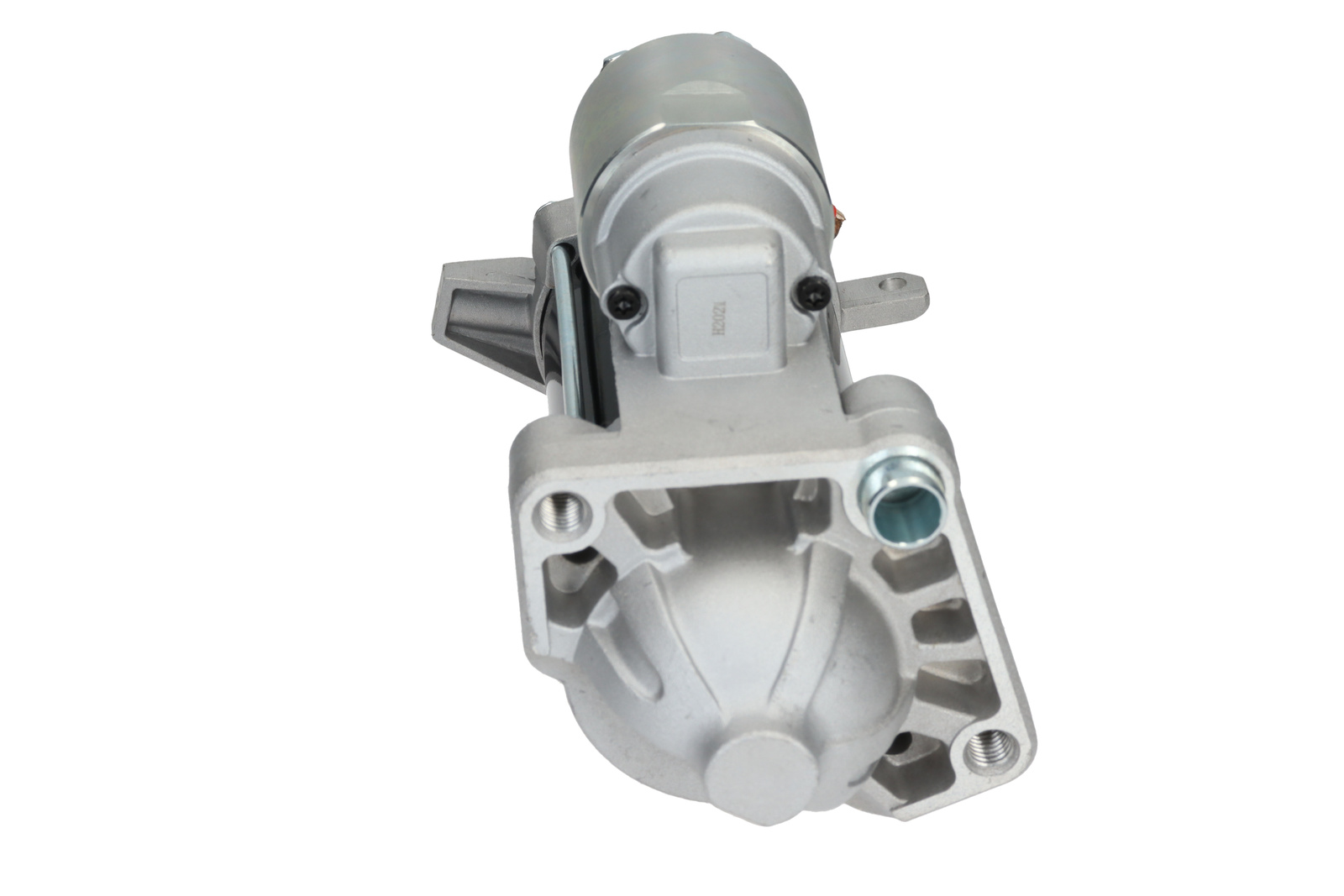

Product image - main
Trade number 116682

Details & description

kW 1.4, Voltage 12, No./mount. holes 3 (3), Rear Distance 177.00, Gear type GR, Front Distance 34.00, Distance 3 66.00, Drive Distance -2.00, No./teeth 11, Distance 2 105.50, B+ M8, Terminal 50 M6, Starter type Start/Stop, Distance 66.00, Mounting Hole 3 M10, Rotation CW, Position 7, B+ Position 51, Amount of Mounting Holes 3 (3), Total Length 211.00

Product information

Electrical information

  • kW1.4
  • Voltage12

Catalogue information

  • Starter typeStart/Stop

Physical information

  • No./mount. holes3 (3)
  • Rear Distance177.00
  • Gear typeGR
  • Front Distance34.00
  • Distance 366.00
  • Drive Distance-2.00
  • No./teeth11
  • Distance 2105.50
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 31407197VOLVO
    • 31419543VOLVO
    • 36003124VOLVO
    • 36010074VOLVO

    Competitor References

    • DRS1036AC DELCO
    • 255658VAD KÜHNER
    • S3184SAUTOSTARTER POLAND
    • 0986UR1886BOSCH
    • 0986026710BOSCH
    • 1986S01195BOSCH
    • CST15298CASCO SRL
    • 3731CEVAM
    • 810544113CV PSH
