F032116684 - Alternator

Trade number 116684

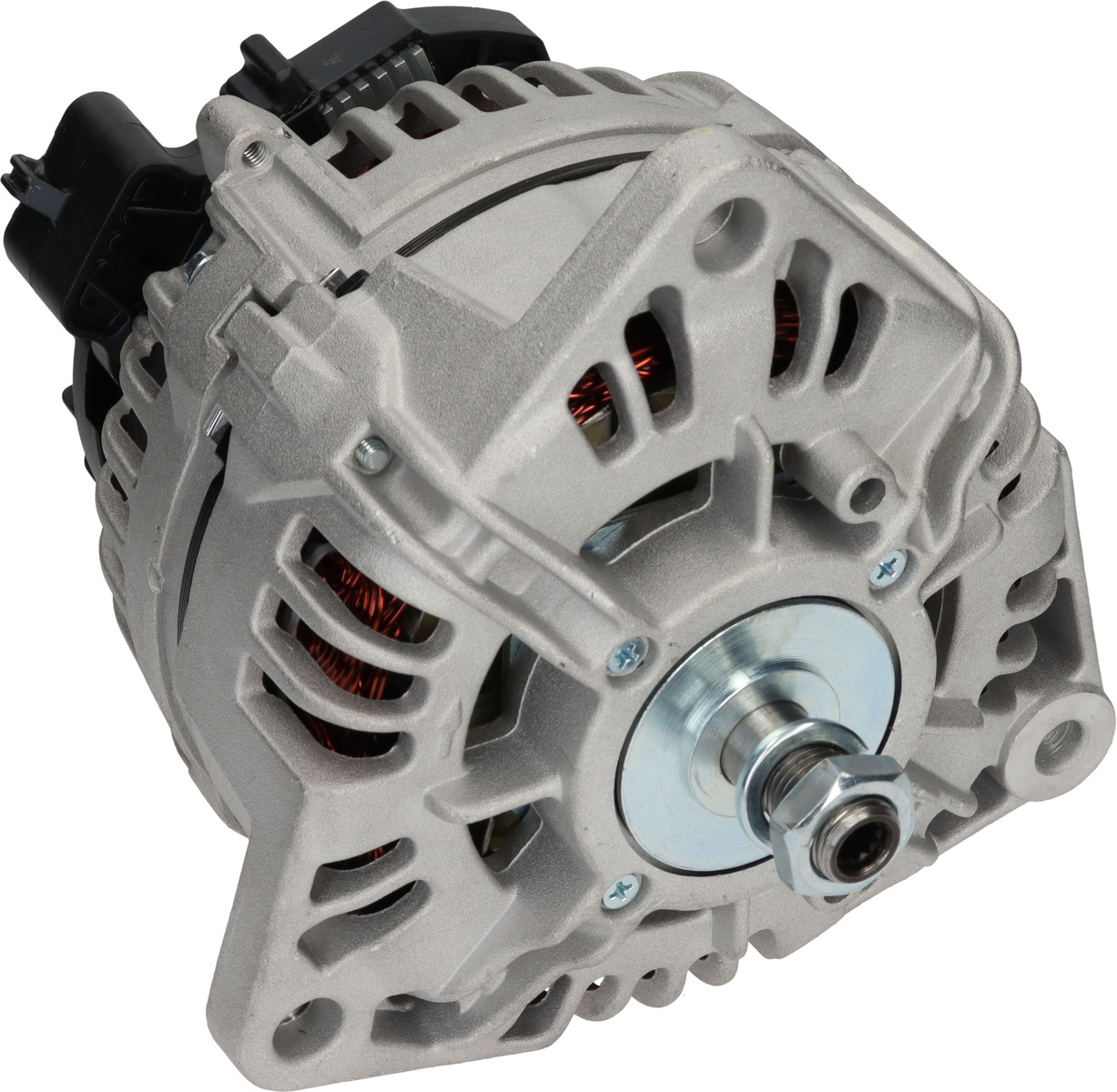

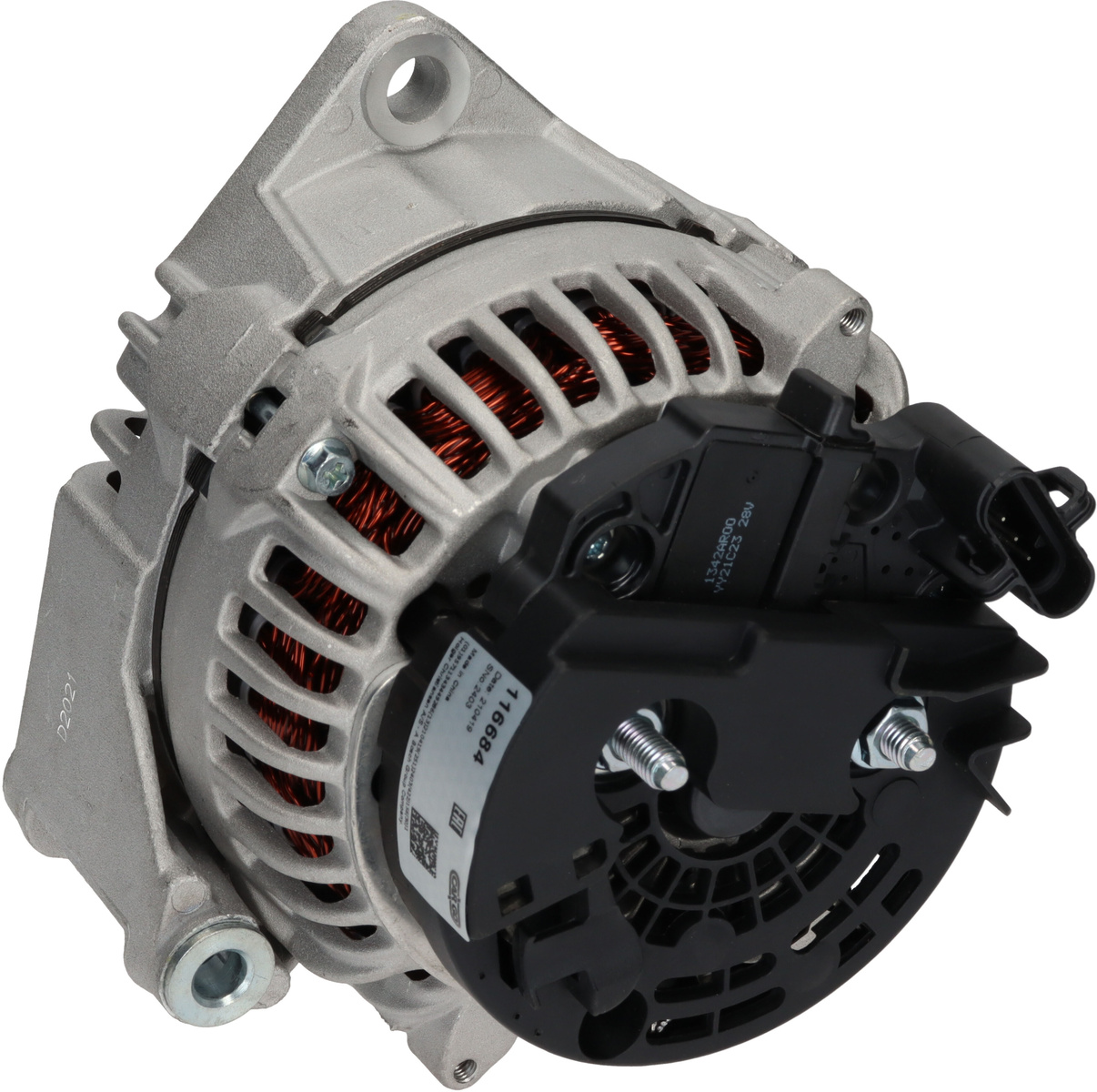

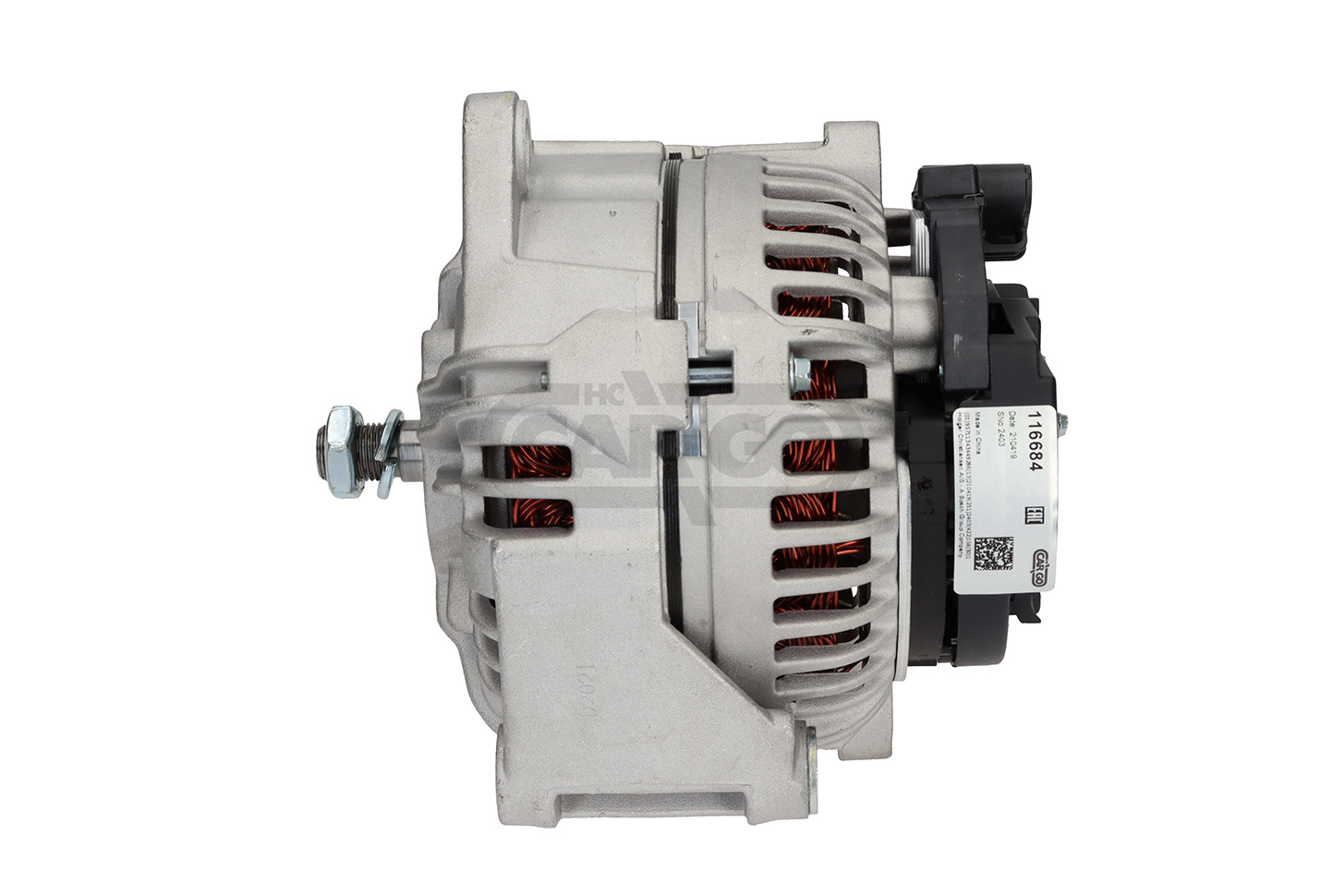

Product image - main
Trade number 116684

Details & description

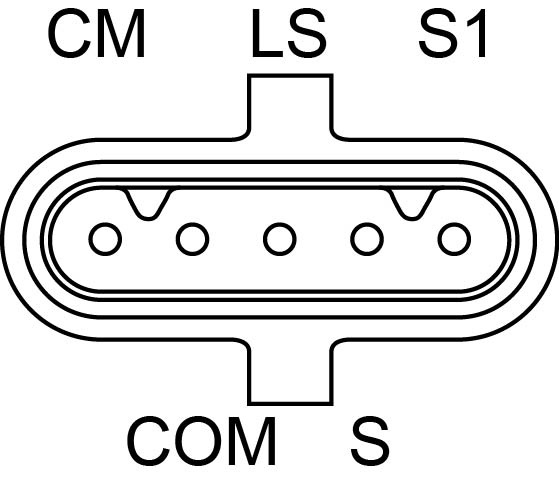

Voltage 28, Amp 150, Pulley w/o, Bracket Hole Size 1 10.00, Belt Adjustment Bracket Hole 2 12.50, Terminal type COM, Holder Arm Width 80.00, Radius 3 90.00, B+ M8, Fan IF, Radius 2 90.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL190, Radius 93.00, Rotation CW, Belt Adjustment Bracket Hole 1 12.50, Regulator type IR, Belt Adjustment Bracket Hole Position 10;50, Total Length 199.00

Product information

Electrical information

  • Voltage28
  • Amp150

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • Pulleyw/o
  • Bracket Hole Size 110.00
  • Belt Adjustment Bracket Hole 212.50
  • Terminal typeCOM
  • Holder Arm Width80.00
  • Radius 390.00
  • B+M8
  • FanIF
  • Radius 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 0001506550MERCEDES-BENZ
    • A0001506550MERCEDES-BENZ

    Competitor References

    • DRA1445AC DELCO
    • 554445RIAD KÜHNER
    • A0669BOSCHAUTOSTARTER POLAND
    • A0669SAUTOSTARTER POLAND
    • 0124655125BOSCHBOM
    • 0124655161BOSCHBOM
    • 0986085300BOSCH
    • 1986A00989BOSCH
    • CAL10673CASCO SRL
