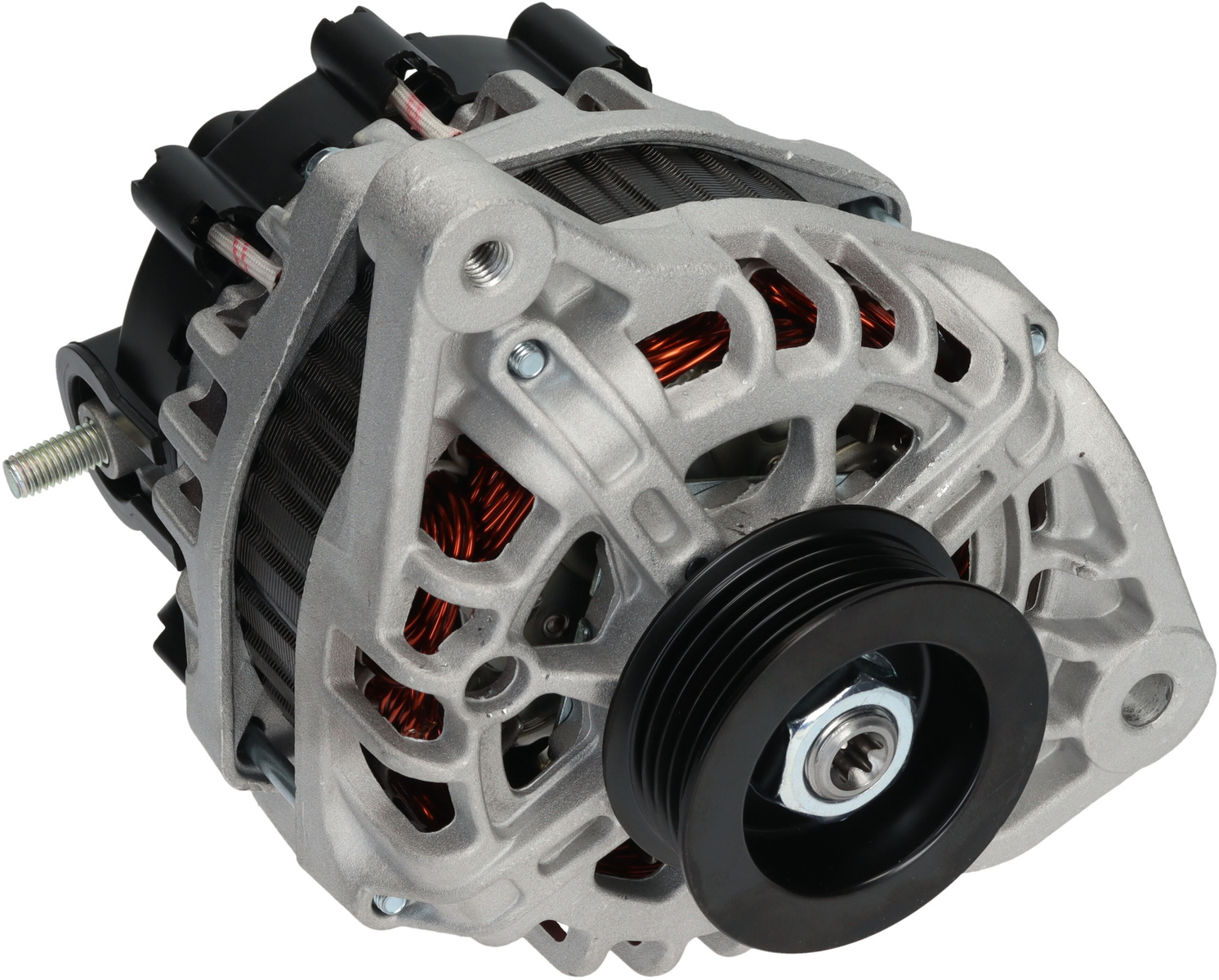

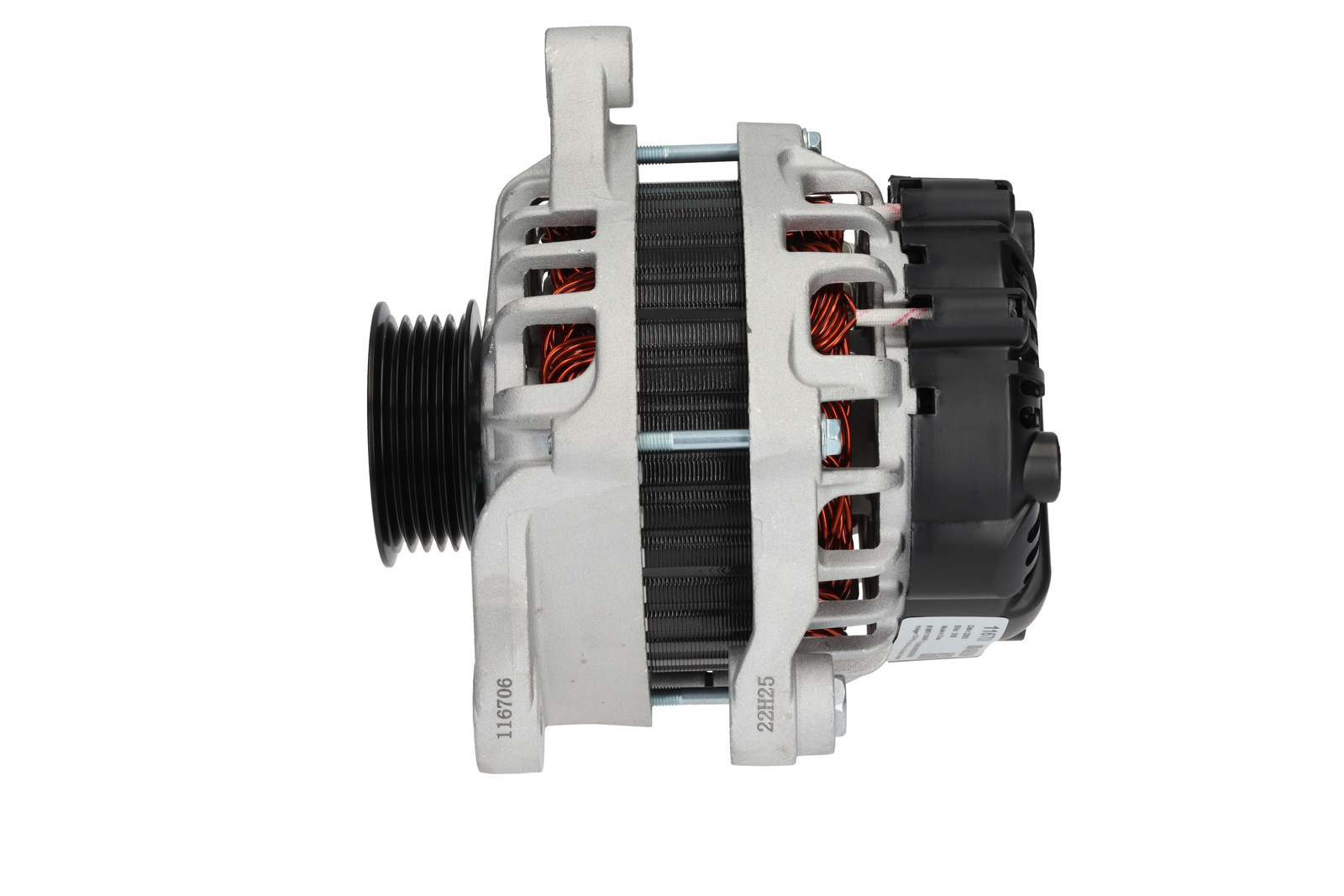

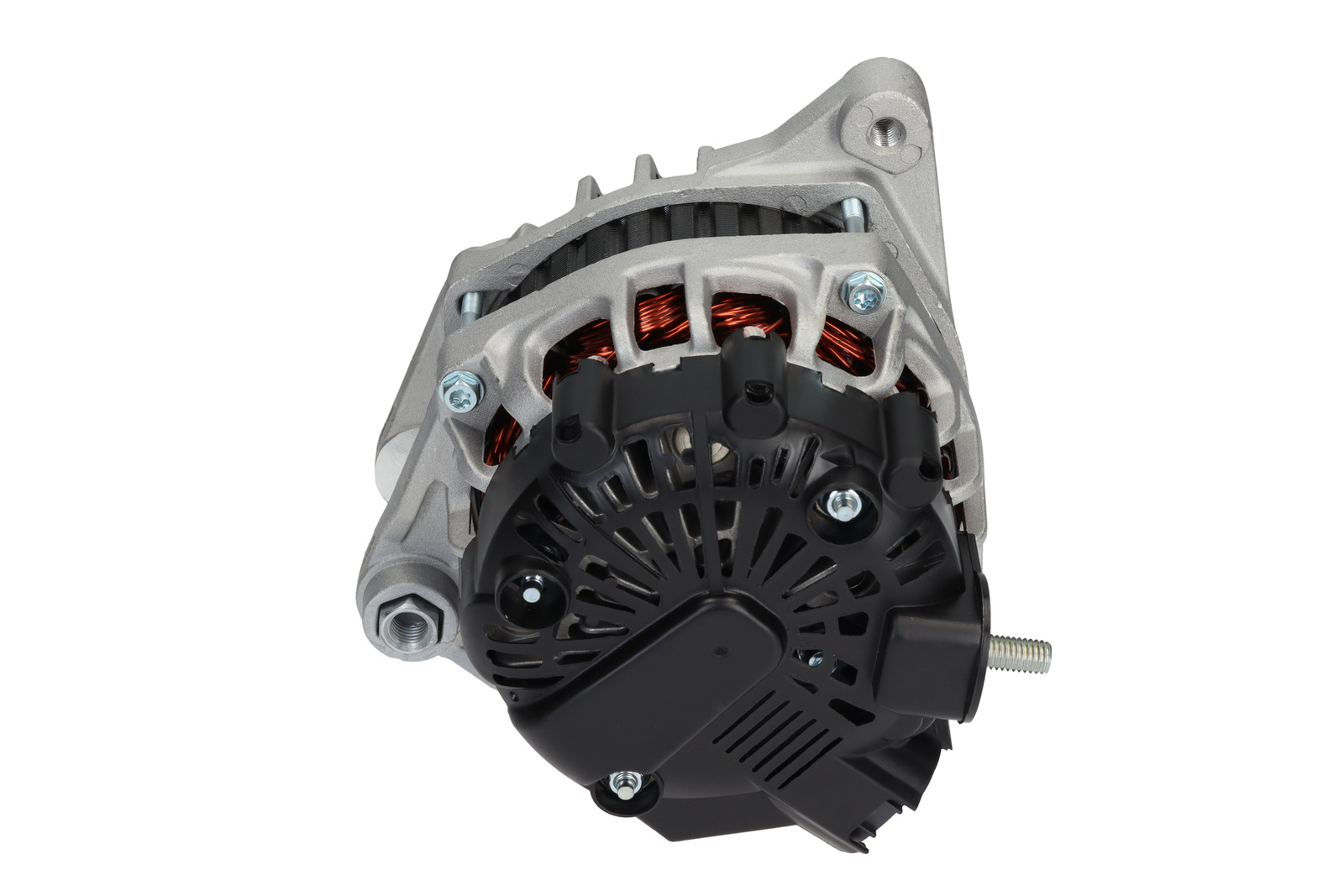

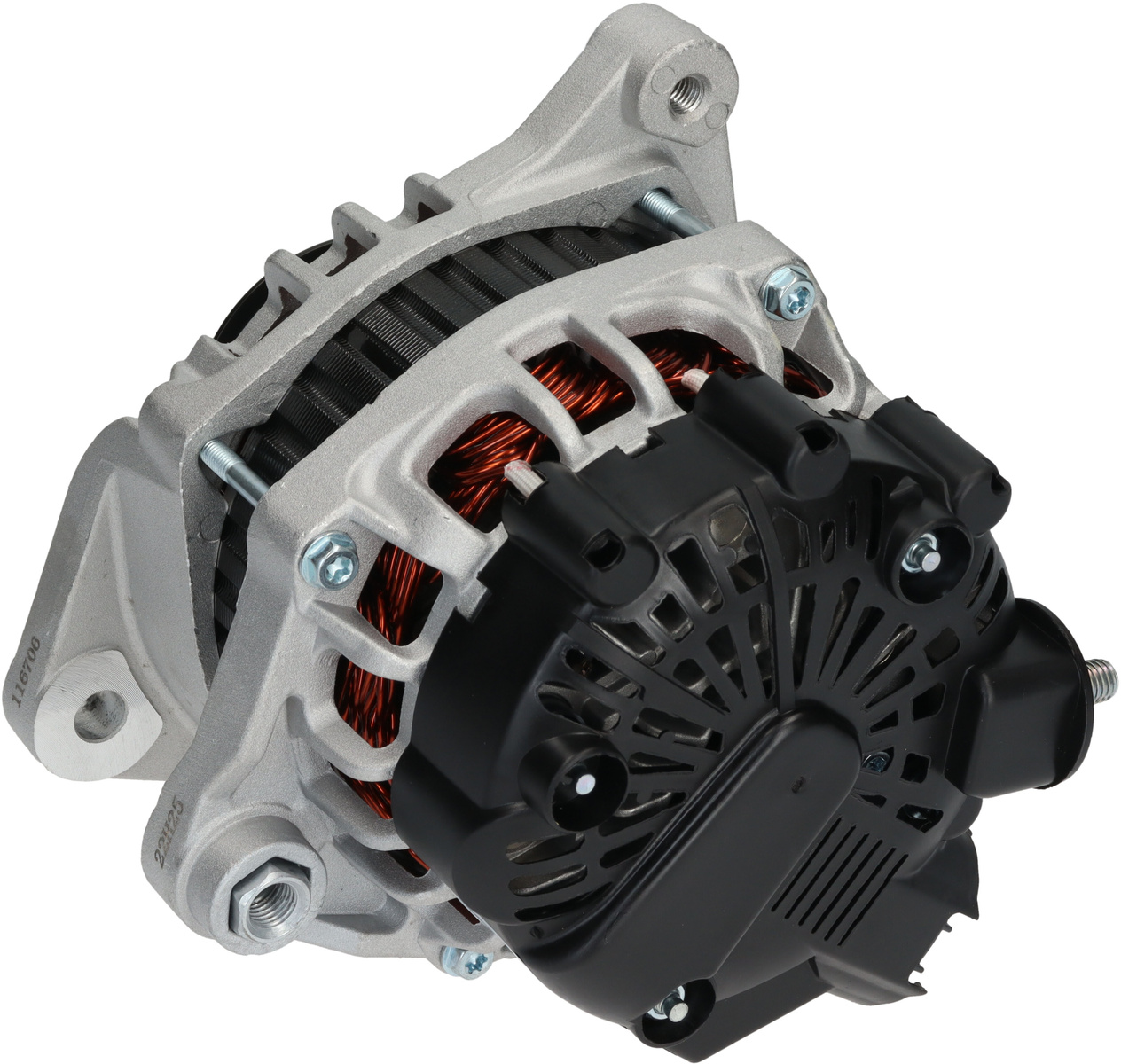

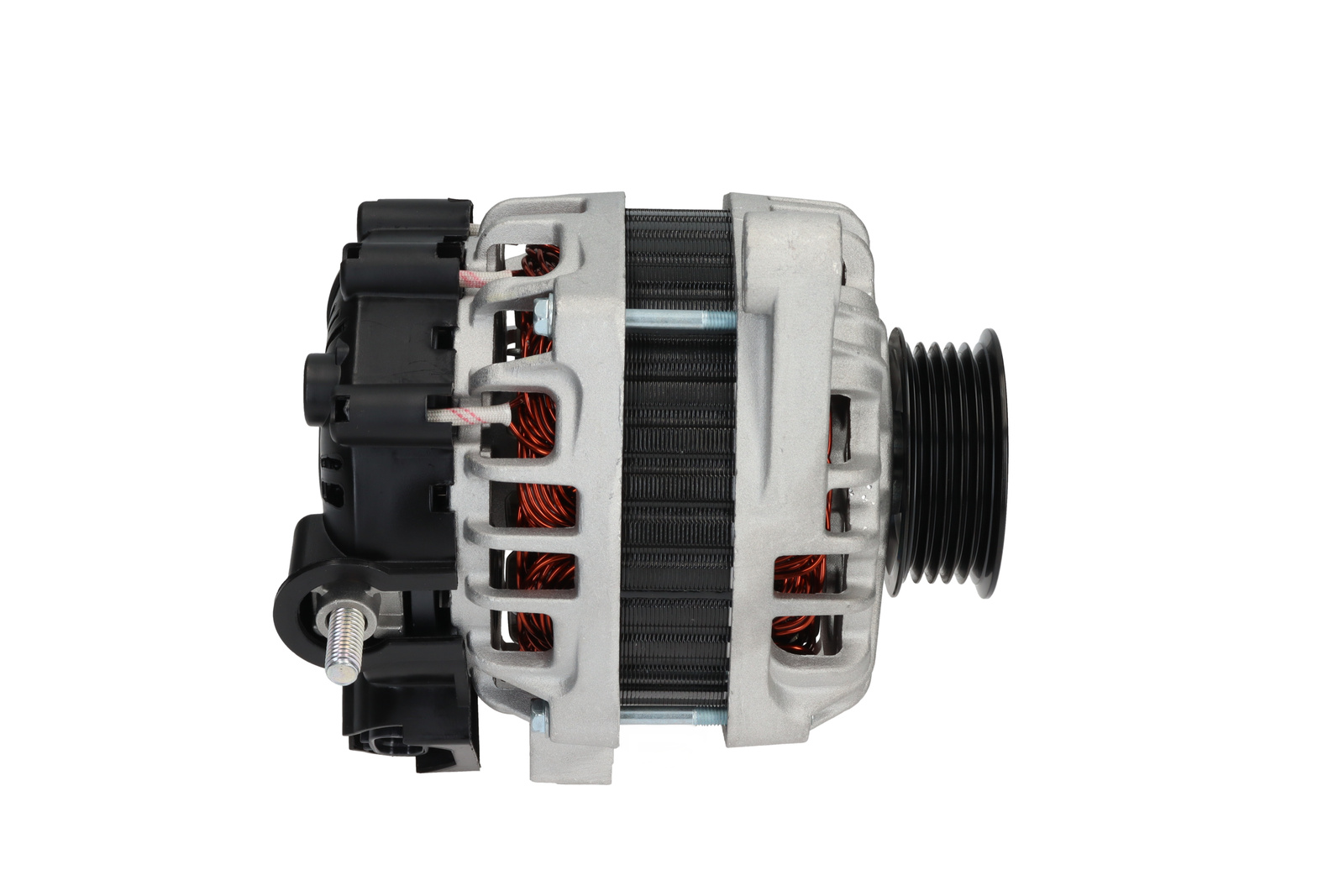

F032116706 - Alternator
Trade number 116706
Replacing and BOMs
OEM number
- 3730004610HYUNDAI
Competitor References
- DRA1335AC DELCO
- 554217RIAD KÜHNER
- 0986084050BOSCH
- 9204CEVAM
- 255515090CV PSH
- DRA1335DELCO REMY
- 286731ELSTOCK
- 209125ERA SPA
- 209125AERA SPA
Trade number 116706
Details & description
Terminal IF, Voltage 14, Amp 90, Pulley SP, Pulley Diameter 58.00, Bracket Hole Size Rear M10-1.25, D+ Position 15, Pulley Distance 20.00, Mounting Bracket Distance 42.50, Radius 78.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 5, Regulator type IR, Bracket Hole Size 1 10.00, D+ Size Plug, Holder Arm Width 15.00, B+ M8, Fan IF, Radius 2 86.00, Plug no. 1 PL176, Rotation CW, B+ Position 5, Belt Adjustment Bracket Hole Position 7, Total Length 165.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp90
Physical information
- PulleySP
- Pulley Diameter58.00
- Bracket Hole Size RearM10-1.25
- D+ Position15
- Pulley Distance20.00
- Mounting Bracket Distance42.50
- Radius78.00
- Belt Adjustment Bracket Hole 1M8
- Grooves/pulley5
Replacing and BOMs
OEM number
- 3730004610HYUNDAI
Competitor References
- DRA1335AC DELCO
- 554217RIAD KÜHNER
- 0986084050BOSCH
- 9204CEVAM
- 255515090CV PSH
- DRA1335DELCO REMY
- 286731ELSTOCK
- 209125ERA SPA
- 209125AERA SPA
