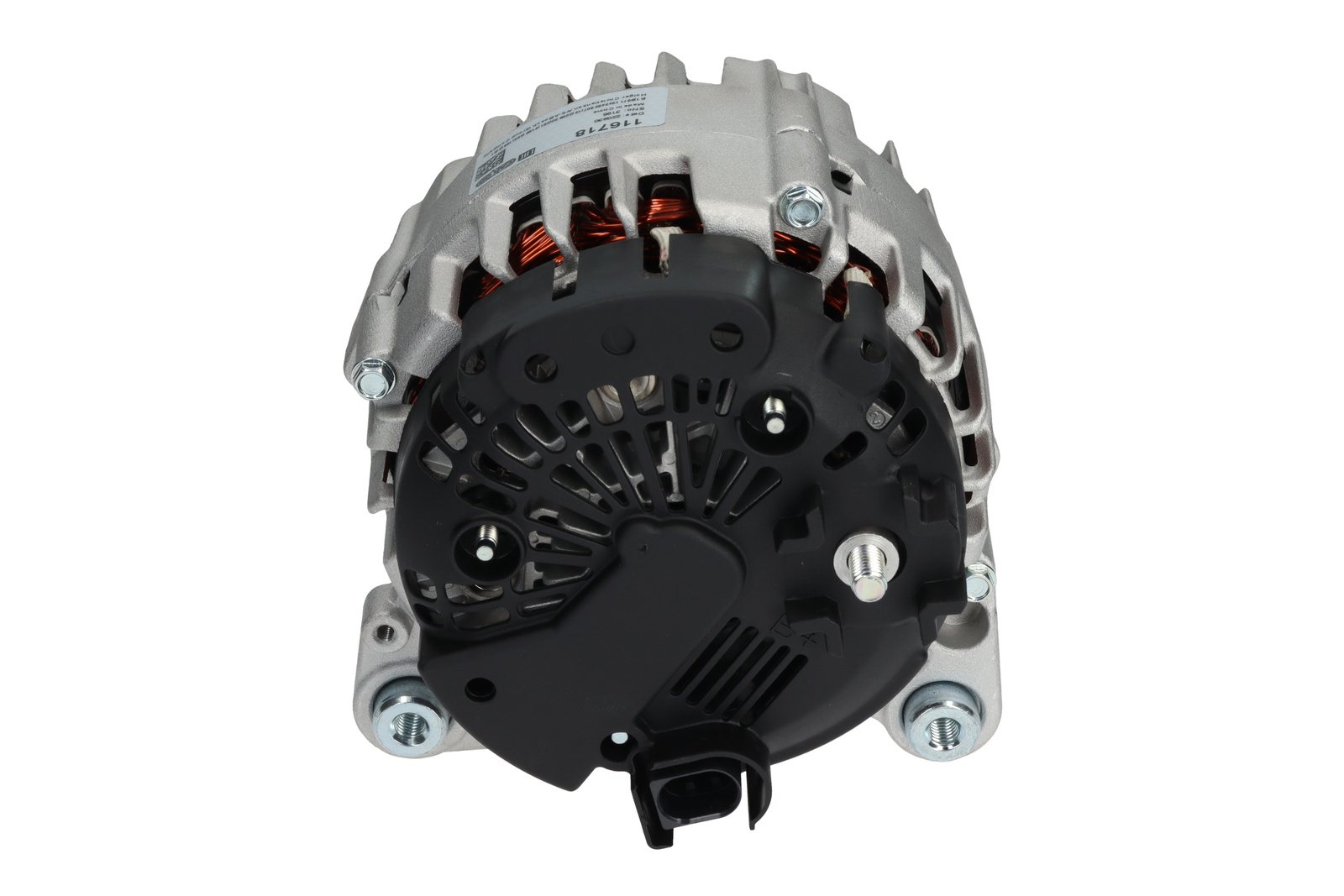

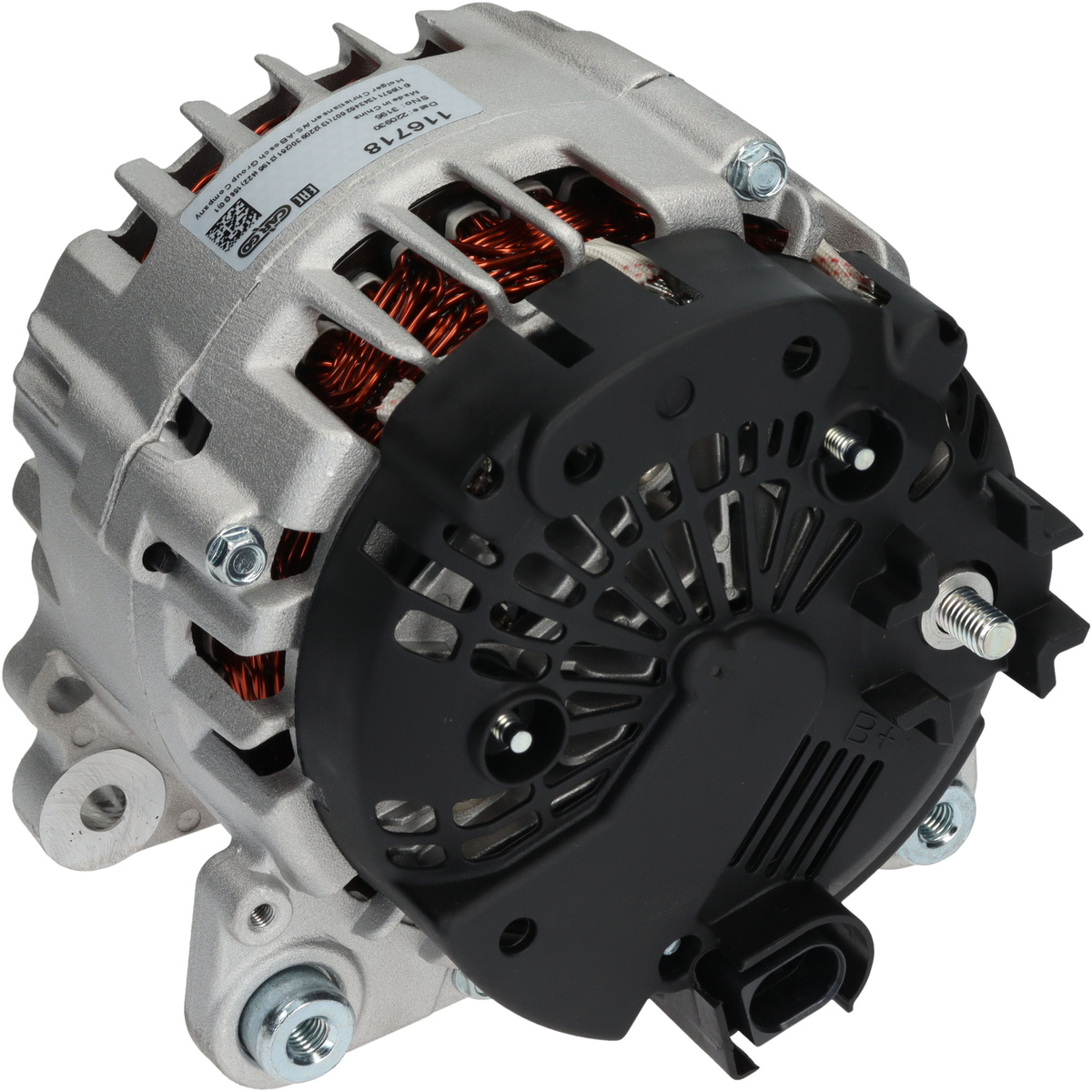

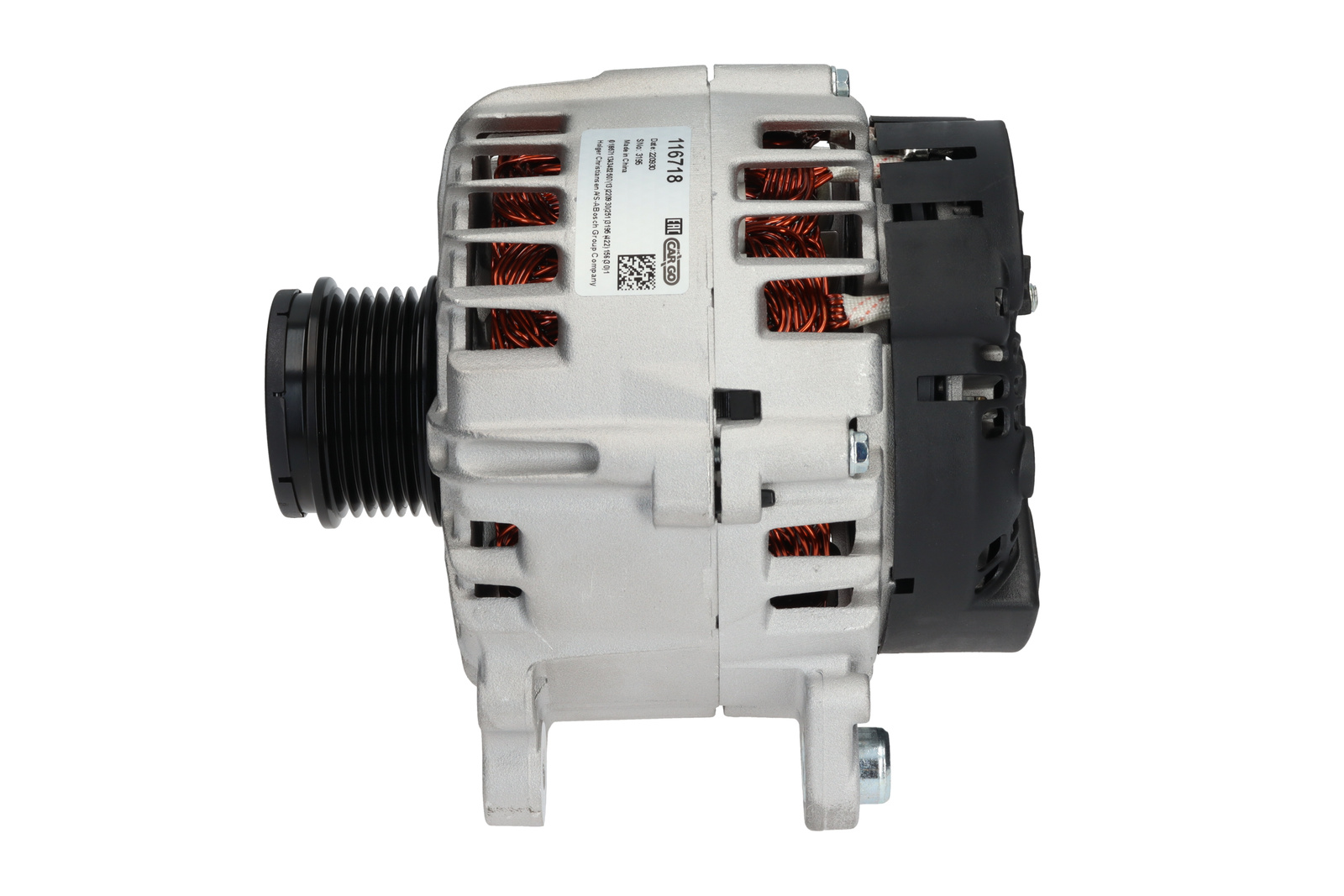

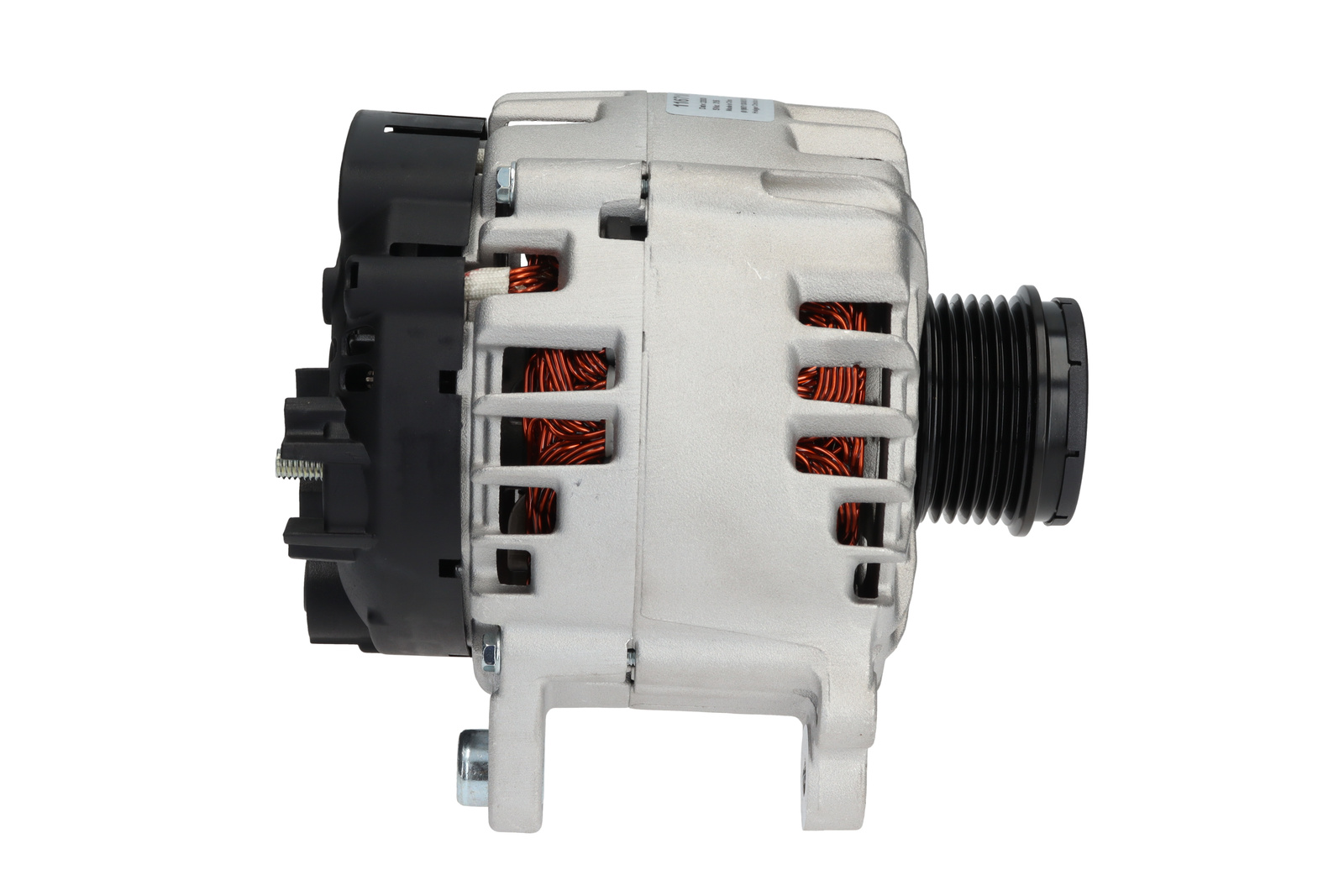

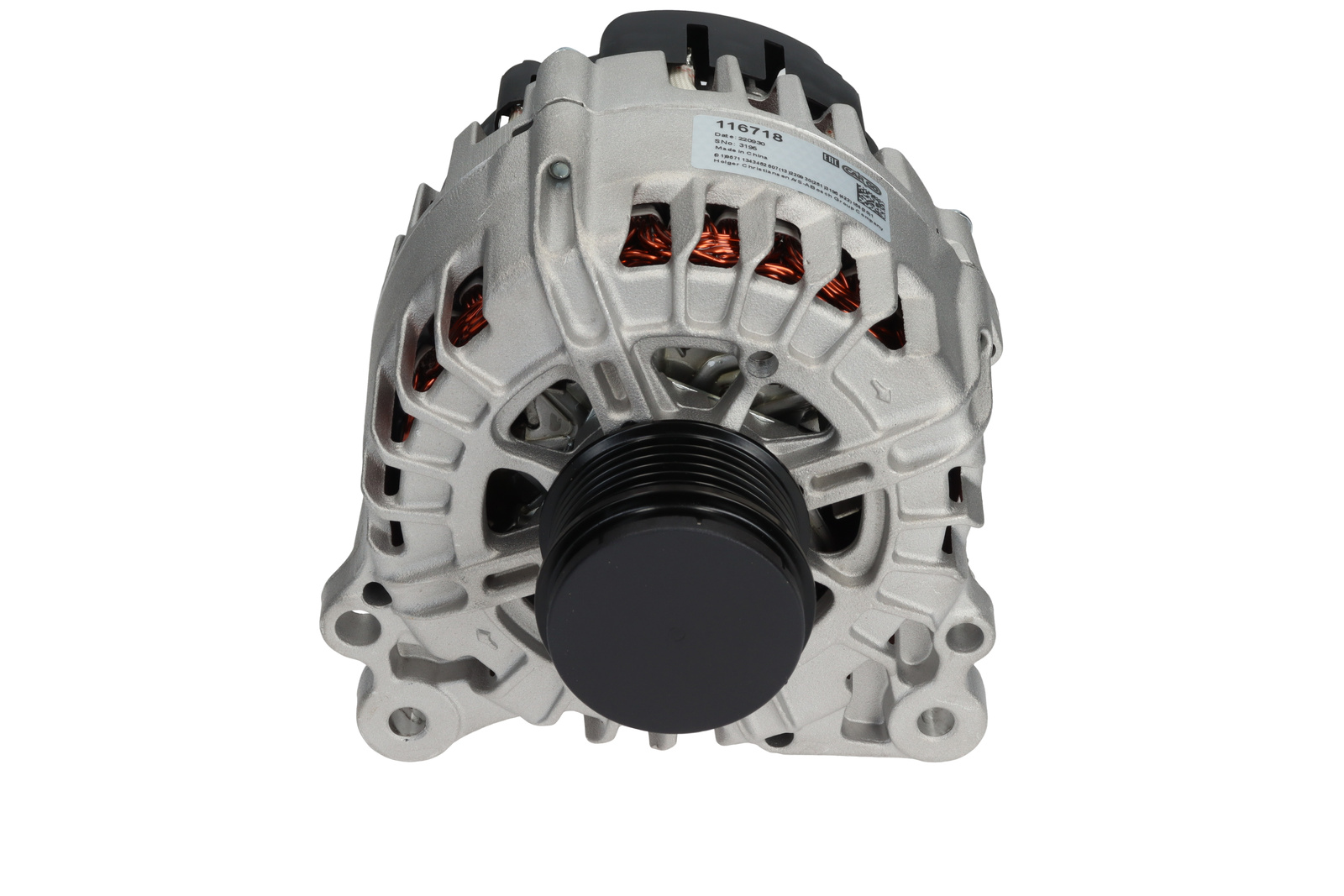

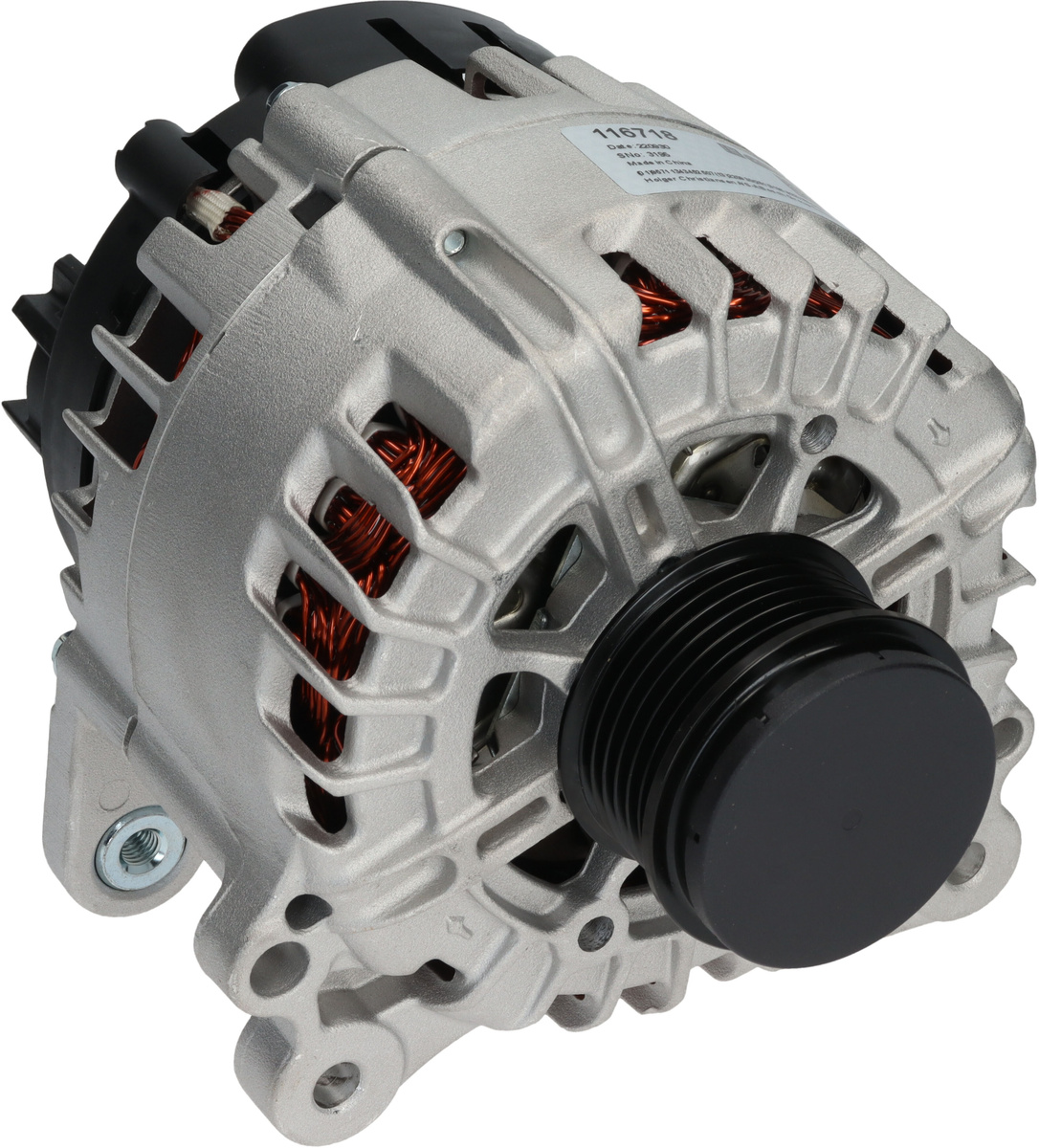

F032116718 - Alternator

Trade number 116718
Product image - main
Trade number 116718

Details & description

Voltage 14, Amp 180, Communication LIN, Pulley SP/FW, Pulley Diameter 56.00, Bracket Hole Size Rear M8, Pulley Distance 30.00, ID Code 73, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 61.00, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.00, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL181, Rotation CW, B+ Position 6, Belt Adjustment Bracket Hole Position 45, Total Length 187.00

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter56.00
  • Bracket Hole Size RearM8
  • Pulley Distance30.00
  • ID Code73
  • Mounting Bracket Distance61.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 059903023SVW (VOLKSWAGEN)
    • 059903023TVW (VOLKSWAGEN)
    • 059903023TXVW (VOLKSWAGEN)

    Competitor References

    • DRA2057AC DELCO
    • 554567RIVAD KÜHNER
    • CAL15026CASCO SRL
    • 40193CEVAM
    • 305308180CV PSH
    • 305974180CV PSH
    • DRA2057DELCO REMY
    • 287766ELSTOCK
    • 12090830EUROTEC
