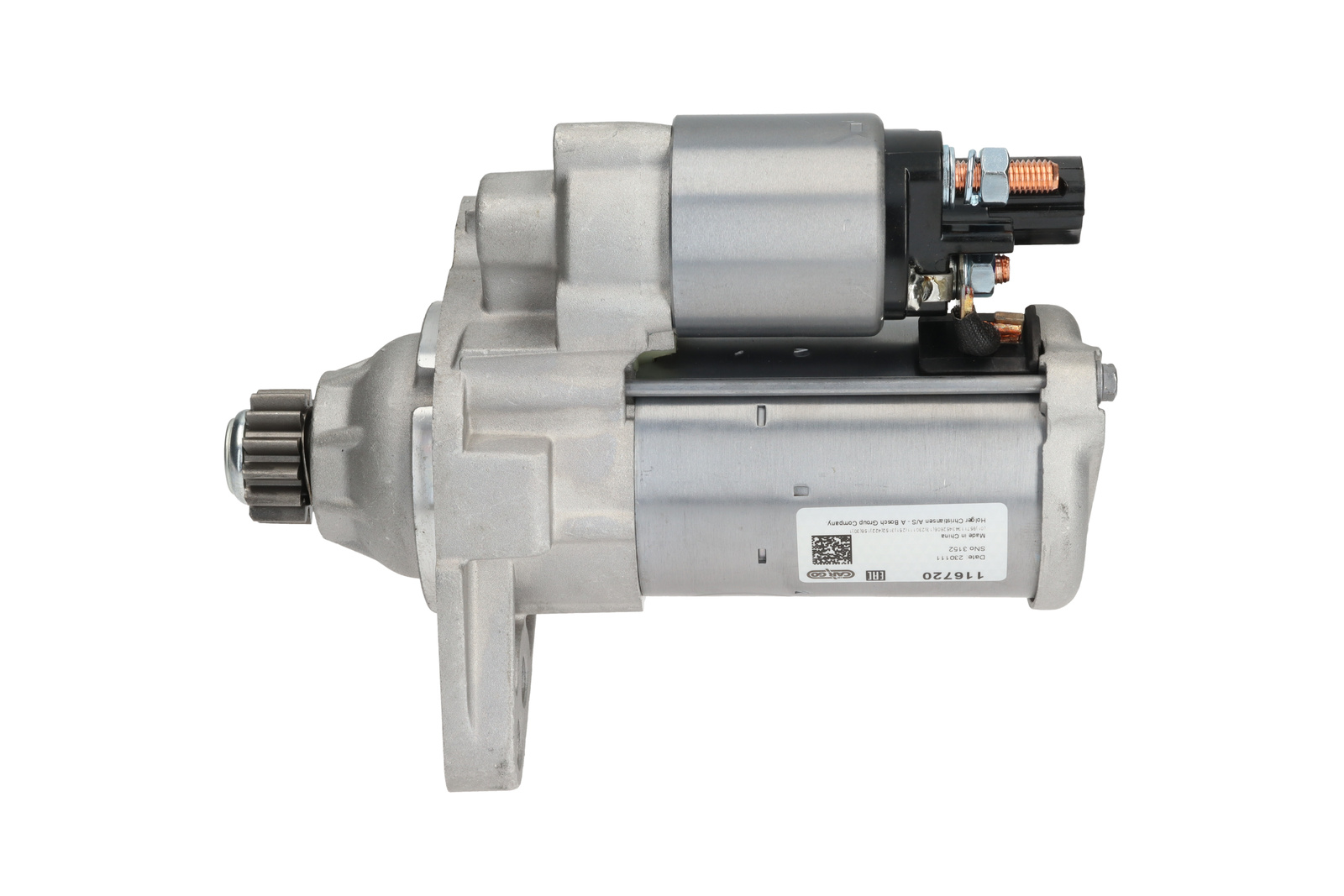

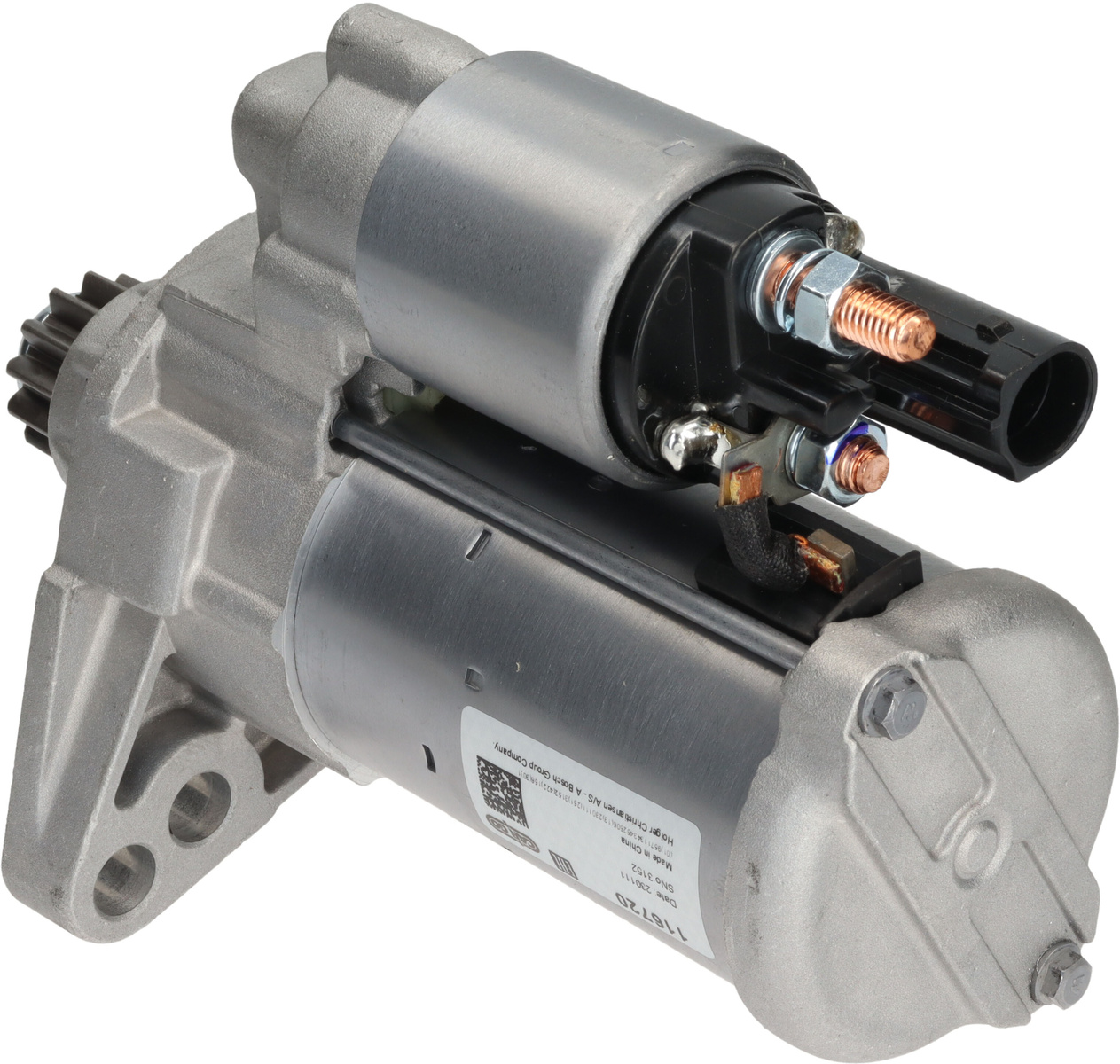

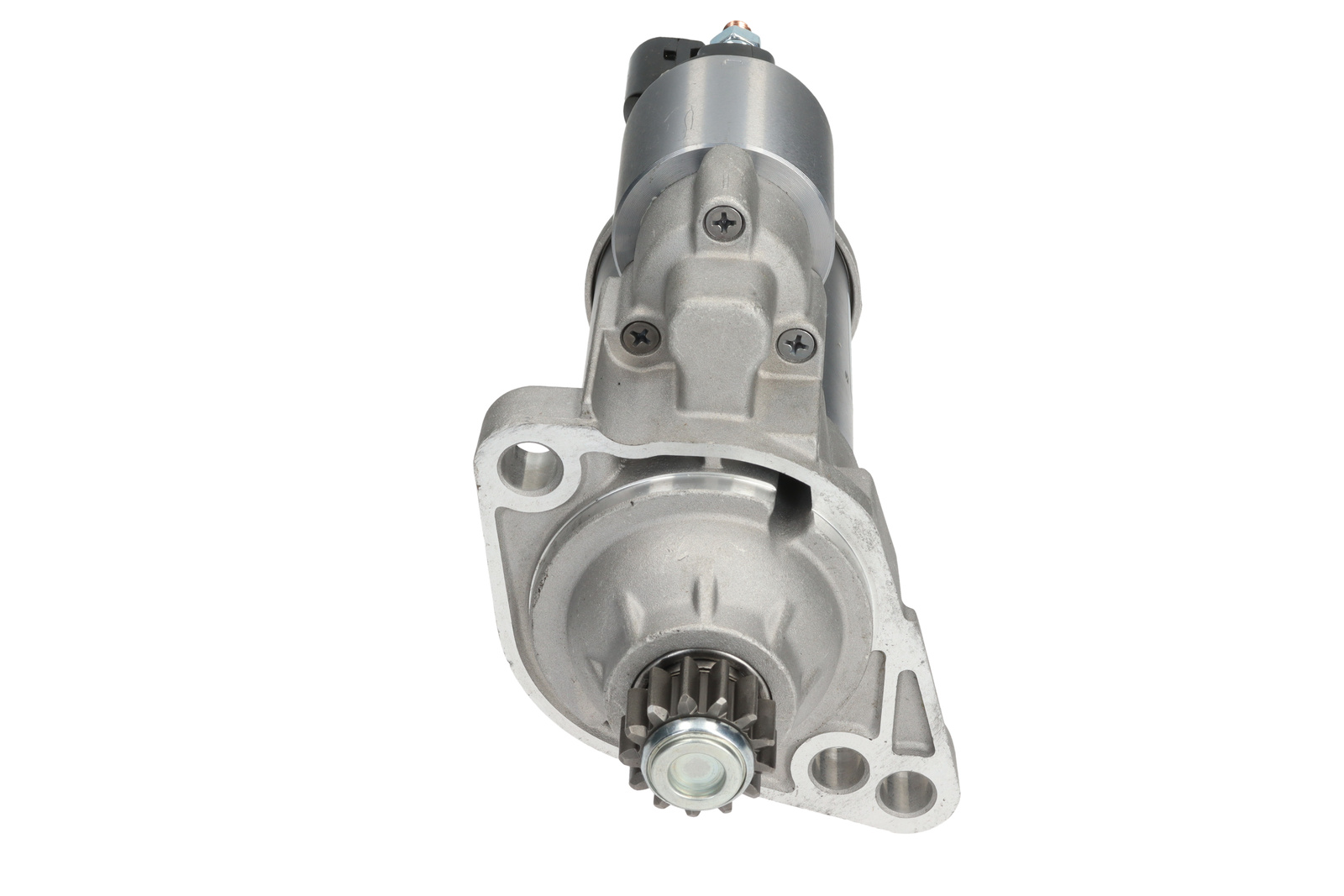

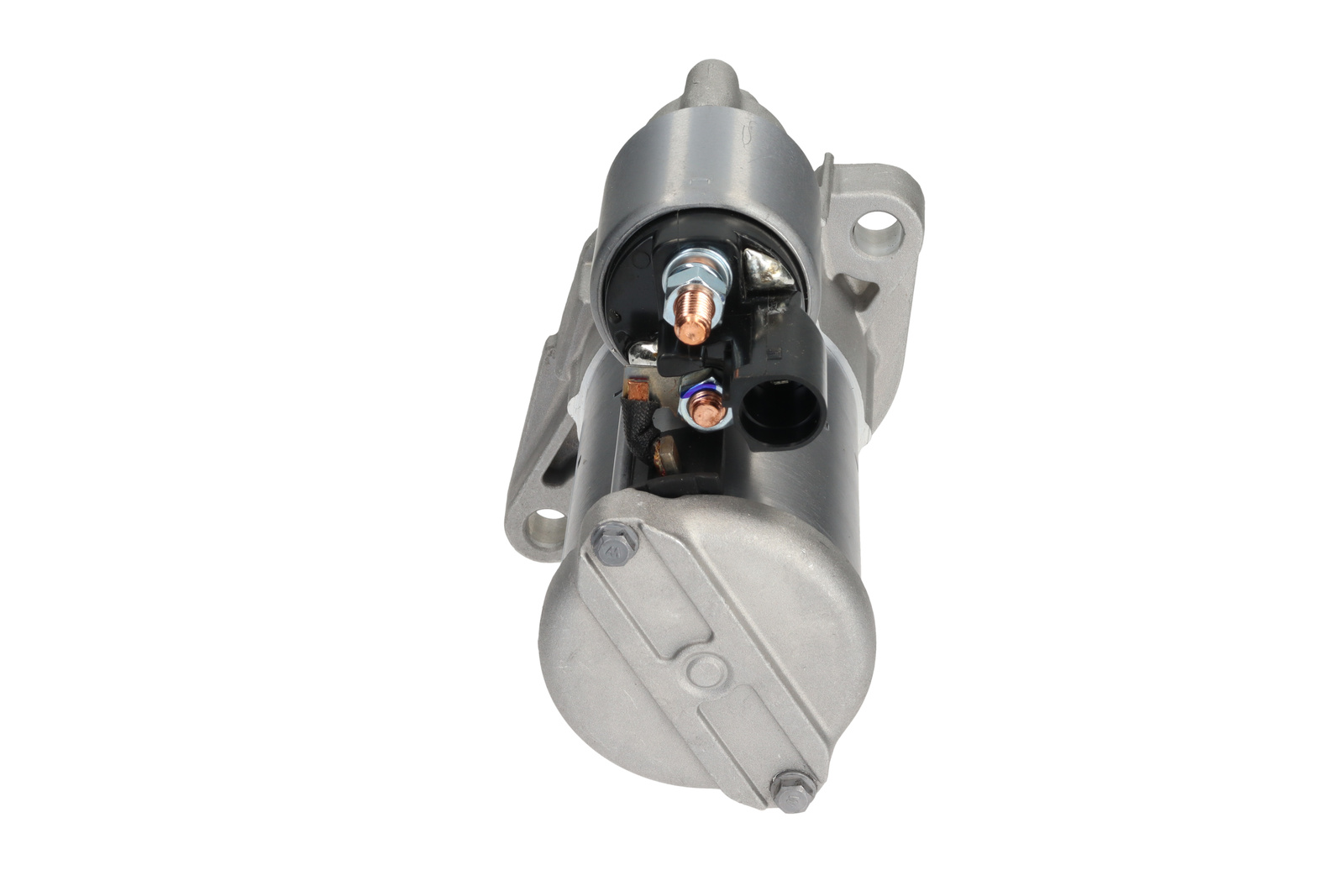

F032116720 - Starter
Trade number 116720
Trade number 116720
Details & description
kW 1.4, Voltage 12, No./mount. holes 3 (0), Mounting Hole 2 12.70, Rear Distance 161.50, Front Distance 58.00, Drive Distance 52.50, B+ M8, Terminal 50 4.80, Mounting Flange 79.00, Mounting Hole 3 12.70, Rotation CCW, Mounting Holes with Thread 0, Position 15, Gear type GR, Mounting Hole 1 12.70, B+ Position 60, No./teeth 13, Amount of Mounting Holes 3, Total Length 219.50
Product information
Electrical information
- kW1.4
- Voltage12
Physical information
- No./mount. holes3 (0)
- Mounting Hole 212.70
- Rear Distance161.50
- Front Distance58.00
- Drive Distance52.50
- B+M8
- Terminal 504.80
- Mounting Flange79.00
- Mounting Hole 312.70
