F032116721 - Alternator

Trade number 116721

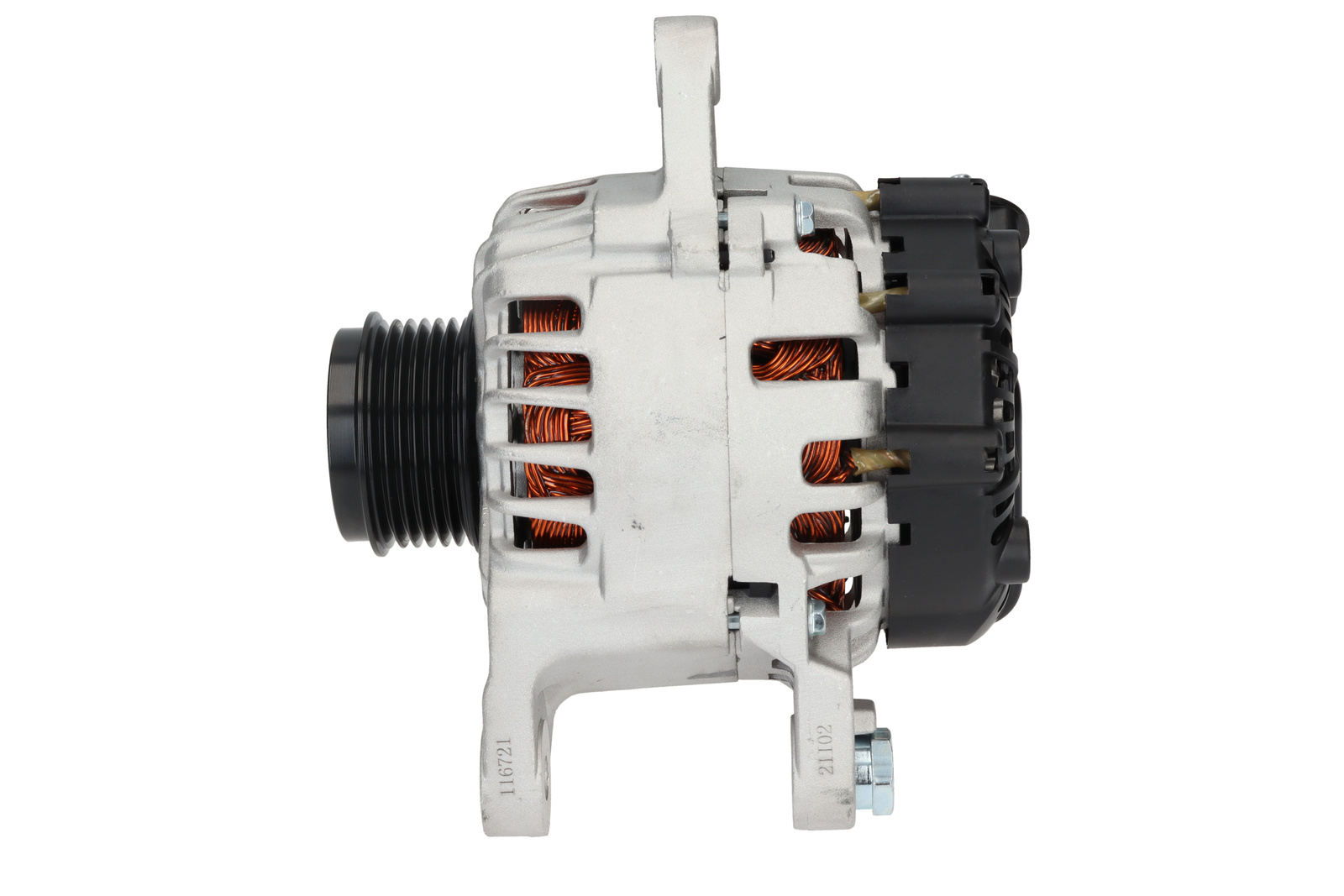

Product image - main
Trade number 116721

Details & description

Voltage 14, Amp 120, Pulley SP/FW, Pulley Diameter 58.00, Bracket Hole Size Rear M10-1.25, D+ Position 10, Pulley Distance 21.00, Mounting Bracket Distance 58.00, Radius 90.00, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Lamp type Inactive, D+ Size Plug, Holder Arm Width 14.50, B+ M8, Fan IF, Radius 2 93.00, Plug no. 1 PL176, Rotation CW, B+ Position 2, Belt Adjustment Bracket Hole Position 7, Total Length 177.00

Product information

Electrical information

  • Voltage14
  • Amp120

Physical information

  • PulleySP/FW
  • Pulley Diameter58.00
  • Bracket Hole Size RearM10-1.25
  • D+ Position10
  • Pulley Distance21.00
  • Mounting Bracket Distance58.00
  • Radius90.00
  • Belt Adjustment Bracket Hole 1M8
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 52092133FIAT
    • 373002E300HYUNDAI

    Competitor References

    • DRA1191AC DELCO
    • 554759RIVAD KÜHNER
    • A3553SAUTOSTARTER POLAND
    • 0986UR6086BOSCH
    • 0986085190BOSCH
    • CAL32181CASCO SRL
    • 40208CEVAM
    • 255520120CV PSH
    • DRA1191DELCO REMY
