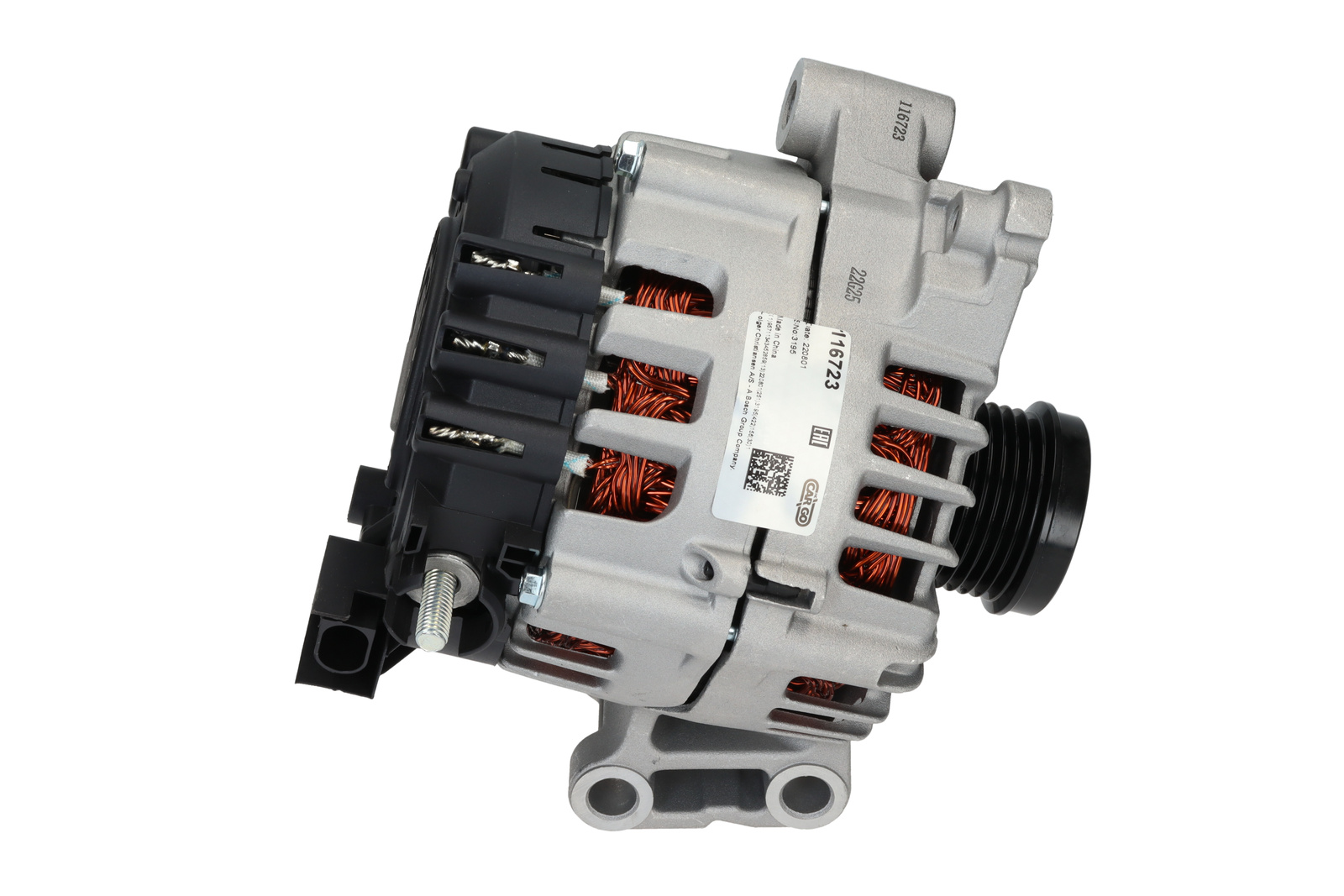

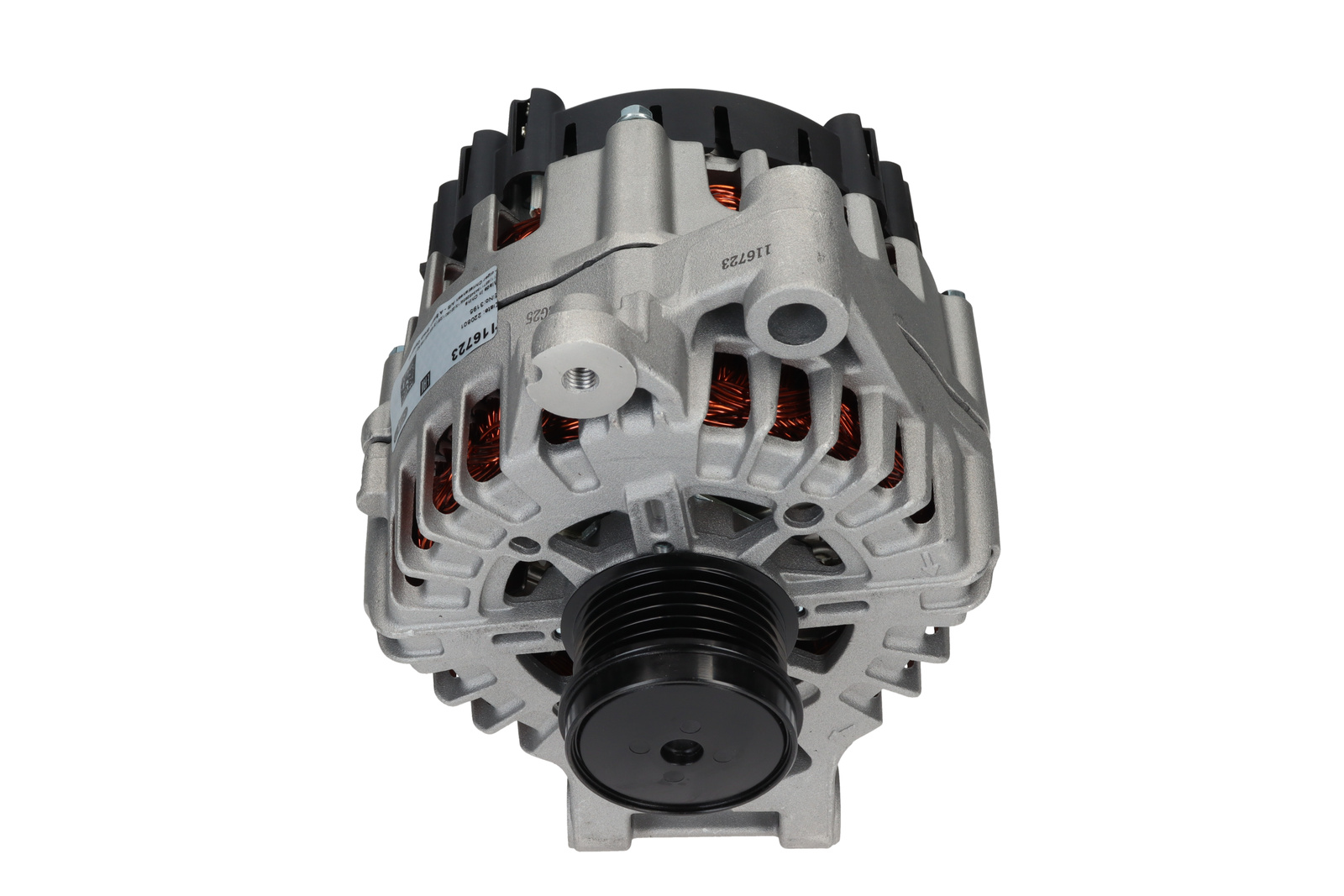

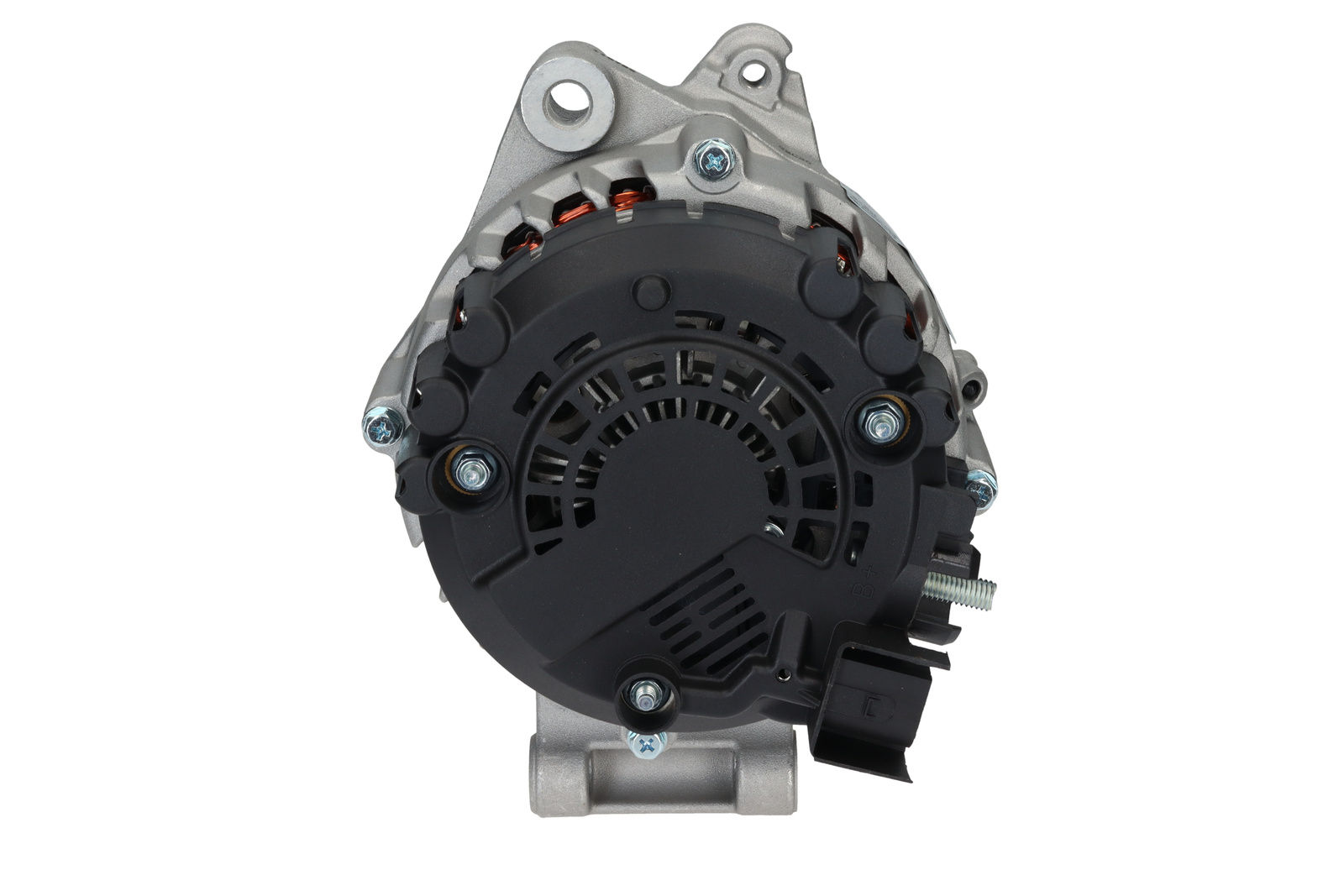

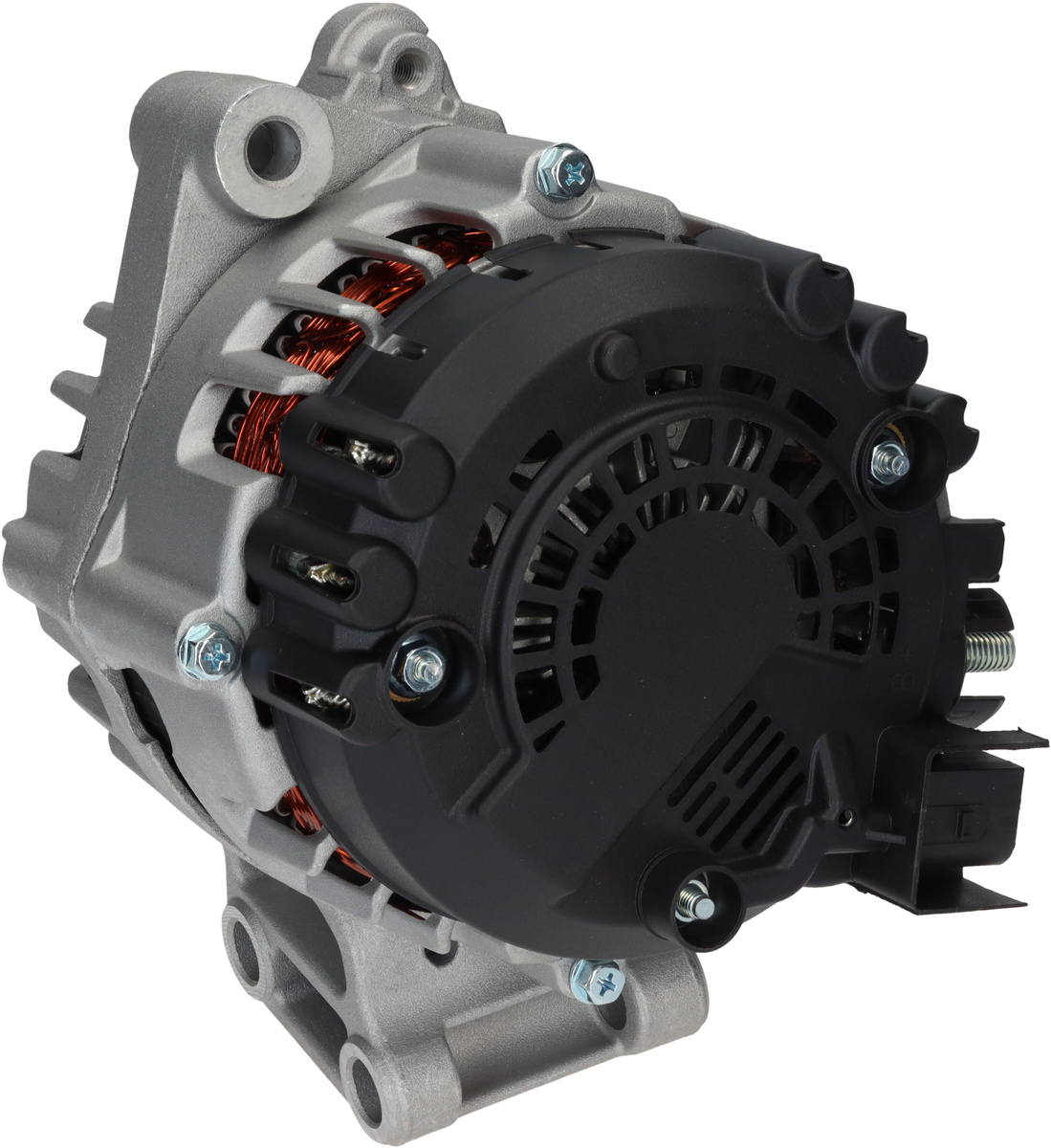

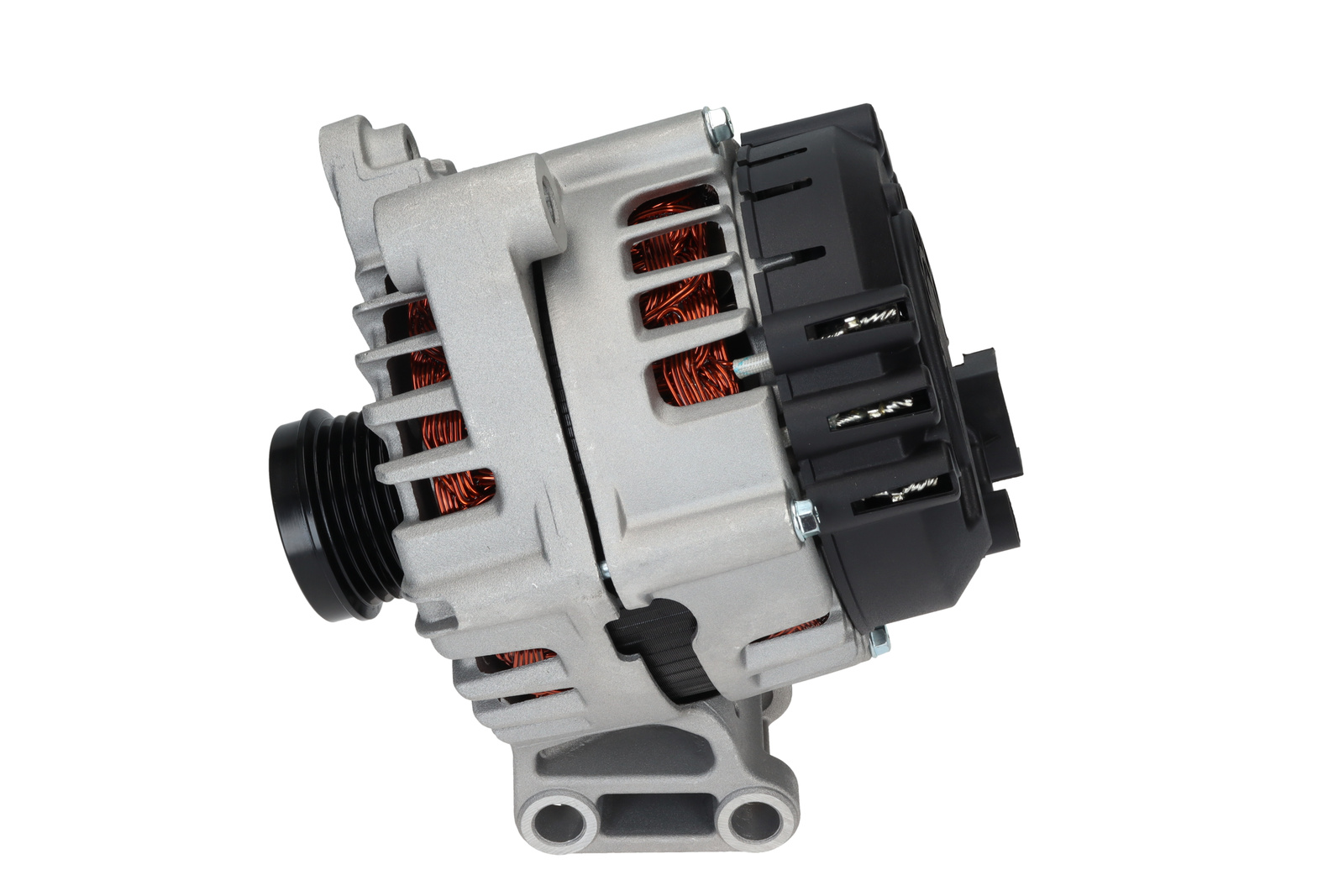

F032116723 - Alternator

Trade number 116723
Product image - main
Trade number 116723

Details & description

Voltage 14, Amp 180, Communication LIN, Pulley SP/FW, Pulley Diameter 51.00, Bracket Hole Size Rear 12.50, Pulley Distance 11.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 50.00, Radius 84.50, Belt Adjustment Bracket Hole 1 10.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 12.50, Belt Adjustment Bracket Hole 2 M8, Terminal type COM, Holder Arm Width 72.00, B+ M8, Fan IF, Radius 2 87.00, Plug no. 1 PL174, Rotation CW, B+ Position 20, Belt Adjustment Bracket Hole Position 3, Total Length 185.00

Product information

Electrical information

  • Voltage14
  • Amp180

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter51.00
  • Bracket Hole Size Rear12.50
  • Pulley Distance11.00
  • Mounting Bracket Distance50.00
  • Radius84.50
  • Belt Adjustment Bracket Hole 110.50
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 31285436VOLVO
    • 31345236VOLVO
    • 36002013VOLVO

    Competitor References

    • DRA0874AC DELCO
    • 554503RIVAD KÜHNER
    • A3622SAUTOSTARTER POLAND
    • CAL15591CASCO SRL
    • 4112CEVAM
    • 815540180CV PSH
    • 815542180CV PSH
    • DRA0874DELCO REMY
    • 2381551802DRI
