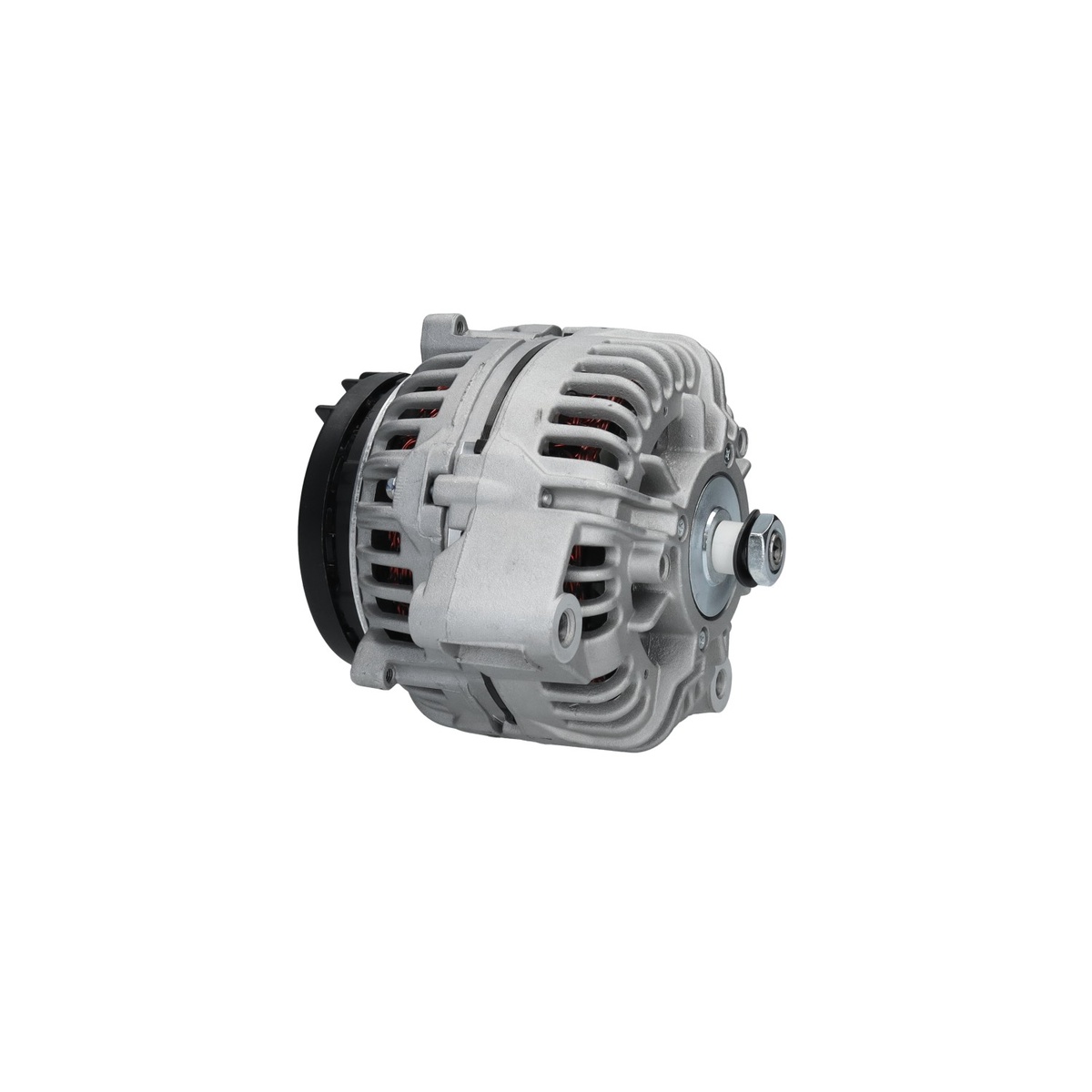

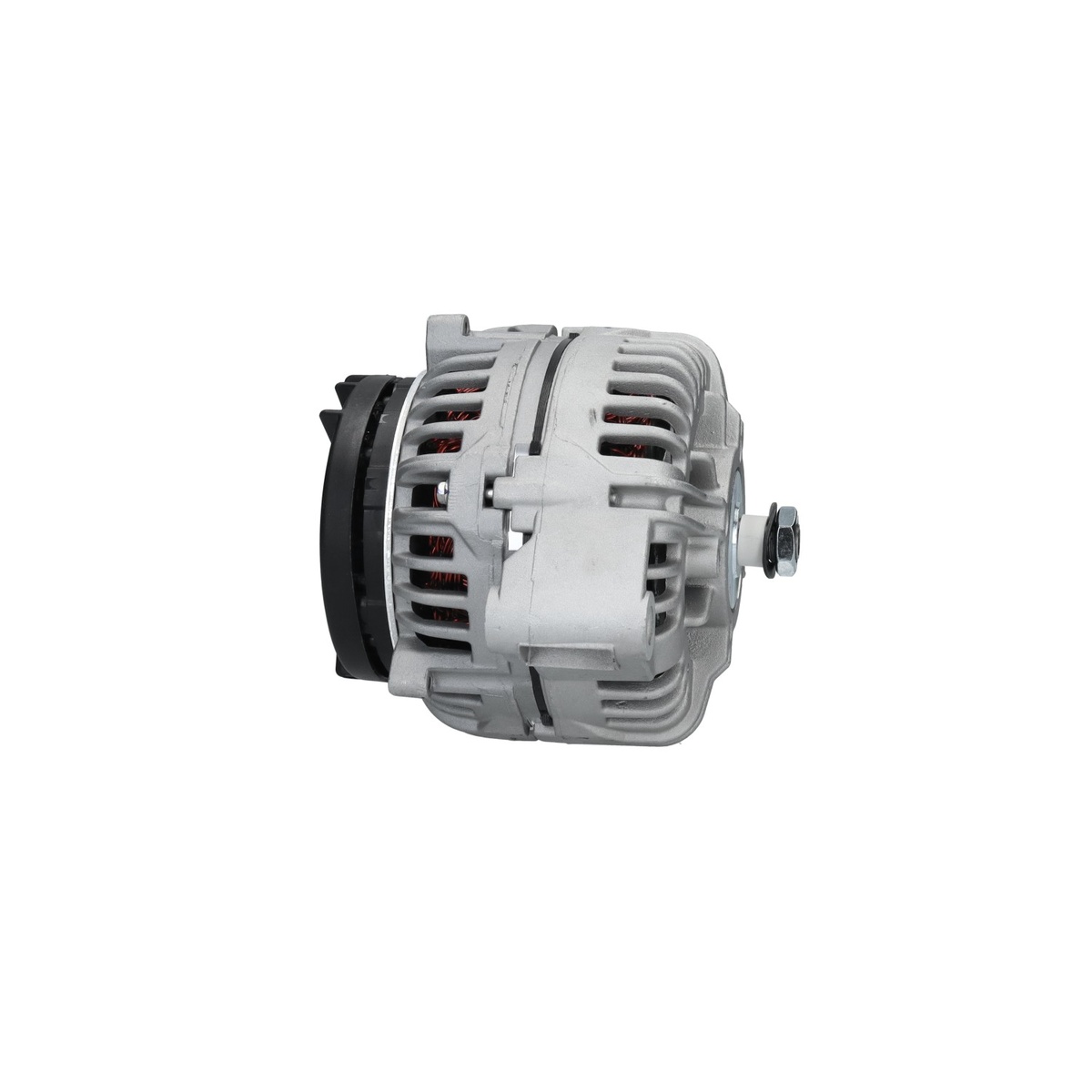

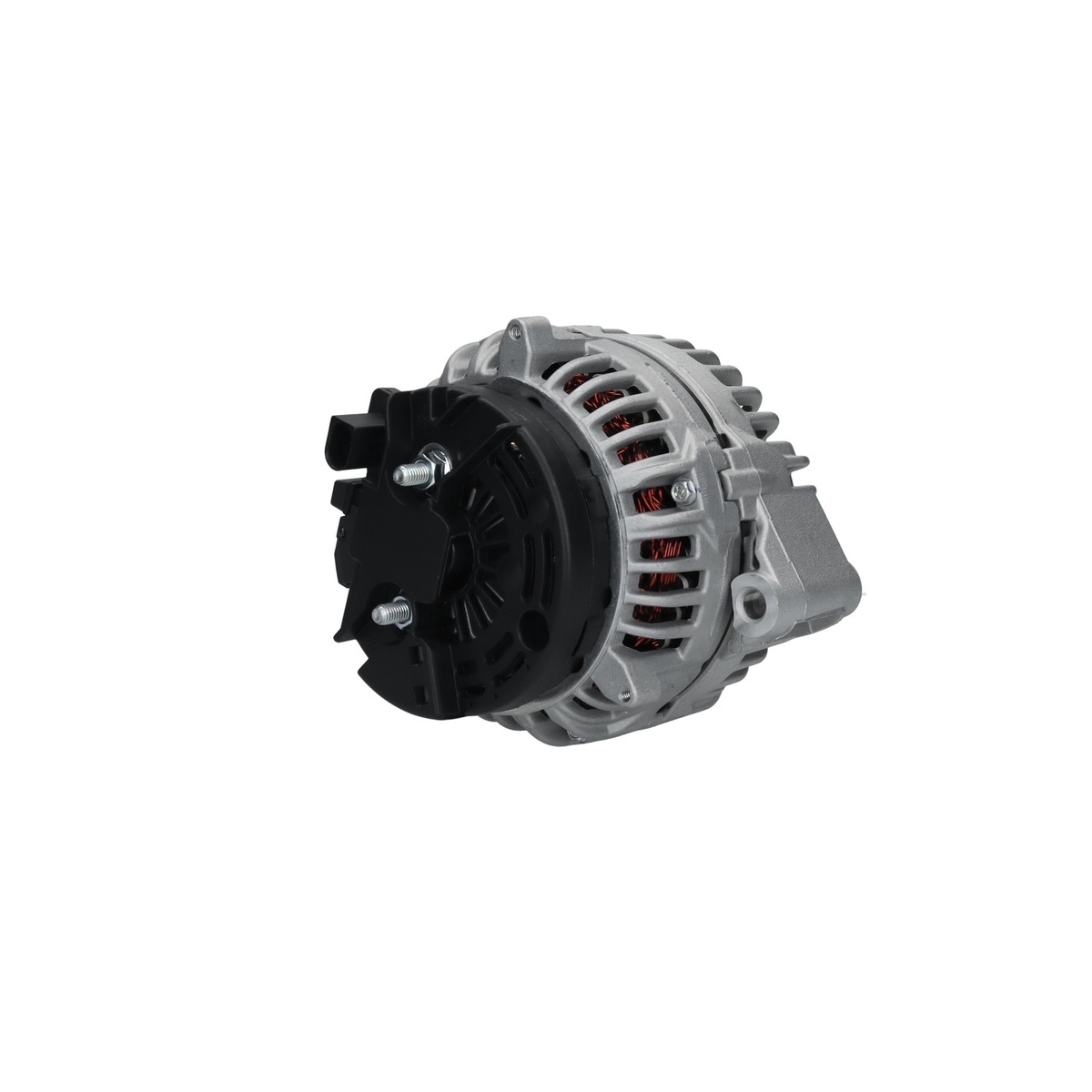

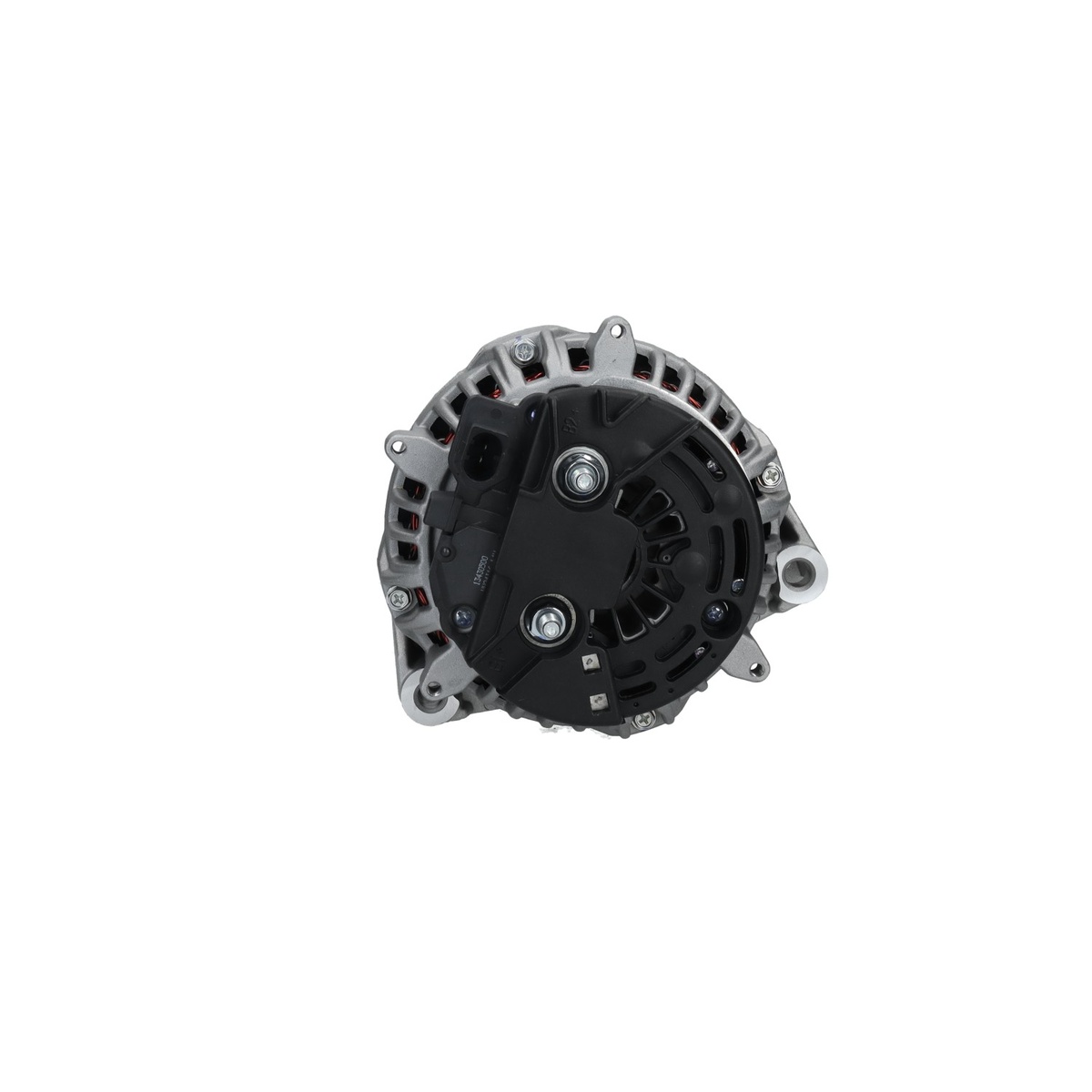

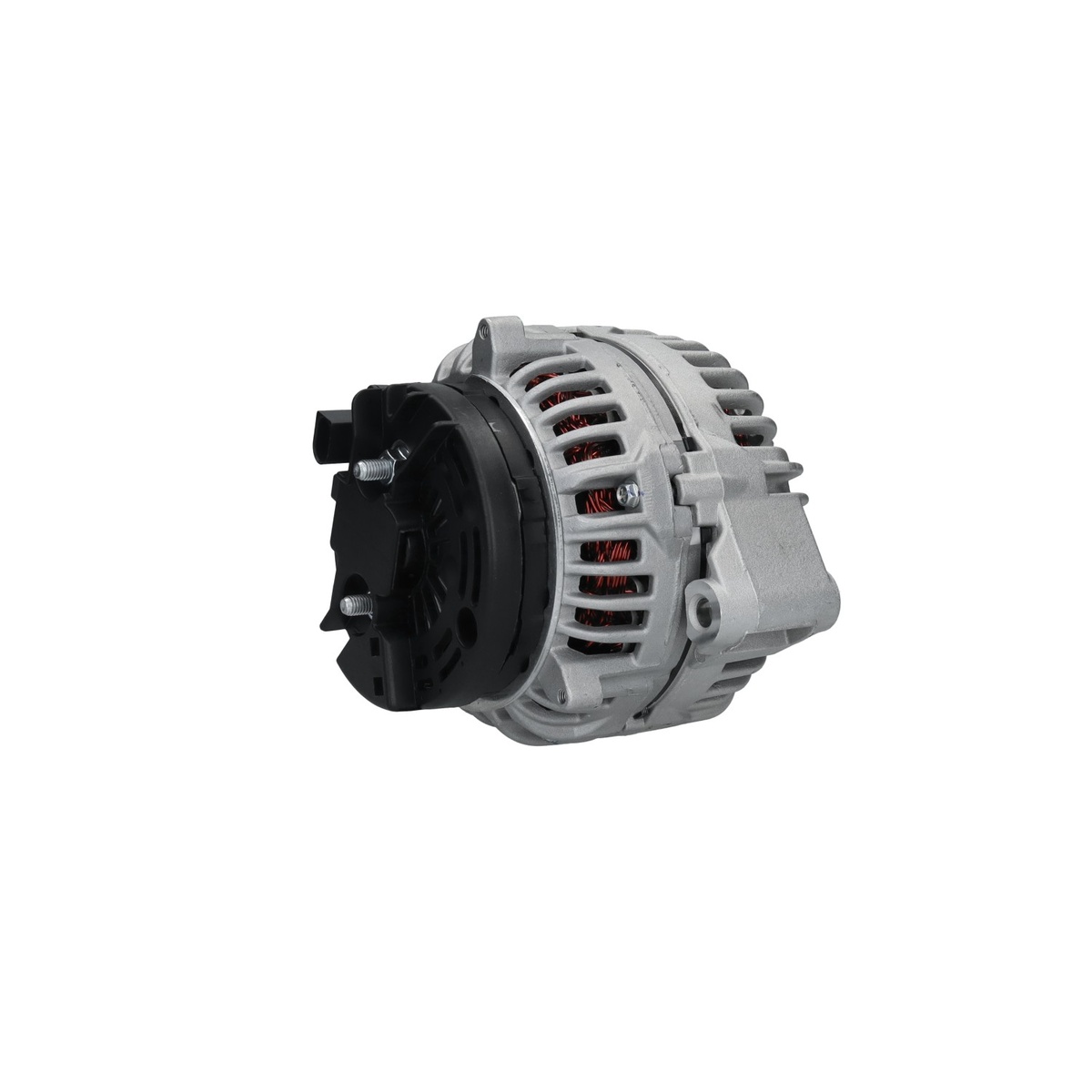

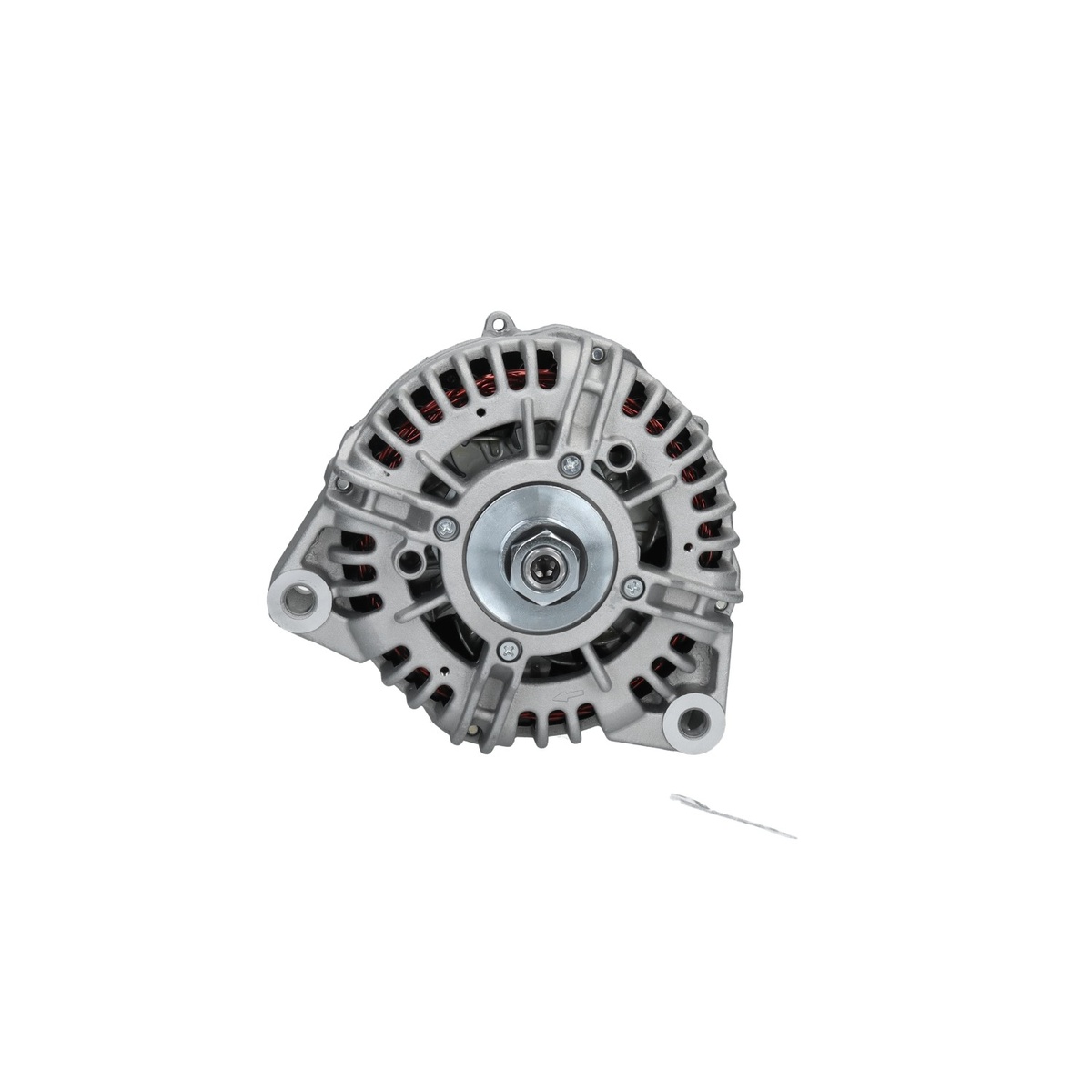

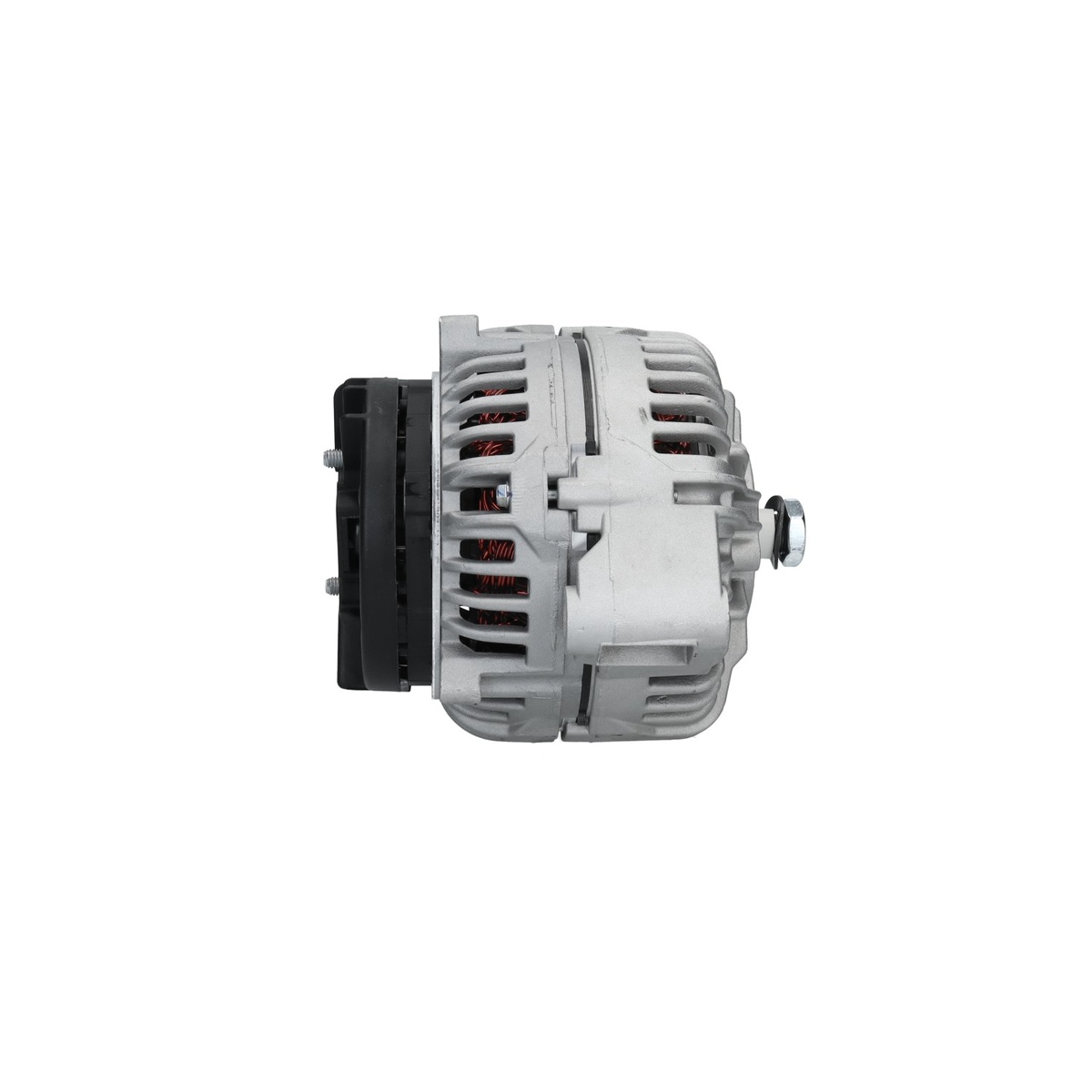

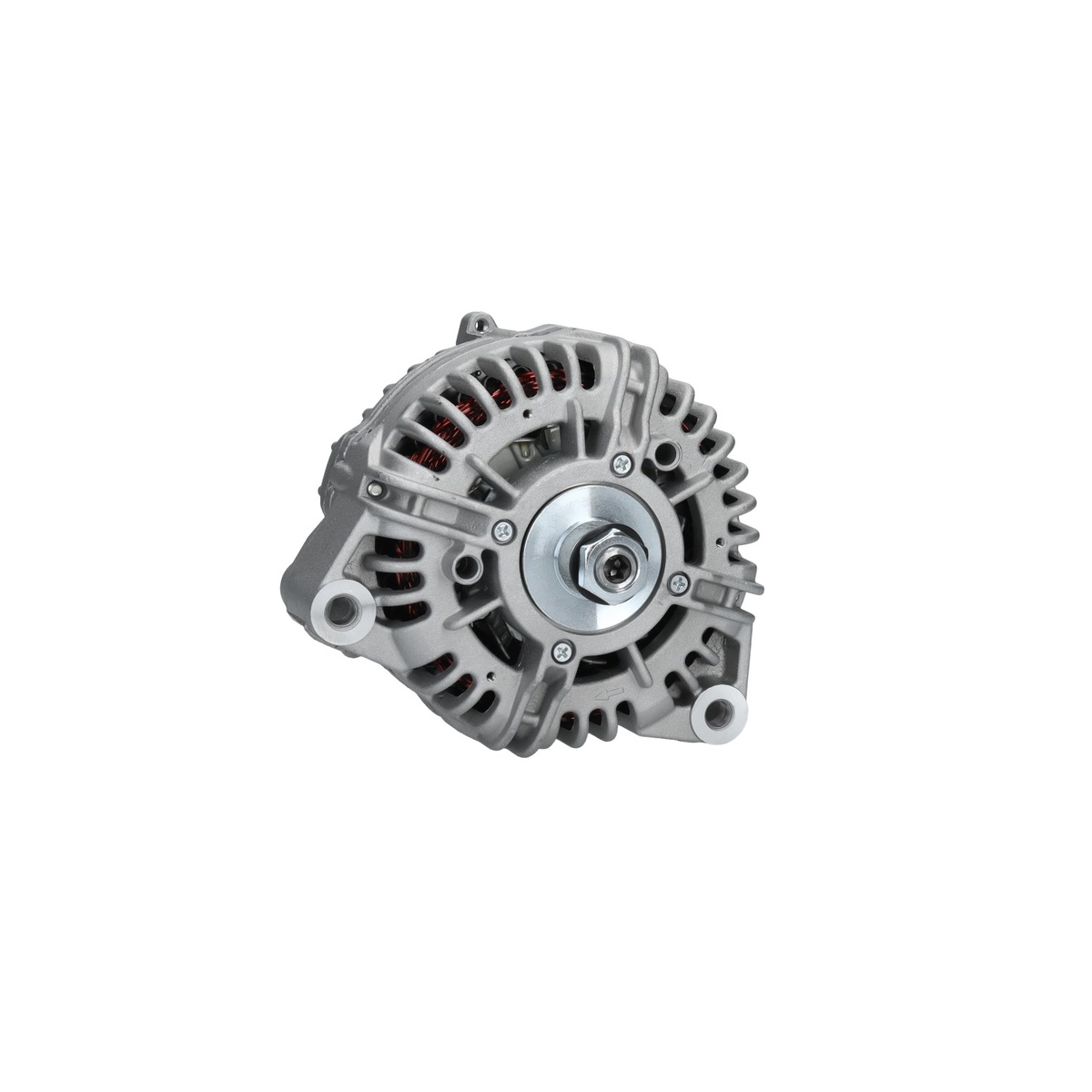

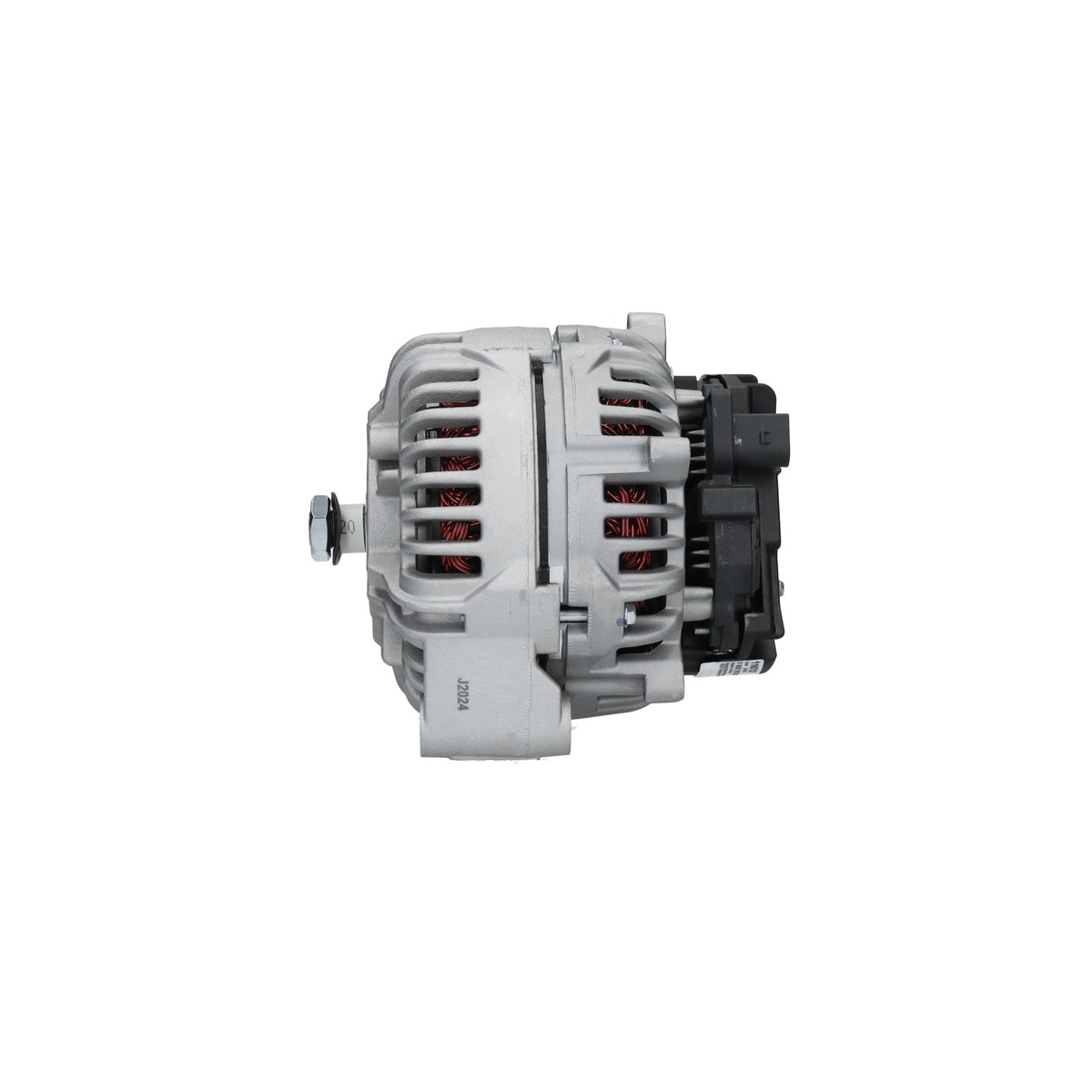

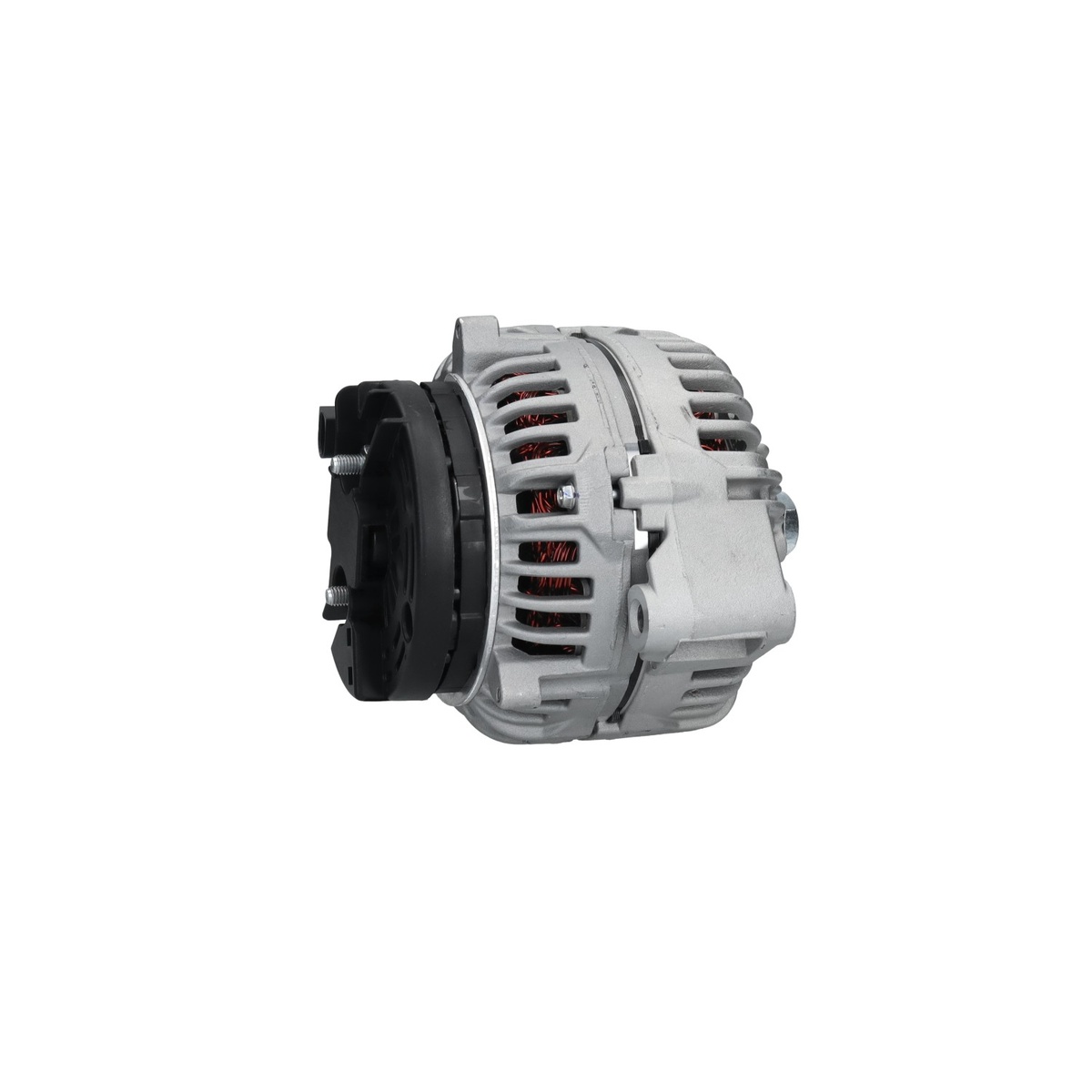

F032116737 - Alternator
Trade number 116737
Trade number 116737
Details & description
Terminal IF, Voltage 14, Amp 240, Communication LIN, Pulley w/o, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 56.00, B+ M8, Fan IF, Radius 2 90.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL166, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 10.50, Regulator type IR, Belt Adjustment Bracket Hole Position 50, Total Length 189.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp240
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- CommunicationLIN
- Pulleyw/o
- Bracket Hole Size 110.50
- Terminal typeCOM
- Holder Arm Width56.00
- B+M8
- FanIF
- Radius 290.00
- Plug no. 1PL166
