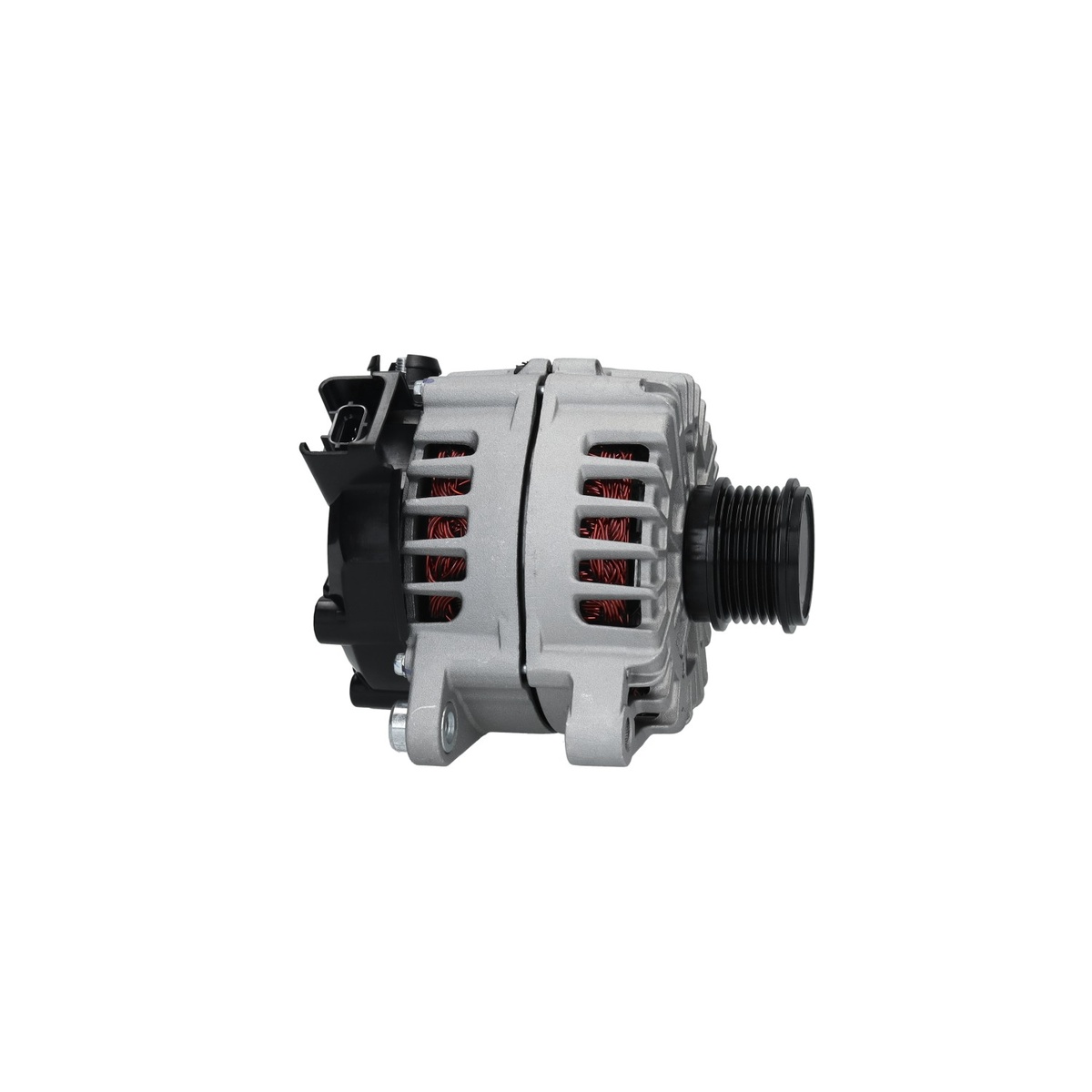

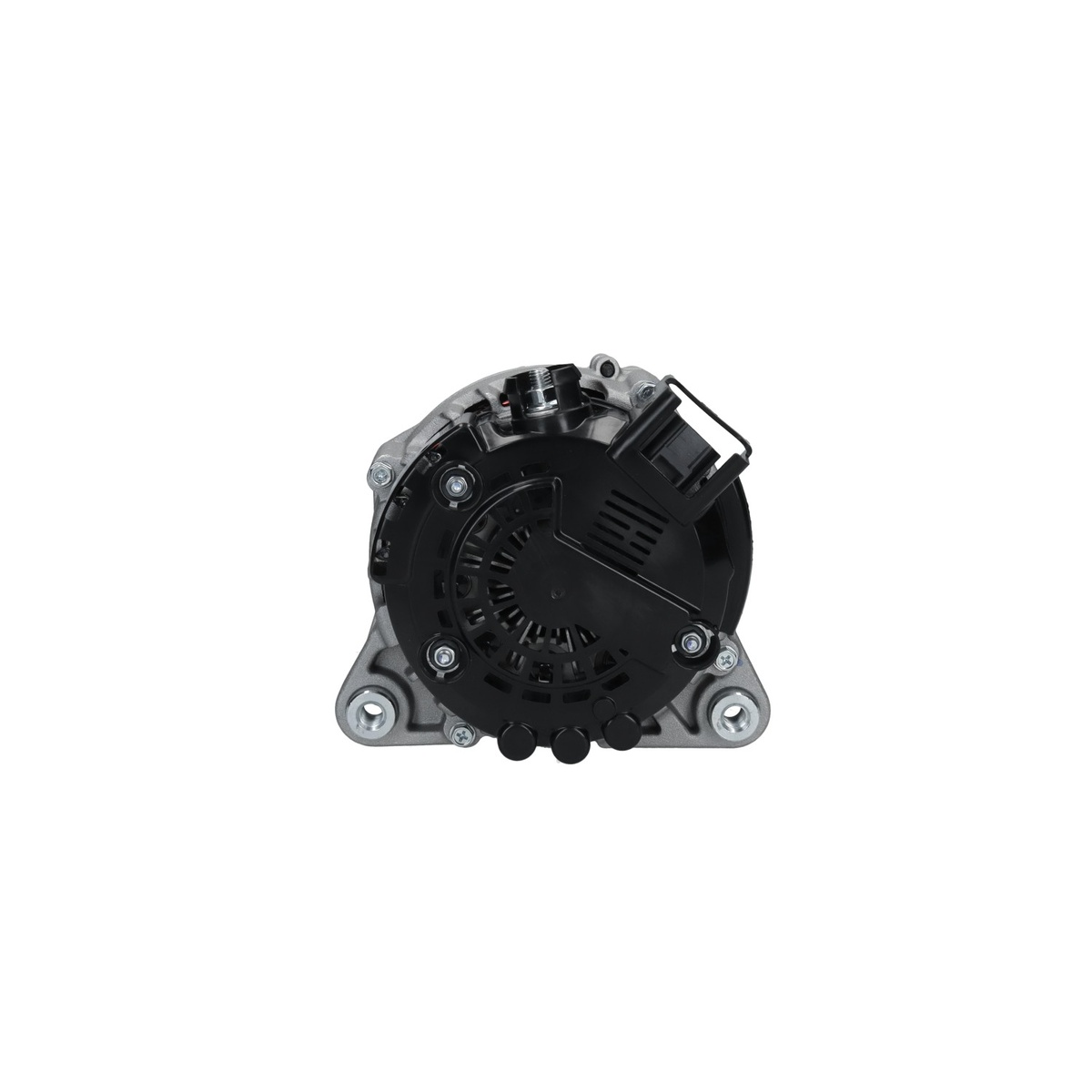

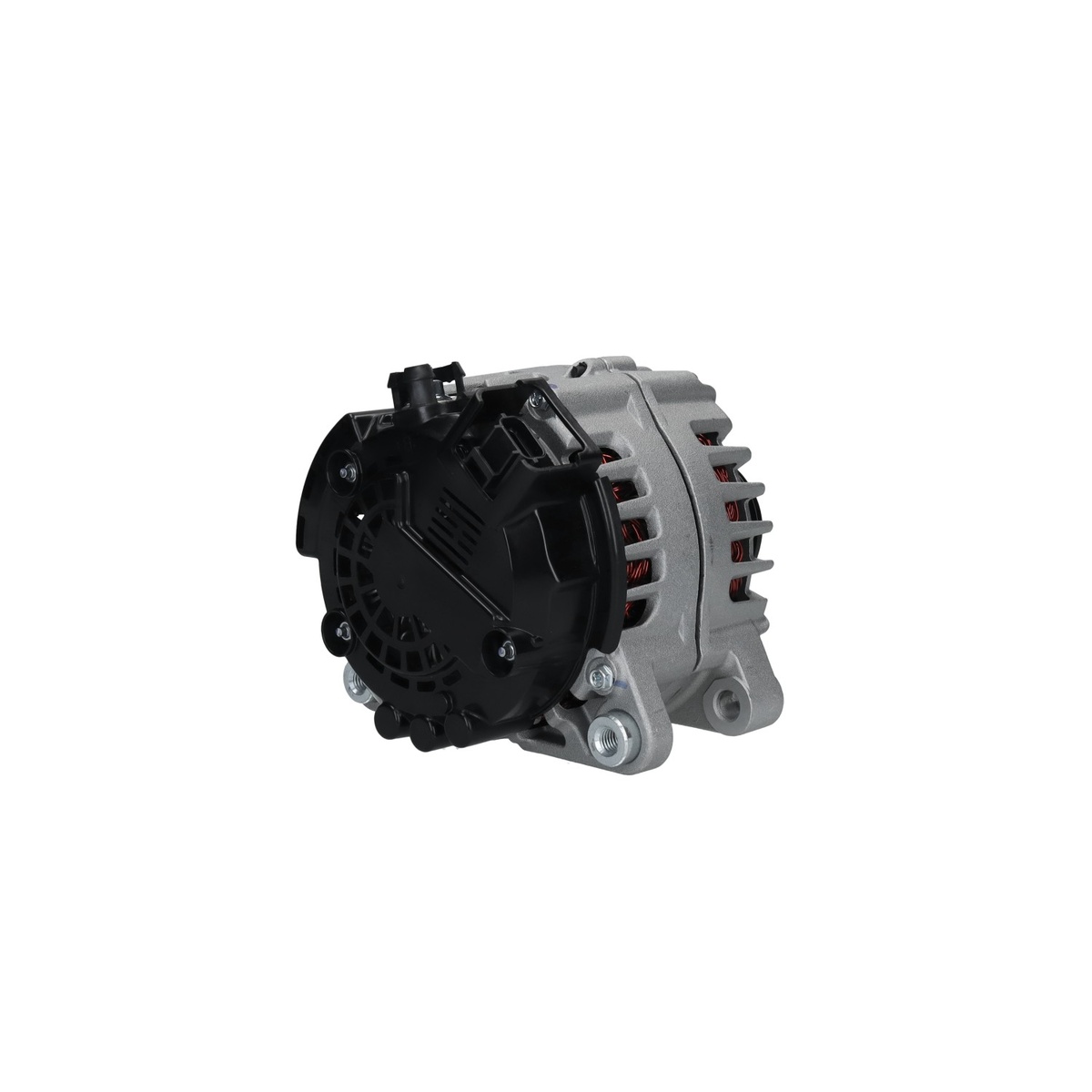

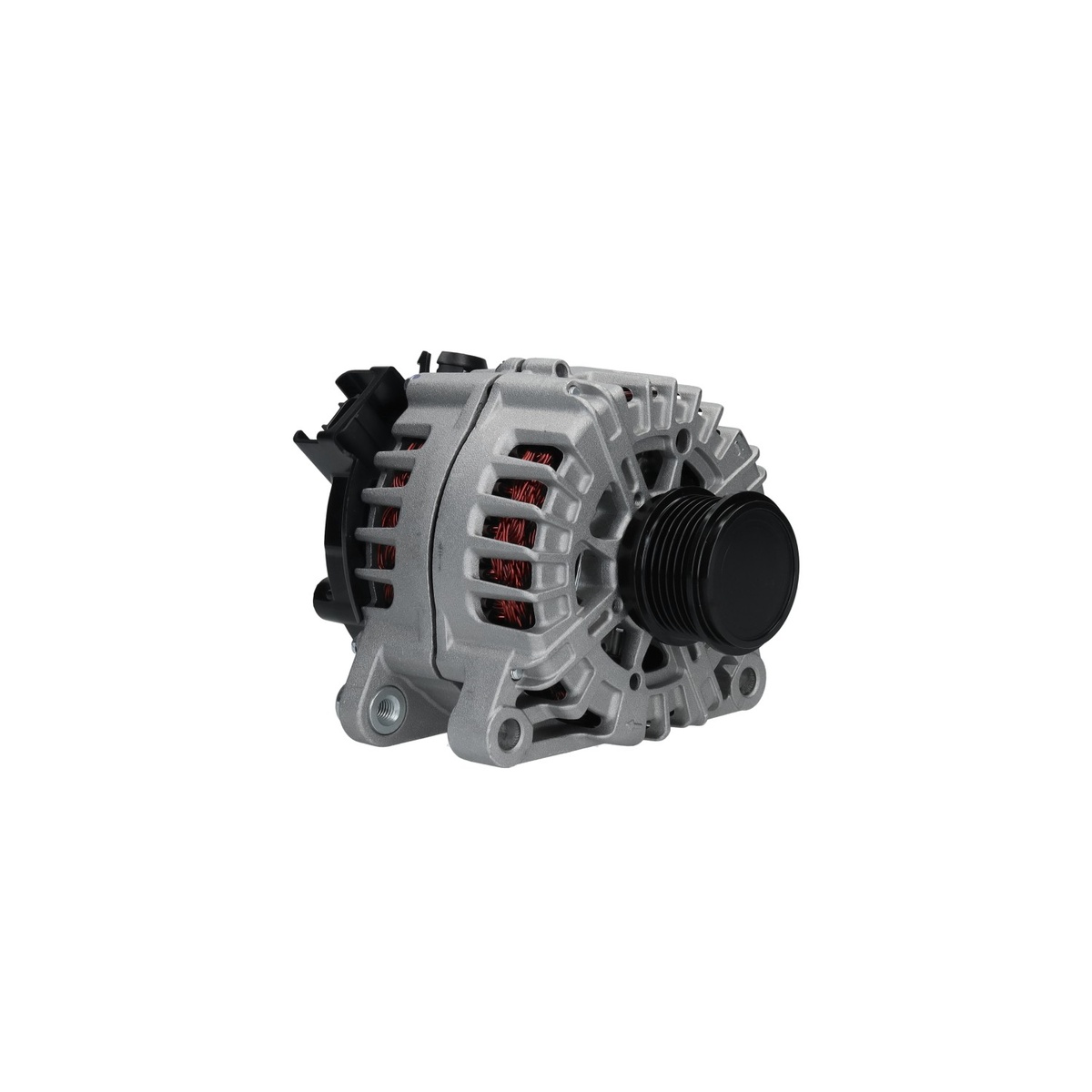

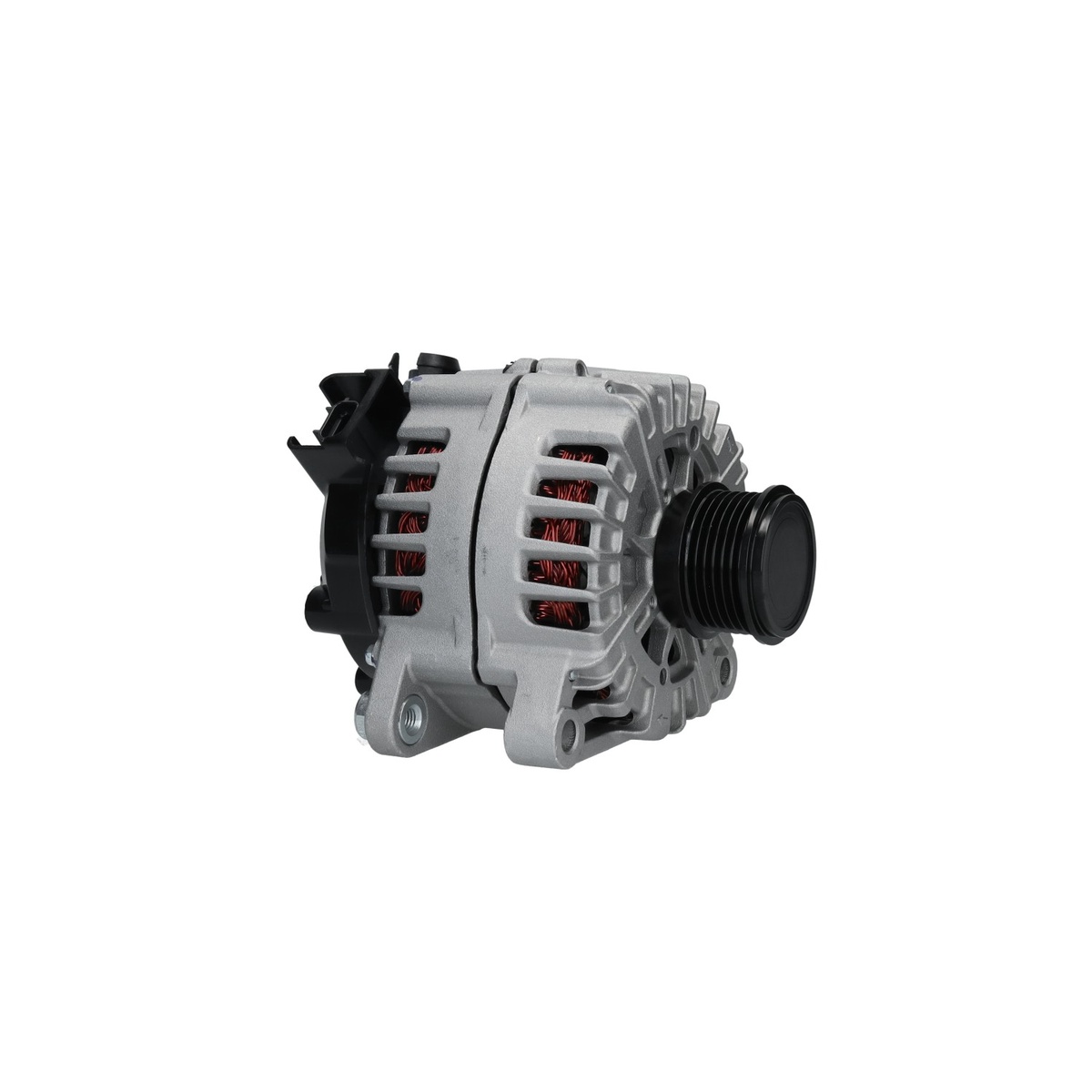

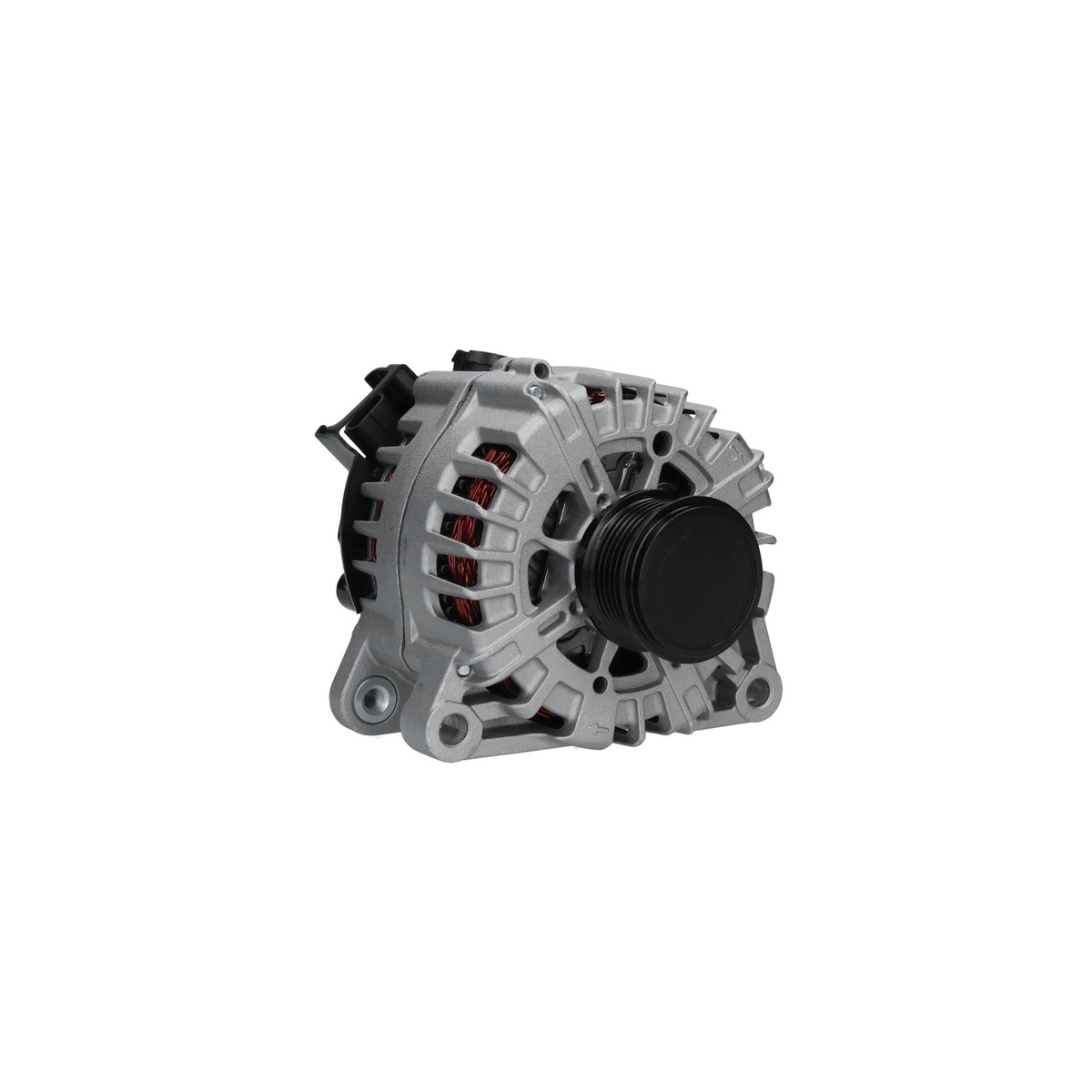

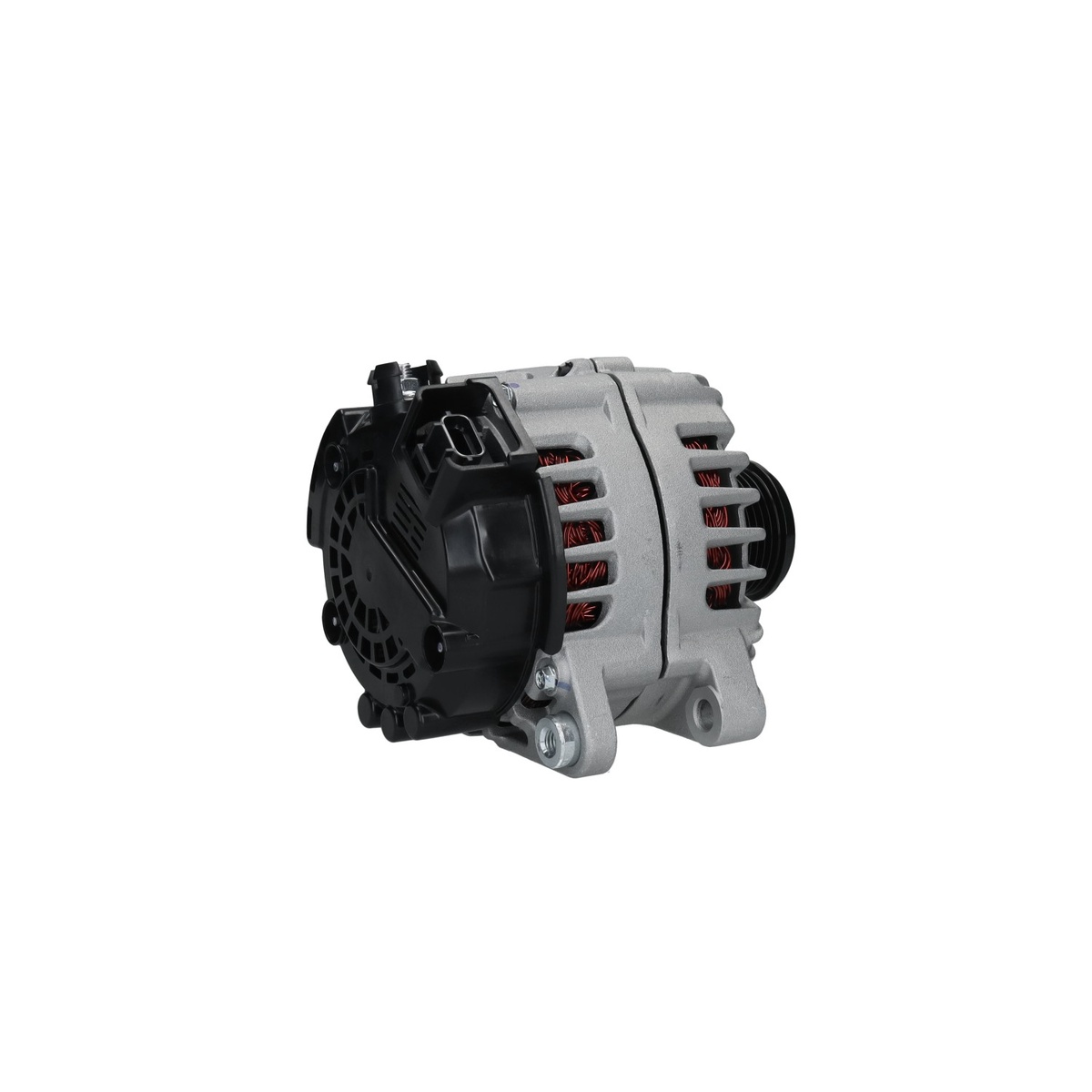

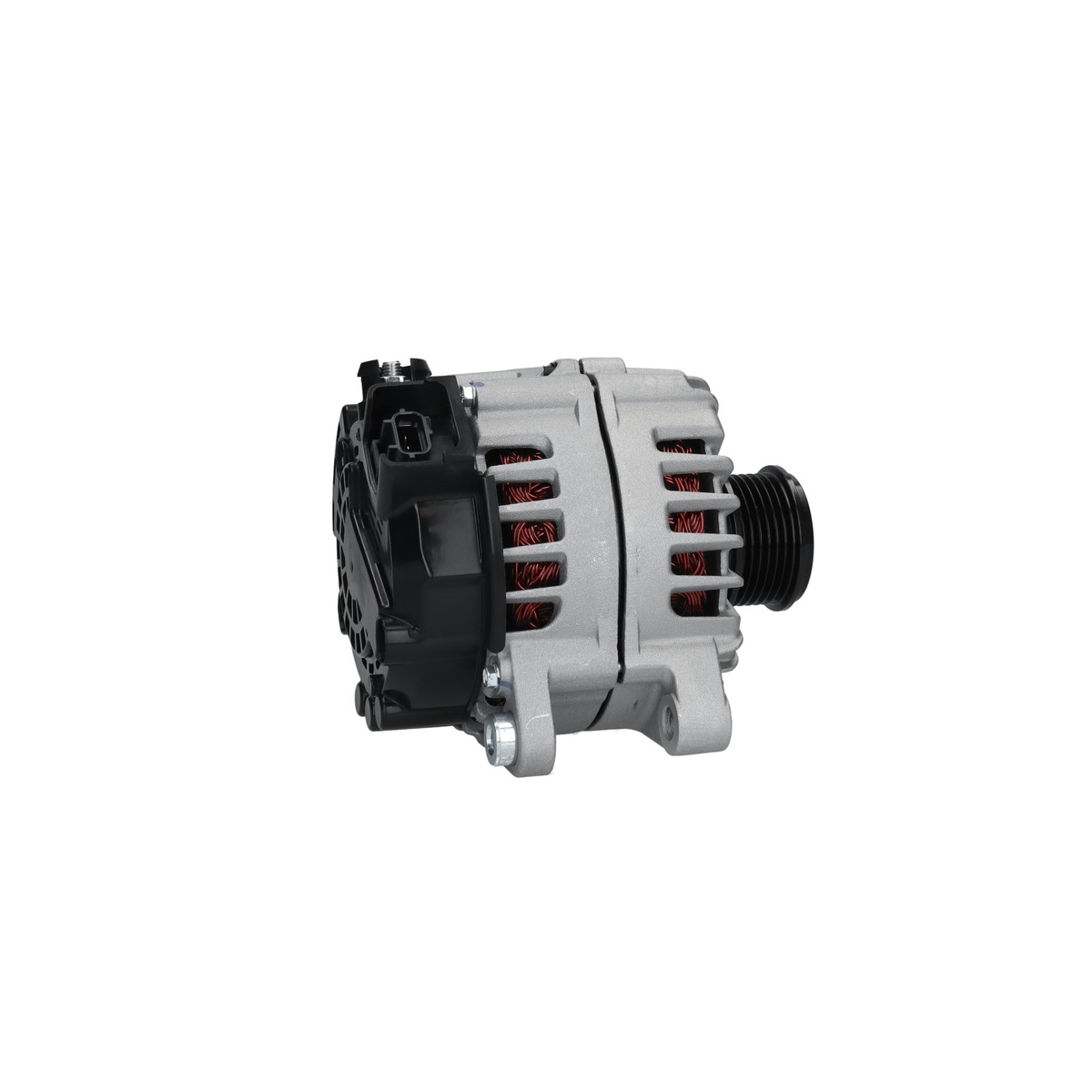

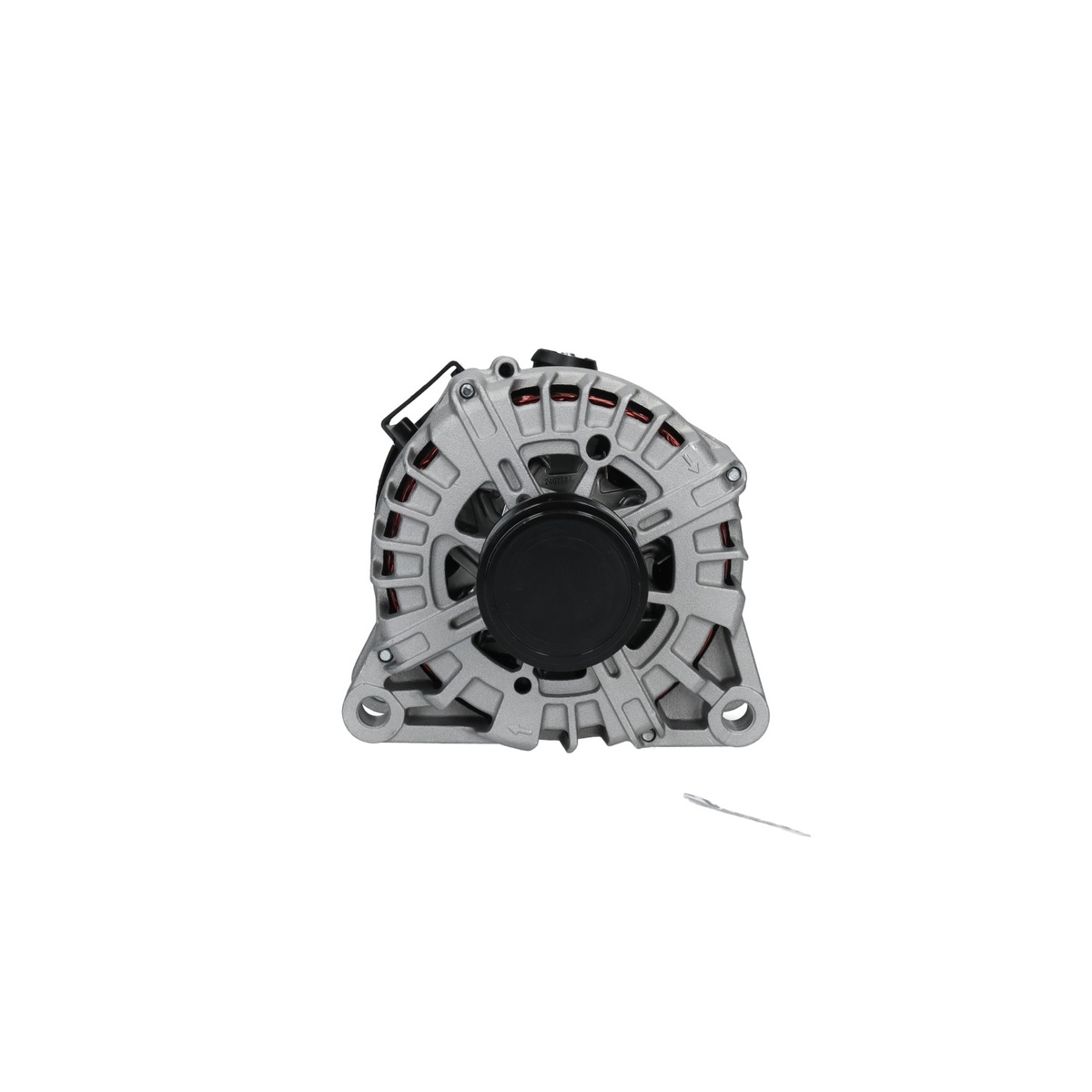

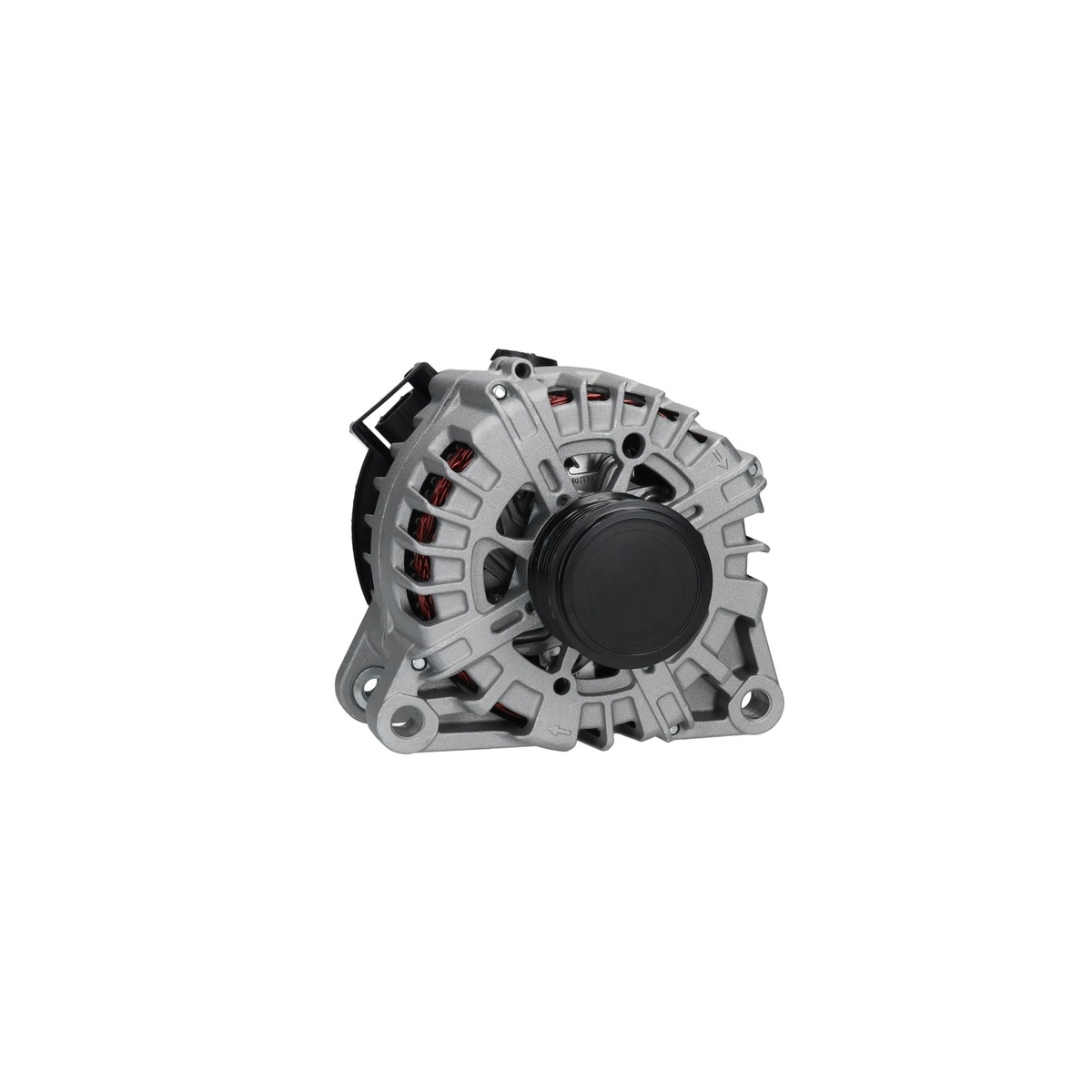

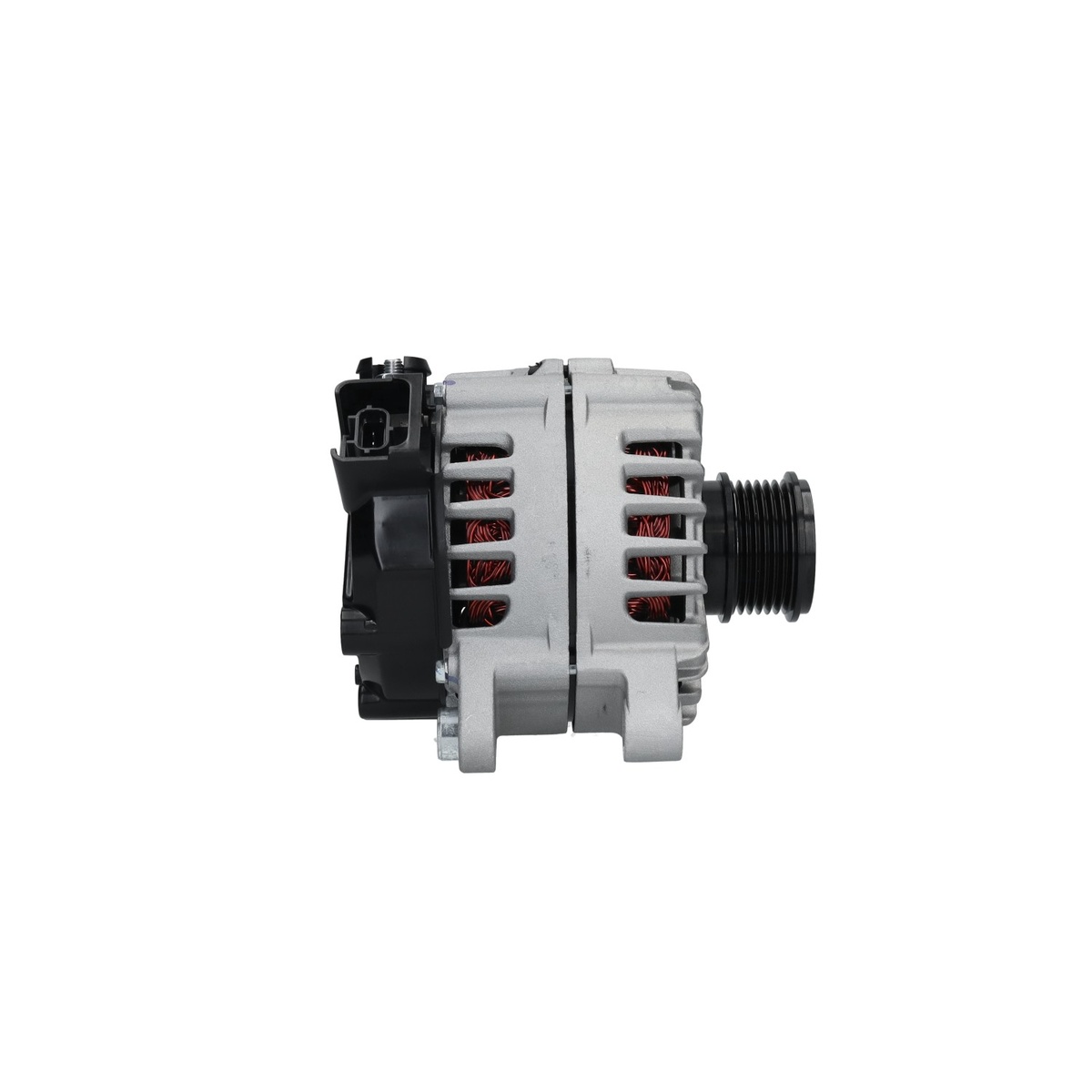

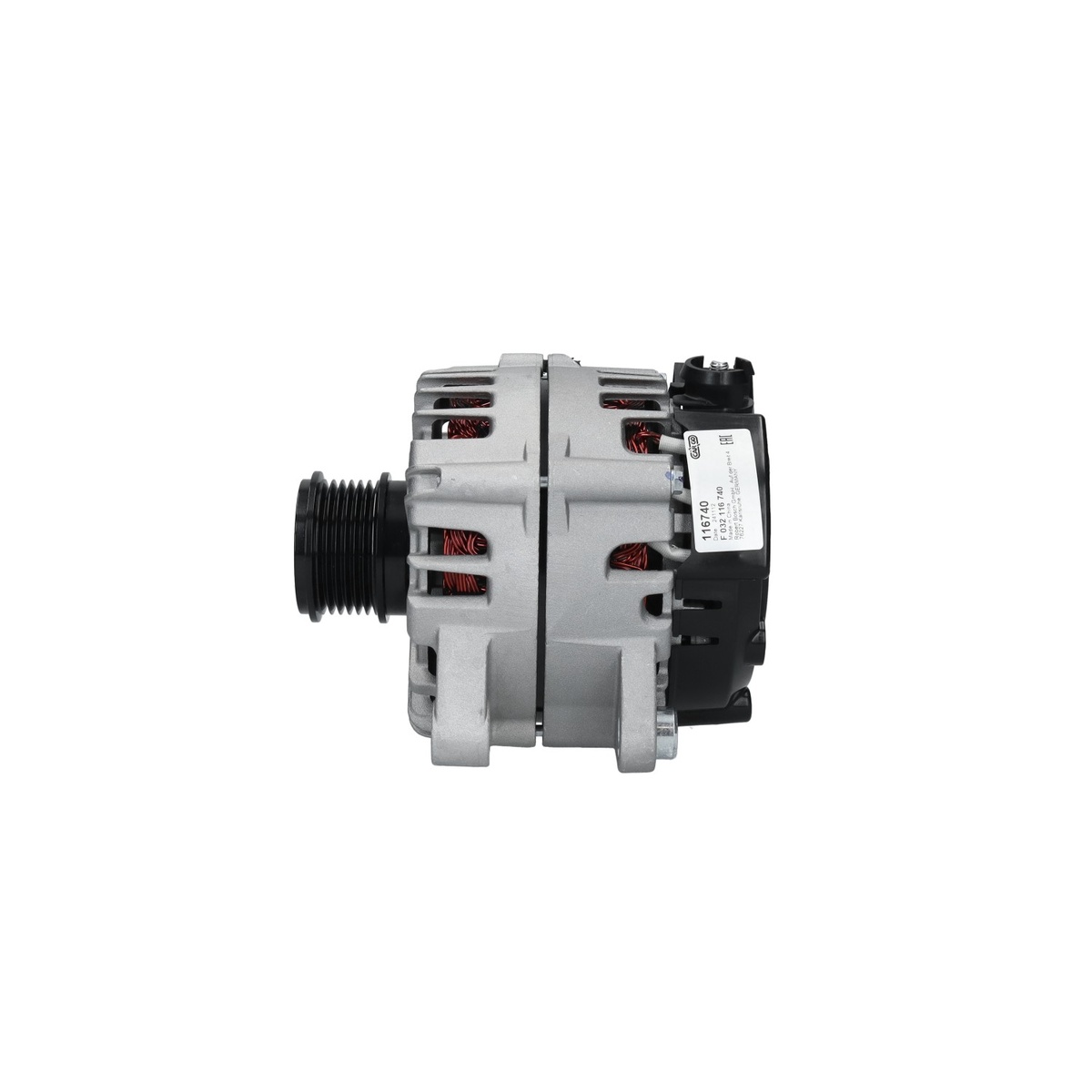

F032116740 - Alternator

Trade number 116740
Connection Diagram
Trade number 116740

Details & description

Voltage 14, Amp 235, Pulley SP/FW, Bracket Hole Size 1 11.50, Pulley Diameter 54.30, Bracket Hole Size Rear M10, Holder Arm Width 21.00, Pulley Distance 48.50, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL57, Mounting Bracket Distance 46.00, Radius 90.00, Rotation CW, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 6, Regulator type IR, B+ Position 50, Belt Adjustment Bracket Hole Position 47, Total Length 183.00

Product information

Electrical information

  • Voltage14
  • Amp235

Physical information

  • PulleySP/FW
  • Bracket Hole Size 111.50
  • Pulley Diameter54.30
  • Bracket Hole Size RearM10
  • Holder Arm Width21.00
  • Pulley Distance48.50
  • B+M8
  • FanIF
  • Radius 290.00

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 5341792FORD
    • E1GT10300BBFORD
    • E1GT10300BCFORD

    Competitor References

    • 554681RIVAD KÜHNER
    • A3569SAUTOSTARTER POLAND
    • CAL15A19CASCO SRL
    • 40134CEVAM
    • 595917230CV PSH
    • 287910ELSTOCK
    • 12090942EUROTEC
    • 116740HC-CARGO
    • 32439972HERTH U. BUSS
