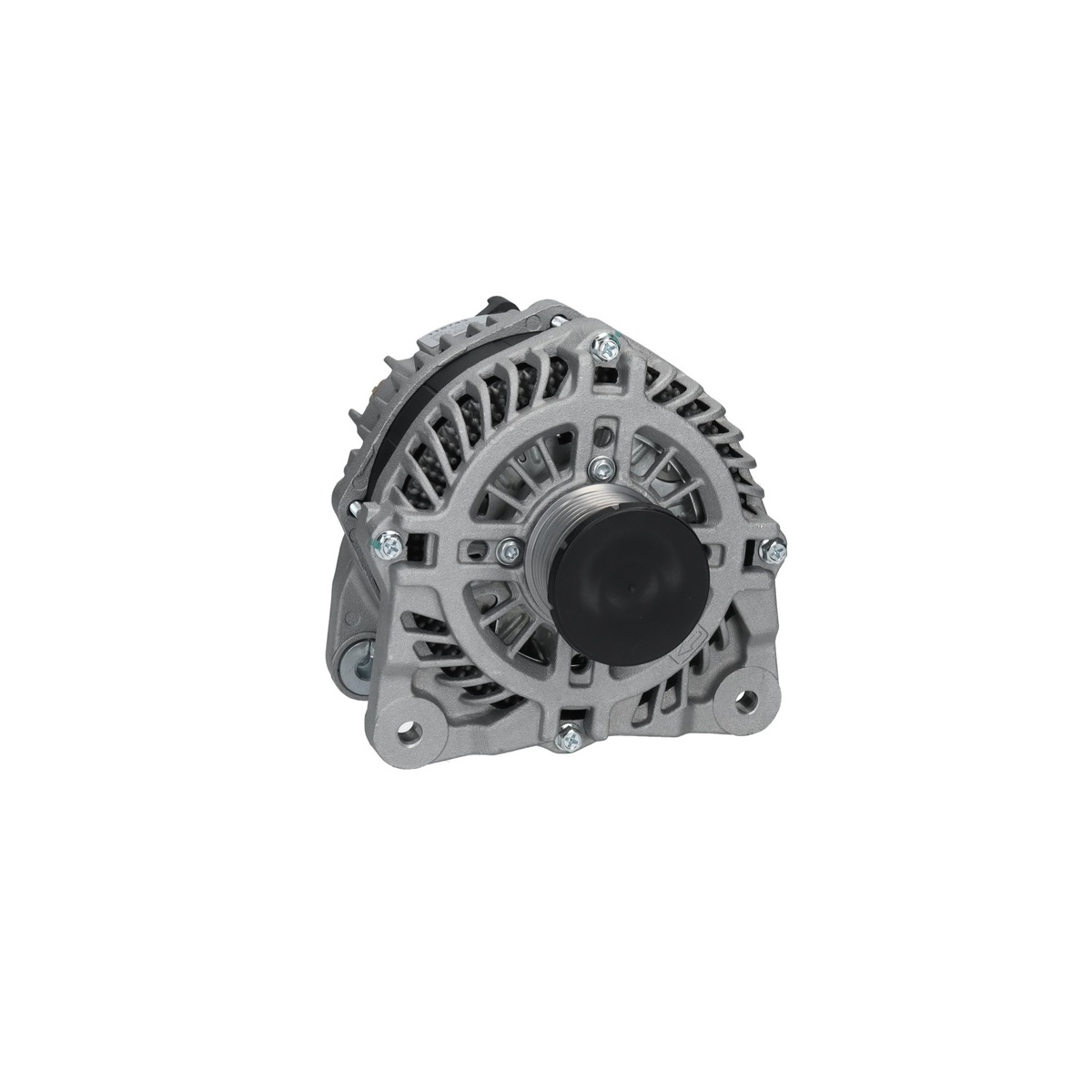

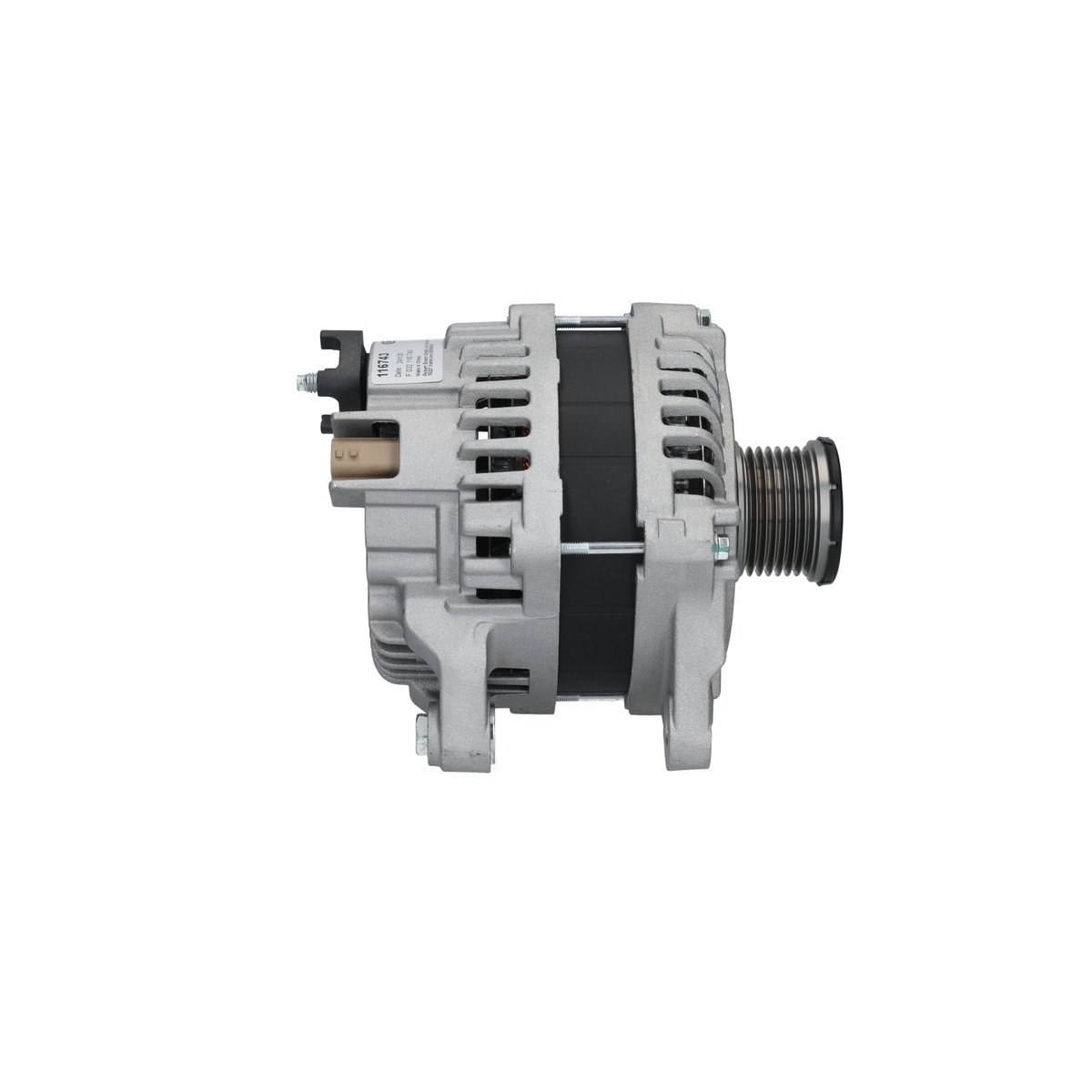

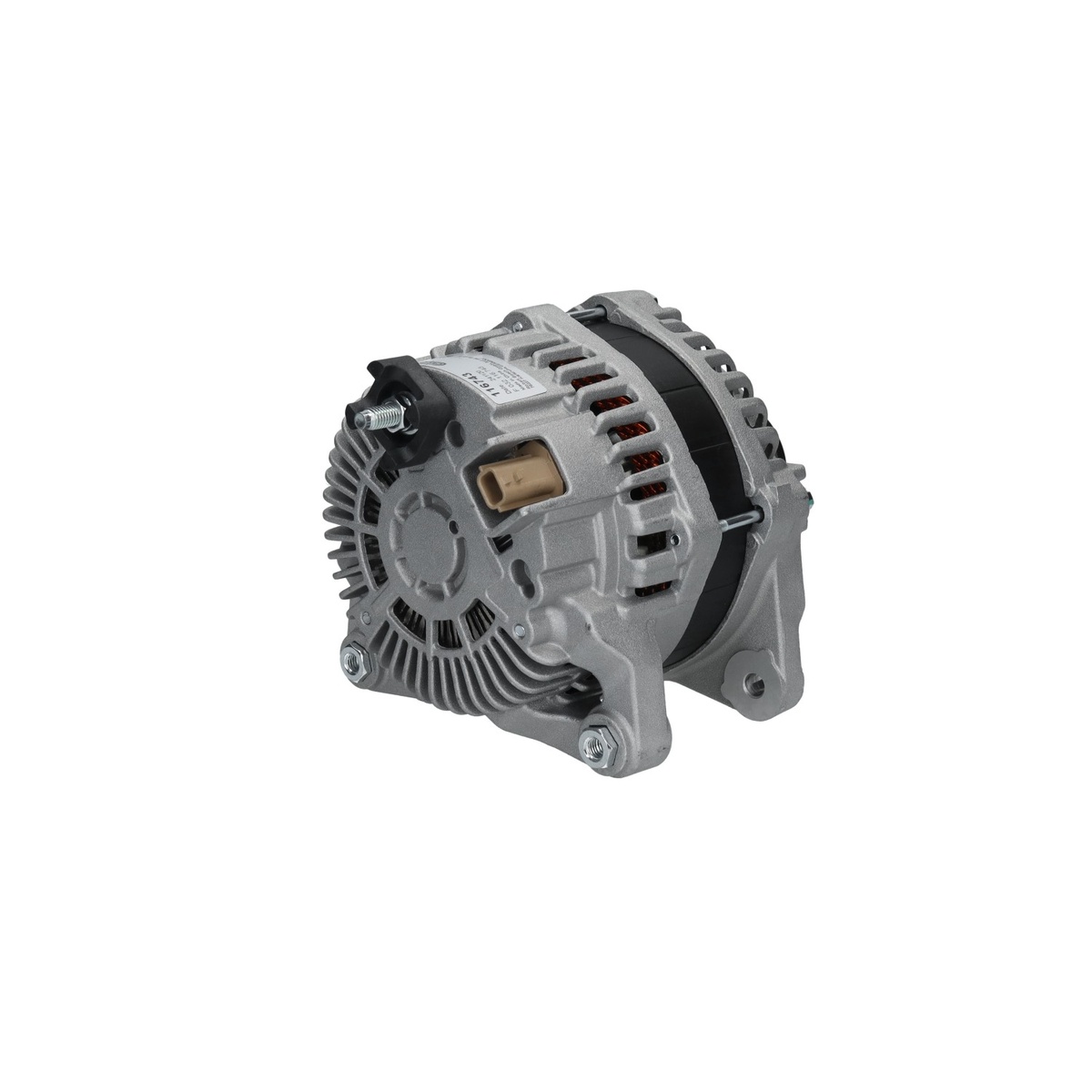

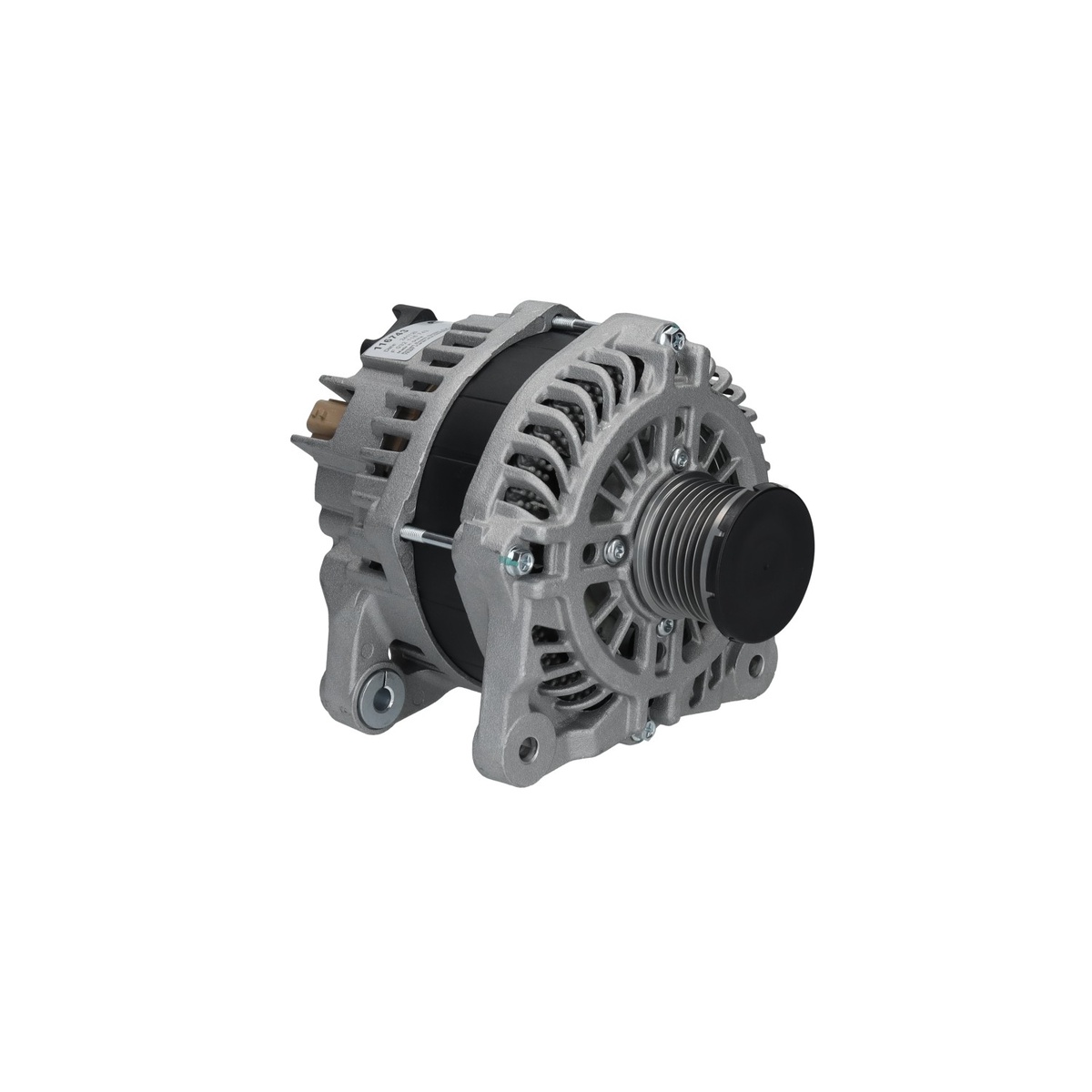

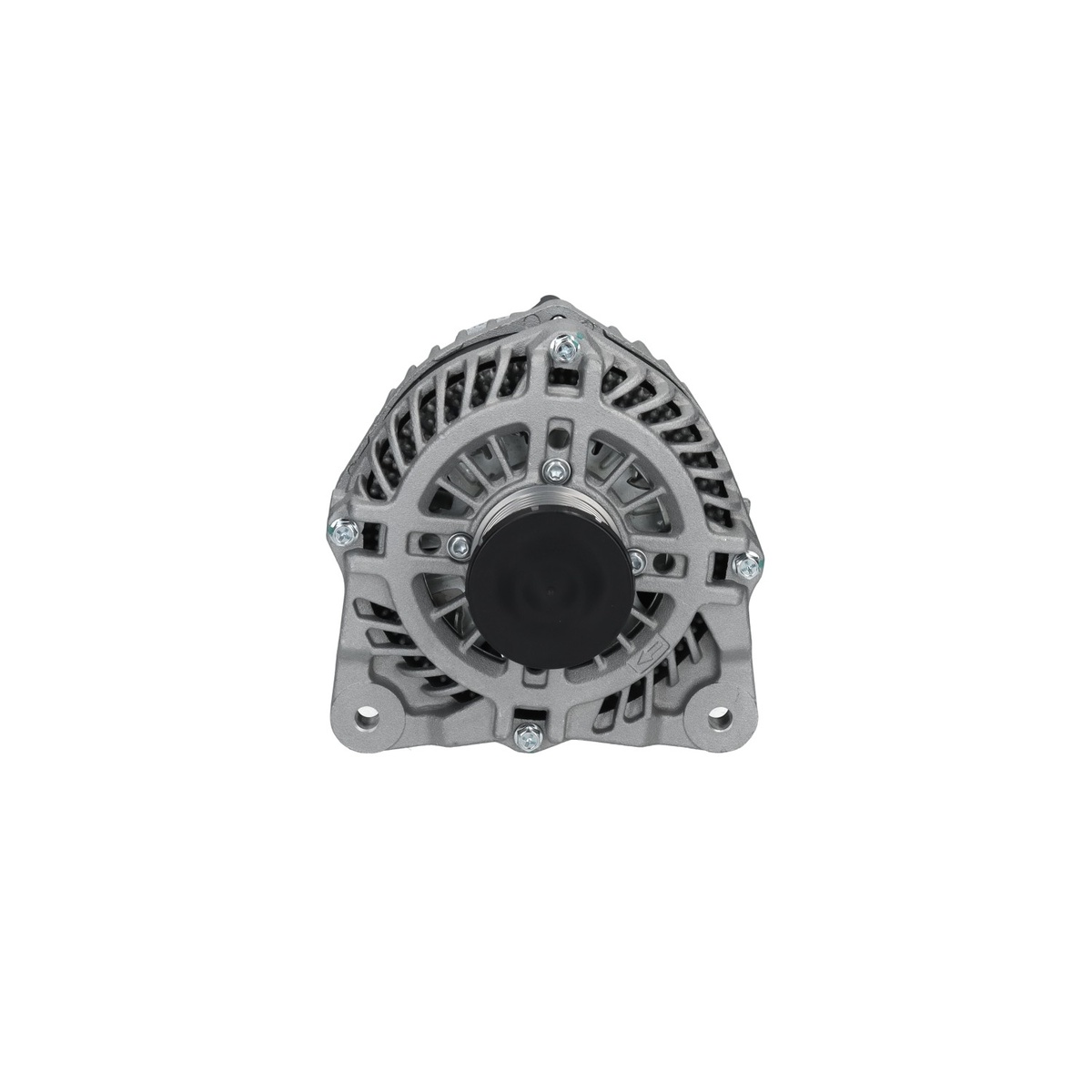

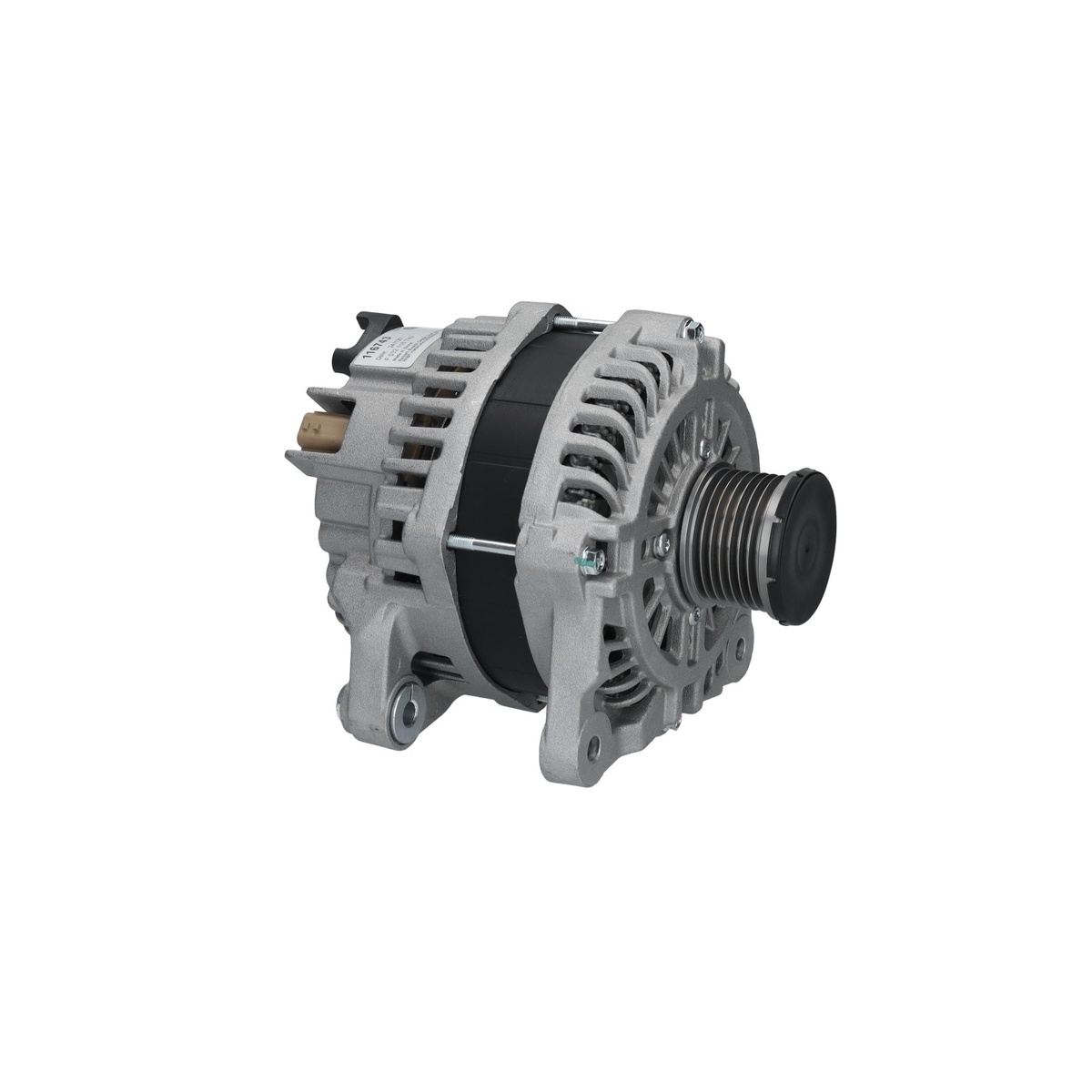

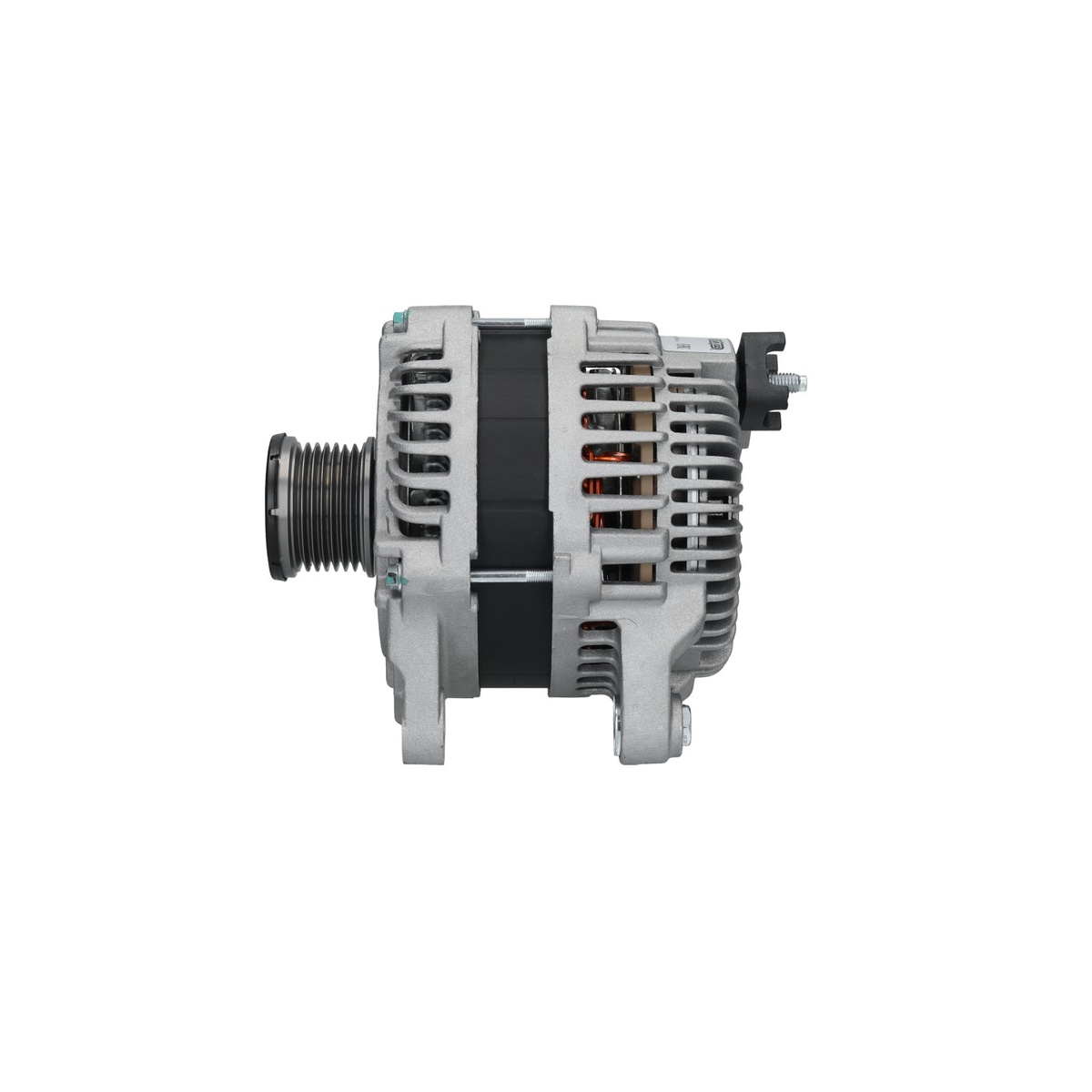

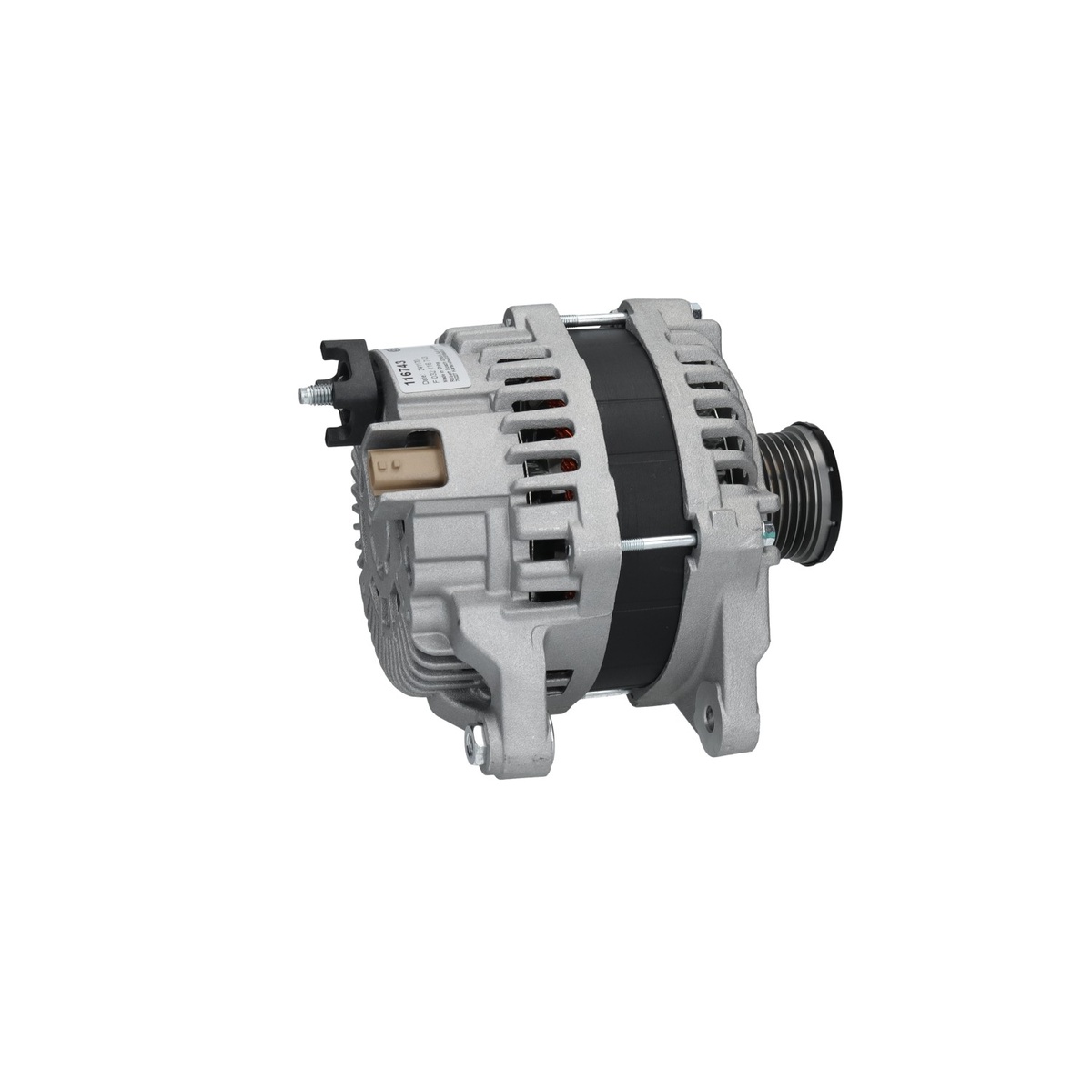

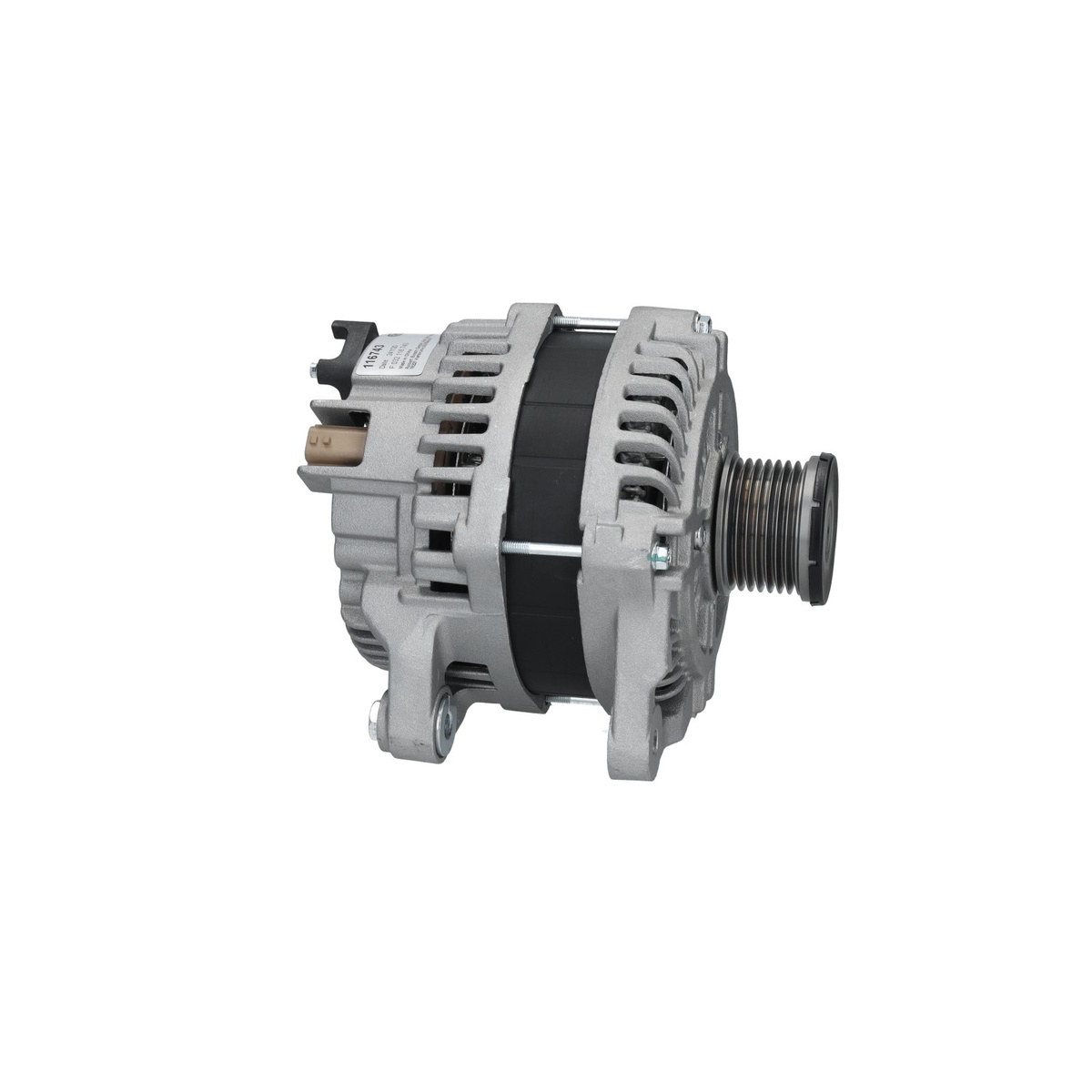

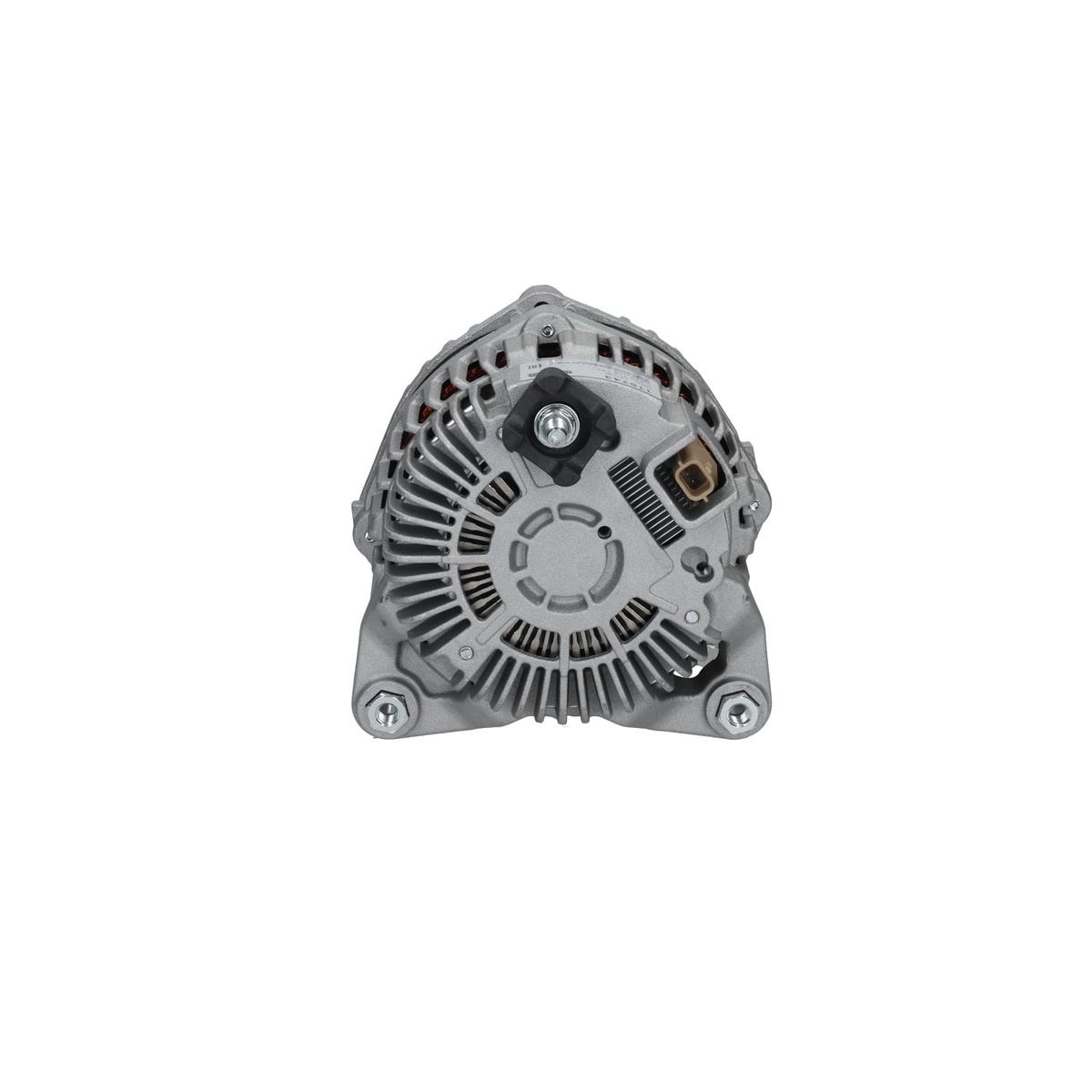

F032116743 - Alternator

Trade number 116743
Trade number 116743

Details & description

Voltage 14, Amp 185, Communication LIN, Pulley SP/FW, Pulley Diameter 49.00, Bracket Hole Size Rear M8, Pulley Distance 33.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 60.50, Radius 90.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 7, Regulator type IR, Bracket Hole Size 1 8.50, Terminal type COM, Holder Arm Width 14.50, B+ M8, Fan IF, Radius 2 90.00, Plug no. 1 PL124, Rotation CW, B+ Position 52, Belt Adjustment Bracket Hole Position 45, Total Length 200.00

Product information

Electrical information

  • Voltage14
  • Amp185

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP/FW
  • Pulley Diameter49.00
  • Bracket Hole Size RearM8
  • Pulley Distance33.00
  • Mounting Bracket Distance60.50
  • Radius90.00
  • Belt Adjustment Bracket Hole 18.50
  • Grooves/pulley7
  • Suggested Products

    Replacing and BOMs

    OEM number

    • A003TX2581ZEMITSUBISHIBOM
    • A3TX2581MITSUBISHI
    • A3TX2581ZEMITSUBISHI
    • 231006729RRENAULT

    Competitor References

    • 555167RIMAD KÜHNER
    • 0986085210BOSCH
    • 1986A00613BOSCH
    • CAL35393CASCO SRL
    • 116743HC-CARGO
    • 443437VALEO
    • 444257VALEO
