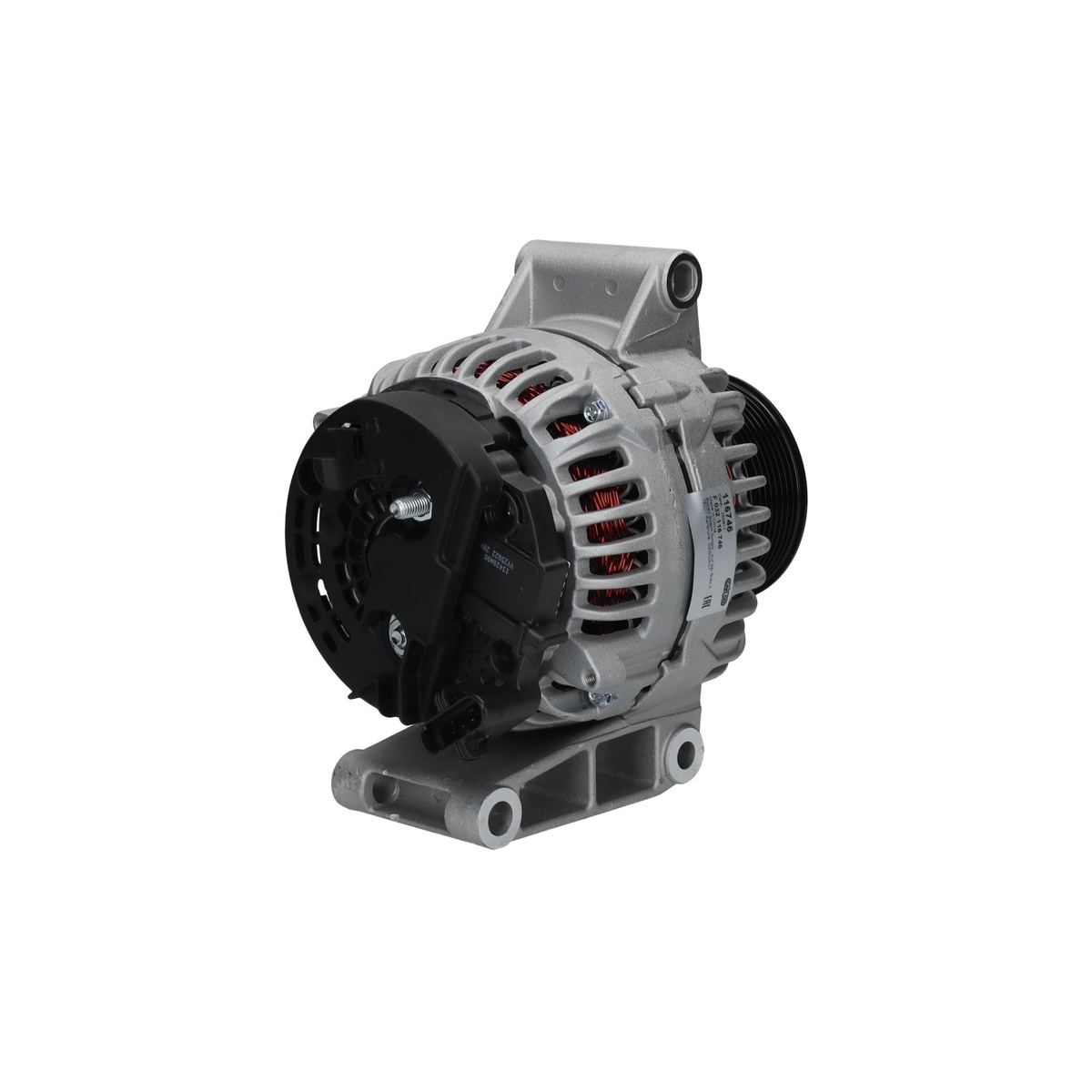

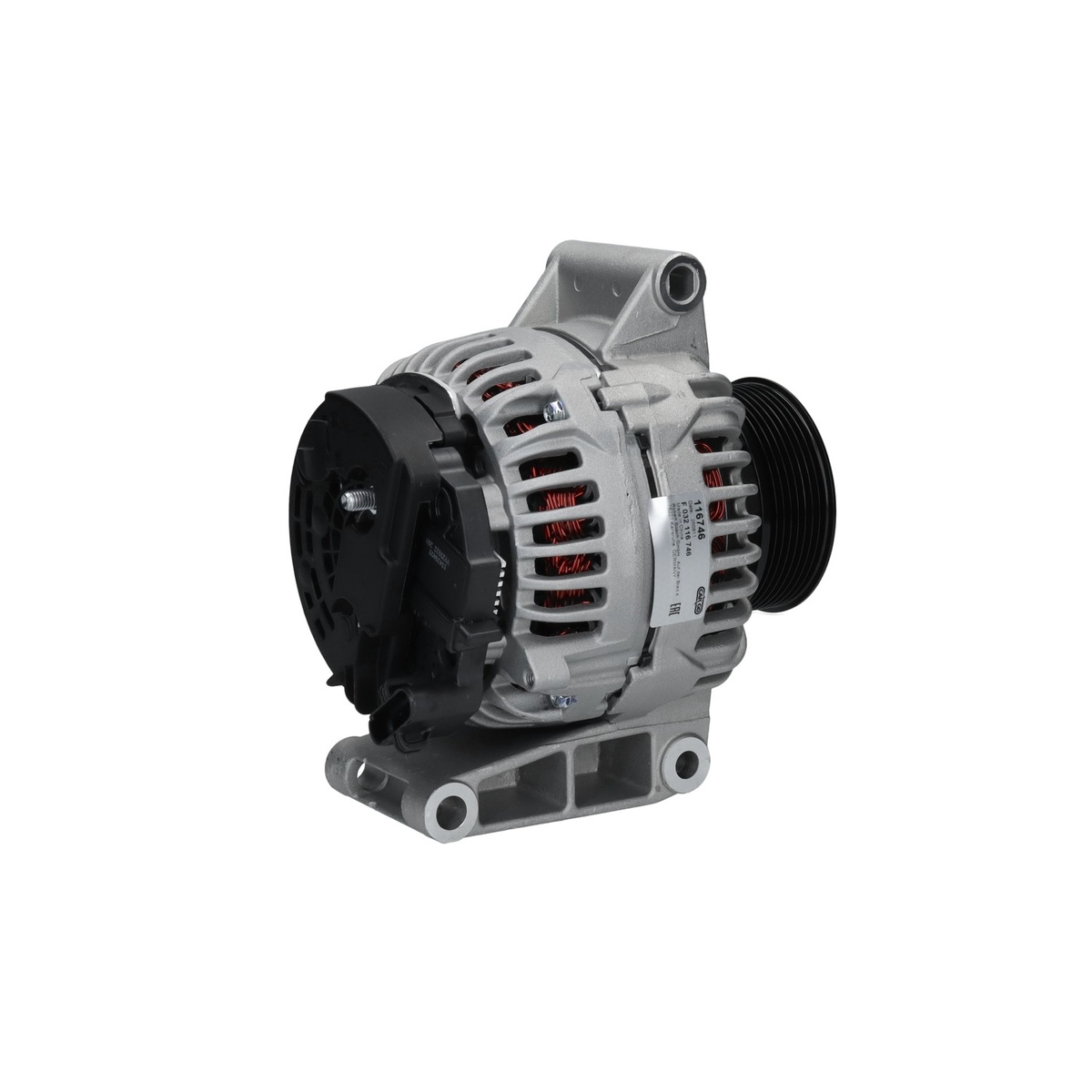

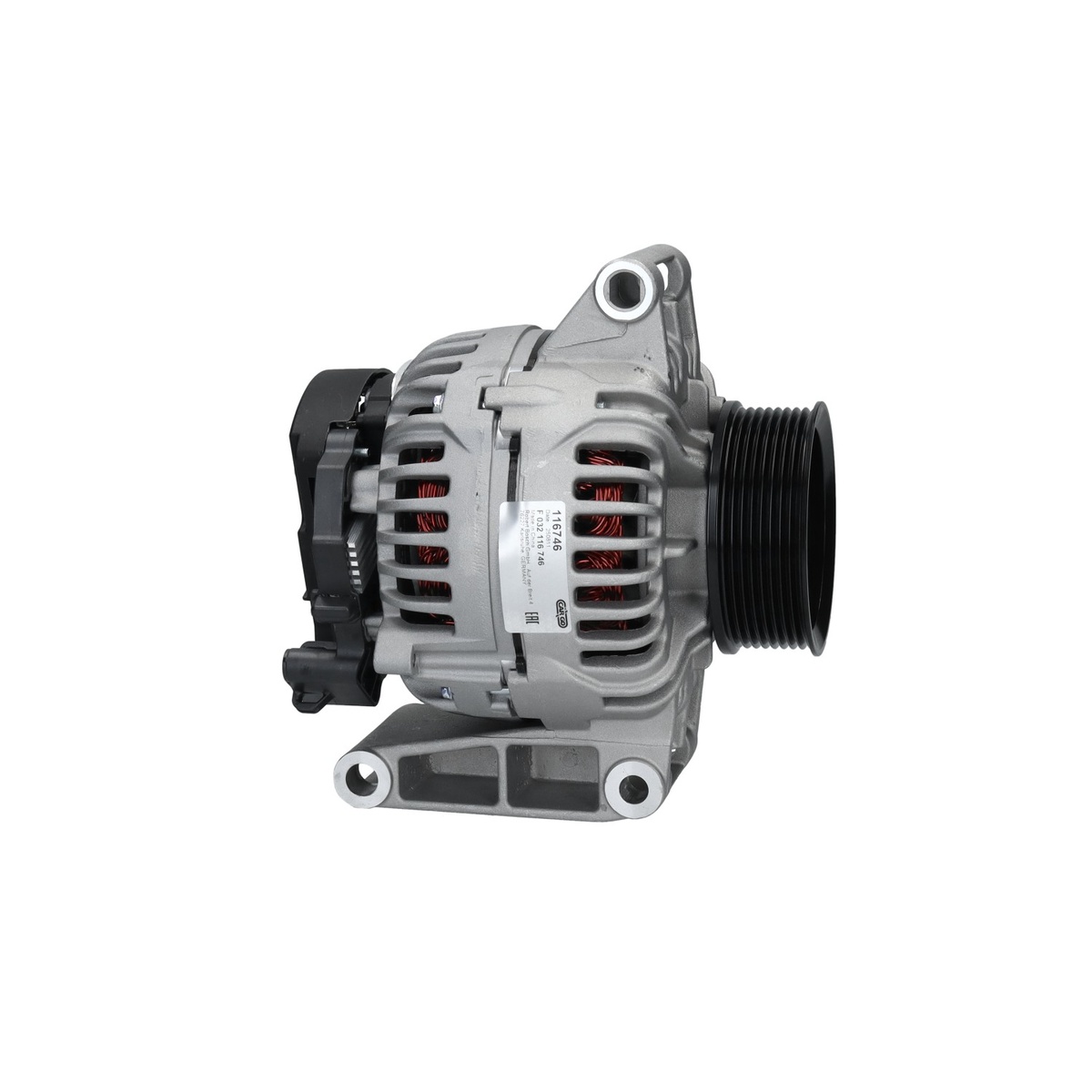

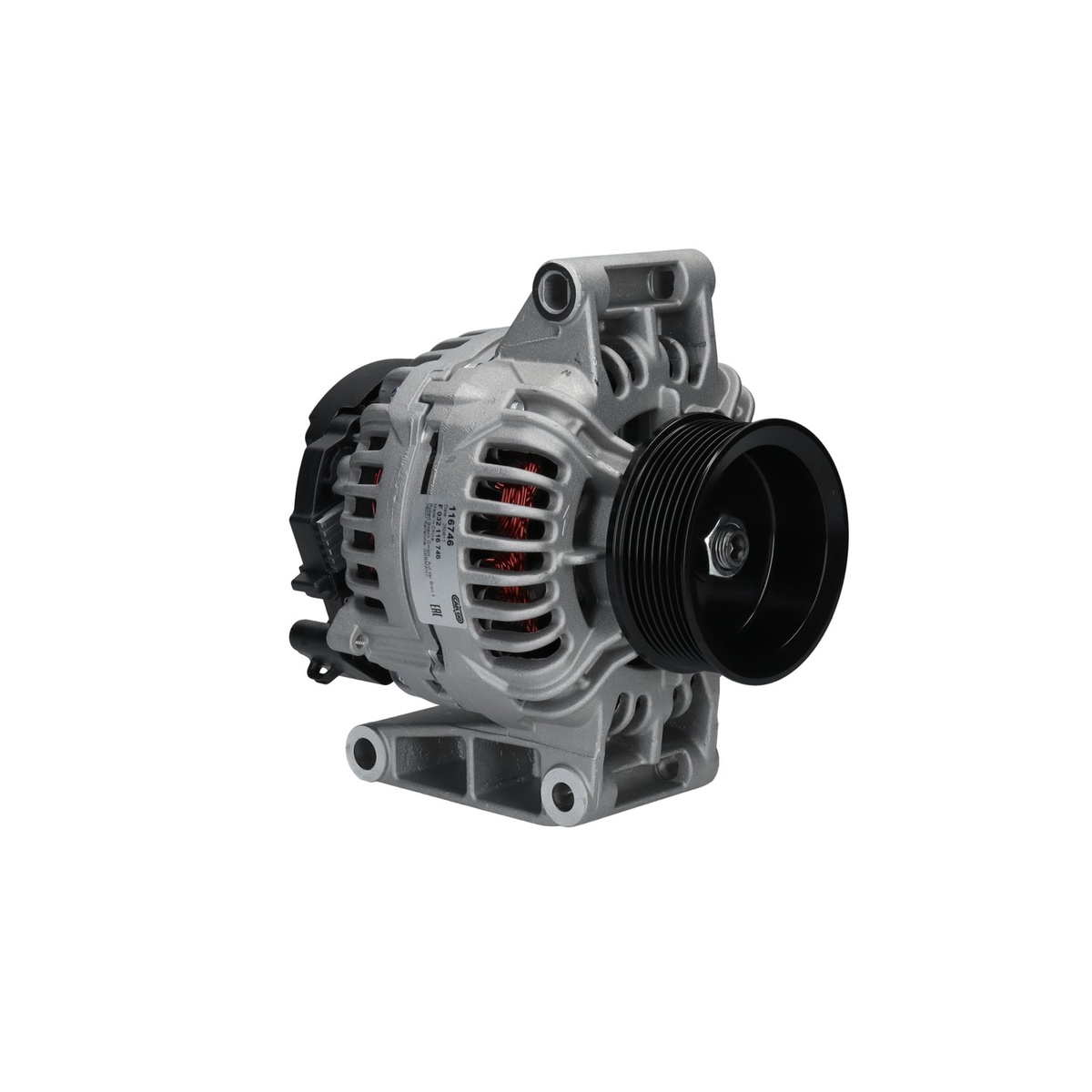

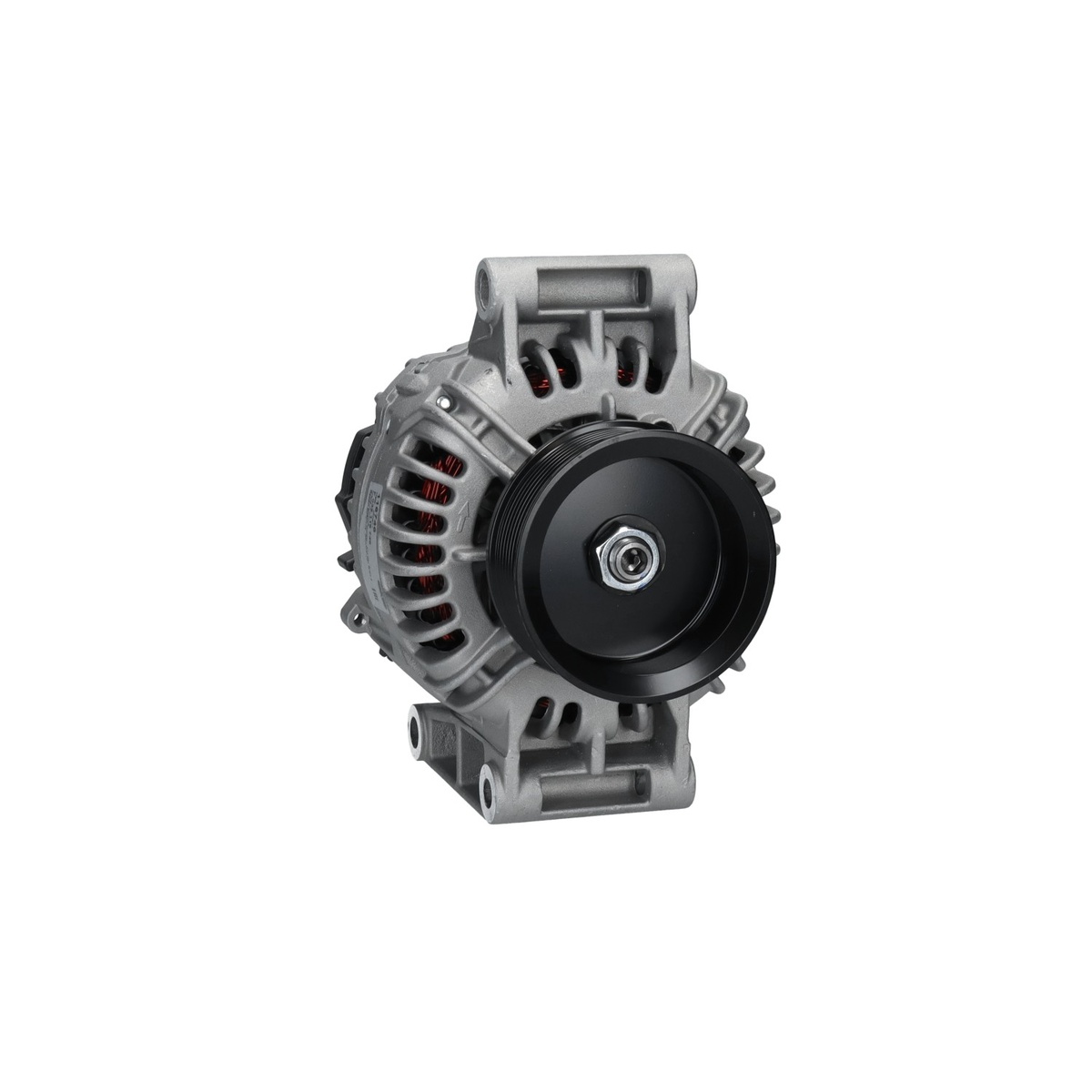

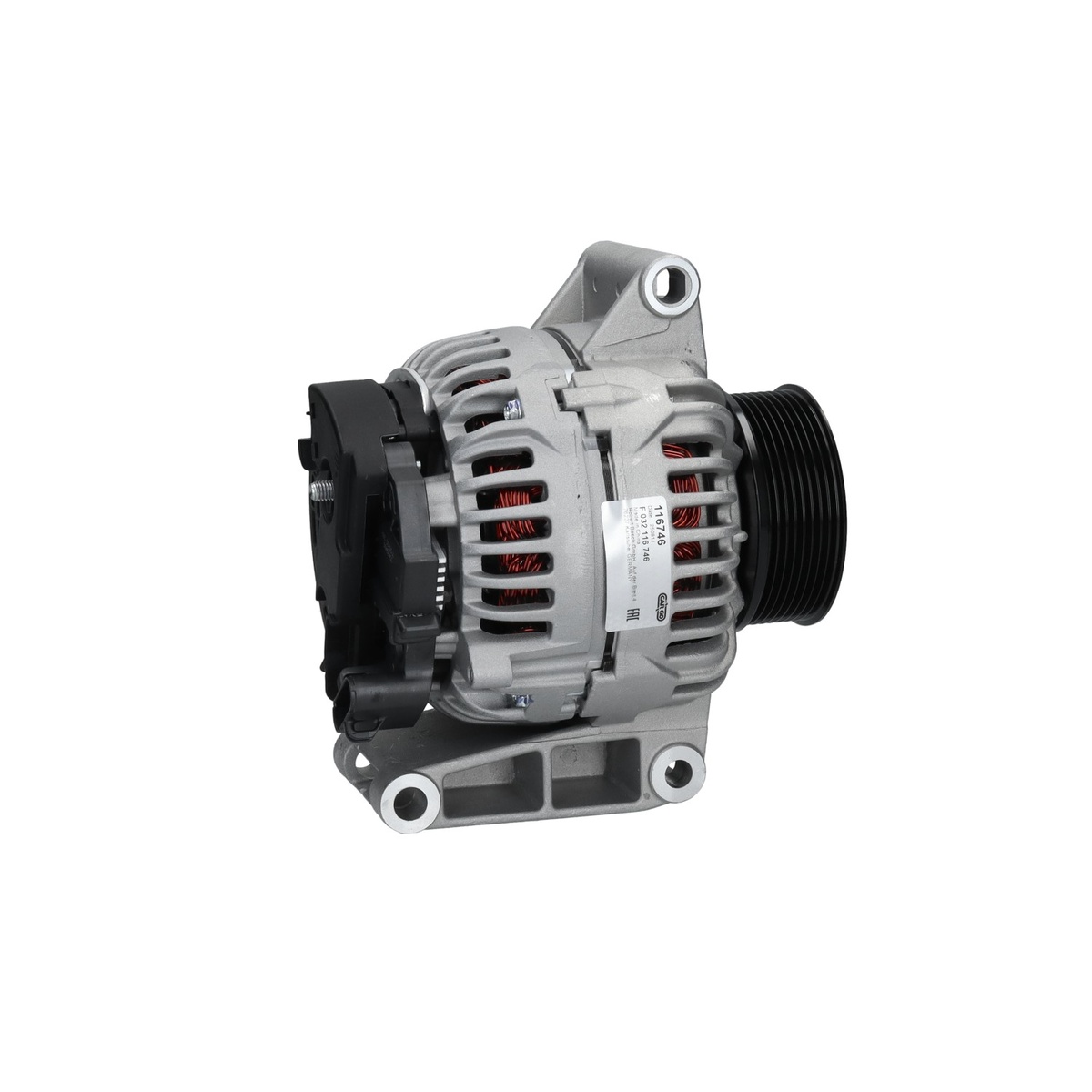

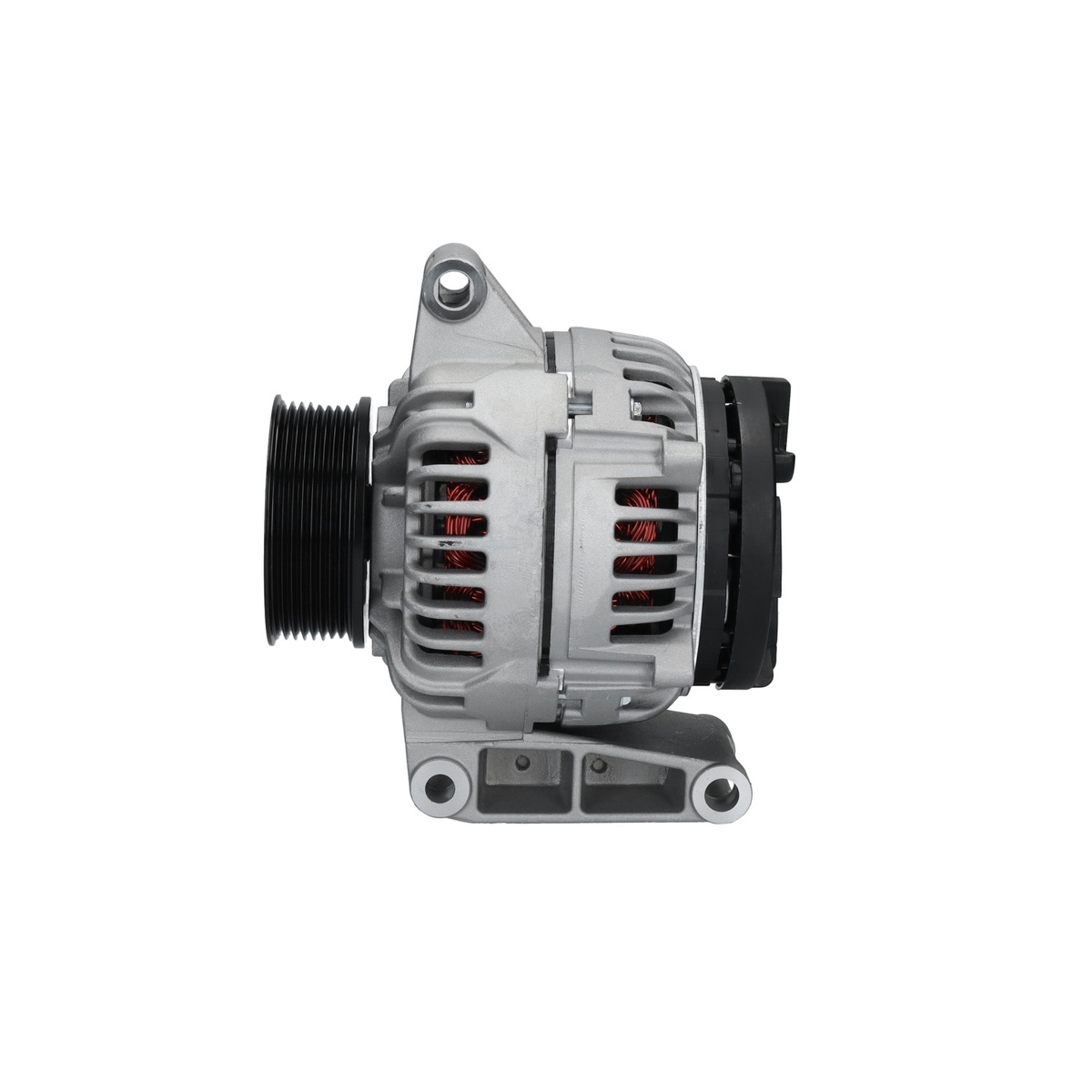

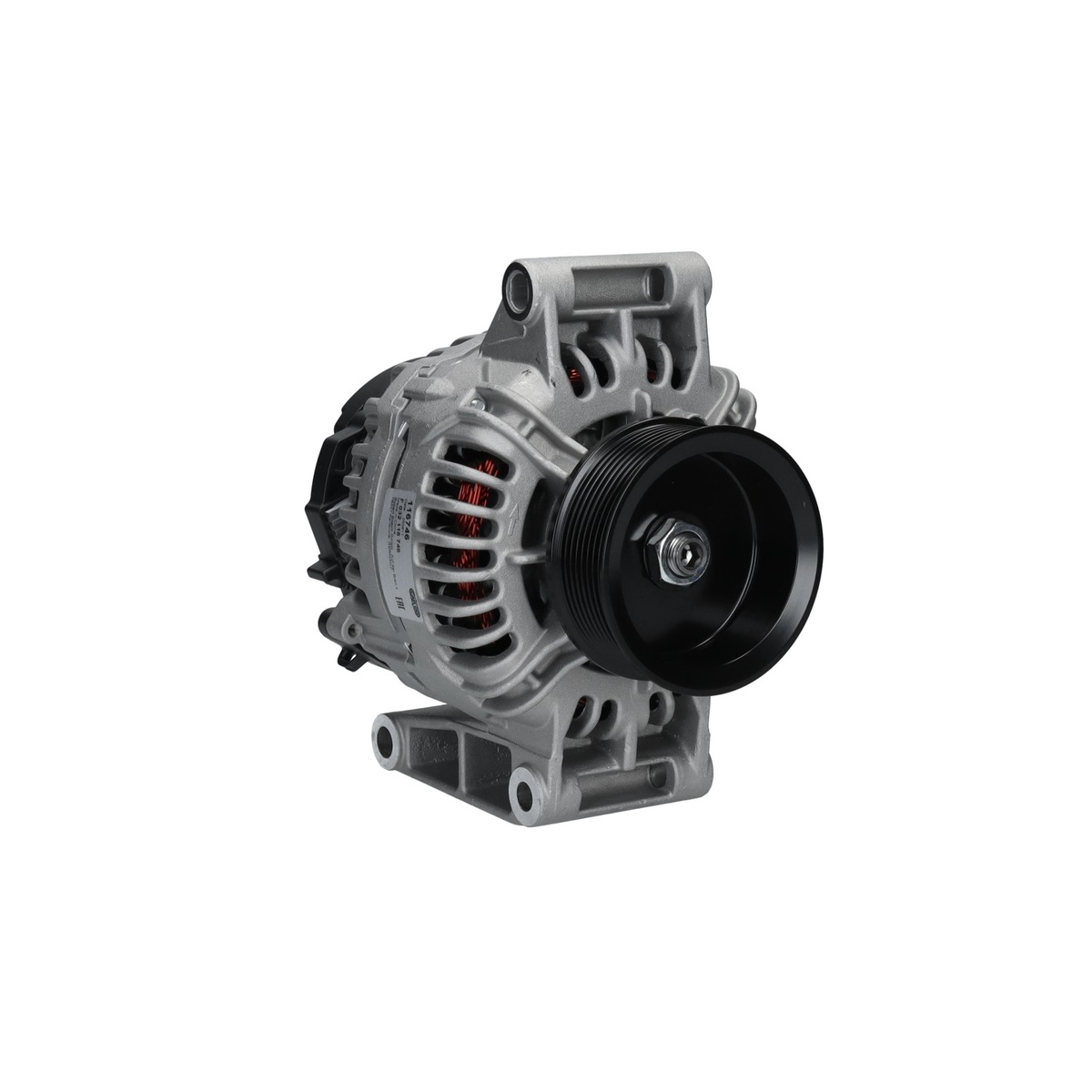

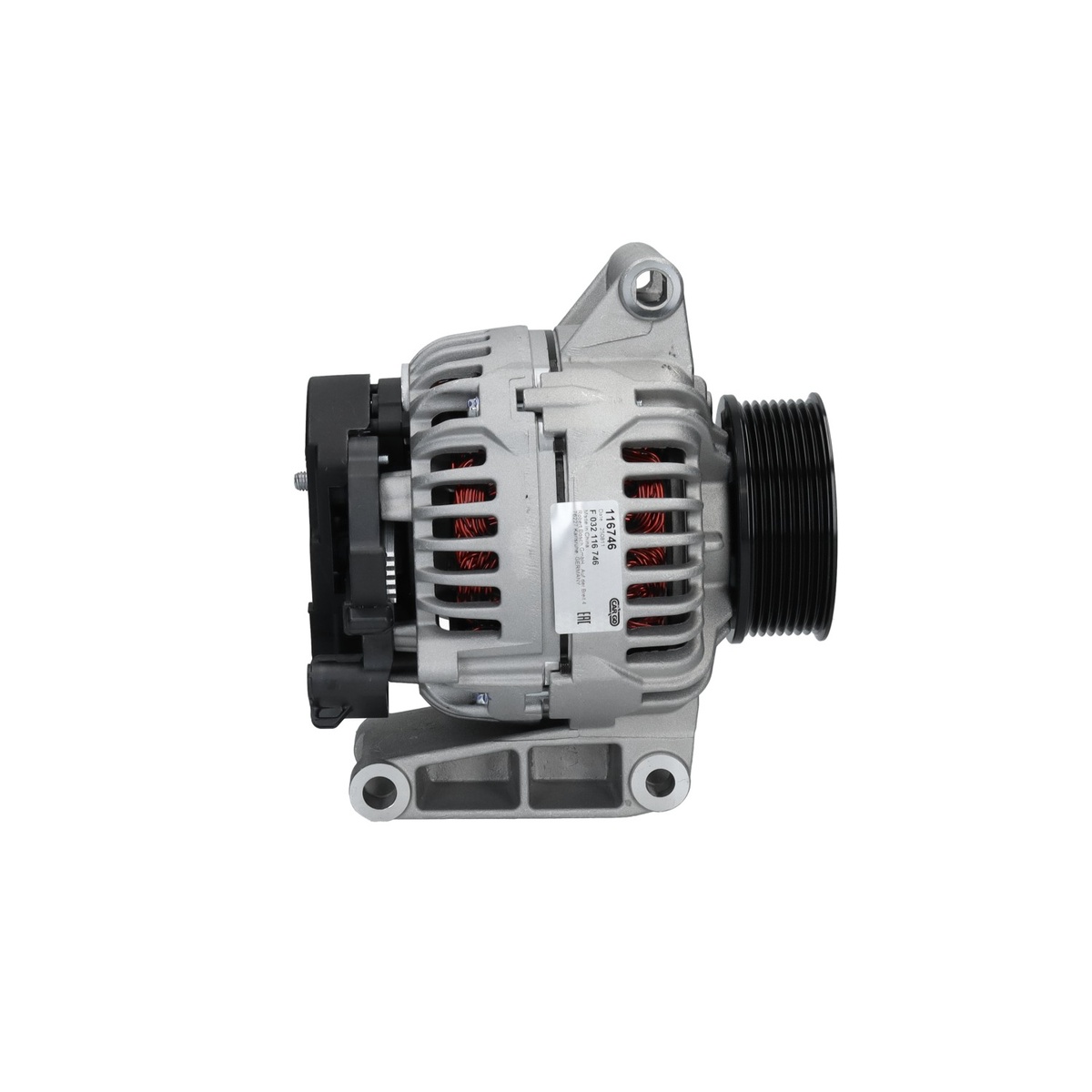

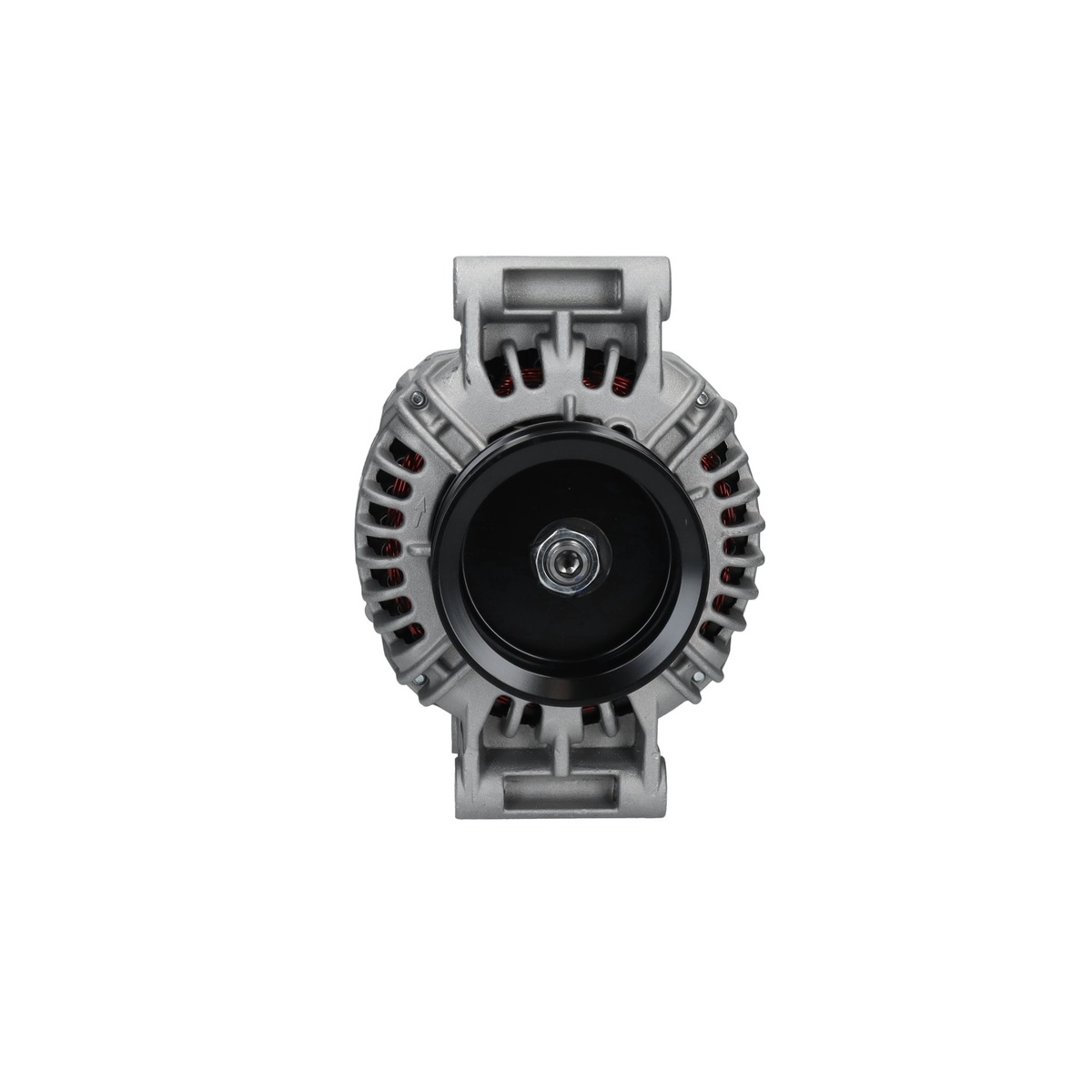

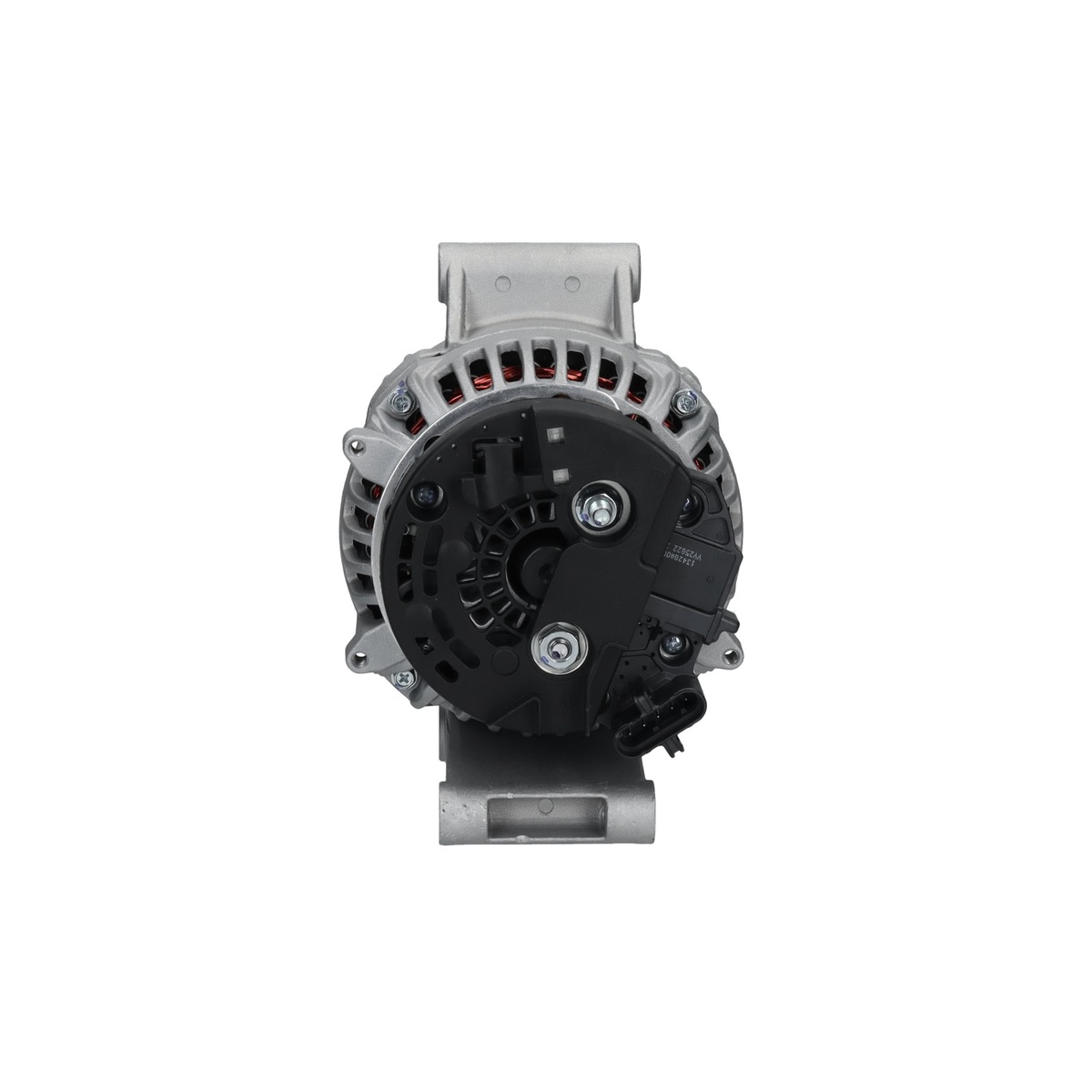

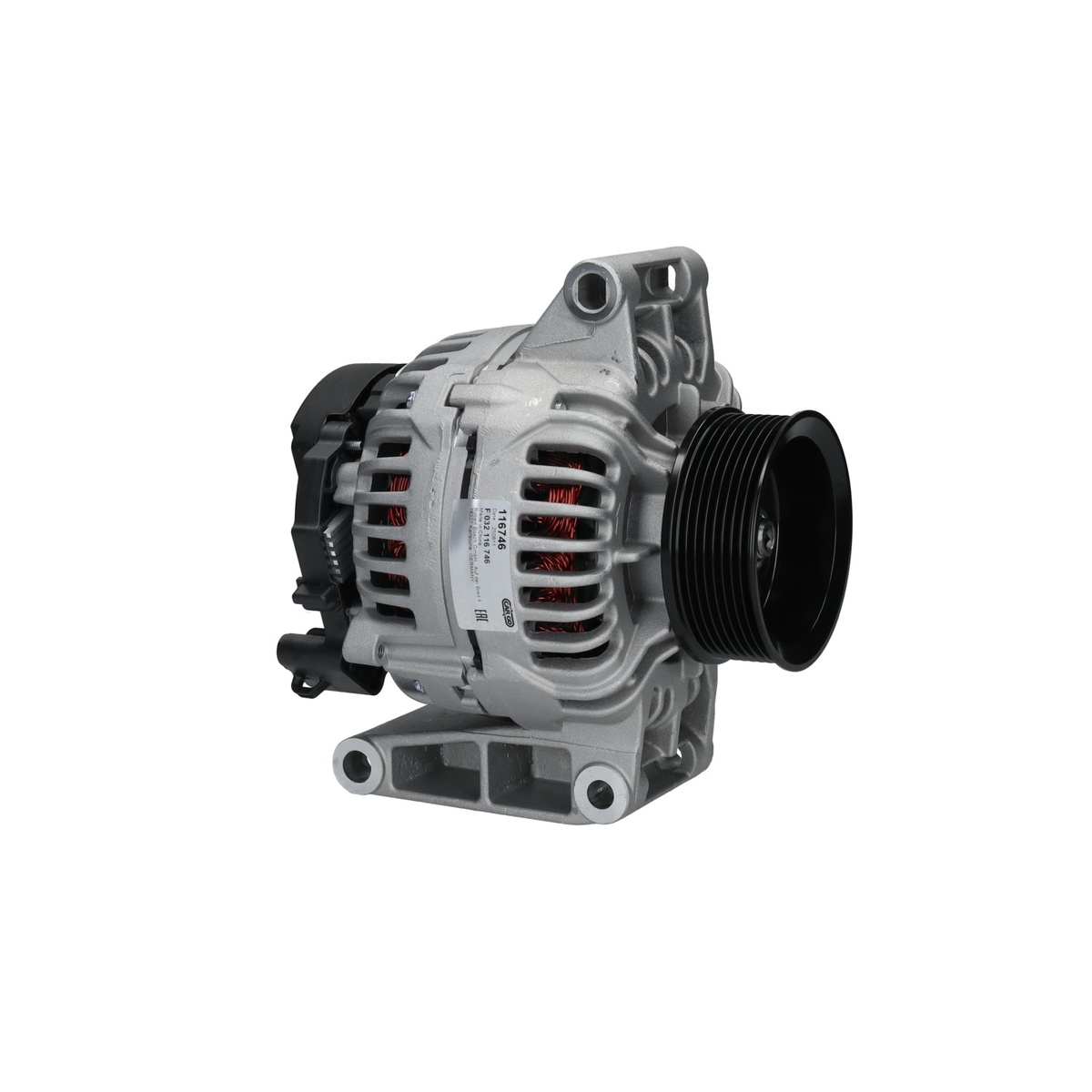

F032116746 - Alternator

Trade number 116746
Connection Diagram
Trade number 116746

Details & description

Voltage 28, Amp 100, Communication LIN, Pulley SP, Bracket Hole Size 1 11.00, Pulley Diameter 93.00, Bracket Hole Size Rear 12.30, Terminal type COM, Holder Arm Width 80.00, Pulley Distance 38.00, B+ M8, Fan IF, Radius 2 95.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Plug no. 1 PL190, Mounting Bracket Distance 108.00, Radius 95.00, Rotation CW, Belt Adjustment Bracket Hole 1 11.00x12.50, Grooves/pulley 8, Regulator type IR, B+ Position 6, Total Length 204.00

Product information

Electrical information

  • Voltage28
  • Amp100

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP
  • Bracket Hole Size 111.00
  • Pulley Diameter93.00
  • Bracket Hole Size Rear12.30
  • Terminal typeCOM
  • Holder Arm Width80.00
  • Pulley Distance38.00
  • B+M8

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 0151542102MERCEDES-BENZ
    • 0151544002MERCEDES-BENZ
    • A0151542102MERCEDES-BENZ
    • A0151544002MERCEDES-BENZ

    Competitor References

    • 554723RIBAD KÜHNER
    • 0124655062BOSCH
    • 0124655489BOSCH
    • 0128821040BOSCH
    • 0128821162BOSCH
    • 0986084290BOSCH
    • 0986084293BOSCH
    • 1986A02369BOSCH
    • CAL10764CASCO SRL
