F032116758 - Starter

Trade number 116758

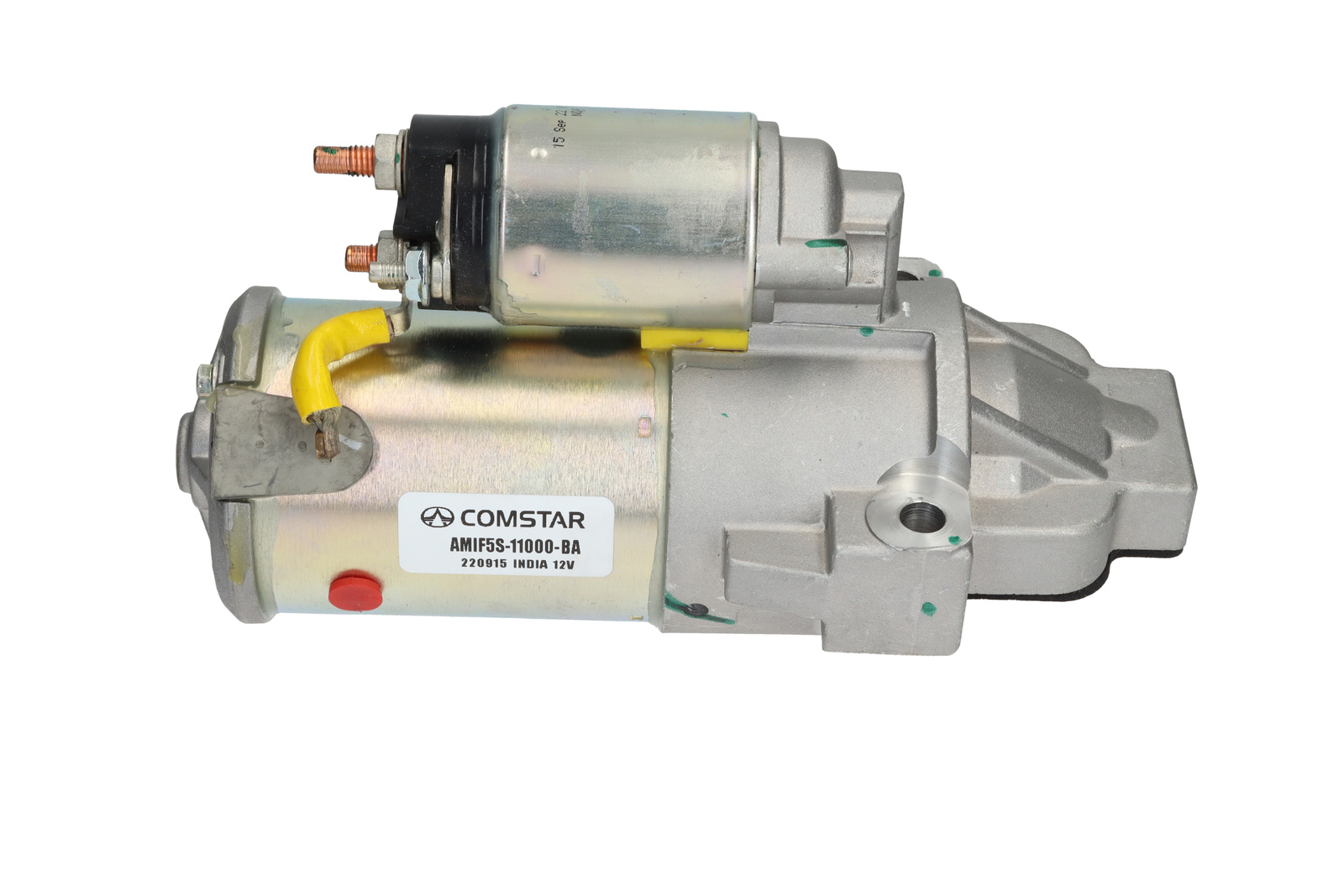

Product image - main
Trade number 116758

Details & description

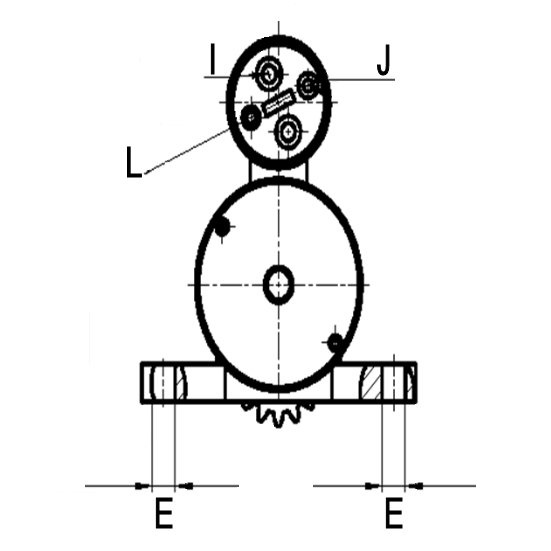

kW 2.2, Voltage 12, No./mount. holes 2 (0), Mounting Hole 2 10.50, Rear Distance 178.50, Gear type GR, Front Distance 68.50, Drive Distance 20.00, No./teeth 11, B+ M8, Terminal 50 M6, Distance 89.00, Rotation CW, Position 16, Mounting Hole 1 10.50, B+ Position 57, Amount of Mounting Holes 2 (0), Total Length 247.00

Product information

Electrical information

  • kW2.2
  • Voltage12

Physical information

  • No./mount. holes2 (0)
  • Mounting Hole 210.50
  • Rear Distance178.50
  • Gear typeGR
  • Front Distance68.50
  • Drive Distance20.00
  • No./teeth11
  • B+M8
  • Terminal 50M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2225623FORD
    • GK2T11000DBFORD
    • GK2T11000DAFORD
    • 2359606FORD
    • AMIF5S11000BAFORD

    Competitor References

    • S9443PAUTOSTARTER POLAND
    • 0986027320BOSCH
    • 1986S10127BOSCH
    • CST14144CASCO SRL
    • 9898CEVAM
    • 590905112CV PSH
    • 255415ELSTOCK
    • 11090486EUROTEC
    • 116758HC-CARGO

    • Compatible products
