F032116765 - Alternator

Trade number 116765

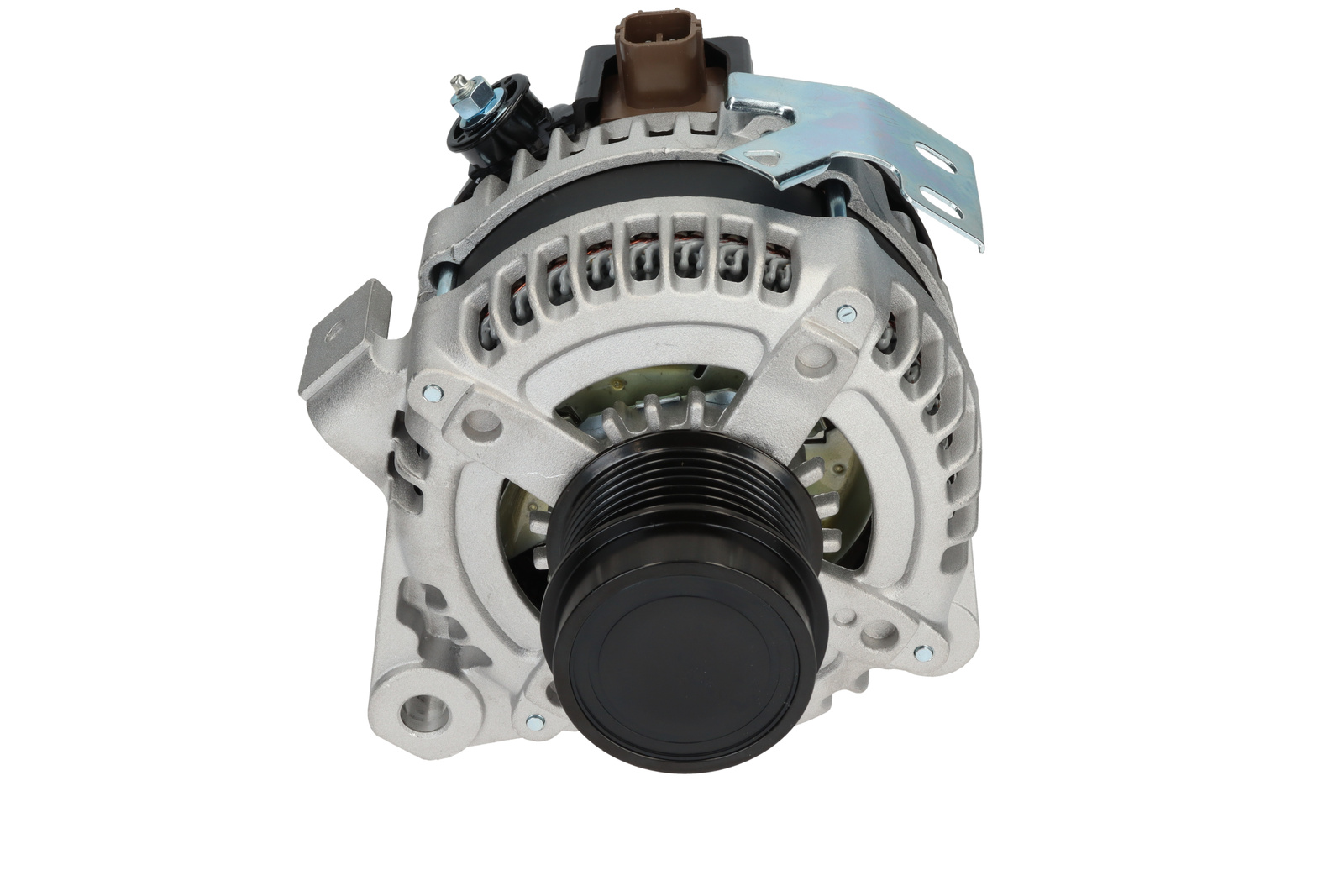

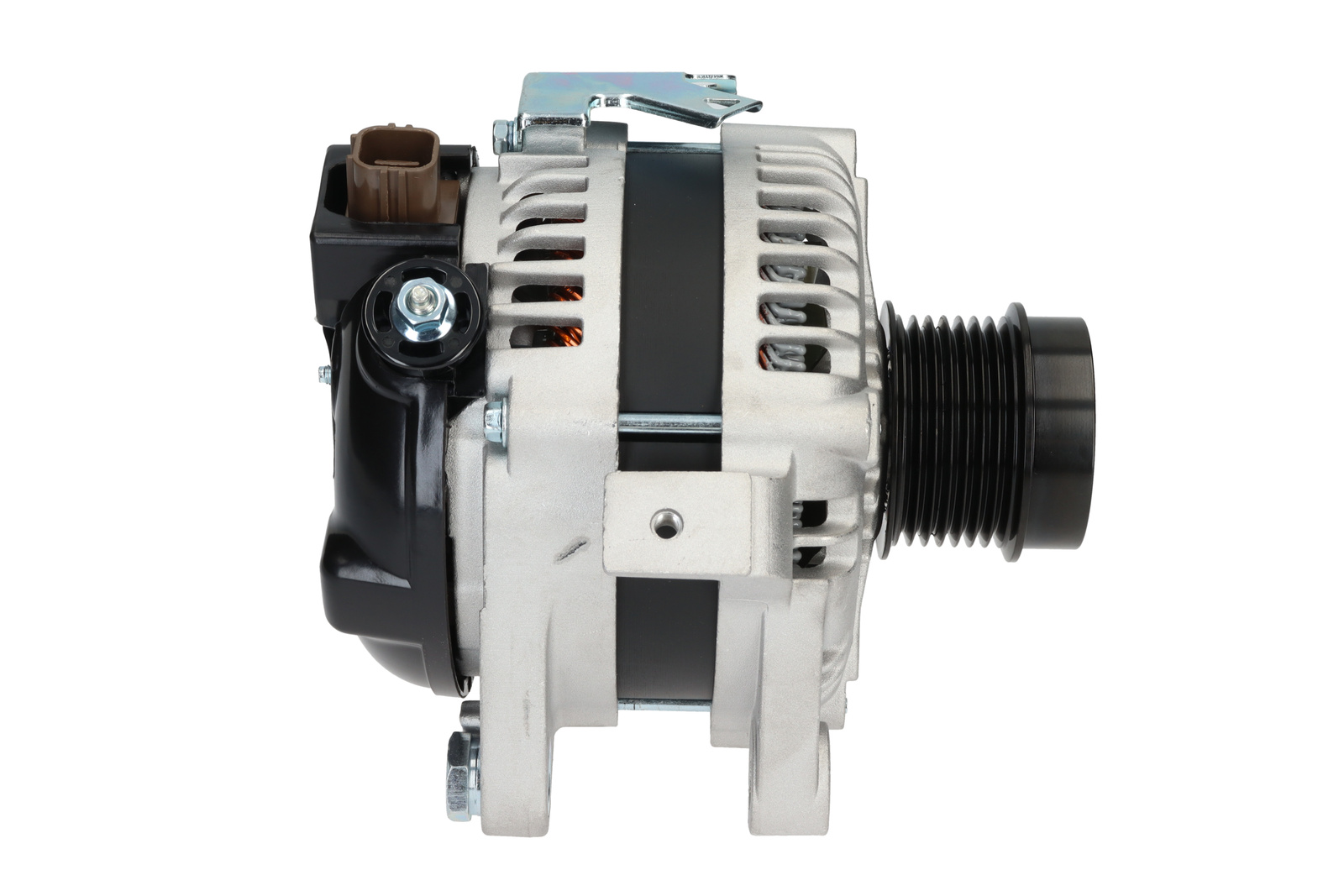

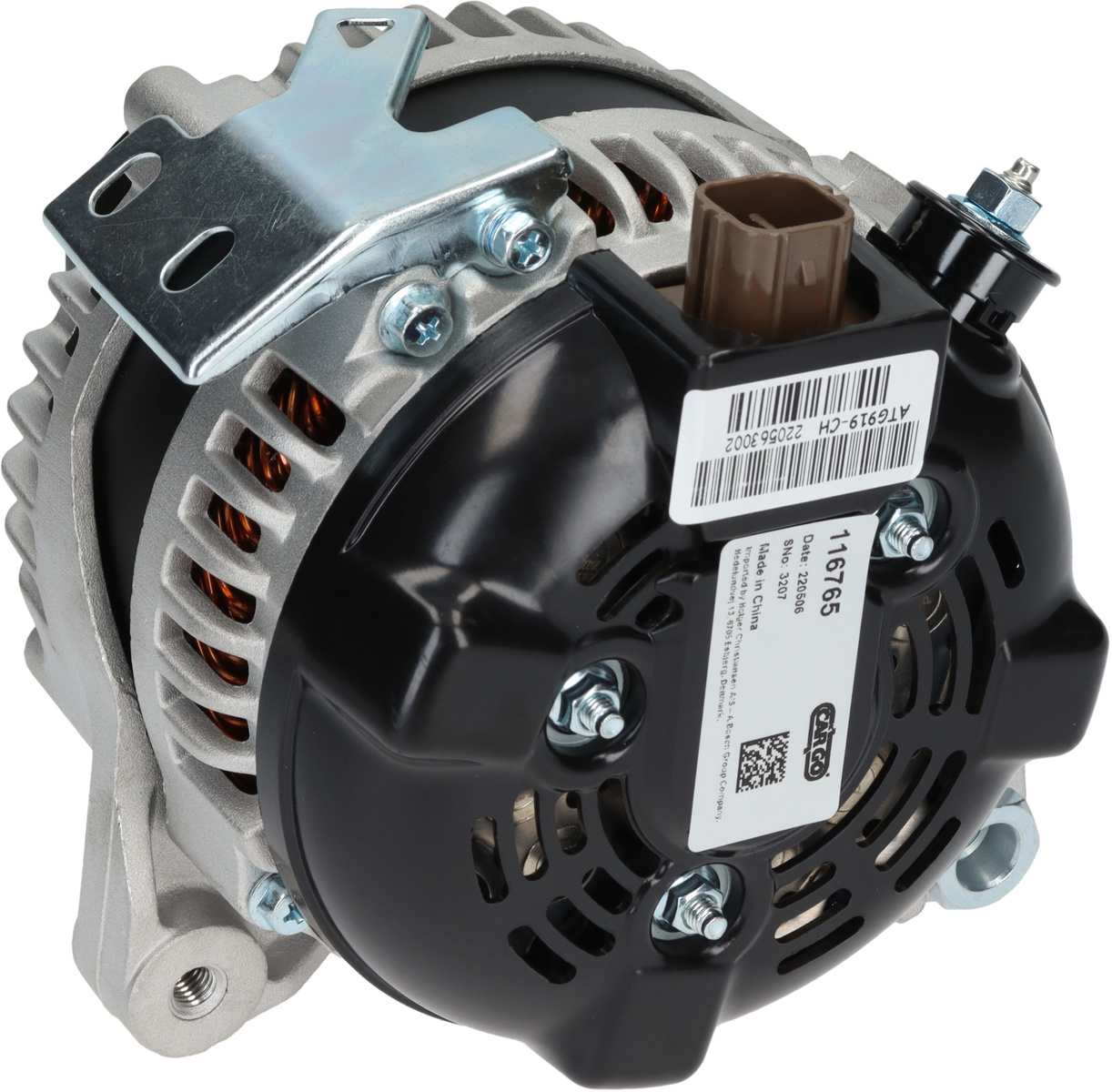

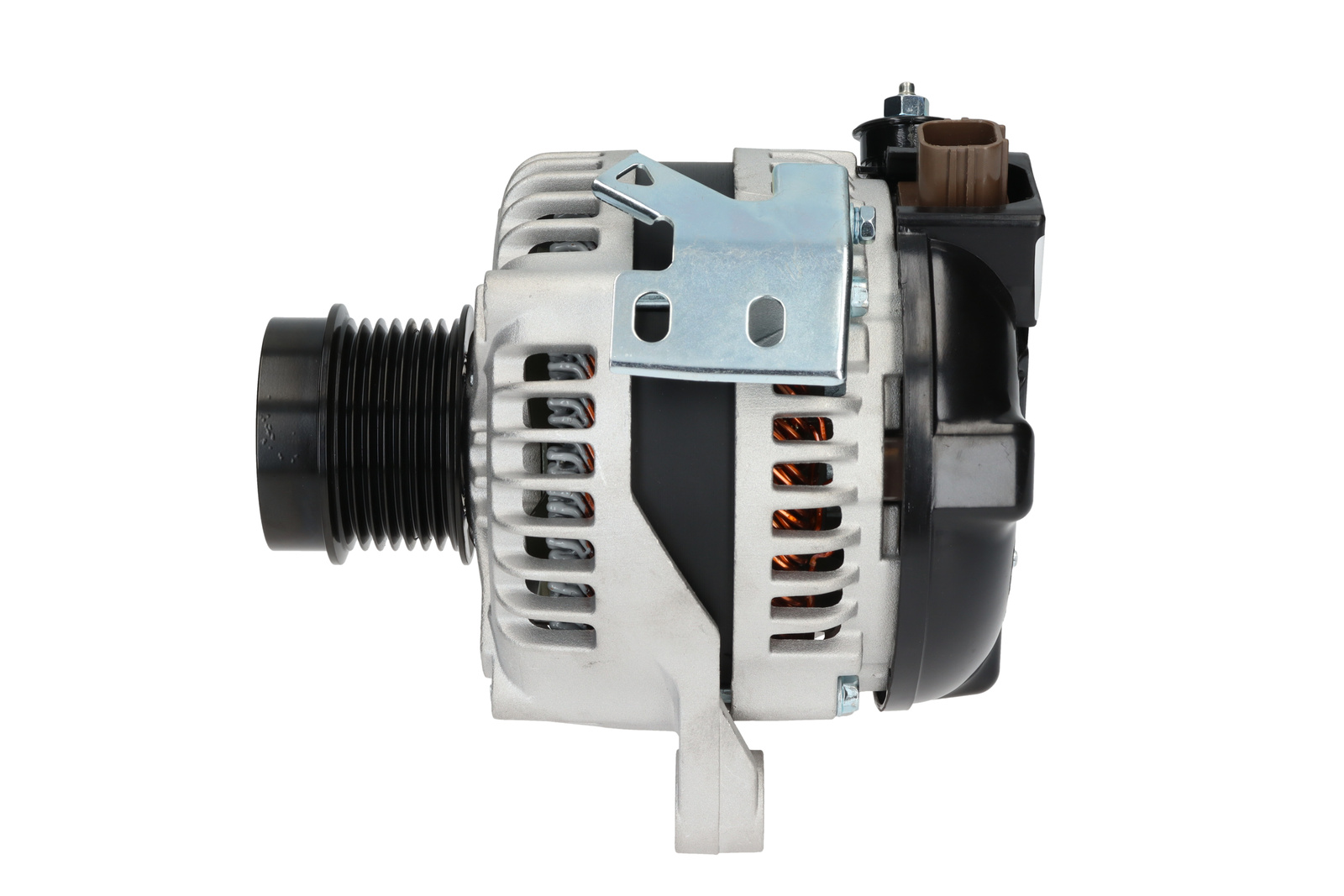

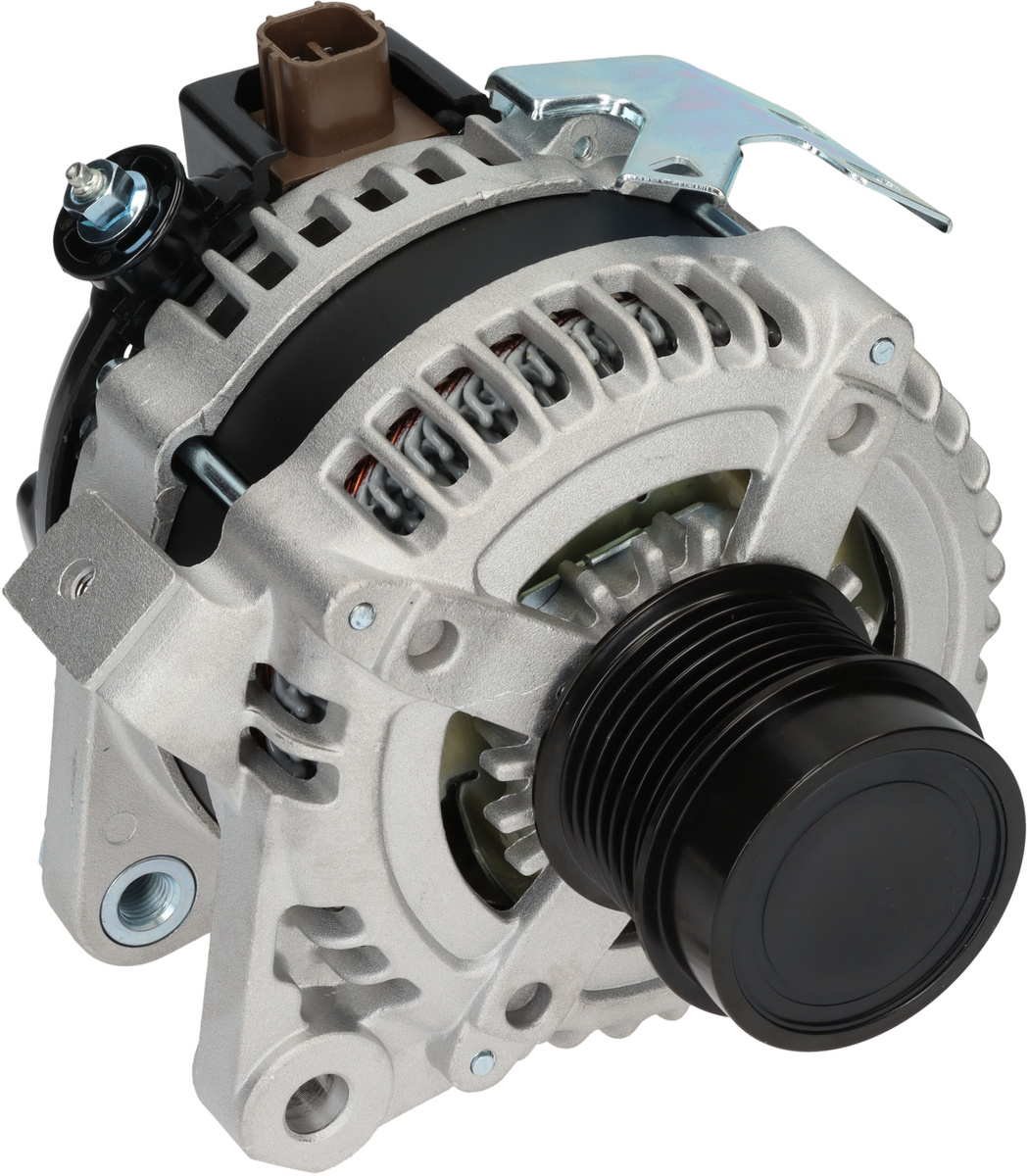

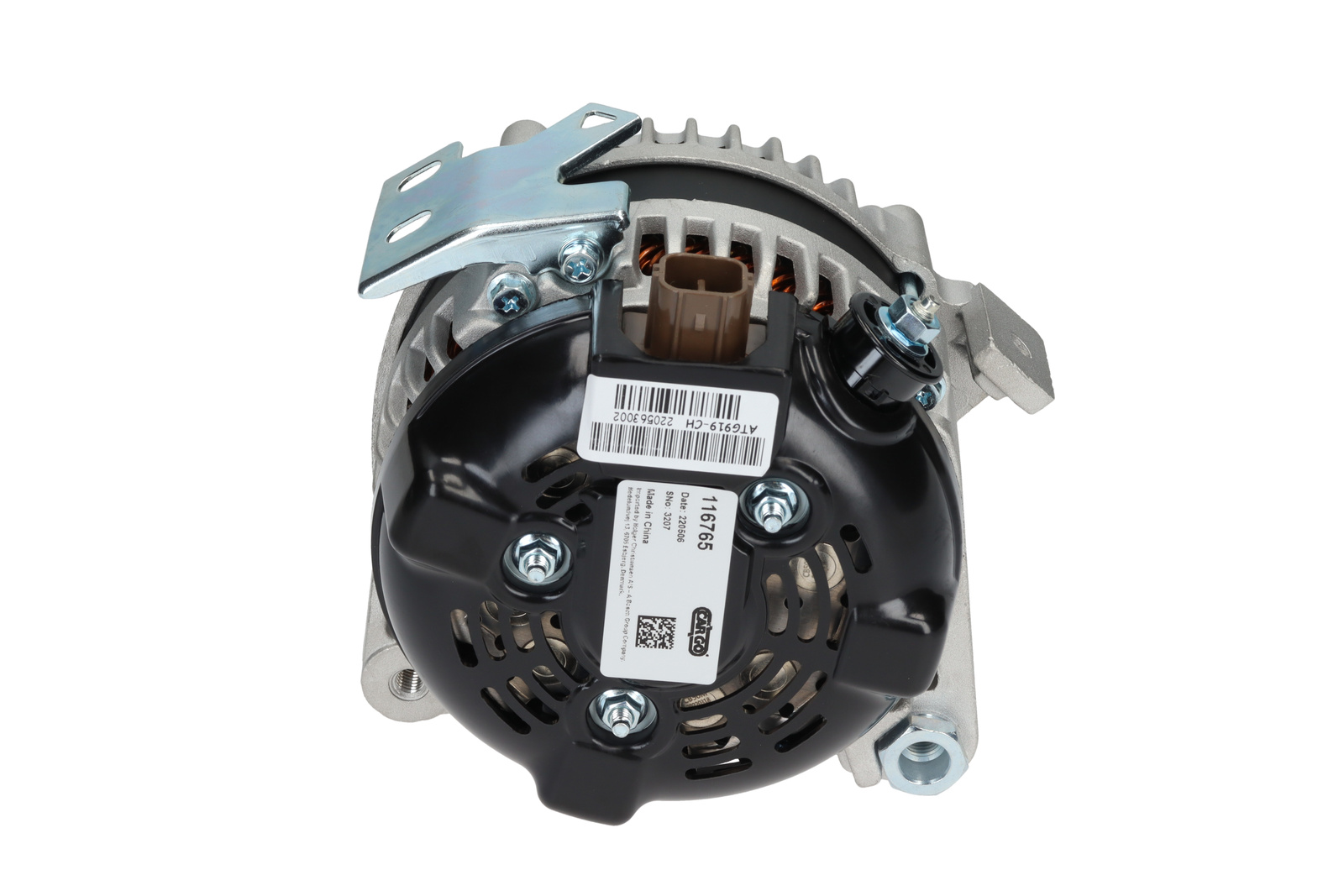

Product image - main
Trade number 116765

Details & description

Voltage 14, Amp 130, Pulley SP/FW, Bracket Hole Size 1 11.00, Pulley Diameter 55.00, Bracket Hole Size Rear M10-1.25, D+ Size Plug, D+ Position 7, Holder Arm Width 18.00, Pulley Distance 35.00, B+ M6, Fan IF, Radius 2 86.00, Plug no. 1 PL146, Mounting Bracket Distance 46.00, Radius 84.00, Rotation CW, Belt Adjustment Bracket Hole 1 M8, Grooves/pulley 7, Regulator type IR, B+ Position 15, Belt Adjustment Bracket Hole Position 14, Total Length 175.00

Product information

Electrical information

  • Voltage14
  • Amp130

Physical information

  • PulleySP/FW
  • Bracket Hole Size 111.00
  • Pulley Diameter55.00
  • Bracket Hole Size RearM10-1.25
  • D+ SizePlug
  • D+ Position7
  • Holder Arm Width18.00
  • Pulley Distance35.00
  • B+M6

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 2706028341TOYOTABOM
    • 2706028340TOYOTABOM

    Competitor References

    • 553614RIAD KÜHNER
    • A6313AUTOSTARTER POLAND
    • CAL40290CASCO SRL
    • 195955130CV PSH
    • 1042104980DENSO
    • DAN1482DENSO
    • 1042104984DENSO
    • 1042104985DENSO
    • 285609ELSTOCK
