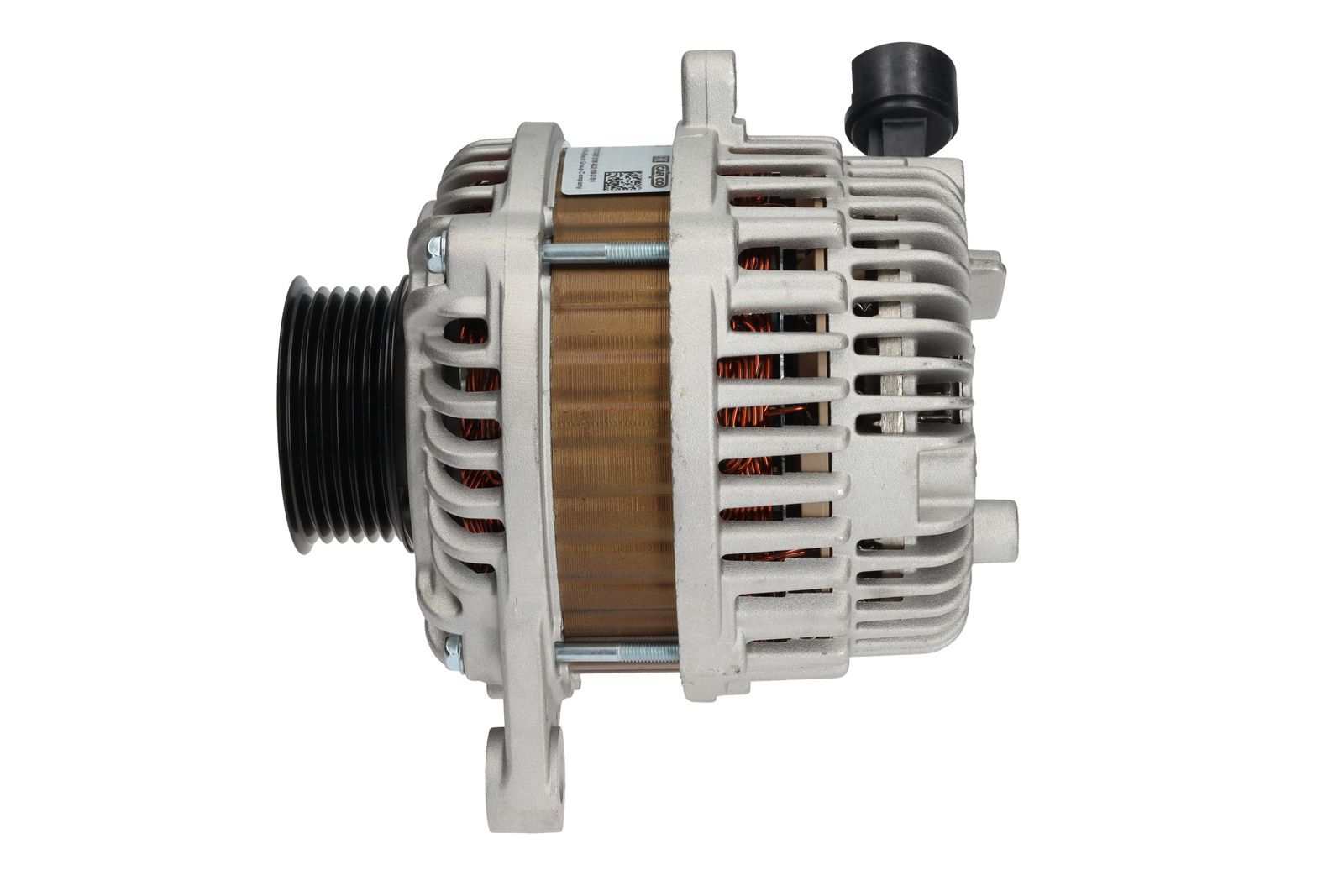

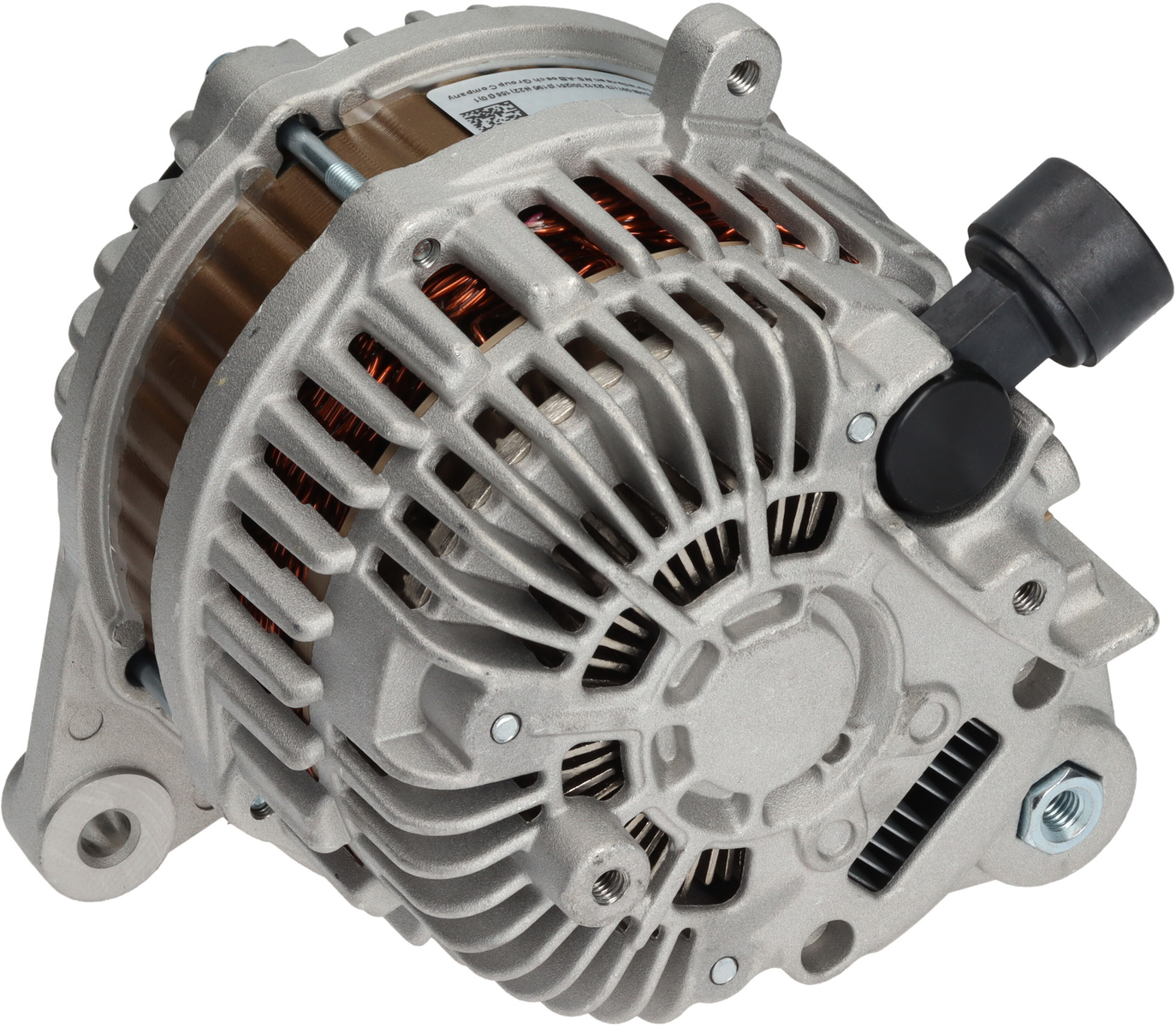

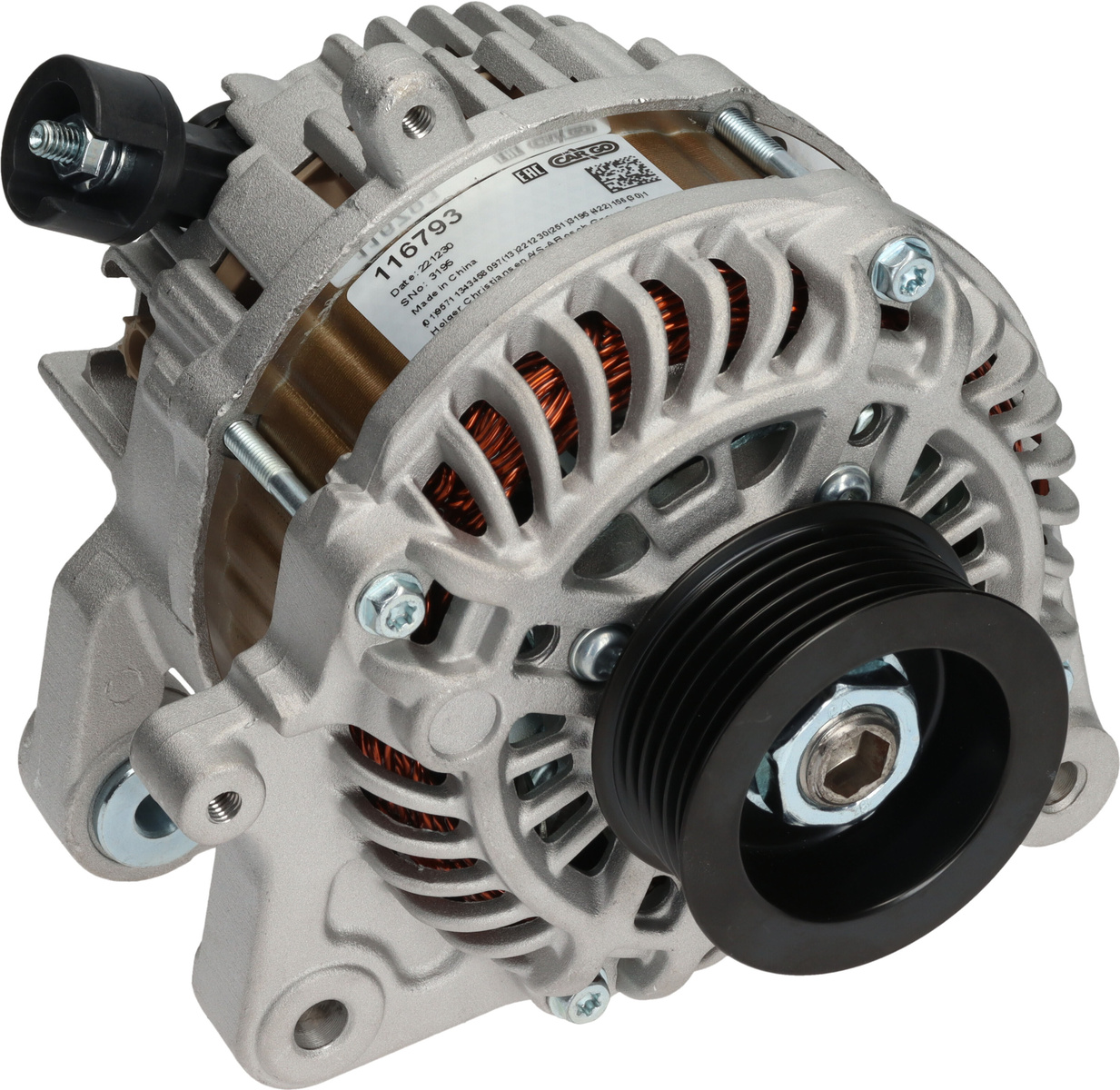

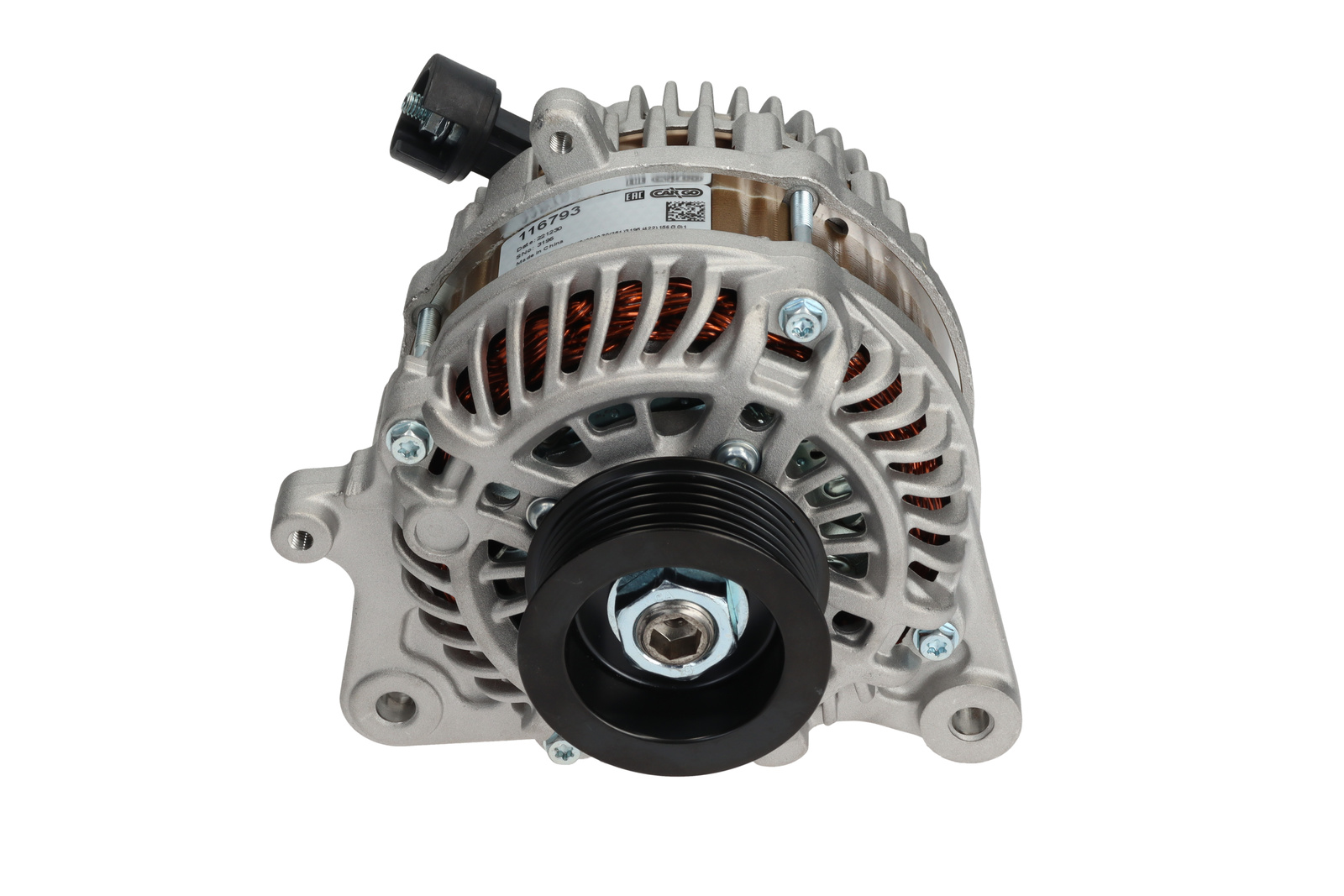

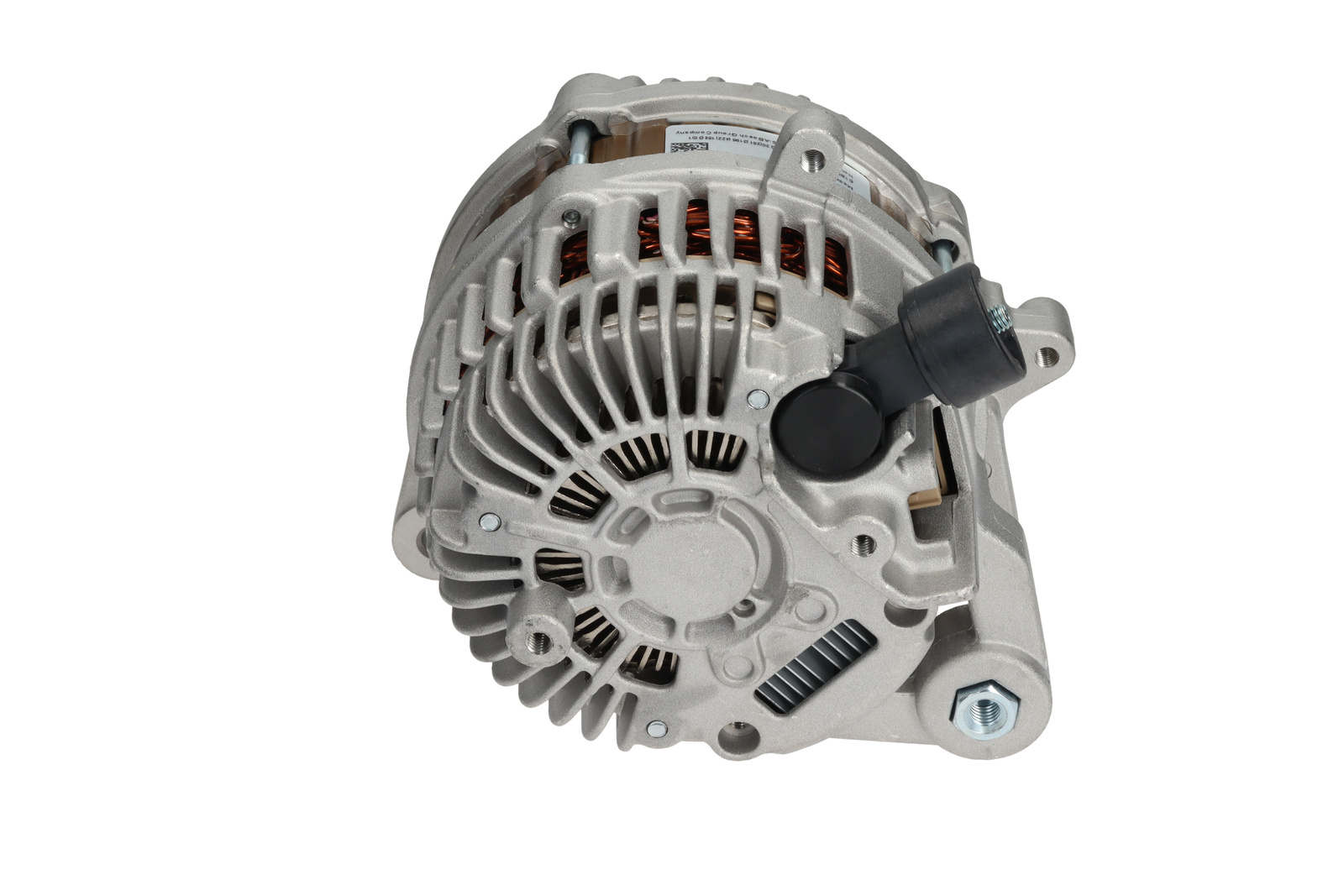

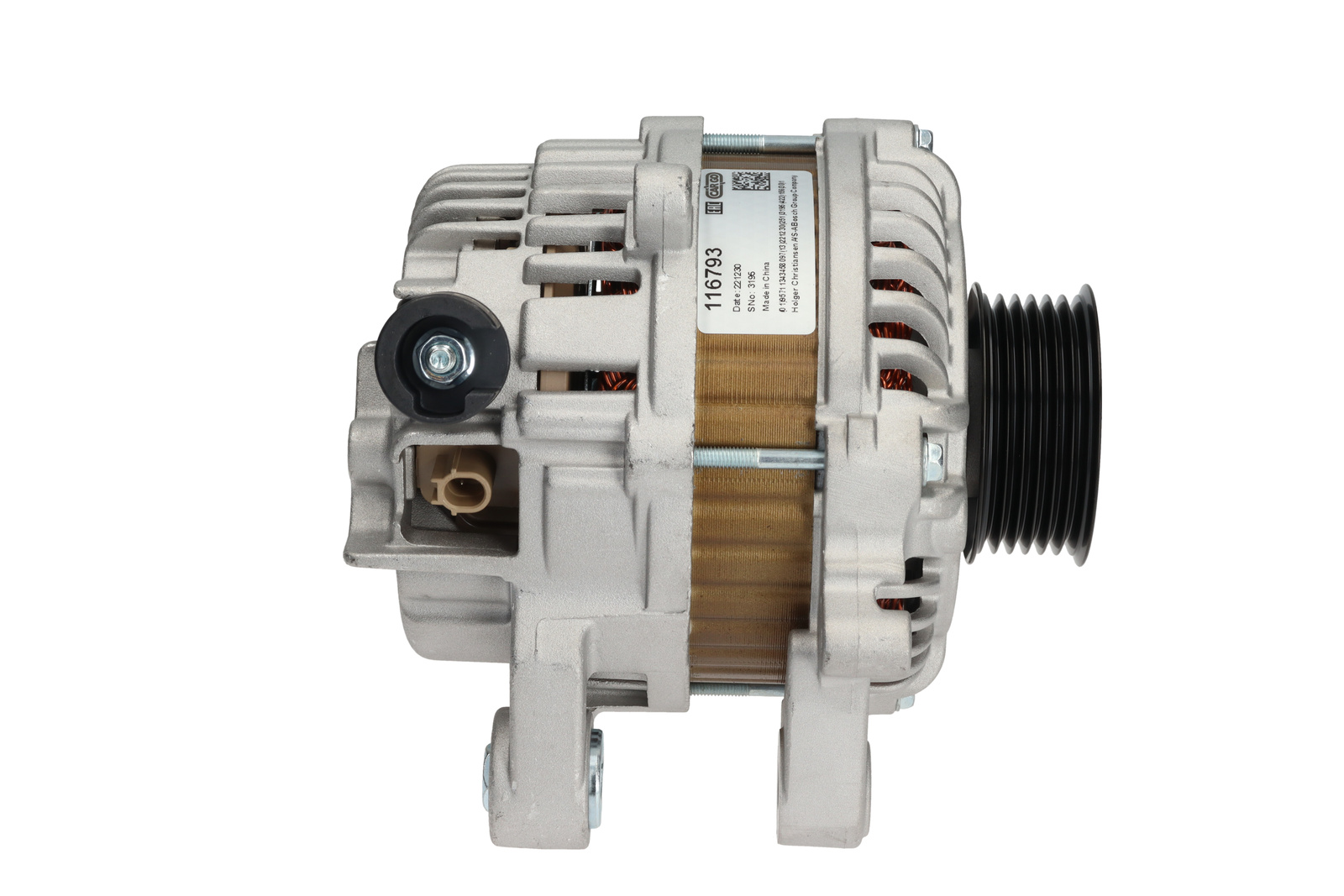

F032116793 - Alternator
Trade number 116793
Replacing and BOMs
OEM number
- 31100R1AA01HONDA
- AHGA81HONDA
- A005TJ0191ZEMITSUBISHI
- A5TJ0191ZEMITSUBISHI
- A005TJ0191ZDMITSUBISHI
- A5TJ0191ZDMITSUBISHI
- A005TJ0191MITSUBISHI
- A5TJ0191MITSUBISHI
- A5TJ0191ZCMITSUBISHI
Competitor References
- DRA1081AC DELCO
- DRA1081NAC DELCO
- A5117AUTOSTARTER POLAND
- 0986UR6083BOSCH
- 0986CR6083BOSCH
- 0986086730BOSCH
- 1986A01581BOSCH
- CAL35369CASCO SRL
- 125581095CV PSH
Trade number 116793
Details & description
Terminal IF, Voltage 14, Amp 95, Communication LIN, Pulley Diameter 60.00, Bracket Hole Size Rear M8, Pulley Distance 47.00, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 41.00, Radius 85.00, Belt Adjustment Bracket Hole 1 8.50, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 9.00, Terminal type COM, Holder Arm Width 20.00, B+ M6, Fan IF, Radius 2 86.50, Plug no. 1 PL205, Rotation CW, B+ Position 18, Belt Adjustment Bracket Hole Position 12, Total Length 164.00
Product information
Electrical information
- TerminalIF
- Voltage14
- Amp95
Catalogue information
- Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Physical information
- CommunicationLIN
- Pulley Diameter60.00
- Bracket Hole Size RearM8
- Pulley Distance47.00
- Mounting Bracket Distance41.00
- Radius85.00
- Belt Adjustment Bracket Hole 18.50
- Grooves/pulley6
- Regulator typeIR
Replacing and BOMs
OEM number
- 31100R1AA01HONDA
- AHGA81HONDA
- A005TJ0191ZEMITSUBISHI
- A5TJ0191ZEMITSUBISHI
- A005TJ0191ZDMITSUBISHI
- A5TJ0191ZDMITSUBISHI
- A005TJ0191MITSUBISHI
- A5TJ0191MITSUBISHI
- A5TJ0191ZCMITSUBISHI
Competitor References
- DRA1081AC DELCO
- DRA1081NAC DELCO
- A5117AUTOSTARTER POLAND
- 0986UR6083BOSCH
- 0986CR6083BOSCH
- 0986086730BOSCH
- 1986A01581BOSCH
- CAL35369CASCO SRL
- 125581095CV PSH
