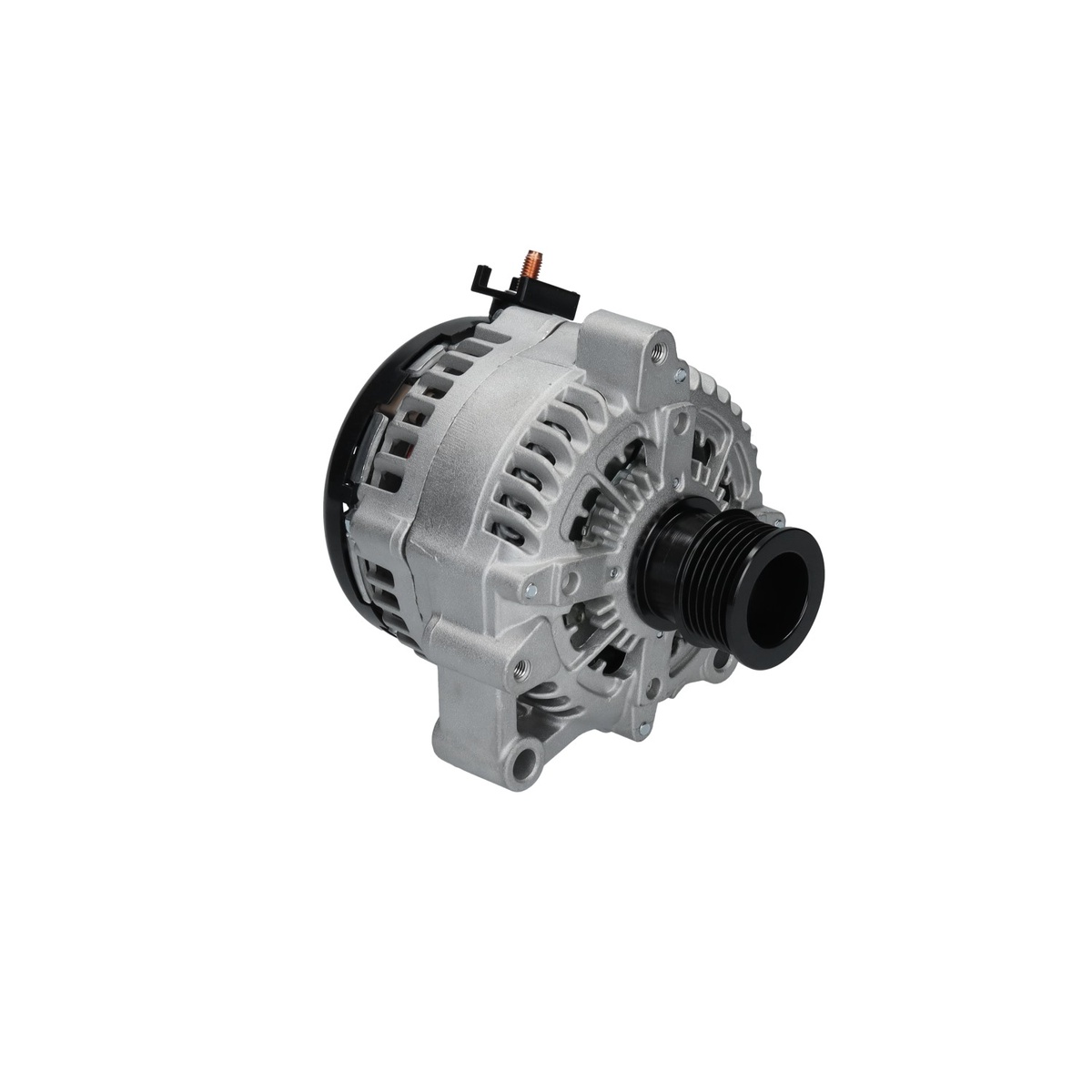

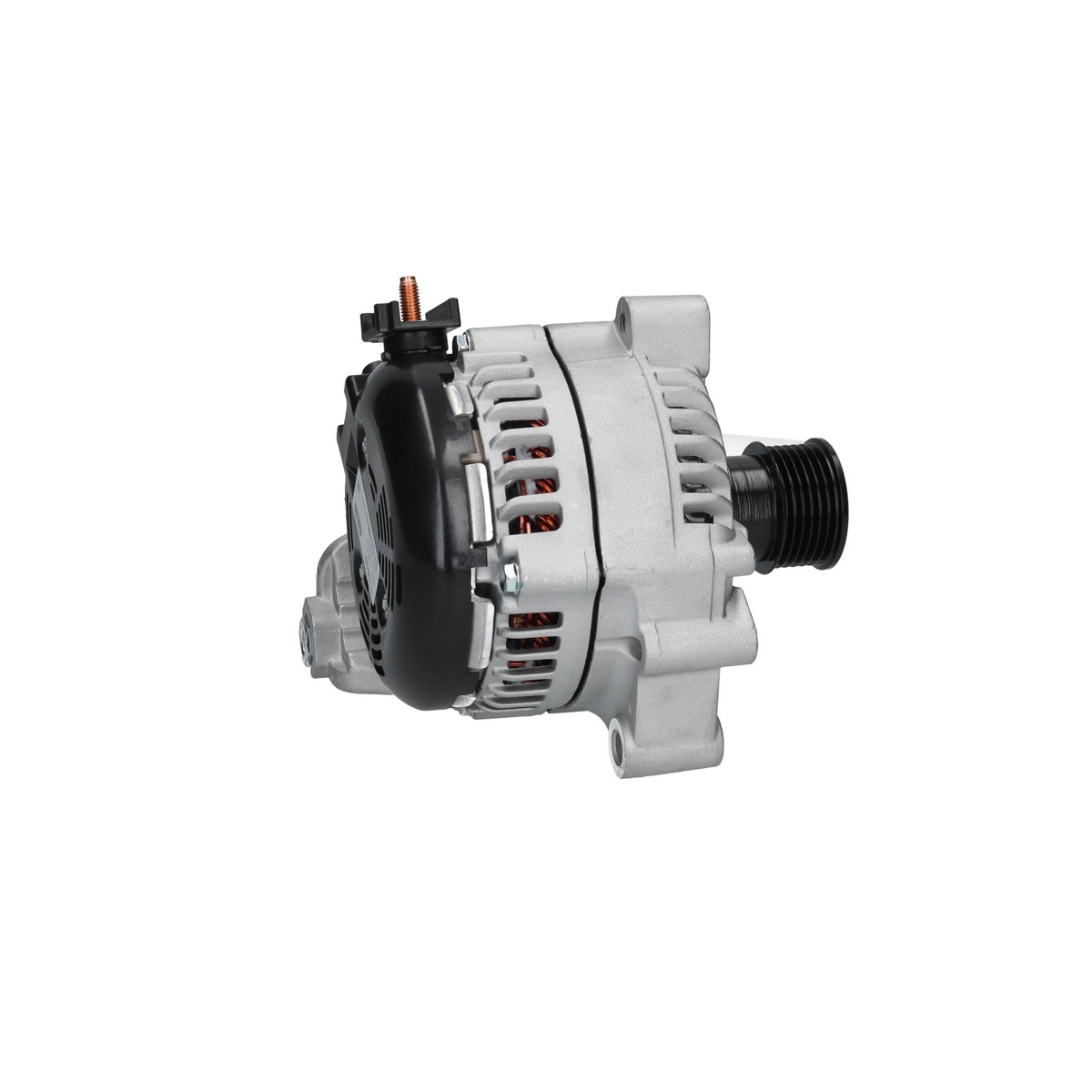

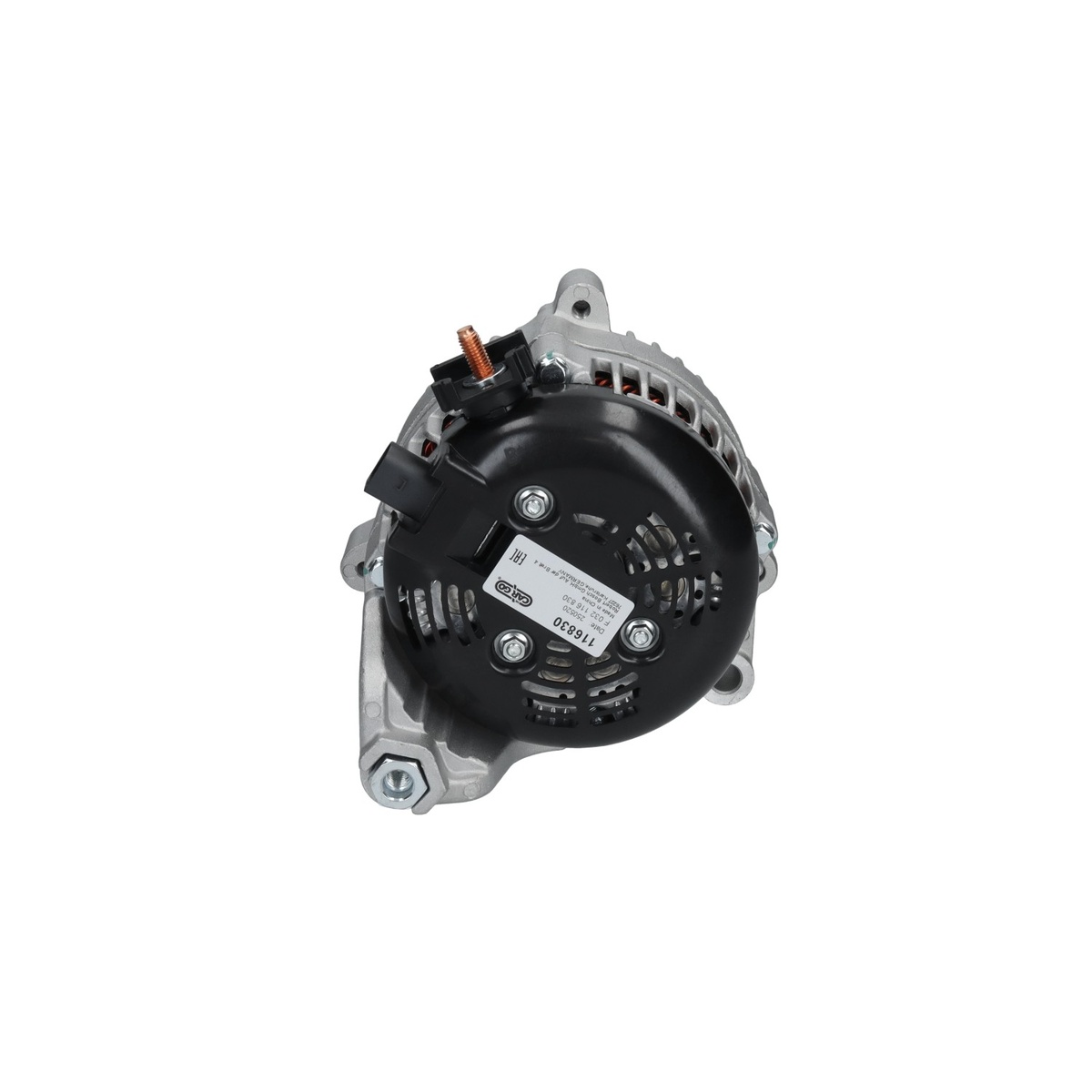

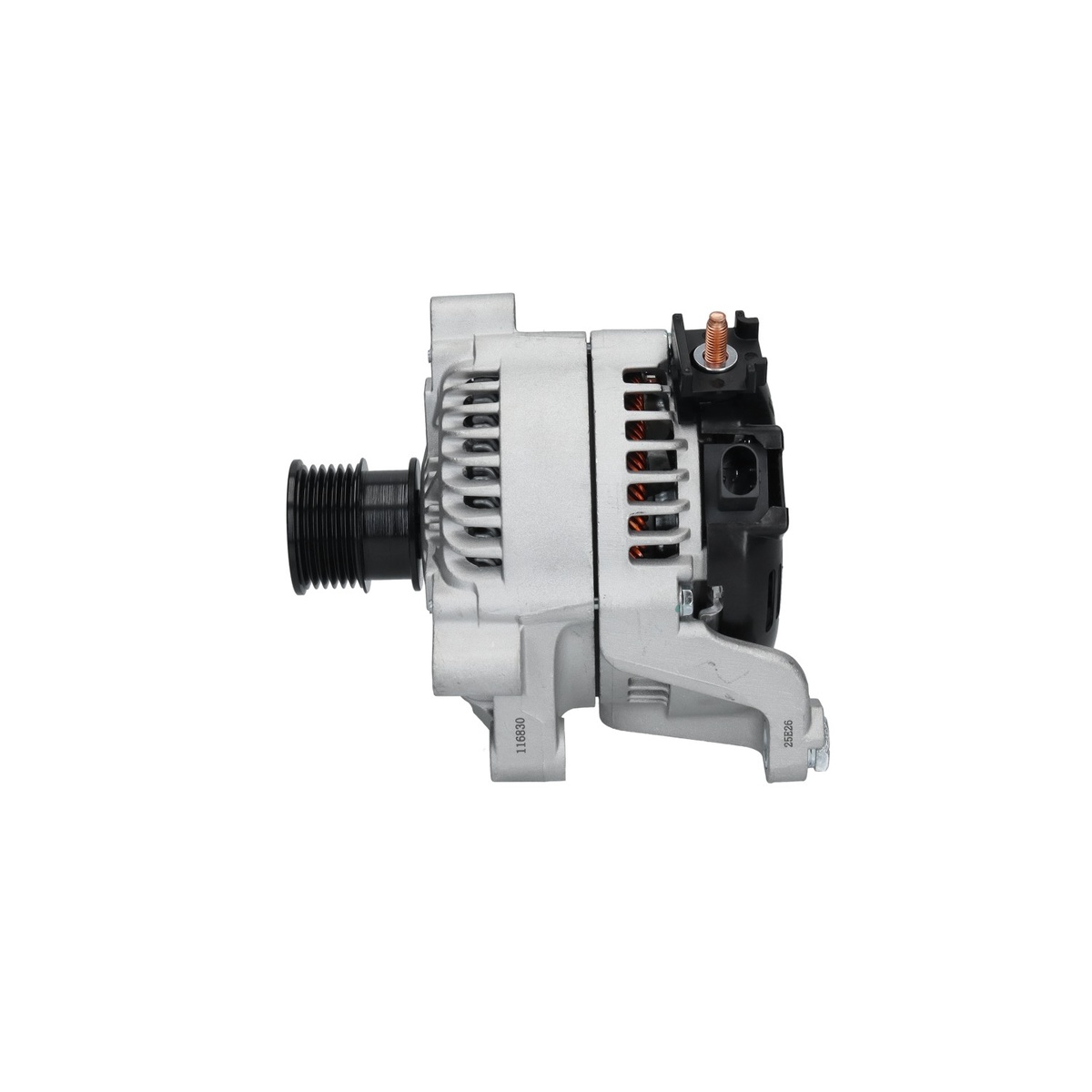

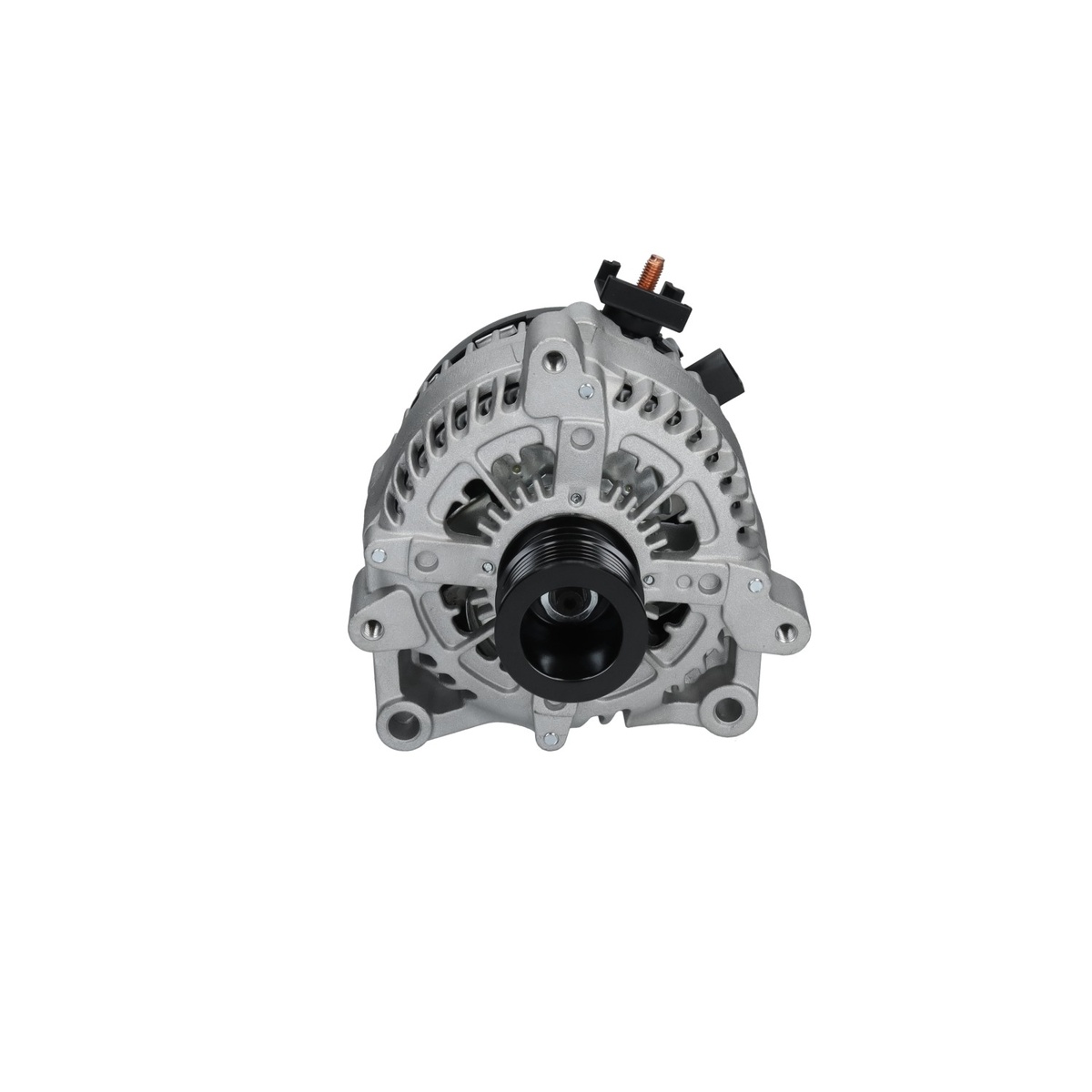

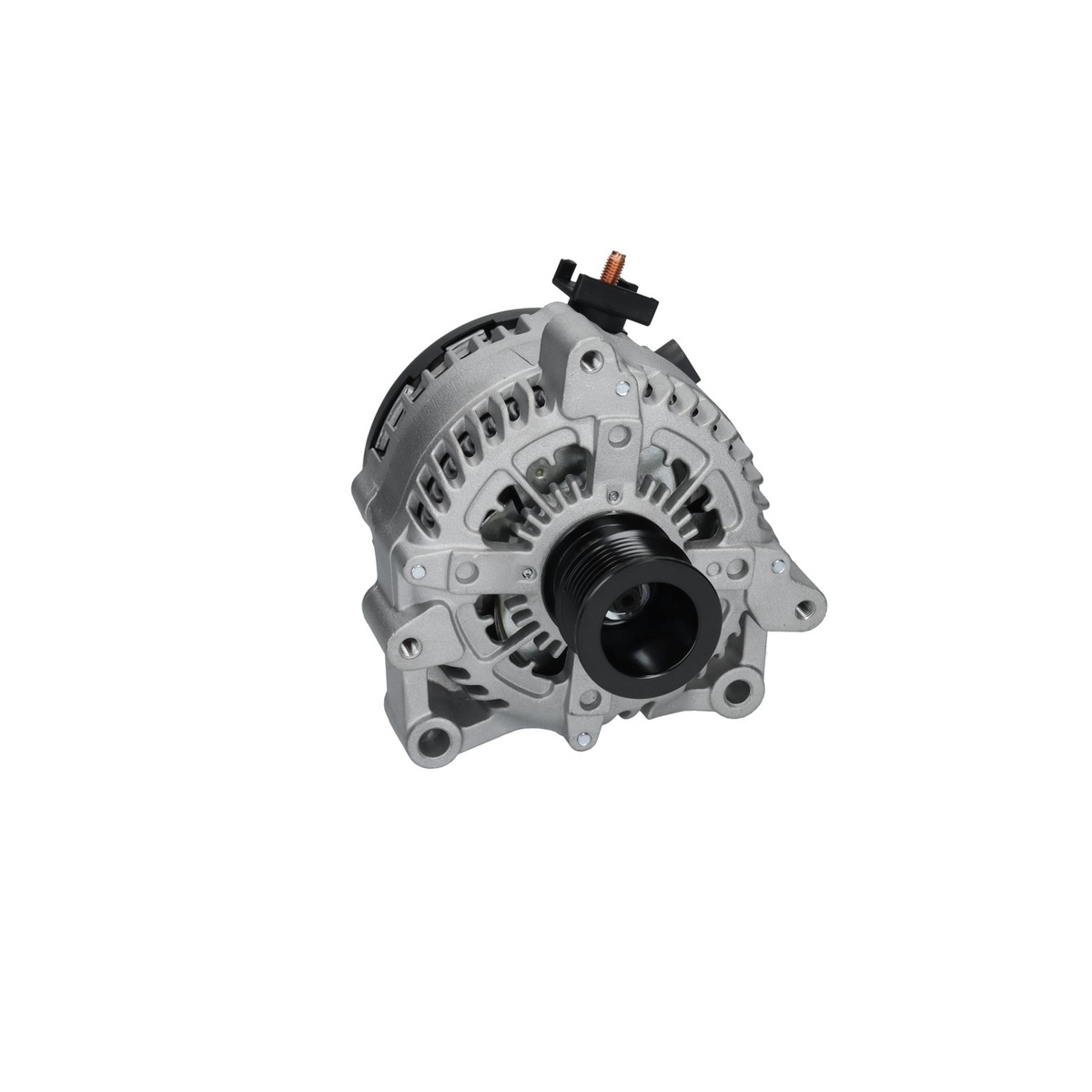

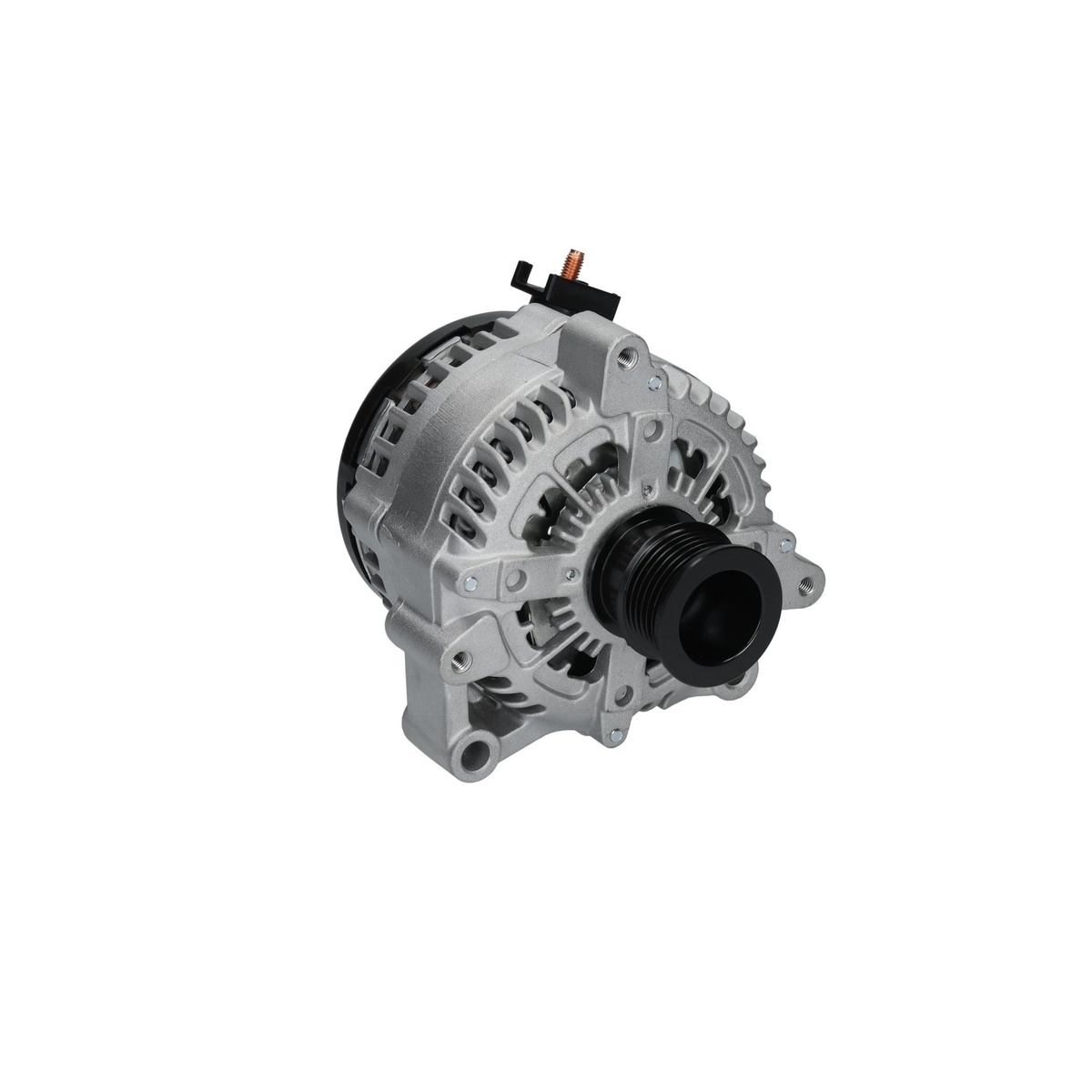

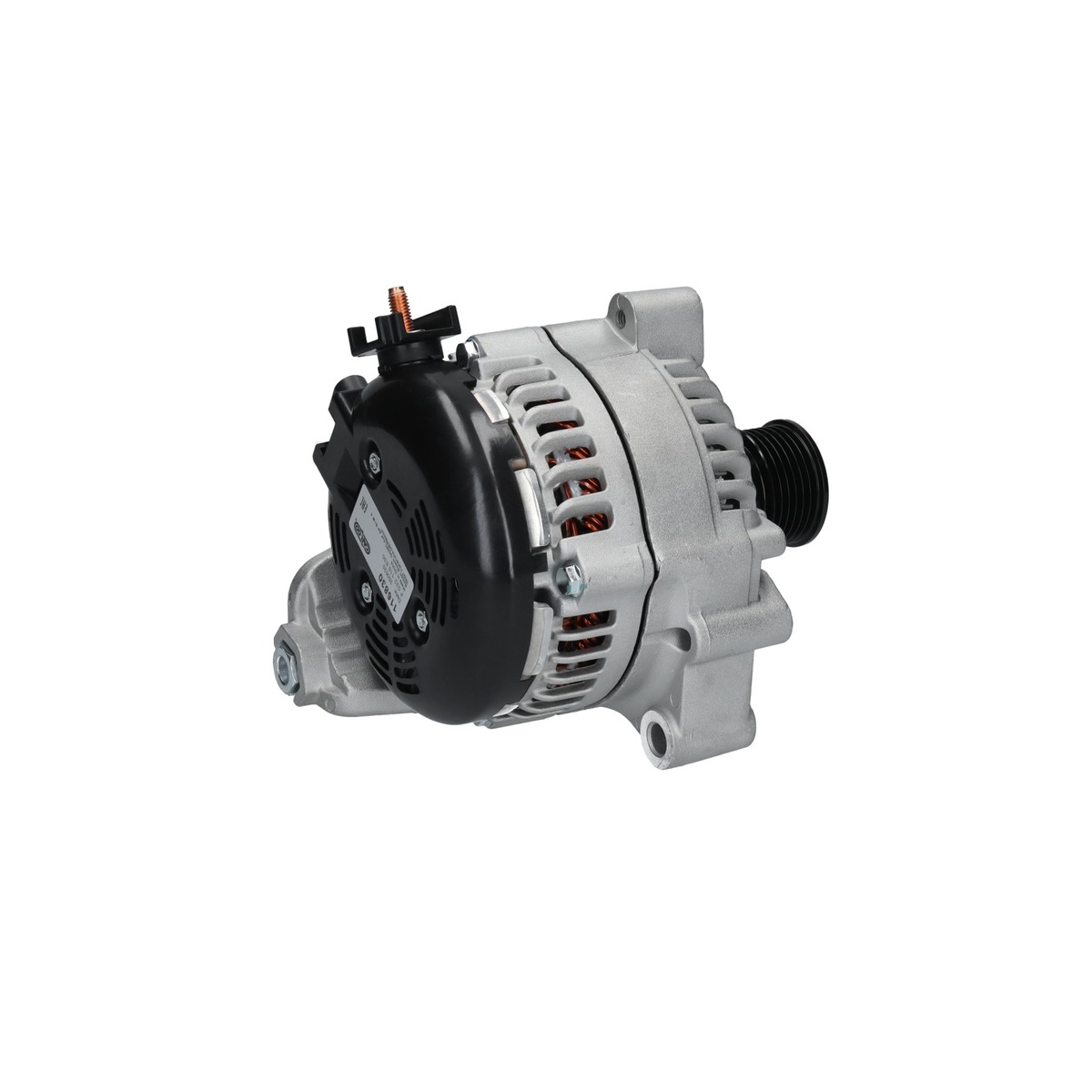

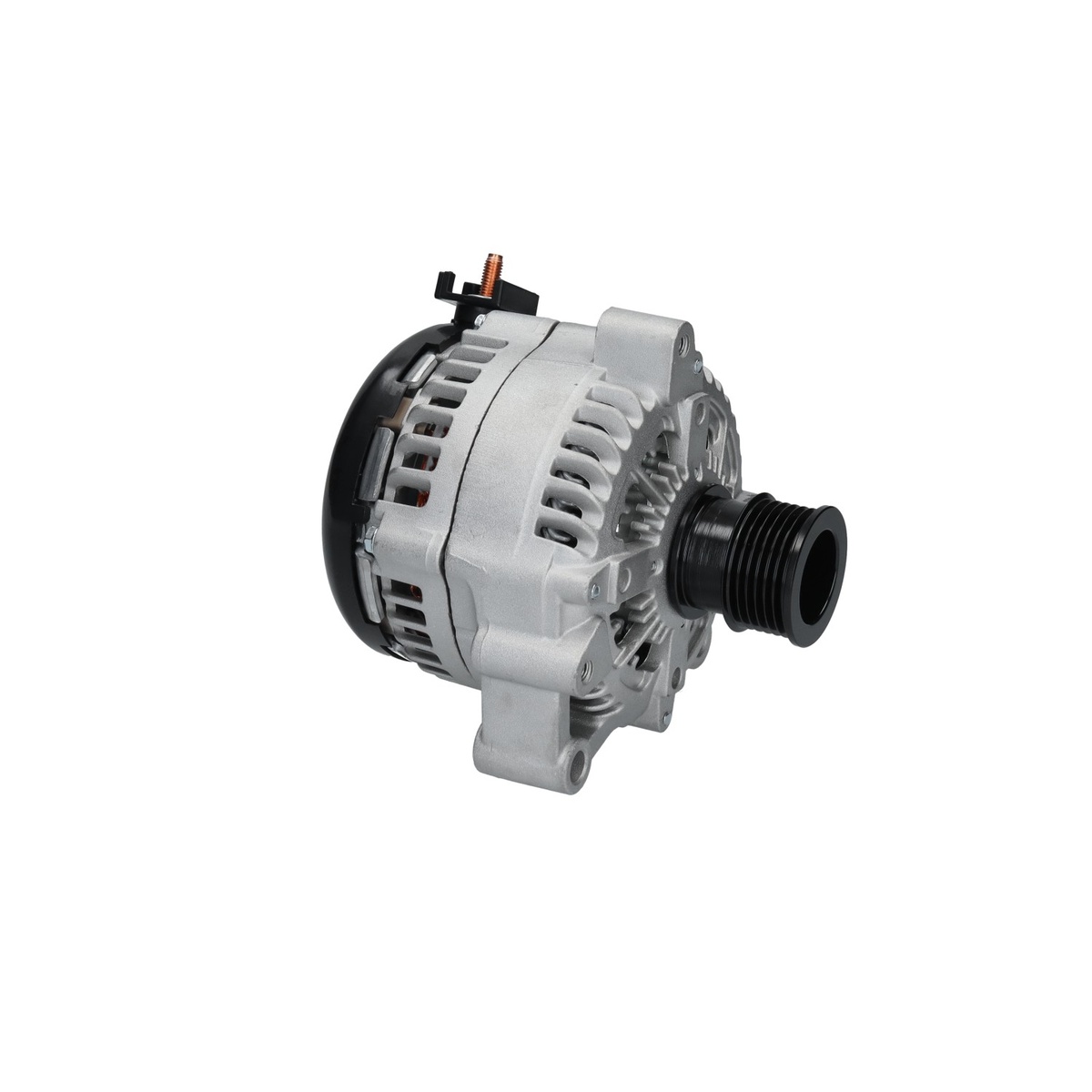

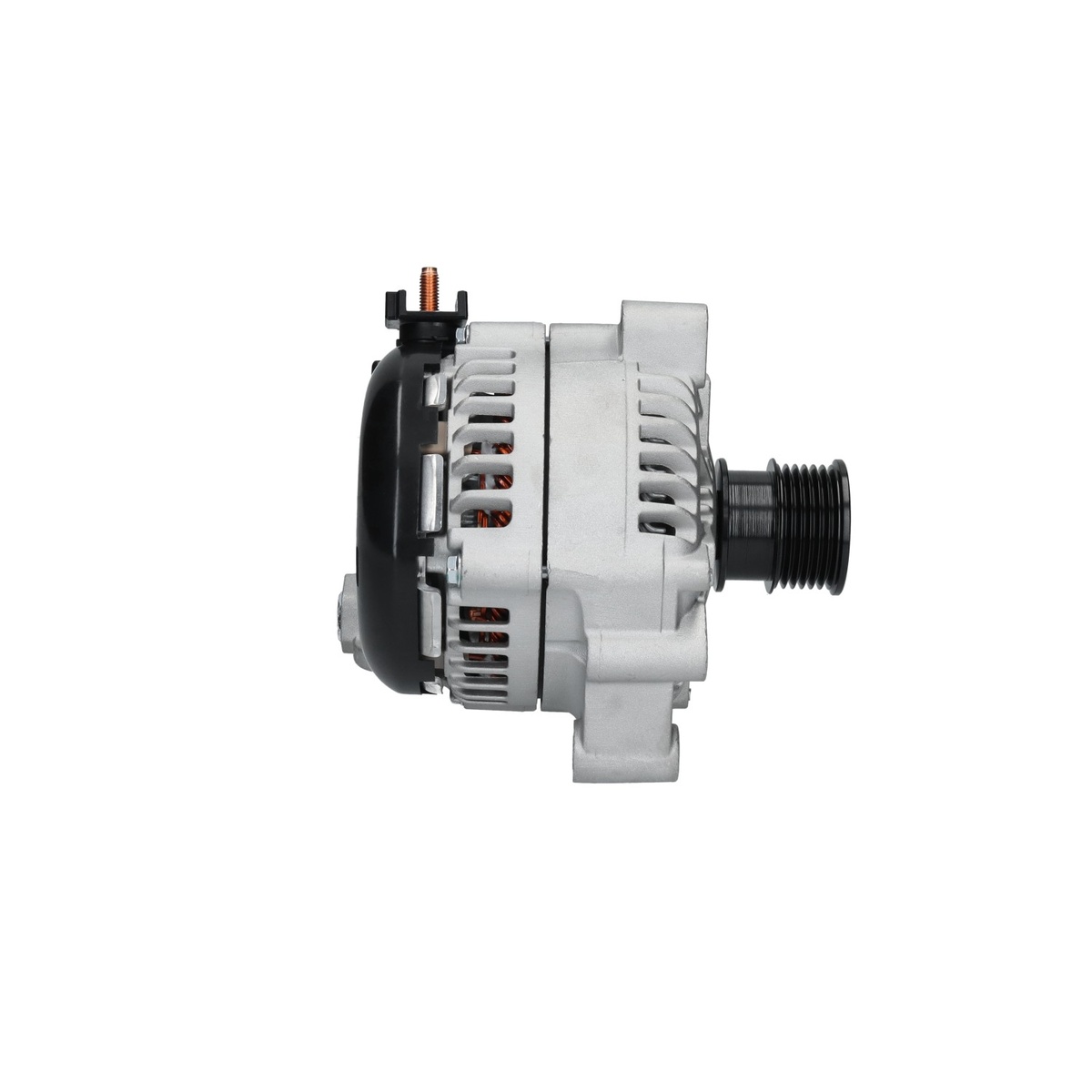

F032116830 - Alternator

Trade number 116830
Connection Diagram
Trade number 116830

Details & description

Voltage 14, Amp 190, Communication LIN, Pulley SP, Pulley Diameter 49.00, Bracket Hole Size Rear M10, Pulley Distance 79.60, Remarks 3 This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering., Mounting Bracket Distance 74.00, Radius 93.00, Belt Adjustment Bracket Hole 1 11.00, Grooves/pulley 6, Regulator type IR, Bracket Hole Size 1 10.50, Terminal type COM, Holder Arm Width 28.00, B+ M8, Fan IF, Radius 2 93.00, Plug no. 1 PL181, Rotation CW, B+ Position 50, Belt Adjustment Bracket Hole Position 44, Total Length 202.00

Product information

Electrical information

  • Voltage14
  • Amp190

Catalogue information

  • Remarks 3This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Physical information

  • CommunicationLIN
  • PulleySP
  • Pulley Diameter49.00
  • Bracket Hole Size RearM10
  • Pulley Distance79.60
  • Mounting Bracket Distance74.00
  • Radius93.00
  • Belt Adjustment Bracket Hole 111.00
  • Grooves/pulley6
  • Suggested Products

    Replacing and BOMs

    OEM number

    • 12318645326BMW

    Competitor References

    • 215917190CV PSH
    • 1042110600DENSO
    • 1042110601DENSO
    • DAN1466DENSO
    • 287799ELSTOCK
    • 12090963EUROTEC
    • 116830HC-CARGO
    • 32001007HERTH U. BUSS
    • LRA04190LUCAS
