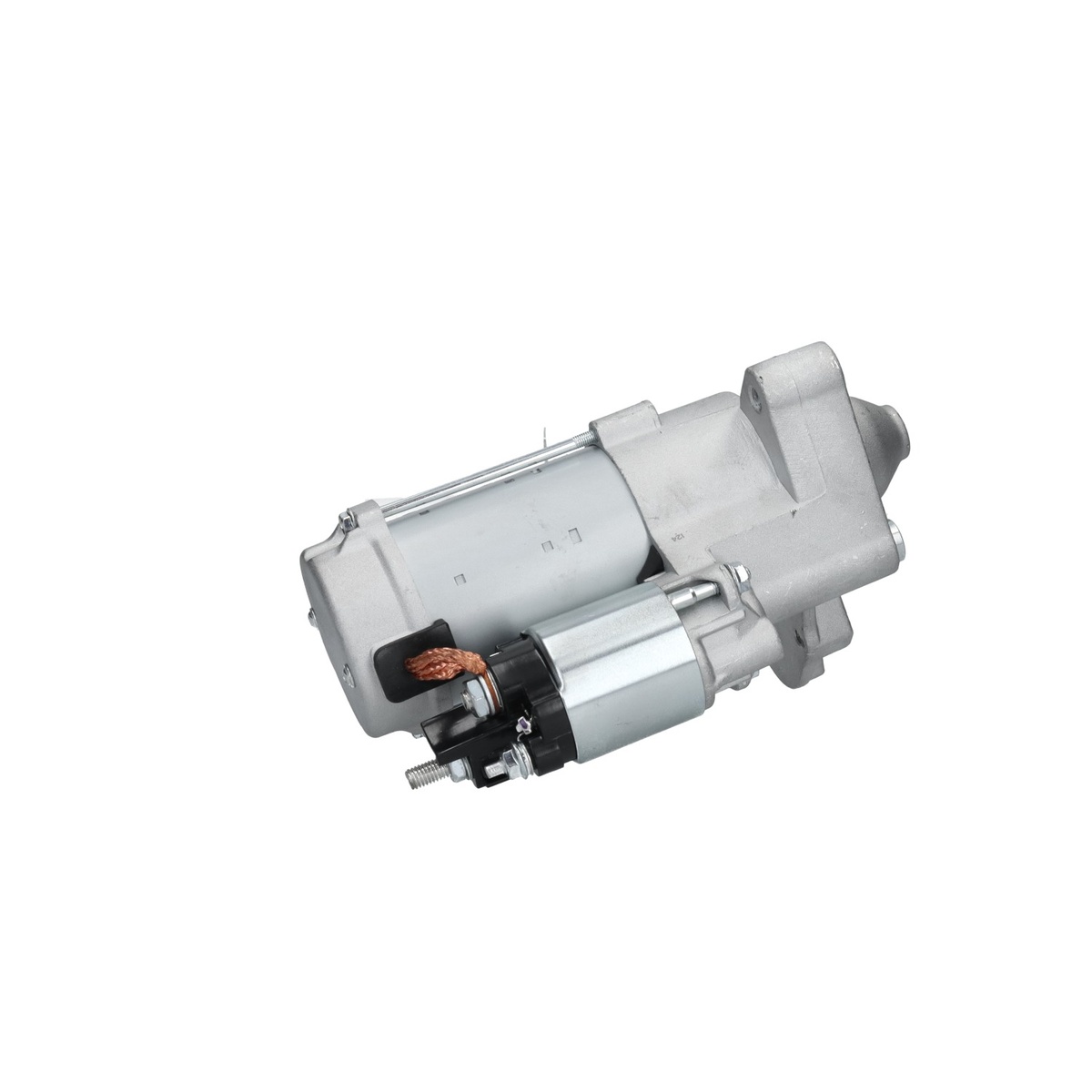

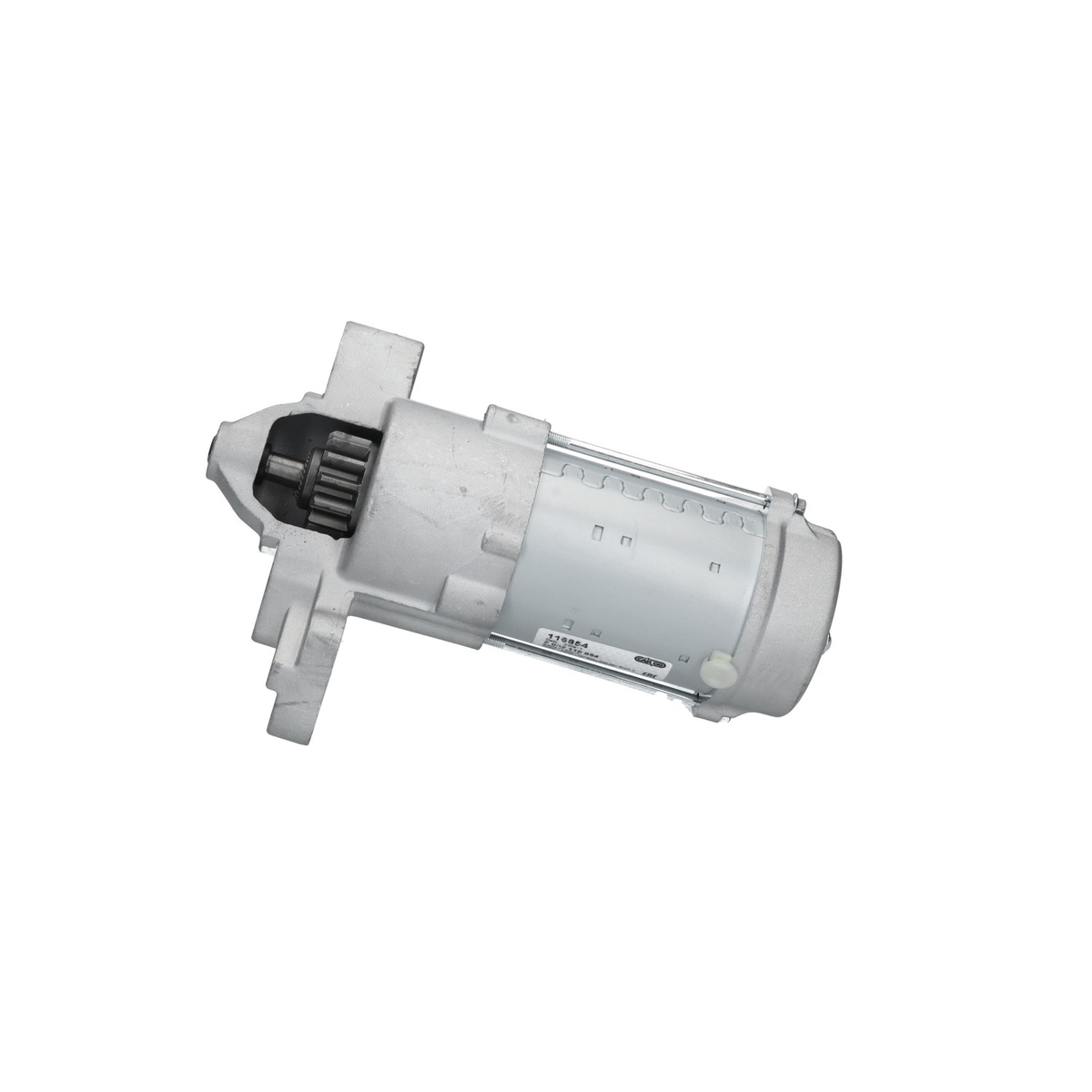

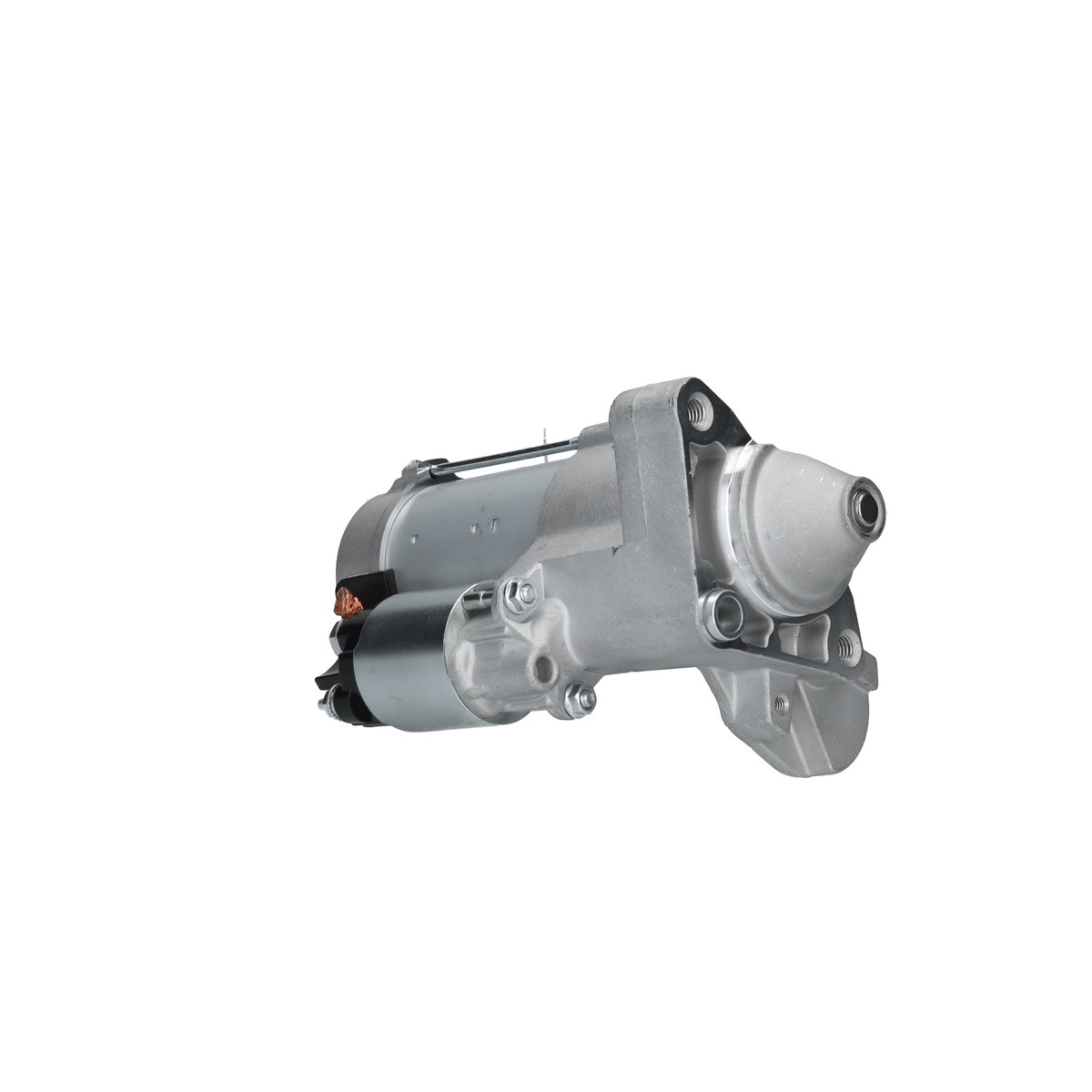

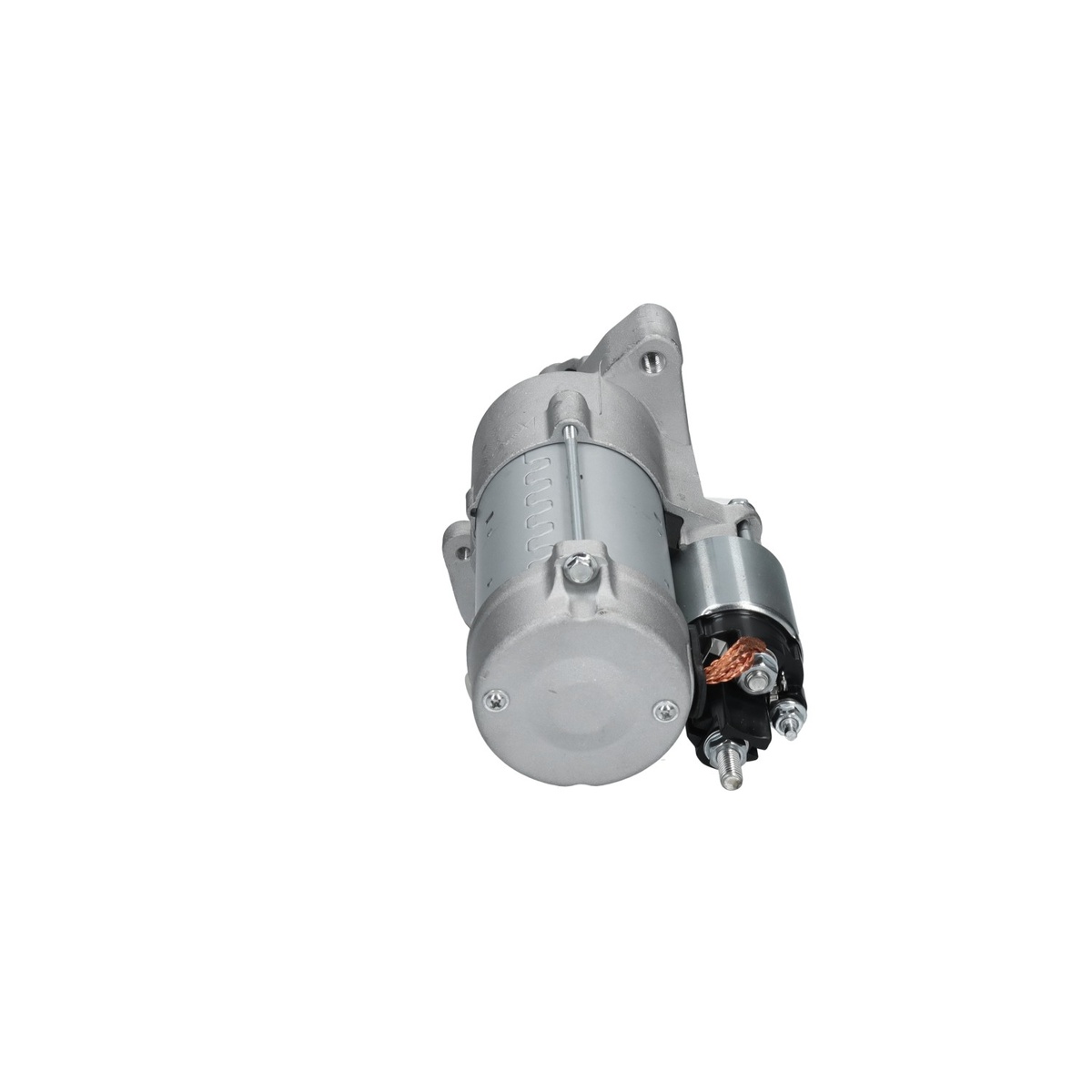

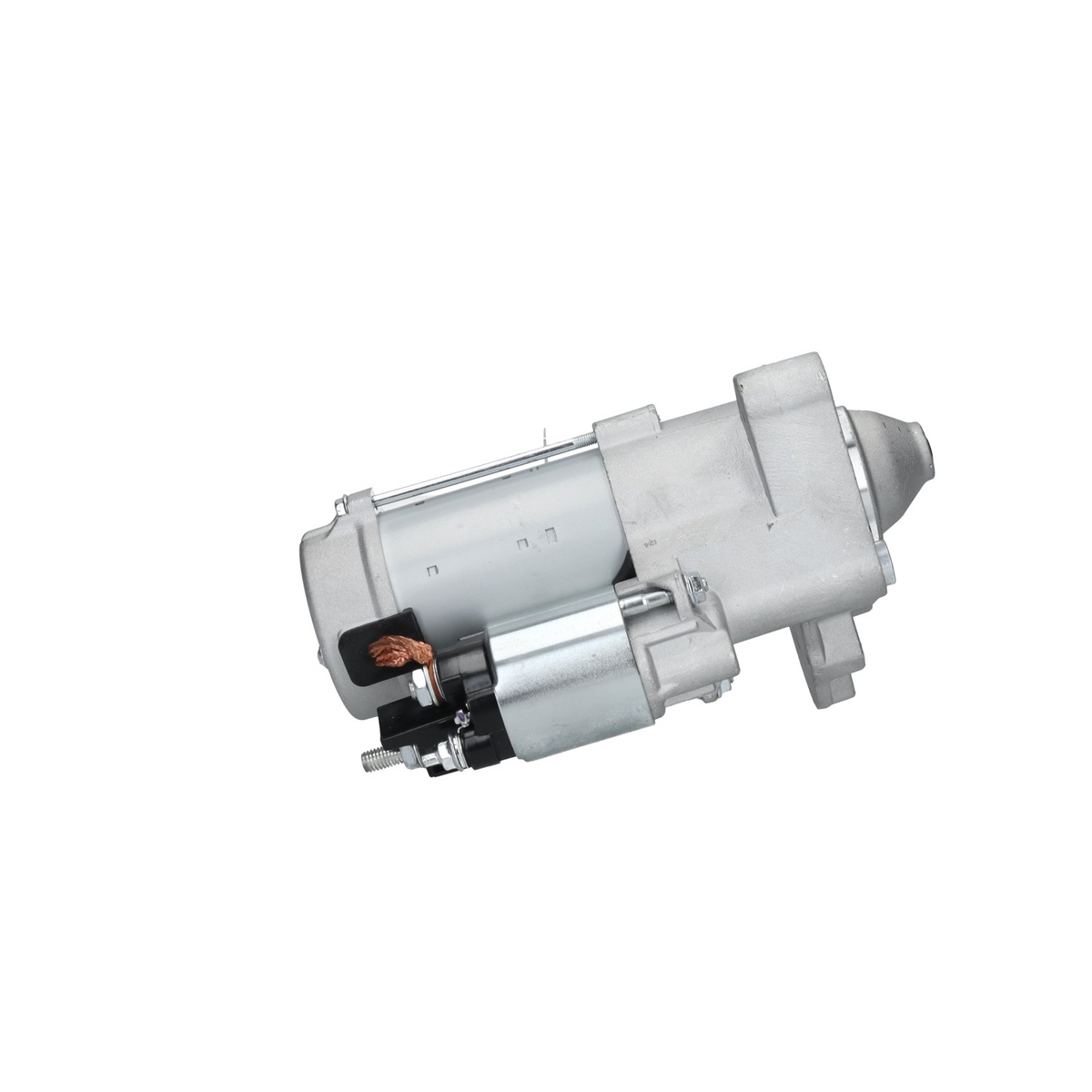

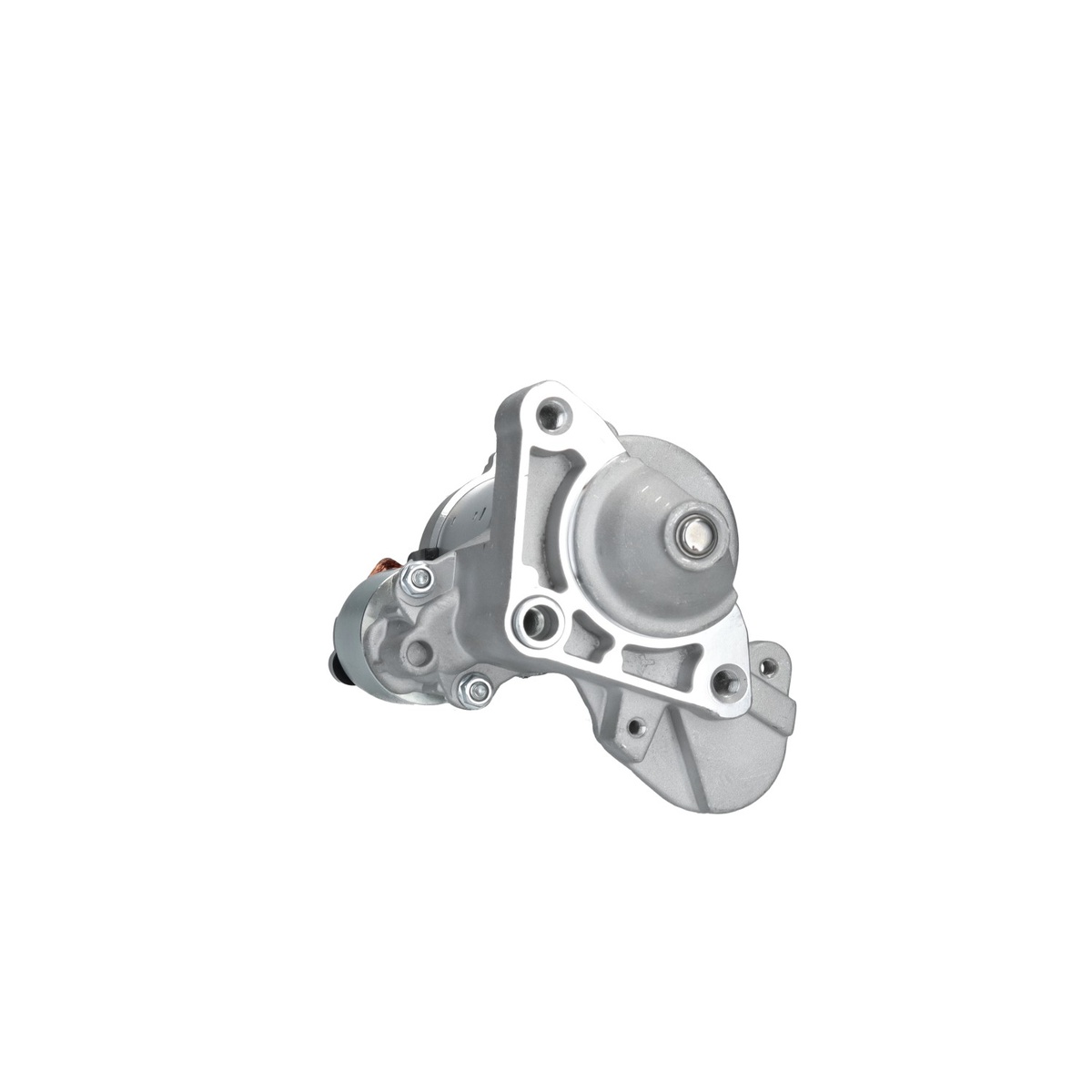

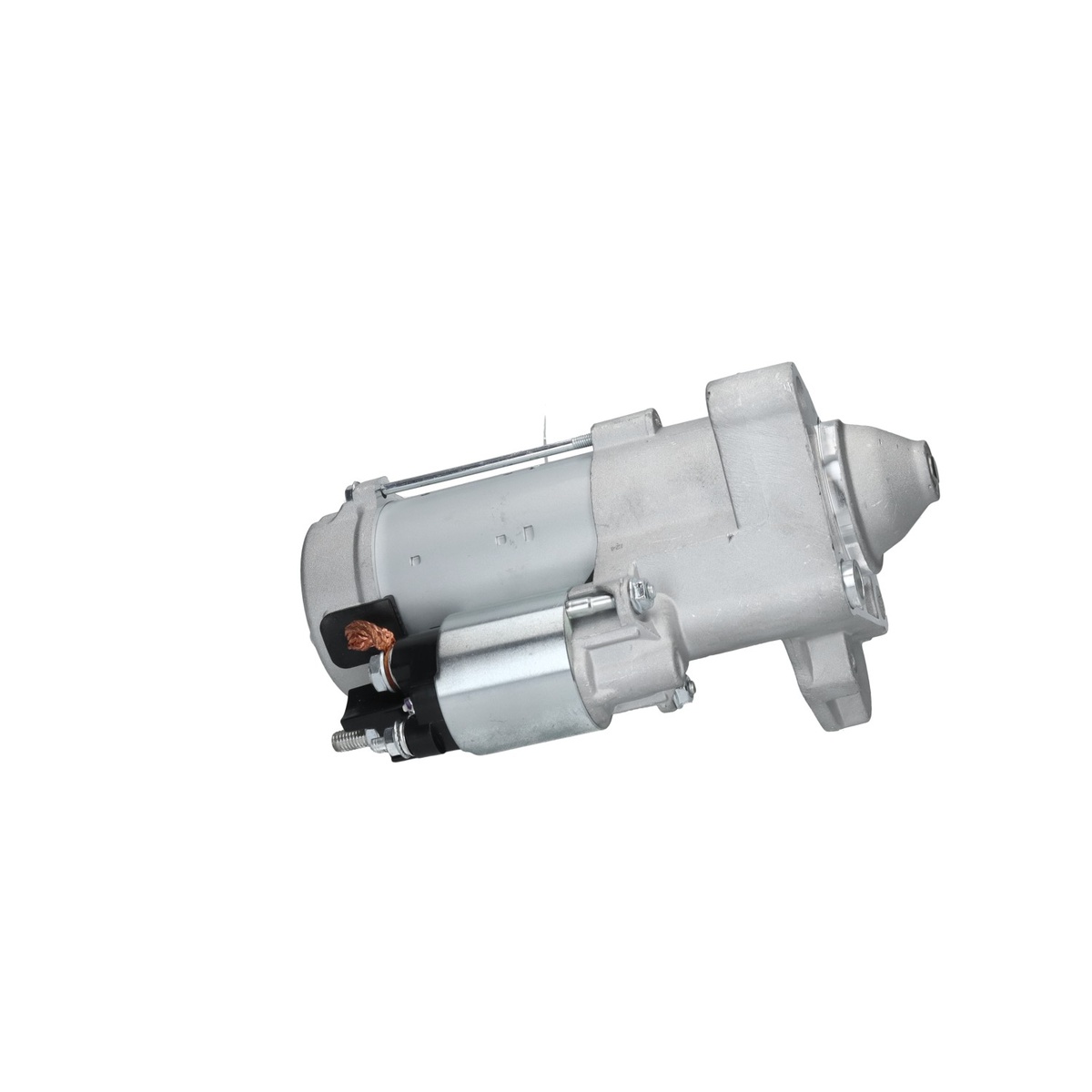

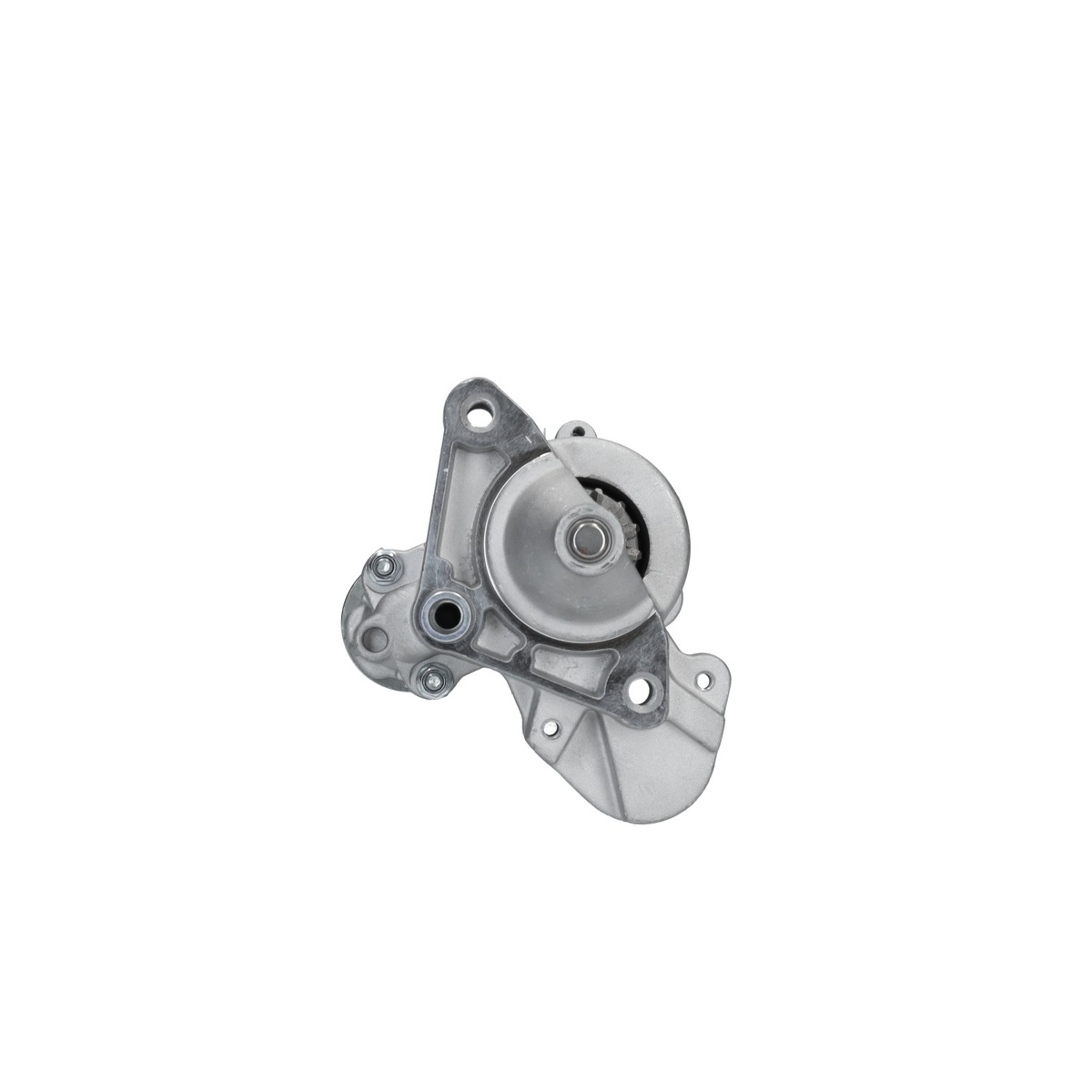

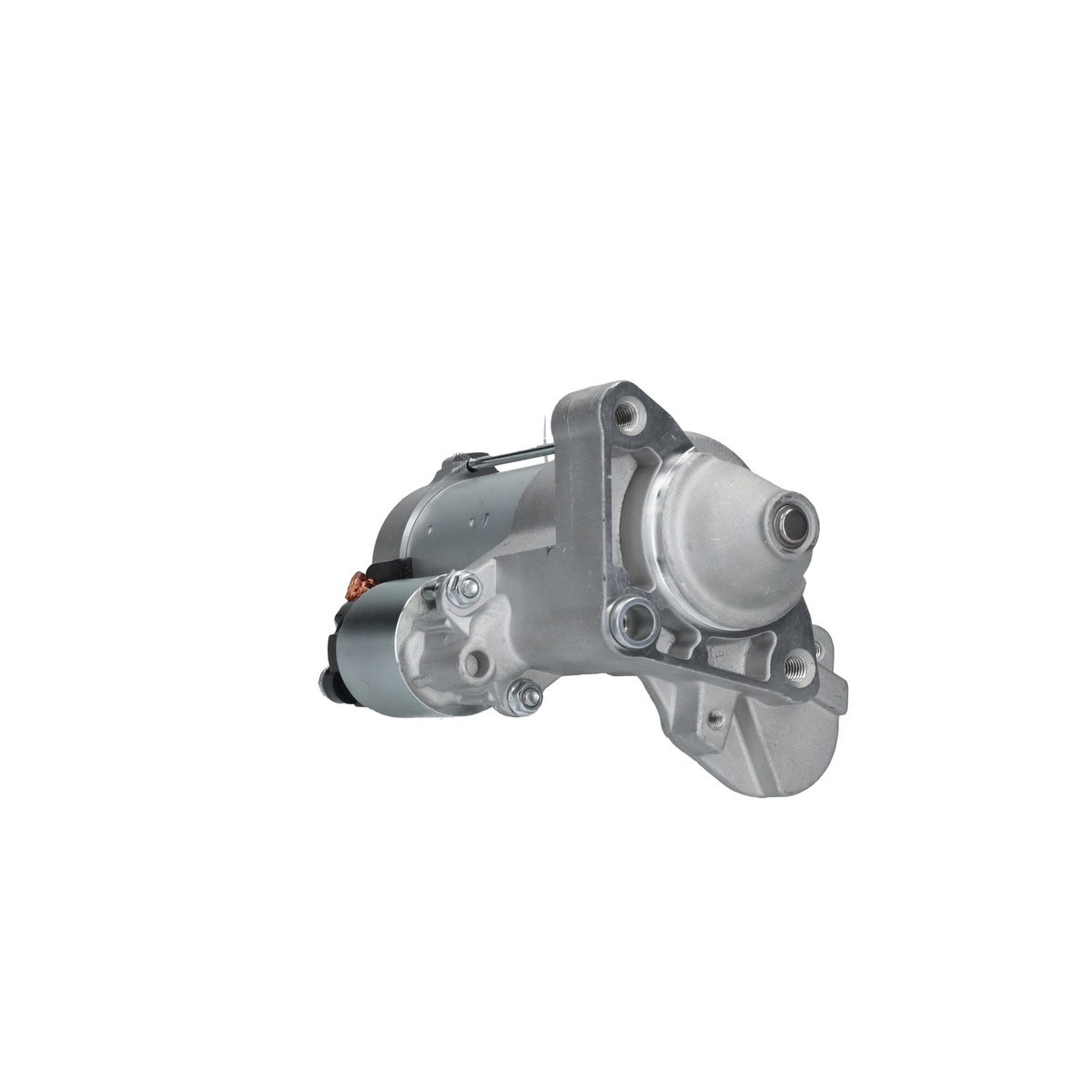

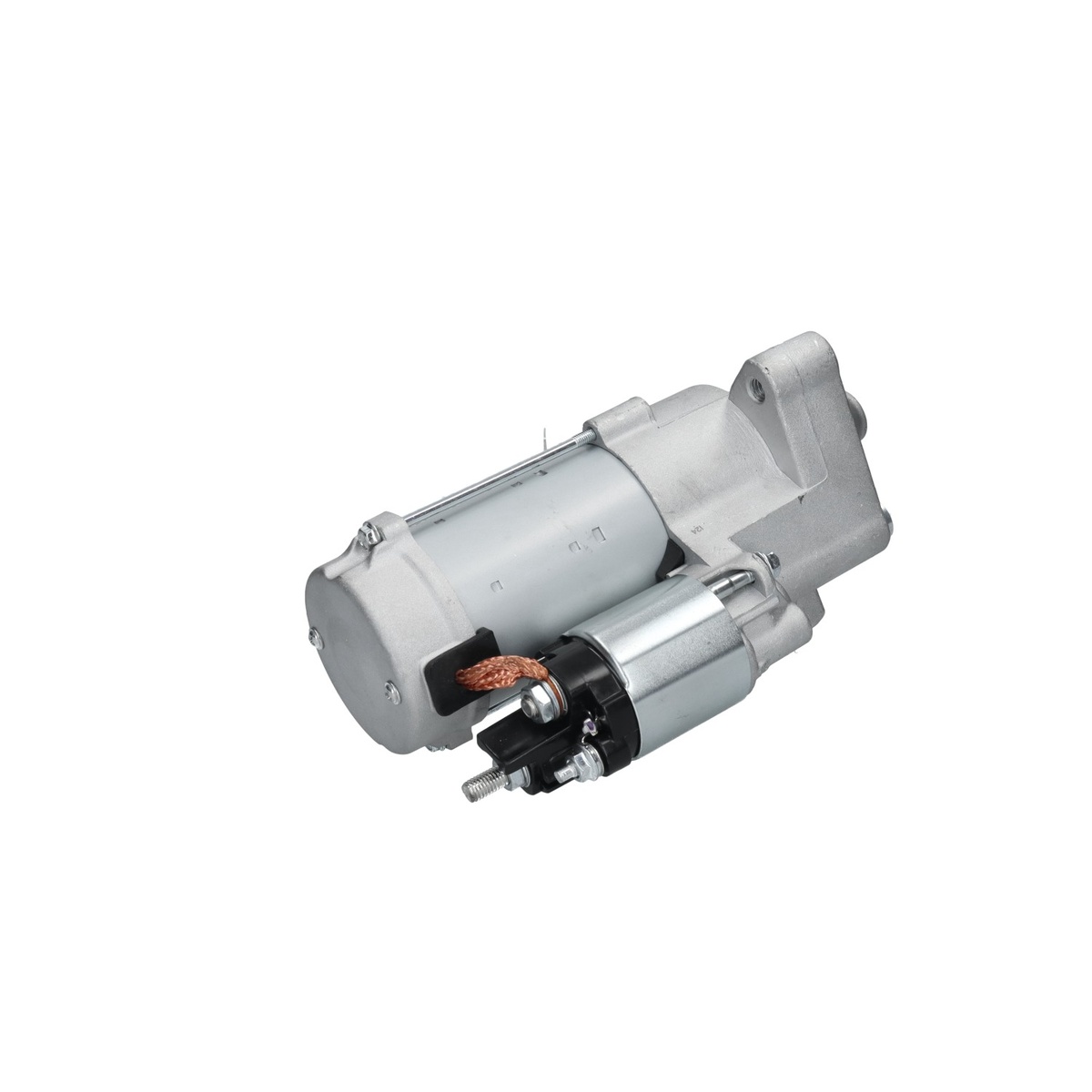

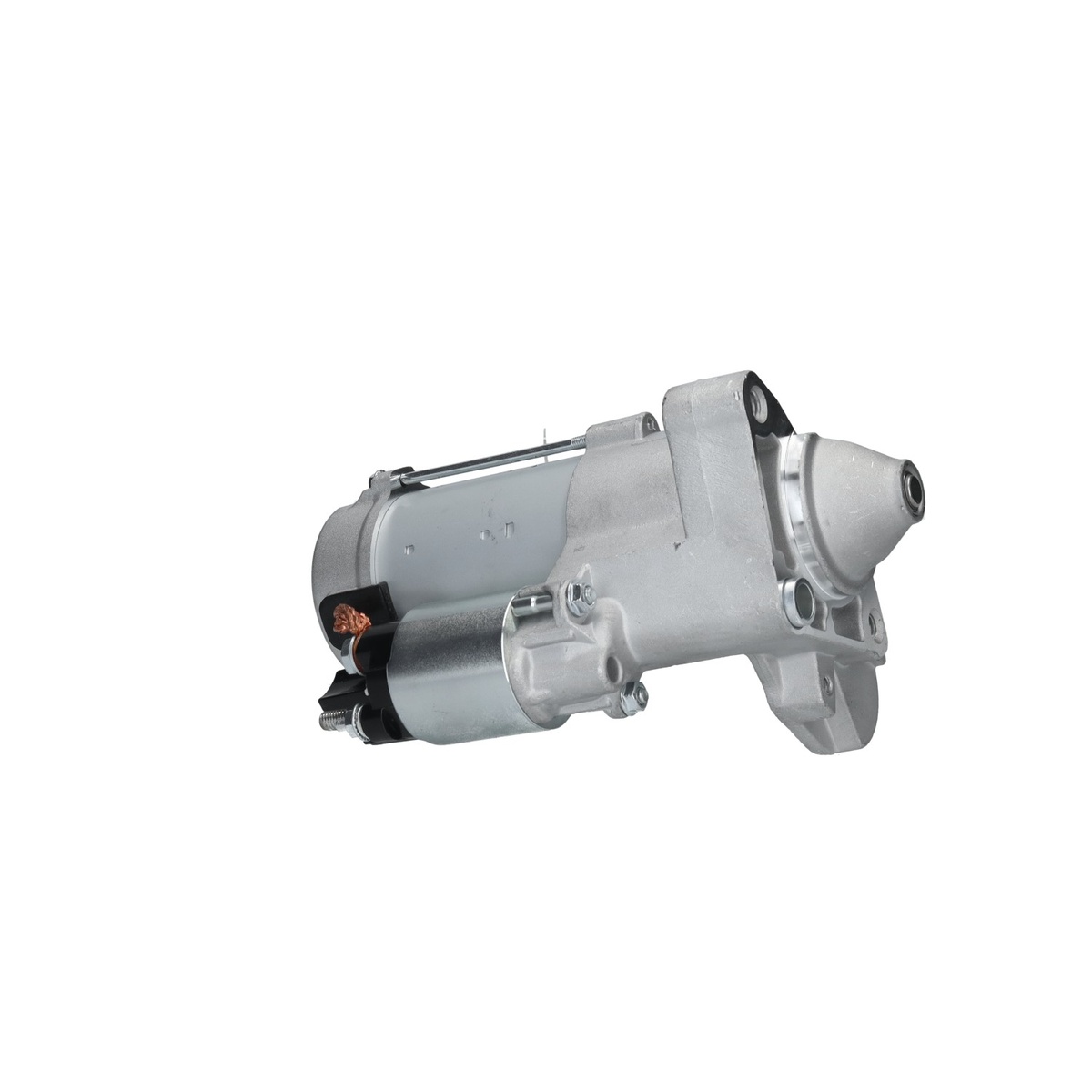

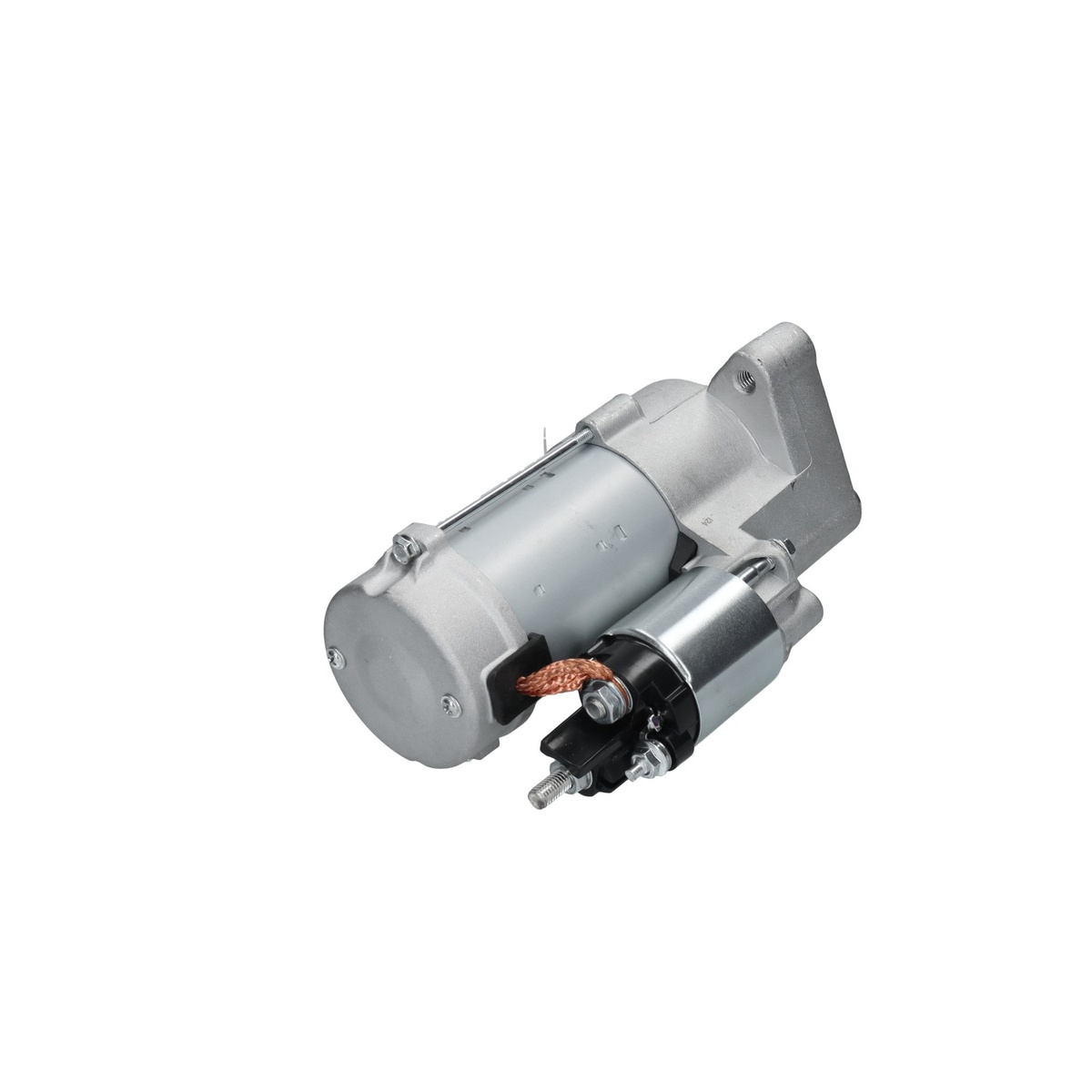

F032116854 - Starter
Trade number 116854
Replacing and BOMs
OEM number
- 1870363FORD
Competitor References
- 0986027550BOSCH
- 590914133CV PSH
- 4380000280DENSO
- 11090346EUROTEC
- 116854HC-CARGO
- 8EA011611991HELLA
- 42300140HERTH U. BUSS
- 063280102010MARELLI
Trade number 116854
Details & description
kW 1.4, Voltage 12, No./mount. holes 3 (3), Rear Distance 198.00, Front Distance 34.00, Distance 3 66.00, Drive Distance -5.50, Mounting hole 3 with thread M10, Distance 2 67.00, Mounting hole 2 with thread M10, B+ M8, Terminal 50 M6, Mounting Flange 62.00, Distance 102.50, Rotation CW, Mounting hole 1 with thread M10, Mounting Holes with Thread 3, Position 60, Gear type GR, B+ Position 15, No./teeth 13, Amount of Mounting Holes 3, Total Length 232.00
Product information
Electrical information
- kW1.4
- Voltage12
Physical information
- No./mount. holes3 (3)
- Rear Distance198.00
- Front Distance34.00
- Distance 366.00
- Drive Distance-5.50
- Mounting hole 3 with threadM10
- Distance 267.00
- Mounting hole 2 with threadM10
- B+M8
Replacing and BOMs
OEM number
- 1870363FORD
Competitor References
- 0986027550BOSCH
- 590914133CV PSH
- 4380000280DENSO
- 11090346EUROTEC
- 116854HC-CARGO
- 8EA011611991HELLA
- 42300140HERTH U. BUSS
- 063280102010MARELLI
