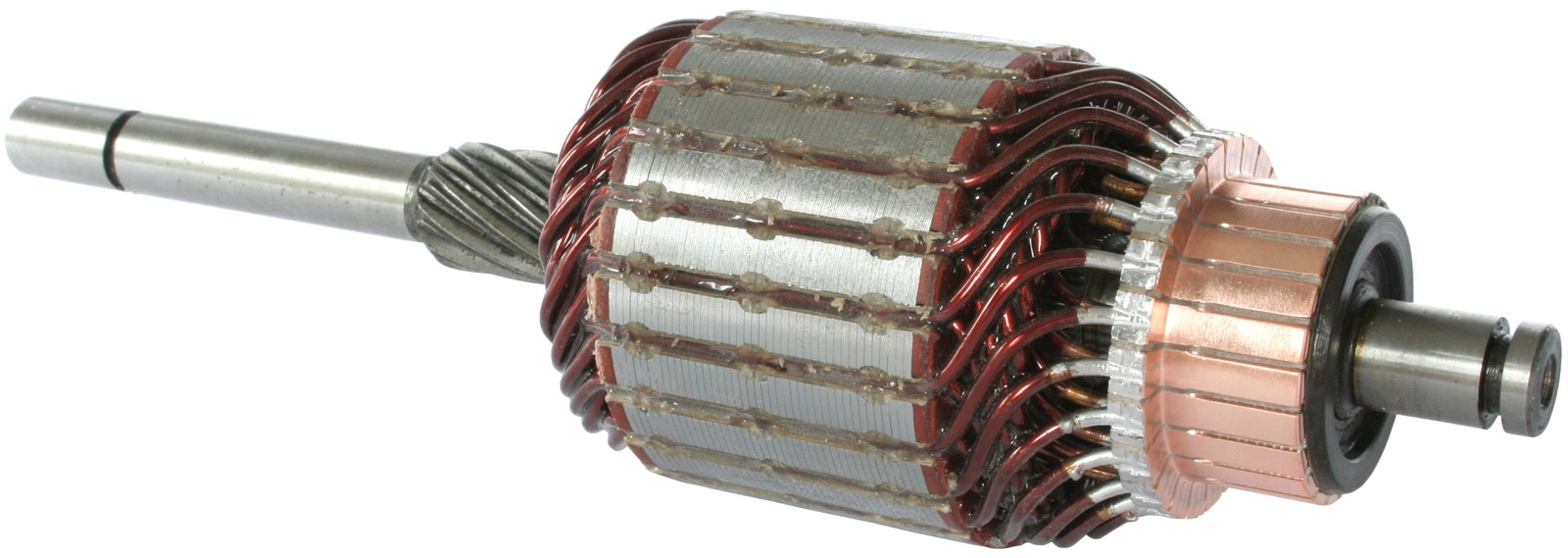

F032130061 - Armature
Trade number 130061
Replacing and BOMs
Competitor References
- 1004012406BOSCH
- 1004012920BOSCH
- 9001082304BOSCH
- 9001082321BOSCH
- 9001082524BOSCH
- 9001184001BOSCH
- 130061HC-CARGO
- WSA1912WOOD AUTO SUPPL
Trade number 130061
Details & description
kW 0.8, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 11.90, Bar Lane Height 16.60, Bar Cross Distance 36.80, Commutator End Shaft Diameter 12.40, Spline Teeth Length 25.50, Rotation CW, Commutator Outer Diameter 44.50, Bar length 4.00, Commutator Inner Diameter 16.00, No./bars 23, Commutator Height 23.50, Commutator Diameter 36.00, Commutator Distance 20.20, OD/spline/teeth 17.00, Core Diameter 60.00, Shaft length 222.00, Bar Distance 2.60
Product information
Electrical information
- kW0.8
- Voltage12
Physical information
- No./splines10
- Drive End Inside Shaft Diameter Outside11.90
- Bar Lane Height16.60
- Bar Cross Distance36.80
- Commutator End Shaft Diameter12.40
- Spline Teeth Length25.50
- RotationCW
- Commutator Outer Diameter44.50
- Commutator Inner Diameter16.00
Replacing and BOMs
Competitor References
- 1004012406BOSCH
- 1004012920BOSCH
- 9001082304BOSCH
- 9001082321BOSCH
- 9001082524BOSCH
- 9001184001BOSCH
- 130061HC-CARGO
- WSA1912WOOD AUTO SUPPL
