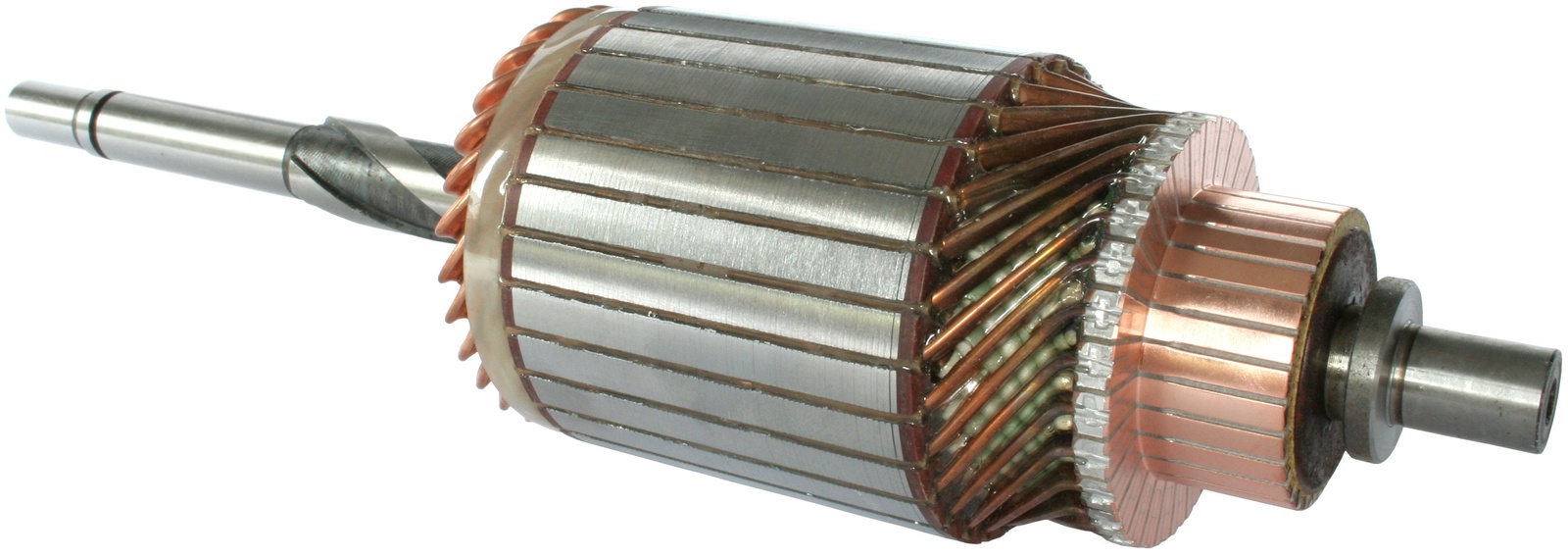

F032130109 - Armature
Trade number 130109
Replacing and BOMs
Competitor References
- 2004004012BOSCH
- 2004004020BOSCH
- 2004004041BOSCH
- 2004004042BOSCH
- 2004004043BOSCH
- 2004004044BOSCH
- 130109HC-CARGO
- 619115WAI
- WSA1856WOOD AUTO SUPPL
Trade number 130109
Details & description
kW 1.4, Voltage 12, No./splines 3, Drive End Inside Shaft Diameter Outside 12.50, Bar Lane Height 21.70, Commutator End Shaft Diameter 14.00, Spline Teeth Length 56.80, Commutator Outer Diameter 61.80, Drive End Inside Shaft Diameter 14.15, No./bars 29, Commutator Height 26.50, Commutator Diameter 42.00, Commutator Distance 27.40, OD/spline/teeth 18.30, Core Diameter 73.00, Shaft length 300.00, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 133084.
Product information
Electrical information
- kW1.4
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 133084.
Physical information
- No./splines3
- Drive End Inside Shaft Diameter Outside12.50
- Bar Lane Height21.70
- Commutator End Shaft Diameter14.00
- Spline Teeth Length56.80
- Commutator Outer Diameter61.80
- Drive End Inside Shaft Diameter14.15
- No./bars29
- Commutator Height26.50
