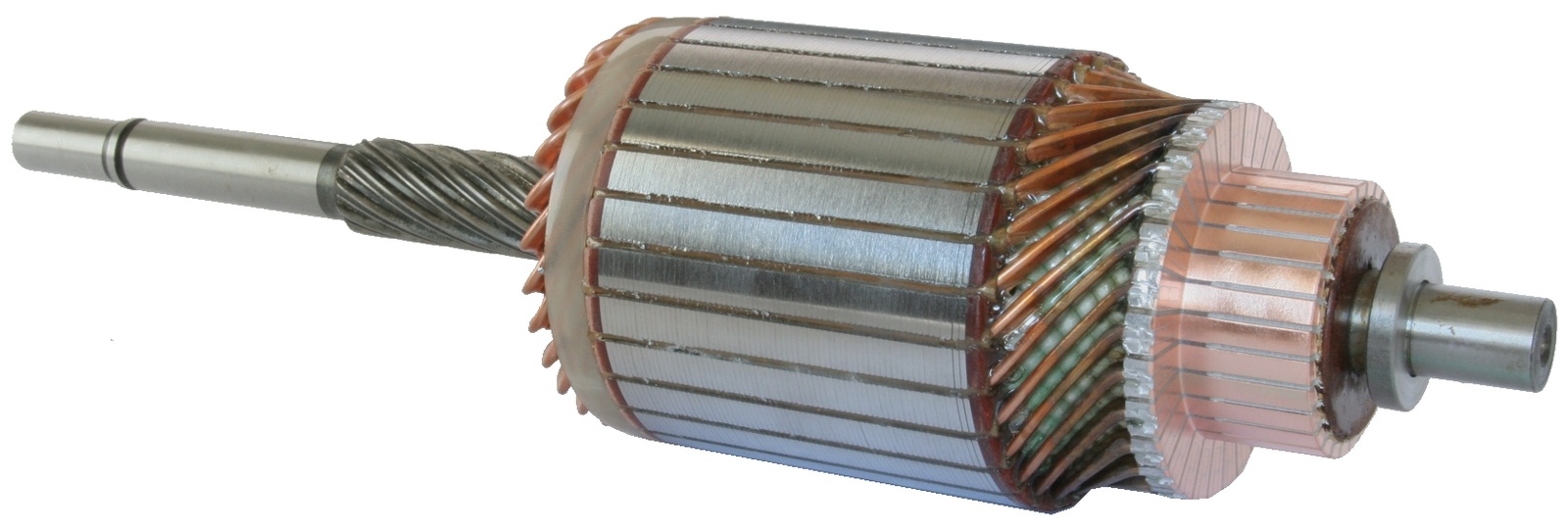

F032130110 - Armature
Trade number 130110
Replacing and BOMs
Competitor References
- 2004004051BOSCH
- 130110HC-CARGO
- WSA1889WOOD AUTO SUPPL
Trade number 130110
Details & description
kW 1.8, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Bar Lane Height 19.60, Commutator End Shaft Diameter 14.00, Spline Teeth Length 48.80, Rotation CW, Commutator Outer Diameter 61.90, Drive End Inside Shaft Diameter 14.15, No./bars 29, Commutator Height 26.00, Commutator Diameter 42.20, Commutator Distance 26.90, OD/spline/teeth 18.20, Core Diameter 73.00, Shaft length 300.00, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 133085.
Product information
Electrical information
- kW1.8
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 133085.
Physical information
- No./splines10
- Drive End Inside Shaft Diameter Outside12.50
- Bar Lane Height19.60
- Commutator End Shaft Diameter14.00
- Spline Teeth Length48.80
- RotationCW
- Commutator Outer Diameter61.90
- Drive End Inside Shaft Diameter14.15
- No./bars29
Replacing and BOMs
Competitor References
- 2004004051BOSCH
- 130110HC-CARGO
- WSA1889WOOD AUTO SUPPL
