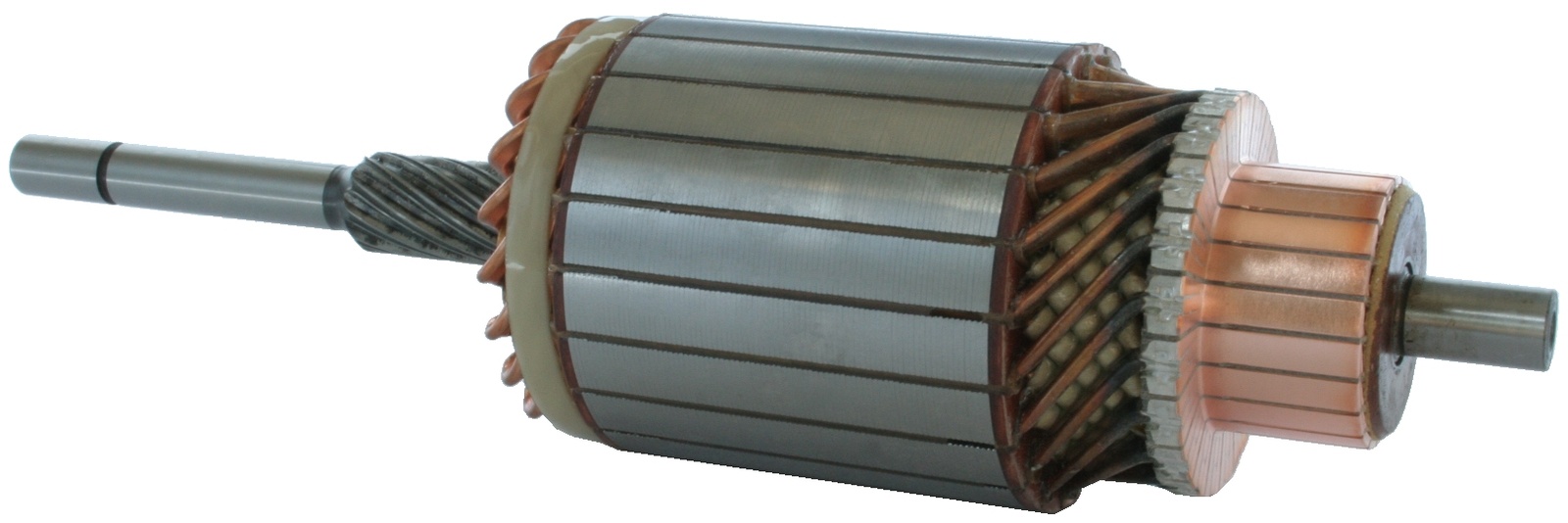

F032130113 - Armature
Trade number 130113
Replacing and BOMs
Competitor References
- 2004004071BOSCH
- 2007031001BOSCH
- 130113HC-CARGO
- 619102WAI
- WSA1884WOOD AUTO SUPPL
Trade number 130113
Details & description
kW 2.4, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 12.00, Bar Lane Height 23.00, Bar Cross Distance 42.50, Commutator End Shaft Diameter 12.50, Rotation CW, Commutator Outer Diameter 63.20, Drive End Inside Shaft Diameter 12.00, Bar length 10.50, Commutator Inner Diameter 15.80, No./bars 21, Commutator Height 33.00, Commutator Diameter 43.00, Commutator Distance 22.40, OD/spline/teeth 18.00, Core Diameter 75.00, Shaft length 282.00, Bar Distance 3.45, Shaft Diameter 18.90, Remarks 9 V: HC-CARGO 131933.
Product information
Electrical information
- kW2.4
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 131933.
Physical information
- No./splines10
- Drive End Inside Shaft Diameter Outside12.00
- Bar Lane Height23.00
- Bar Cross Distance42.50
- Commutator End Shaft Diameter12.50
- RotationCW
- Commutator Outer Diameter63.20
- Drive End Inside Shaft Diameter12.00
- Commutator Inner Diameter15.80
Replacing and BOMs
Competitor References
- 2004004071BOSCH
- 2007031001BOSCH
- 130113HC-CARGO
- 619102WAI
- WSA1884WOOD AUTO SUPPL
