Details & description

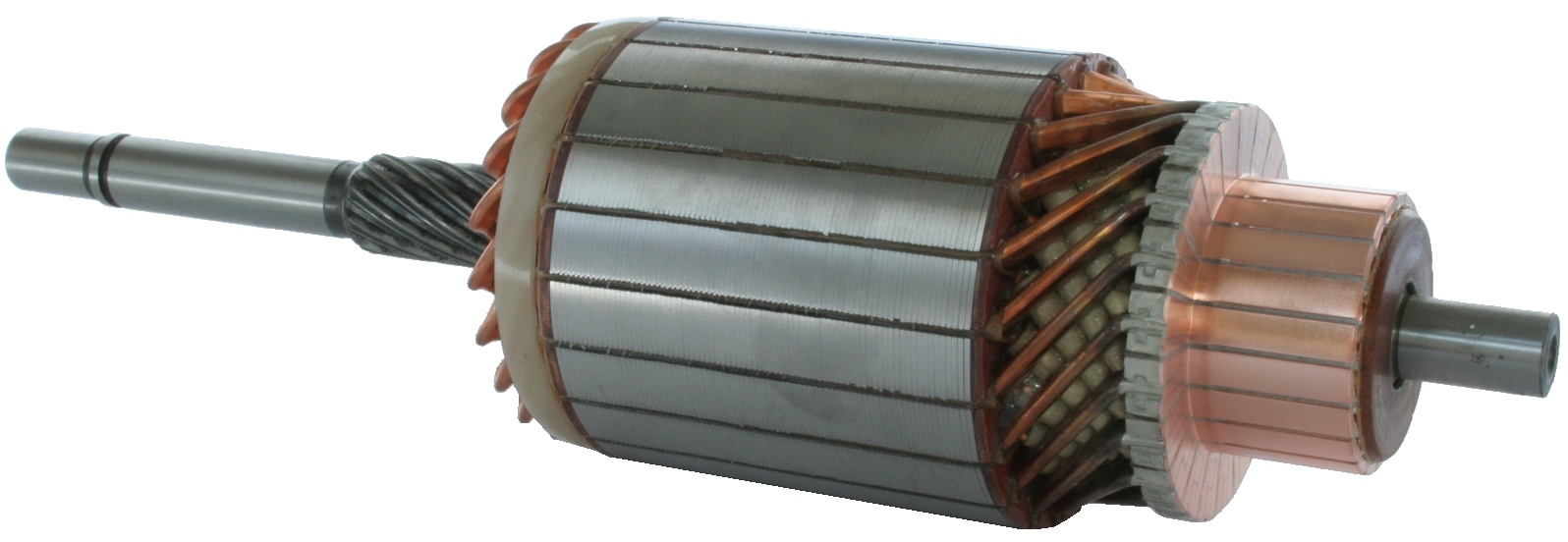

kW 2.4, Voltage 12, Commutator Diameter 43.00, Commutator Distance 21.40, OD/spline/teeth 18.00, No./bars 21, Commutator Height 33.00, Bar length 10.50, Commutator Inner Diameter 15.80, Bar Distance 3.45, Core Diameter 75.00, Shaft length 288.00, Bar Cross Distance 42.50, Commutator End Shaft Diameter 12.50, Bar Lane Height 23.00, Spline Teeth Length 40.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.40, Commutator Outer Diameter 63.20, Drive End Inside Shaft Diameter 14.10, Rotation CW, Remarks 9 V: HC-CARGO 133086., Shaft Diameter 18.85

Product information
