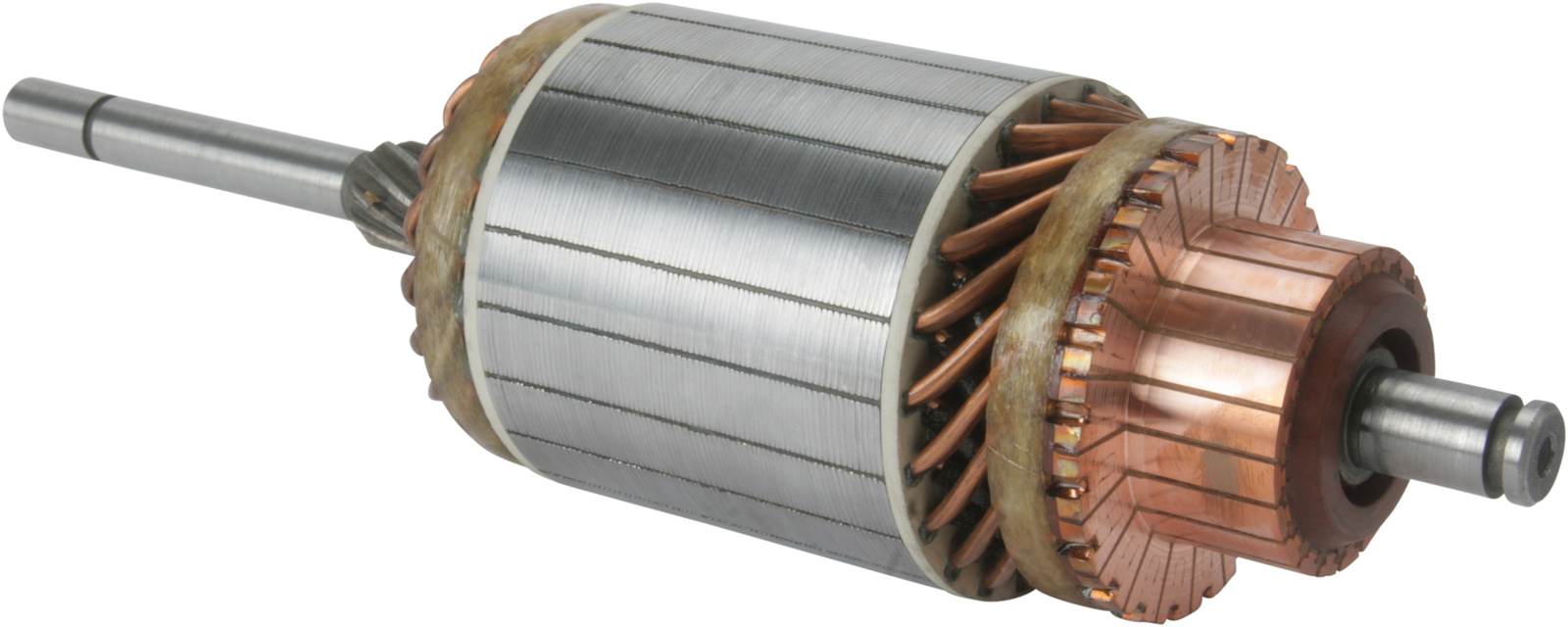

F032130116 - Armature
Trade number 130116
Replacing and BOMs
Competitor References
- SA0014AUTOSTARTER POLAND
- 2004004075BOSCH
- 2004004090BOSCH
- 2004014951BOSCH
- 131667HC-CARGO
- 136105HC-CARGO
- 130116HC-CARGO
- 619105WAI
- WSA1903WOOD AUTO SUPPL
Trade number 130116
Details & description
kW 2.0, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 12.00, Bar Lane Height 22.50, Bar Cross Distance 42.30, Commutator End Shaft Diameter 14.00, Spline Teeth Length 24.50, Rotation CW, Commutator Outer Diameter 63.00, Drive End Inside Shaft Diameter 12.00, Bar length 10.00, No./bars 21, Commutator Height 35.70, Commutator Diameter 42.80, Commutator Distance 23.30, OD/spline/teeth 18.00, Core Diameter 75.00, Shaft length 285.00, Bar Distance 3.60, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 131934.
Product information
Electrical information
- kW2.0
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 131934.
Physical information
- No./splines10
- Drive End Inside Shaft Diameter Outside12.00
- Bar Lane Height22.50
- Bar Cross Distance42.30
- Commutator End Shaft Diameter14.00
- Spline Teeth Length24.50
- RotationCW
- Commutator Outer Diameter63.00
- Drive End Inside Shaft Diameter12.00
Replacing and BOMs
Competitor References
- SA0014AUTOSTARTER POLAND
- 2004004075BOSCH
- 2004004090BOSCH
- 2004014951BOSCH
- 131667HC-CARGO
- 136105HC-CARGO
- 130116HC-CARGO
- 619105WAI
- WSA1903WOOD AUTO SUPPL
