F032130117 - Armature

Trade number 130117

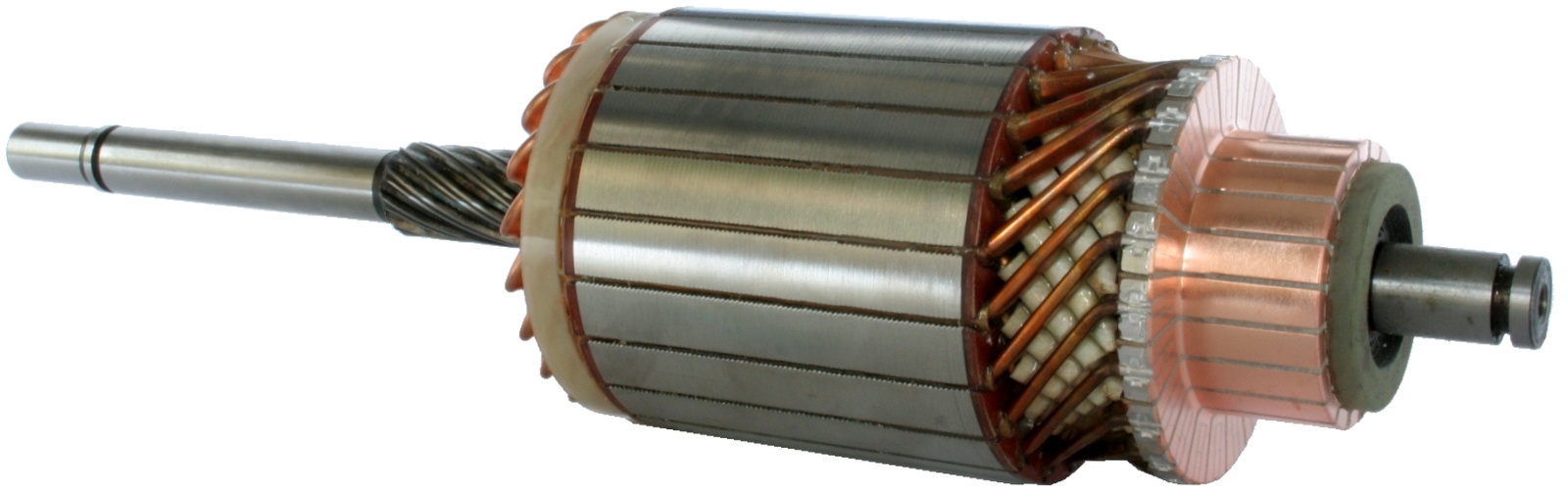

Product image - main
Trade number 130117

Details & description

Voltage 12, kW 2.4/2.7, Commutator Diameter 42.80, Commutator Distance 23.30, OD/spline/teeth 18.10, No./bars 21, Commutator Height 35.70, Bar length 10.00, Bar Distance 3.60, Shaft length 312.00, Bar Cross Distance 42.30, Bar Lane Height 22.50, Spline Teeth Length 36.00, Commutator Inner Diameter 16.00, Core Diameter 75.00, Commutator End Shaft Diameter 14.00, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator Outer Diameter 63.00, Drive End Inside Shaft Diameter 14.15, Rotation CW, Remarks 9 V: HC-CARGO 133088., Shaft Diameter 18.85

Product information

Electrical information

  • Voltage12
  • kW2.4/2.7

Catalogue information

  • Remarks9 V: HC-CARGO 133088.

Physical information

  • Commutator Diameter42.80
  • Commutator Distance23.30
  • OD/spline/teeth18.10
  • No./bars21
  • Commutator Height35.70
  • Bar Distance3.60
  • Shaft length312.00
  • Bar Cross Distance42.30
  • Bar Lane Height22.50

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • SA0072AUTOSTARTER POLAND
    • 2004014053BOSCH
    • 2004014953BOSCH
    • 2004004076BOSCH
    • 2004004091BOSCH
    • 2004004094BOSCH
    • 2004004096BOSCH
    • 130117HC-CARGO
    • 132766HC-CARGO
