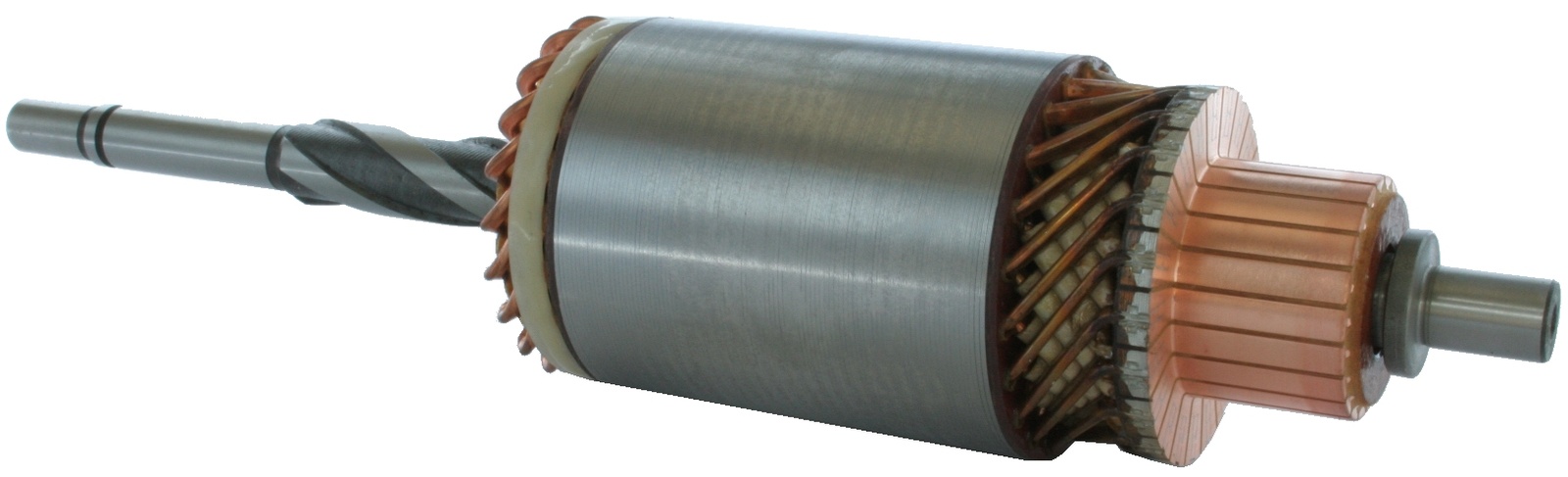

F032130118 - Armature
Trade number 130118
Replacing and BOMs
OEM number
- AL19229JOHN DEERE
Competitor References
- 2004004024BOSCH
- 2004004025BOSCH
- 2004004081BOSCH
- 130118HC-CARGO
- WSA1876WOOD AUTO SUPPL
- WSA1885WOOD AUTO SUPPL
Trade number 130118
Details & description
kW 2.3, Voltage 12, Bar Lane Height 27.20, Bar Cross Distance 48.00, Spline Teeth Length 64.00, Bar length 9.00, No./bars 21, Commutator Height 36.50, Commutator Diameter 43.20, Commutator Distance 28.00, OD/spline/teeth 18.50, Shaft length 335.00, Bar Distance 2.55, No./splines 3, Drive End Inside Shaft Diameter Outside 12.50, Commutator End Shaft Diameter 14.00, Rotation CW, Commutator Outer Diameter 66.20, Drive End Inside Shaft Diameter 14.15, Commutator Inner Diameter 16.00, Core Diameter 73.00, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 133089.
Product information
Electrical information
- kW2.3
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 133089.
Physical information
- Bar Lane Height27.20
- Bar Cross Distance48.00
- Spline Teeth Length64.00
- No./bars21
- Commutator Height36.50
- Commutator Diameter43.20
- Commutator Distance28.00
- OD/spline/teeth18.50
- Shaft length335.00
Replacing and BOMs
OEM number
- AL19229JOHN DEERE
Competitor References
- 2004004024BOSCH
- 2004004025BOSCH
- 2004004081BOSCH
- 130118HC-CARGO
- WSA1876WOOD AUTO SUPPL
- WSA1885WOOD AUTO SUPPL
