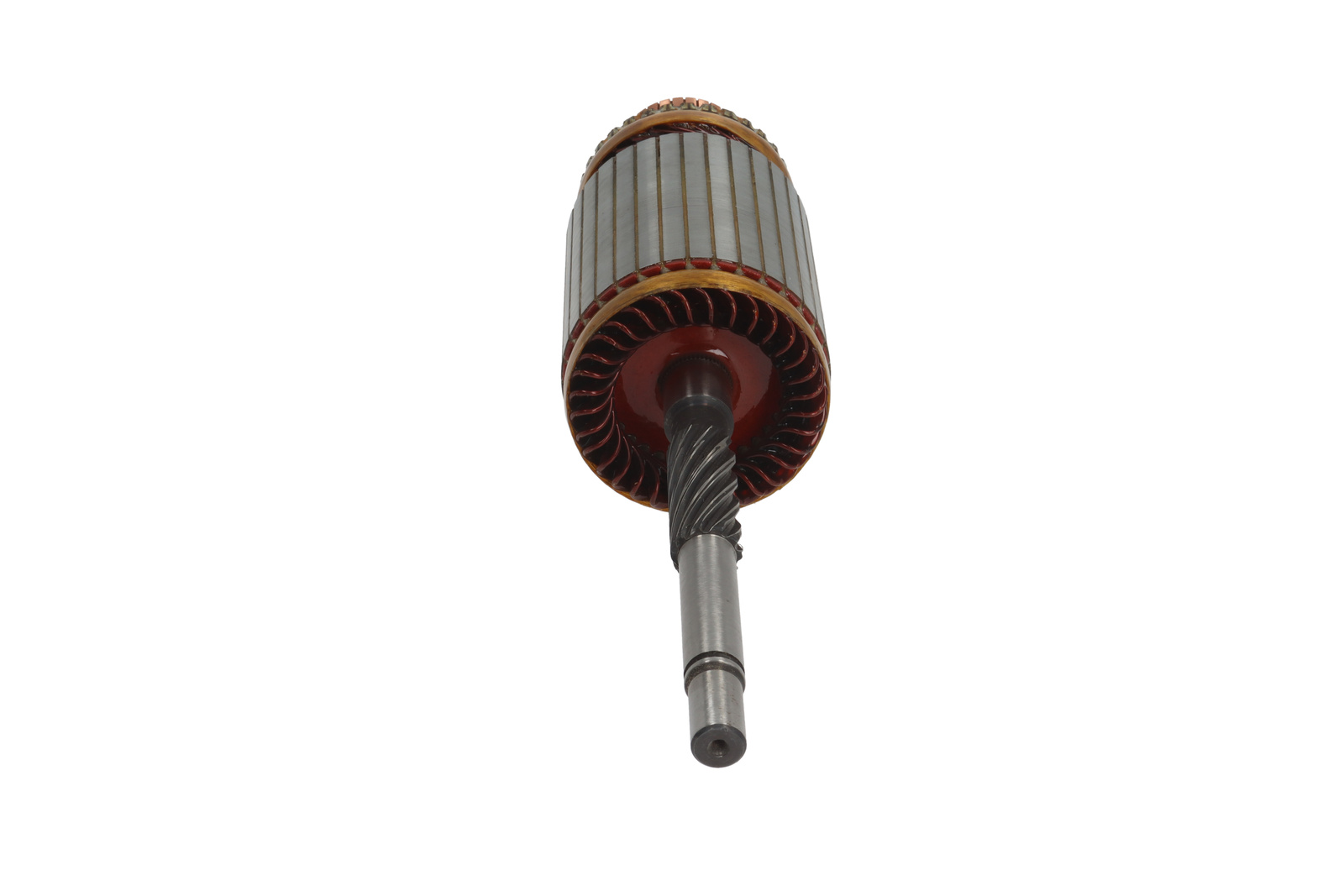

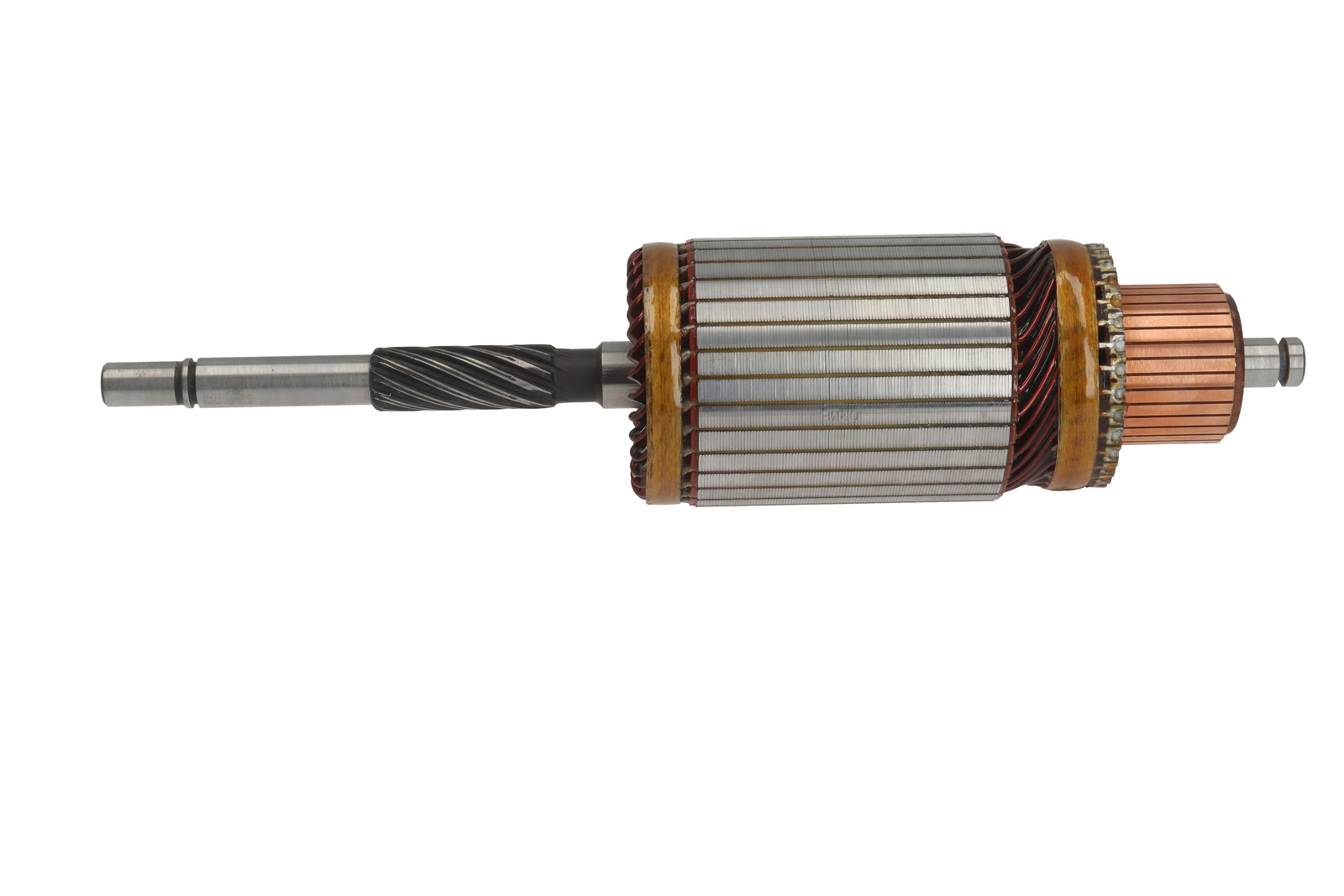

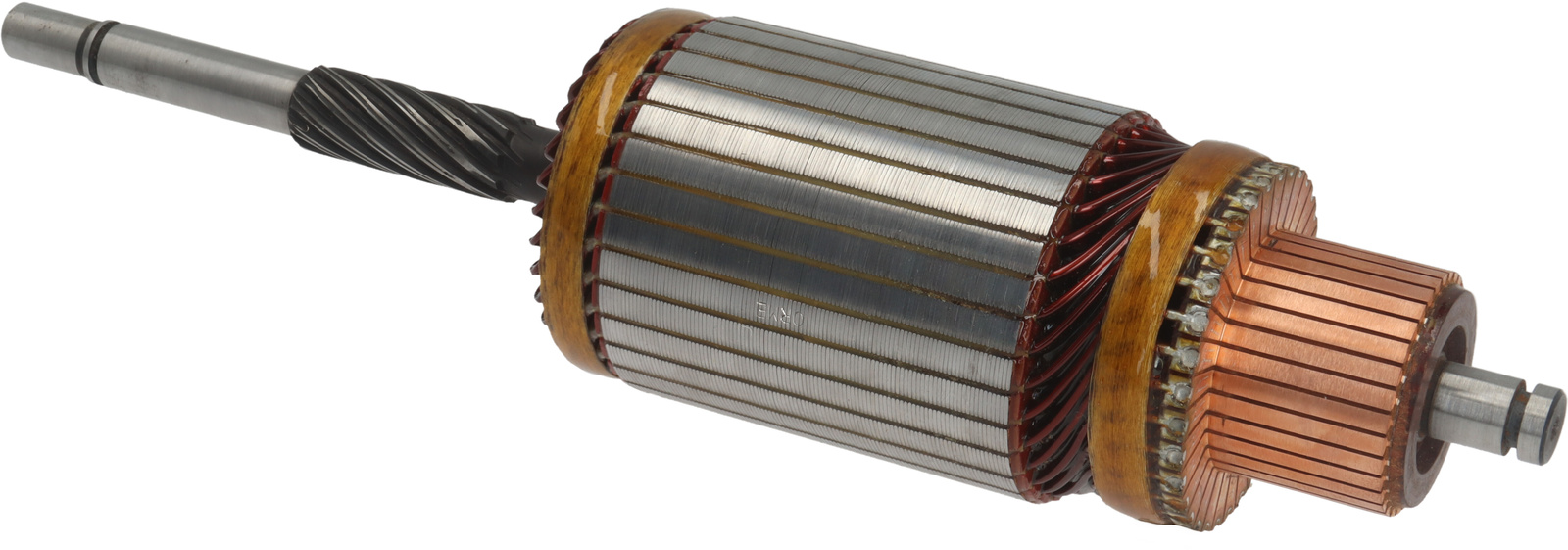

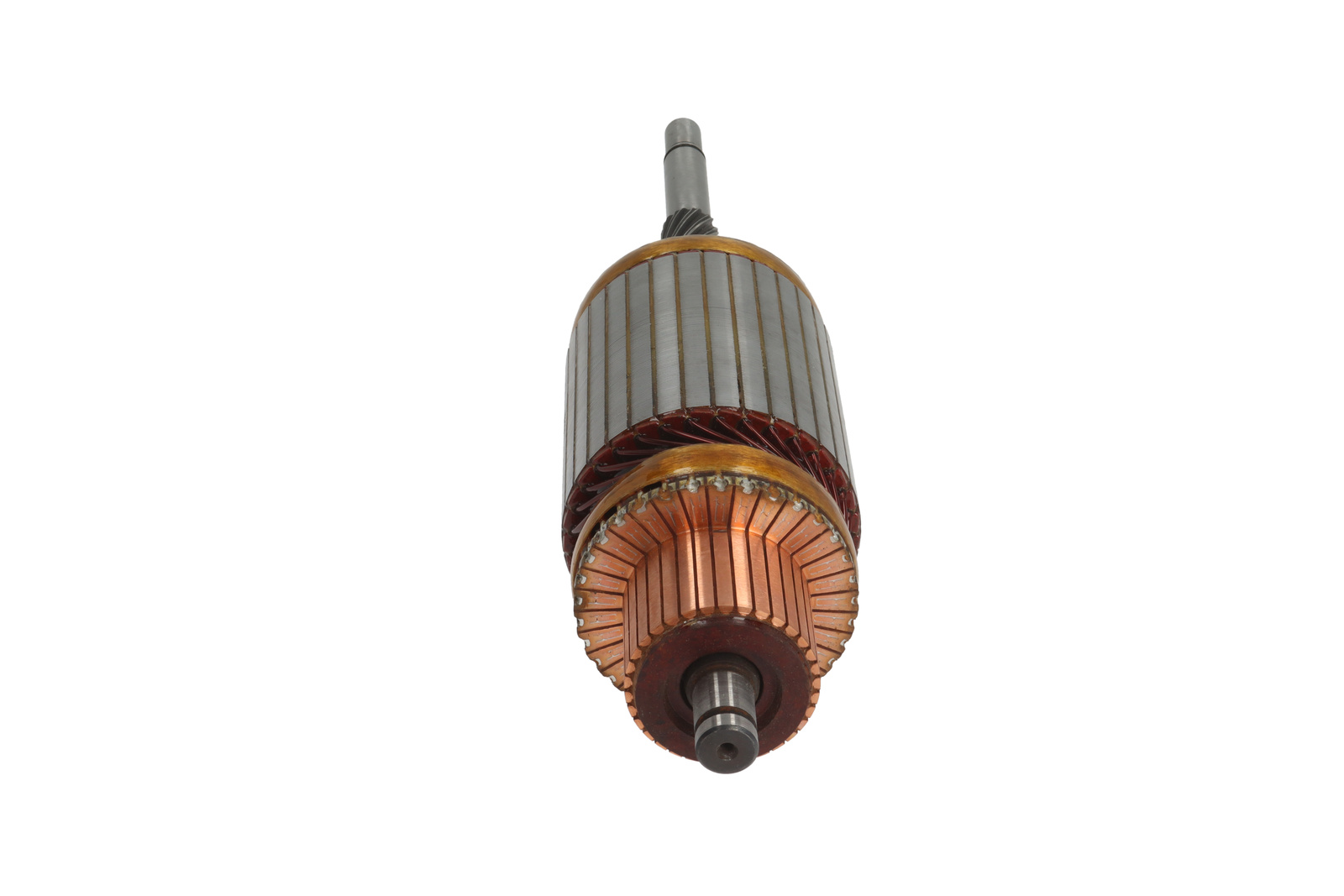

F032130119 - Armature
Trade number 130119
Replacing and BOMs
Competitor References
- SA0013AUTOSTARTER POLAND
- 2004004062BOSCH
- 2004004111BOSCH
- 130119HC-CARGO
- 16360322ISKRA
- 619109WAI
- WSA1892WOOD AUTO SUPPL
Trade number 130119
Details & description
kW 4.0, Voltage 24, Bar Lane Height 30.30, Bar Cross Distance 46.20, Spline Teeth Length 67.00, Bar length 10.50, No./bars 33, Commutator Height 43.60, Commutator Diameter 46.10, Commutator Distance 23.30, OD/spline/teeth 17.90, Shaft length 333.00, Bar Distance 2.30, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Commutator End Shaft Diameter 14.00, Rotation CW, Commutator Outer Diameter 68.10, Drive End Inside Shaft Diameter 14.15, Commutator Inner Diameter 18.90, Core Diameter 75.00, Shaft Diameter 18.75, Remarks 18 V: HC-CARGO 137286.
Product information
Electrical information
- kW4.0
- Voltage24
Catalogue information
- Remarks18 V: HC-CARGO 137286.
Physical information
- Bar Lane Height30.30
- Bar Cross Distance46.20
- Spline Teeth Length67.00
- No./bars33
- Commutator Height43.60
- Commutator Diameter46.10
- Commutator Distance23.30
- OD/spline/teeth17.90
- Shaft length333.00
Replacing and BOMs
Competitor References
- SA0013AUTOSTARTER POLAND
- 2004004062BOSCH
- 2004004111BOSCH
- 130119HC-CARGO
- 16360322ISKRA
- 619109WAI
- WSA1892WOOD AUTO SUPPL
