F032130303 - Solenoid Switch

Trade number 130303

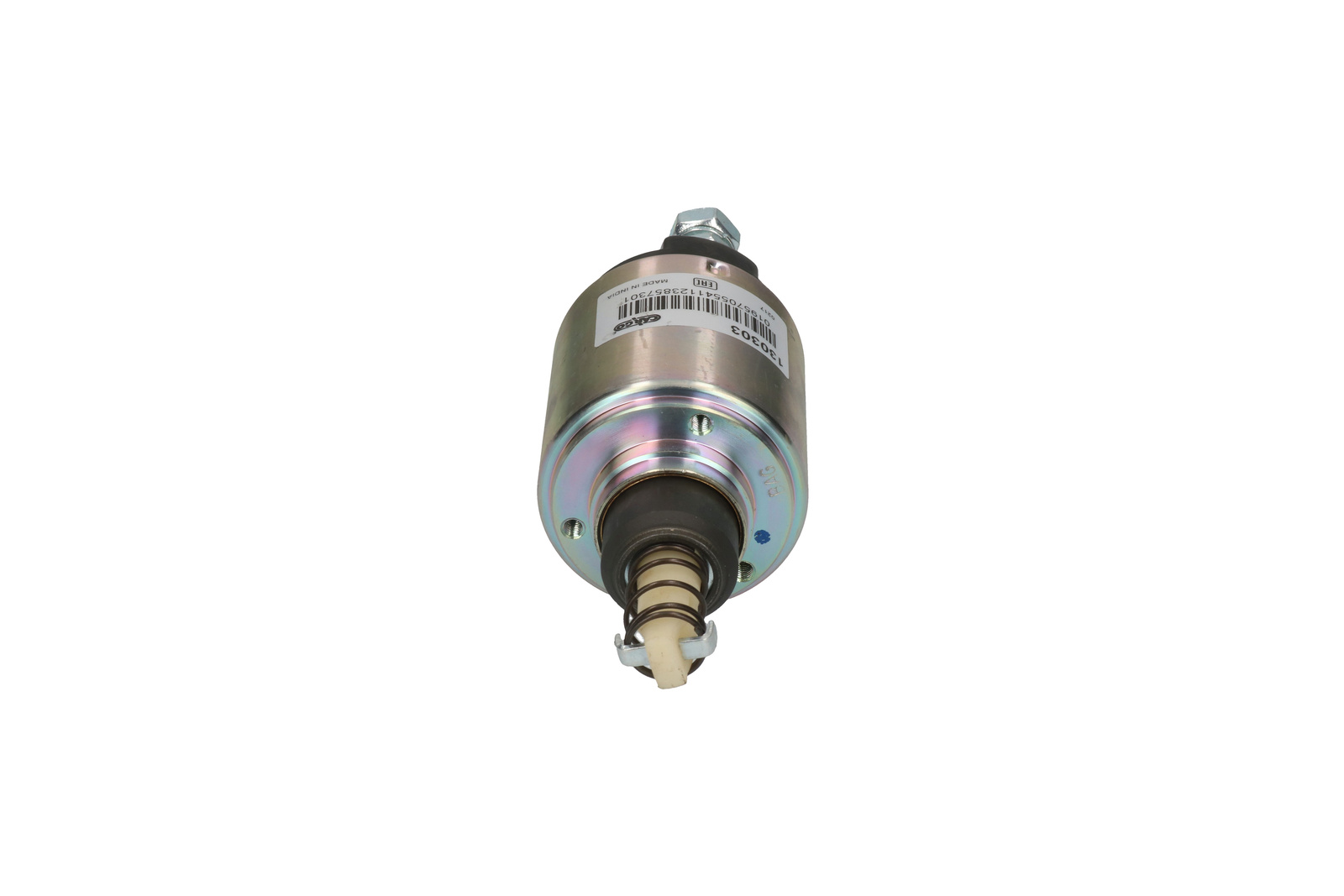

Product image - main
Trade number 130303

Details & description

Voltage 24, No./mount. holes 3, No./terminals 3, Terminal 50/mm M6, Coil Bolt Length 18.00, Plunger Inner Diameter 11.40, Eye Outer Diameter 19.40, Plunger Outer Diameter 29.80, Eye Inner Diameter 5.60, B+ M10, Terminal 50 Screw, B+ Height 24.00, Coil Bolt Diameter M10, Outer Diameter 61.00, Remarks Cap: HC-CARGO 133447., Length 82.70, Amount of Mounting Holes 3, Total Length 108.00

Product information

Electrical information

  • Voltage24

Catalogue information

  • RemarksCap: HC-CARGO 133447.

Physical information

  • No./mount. holes3
  • No./terminals3
  • Coil Bolt Length18.00
  • Eye Outer Diameter19.40
  • Eye Inner Diameter5.60
  • B+M10
  • Terminal 50Screw
  • Coil Bolt DiameterM10
  • Outer Diameter61.00

    • Suggested Products

    Replacing and BOMs

    Competitor References

    • 72010ACCURATE
    • SS0004AUTOSTARTER POLAND
    • SS0004PAUTOSTARTER POLAND
    • SS0004ZMAUTOSTARTER POLAND
    • SS0004BOSCHAUTOSTARTER POLAND
    • 0331402201BOSCH
    • 0331402510BOSCH
    • 0331402010BOSCHBOM
    • 2339402120BOSCH
