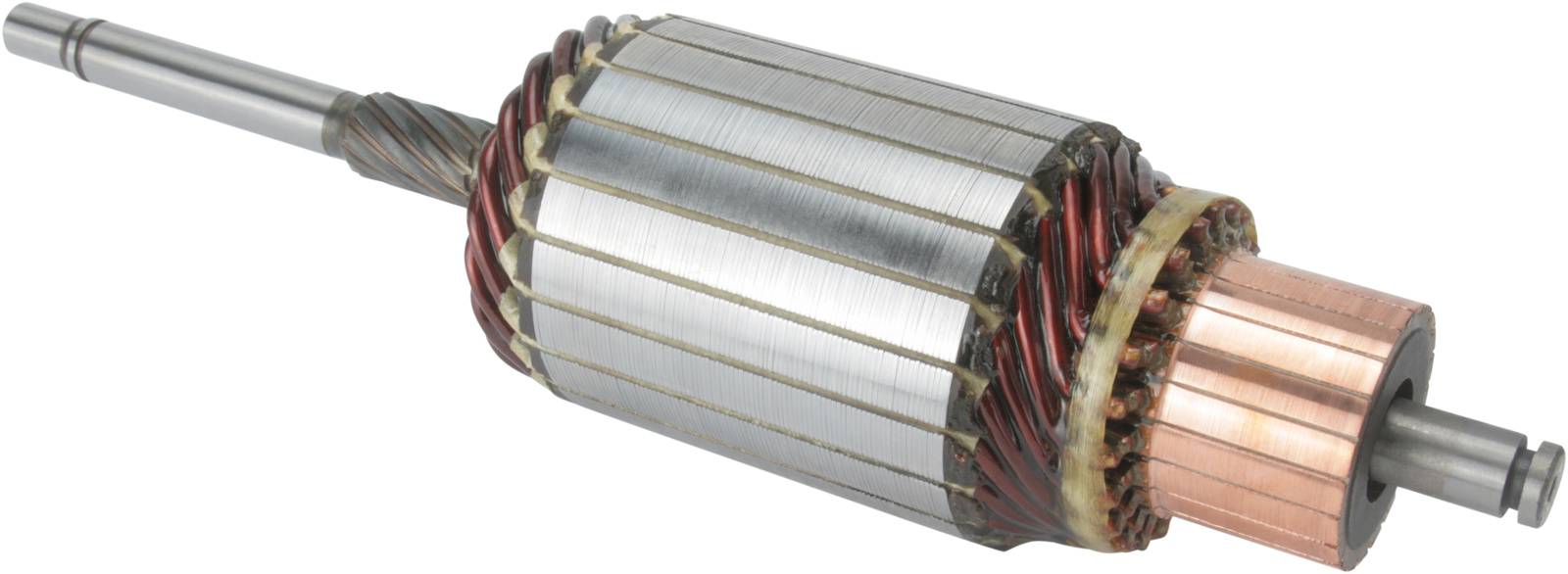

F032131075 - Armature
Trade number 131075
Replacing and BOMs
Competitor References
- SA0017AUTOSTARTER POLAND
- 2004014060BOSCH
- 2004004003BOSCH
- 2004004005BOSCH
- 2004004006BOSCH
- 2004004007BOSCH
- 2004004010BOSCH
- 2004014960BOSCH
- 2004014961BOSCH
Trade number 131075
Details & description
kW 3.0, Voltage 12, No./splines 10, Drive End Inside Shaft Diameter Outside 12.50, Bar Lane Height 29.30, Bar Cross Distance 45.90, Commutator End Shaft Diameter 14.00, Spline Teeth Length 32.50, Rotation CW, Commutator Outer Diameter 68.00, Drive End Inside Shaft Diameter 14.15, Bar length 10.50, Commutator Inner Diameter 17.50, No./bars 21, Commutator Height 41.00, Commutator Diameter 46.20, Commutator Distance 22.80, OD/spline/teeth 18.00, Core Diameter 75.00, Shaft length 337.00, Shaft Diameter 18.85, Remarks 9 V: HC-CARGO 134285.
Product information
Electrical information
- kW3.0
- Voltage12
Catalogue information
- Remarks9 V: HC-CARGO 134285.
Physical information
- No./splines10
- Drive End Inside Shaft Diameter Outside12.50
- Bar Lane Height29.30
- Bar Cross Distance45.90
- Commutator End Shaft Diameter14.00
- Spline Teeth Length32.50
- RotationCW
- Commutator Outer Diameter68.00
- Drive End Inside Shaft Diameter14.15
