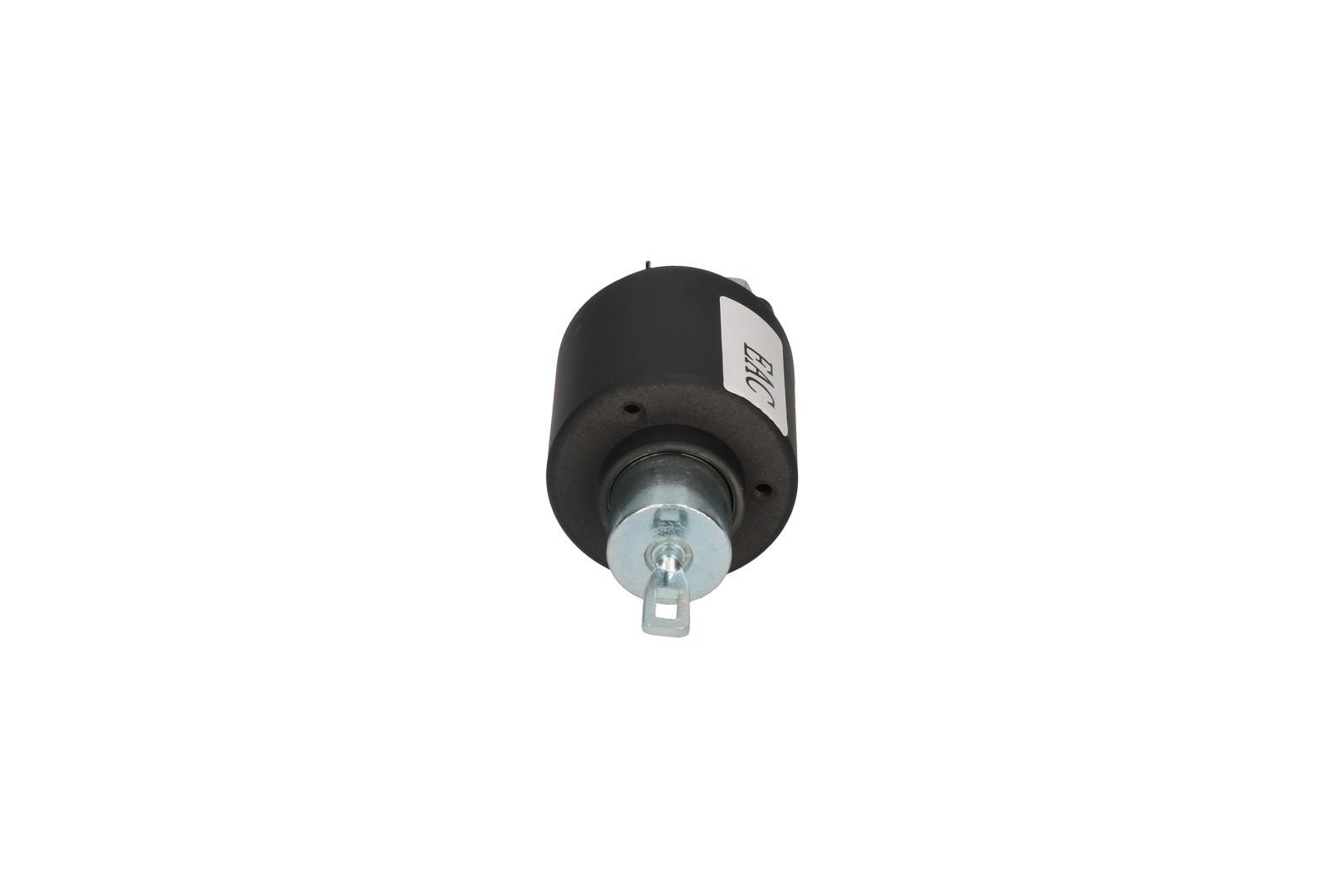

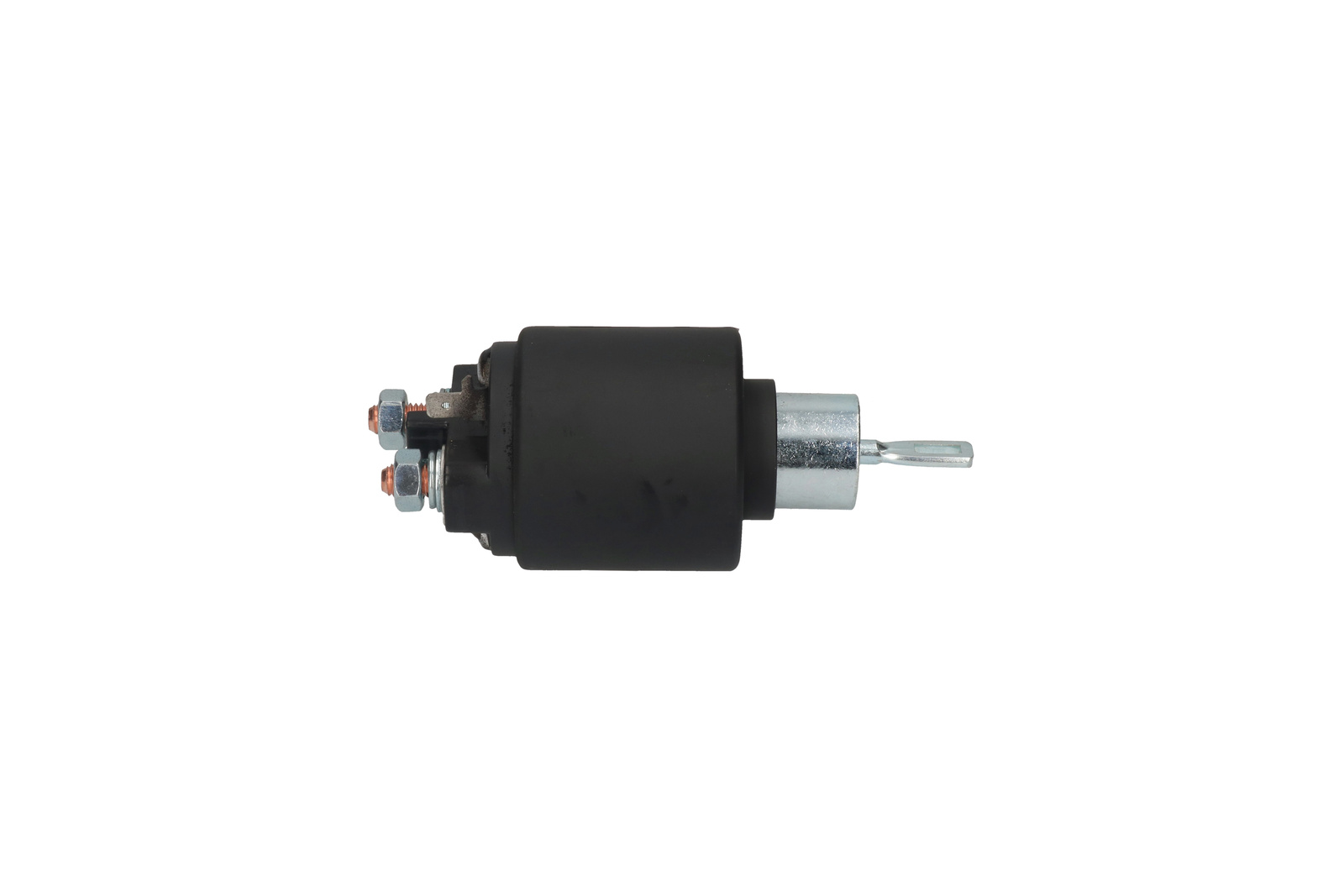

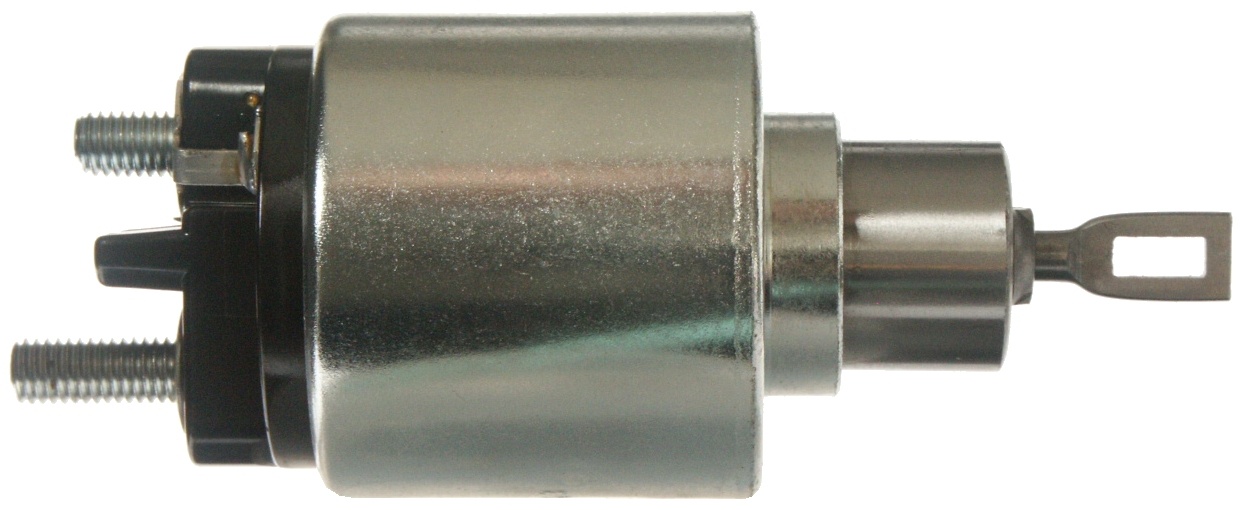

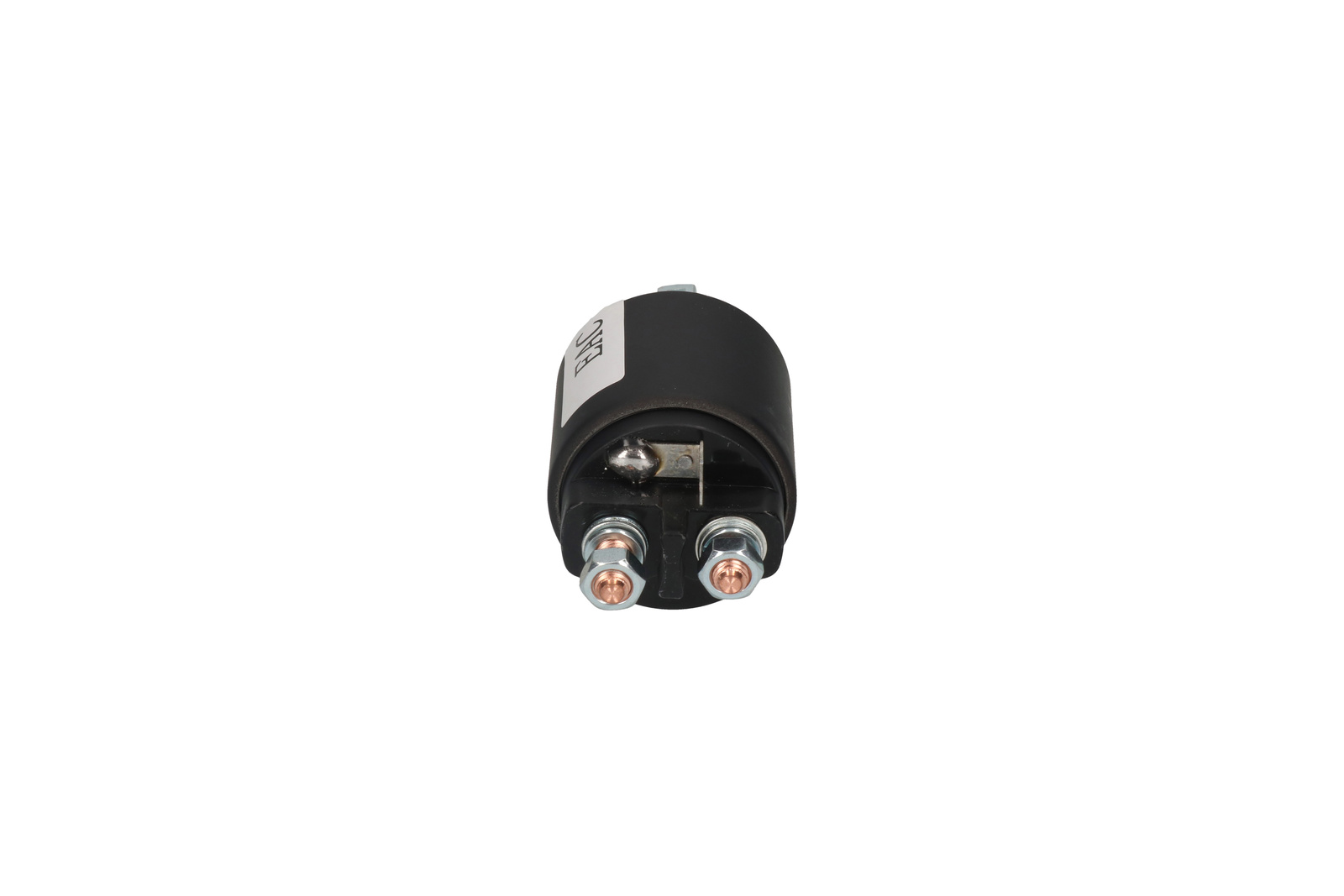

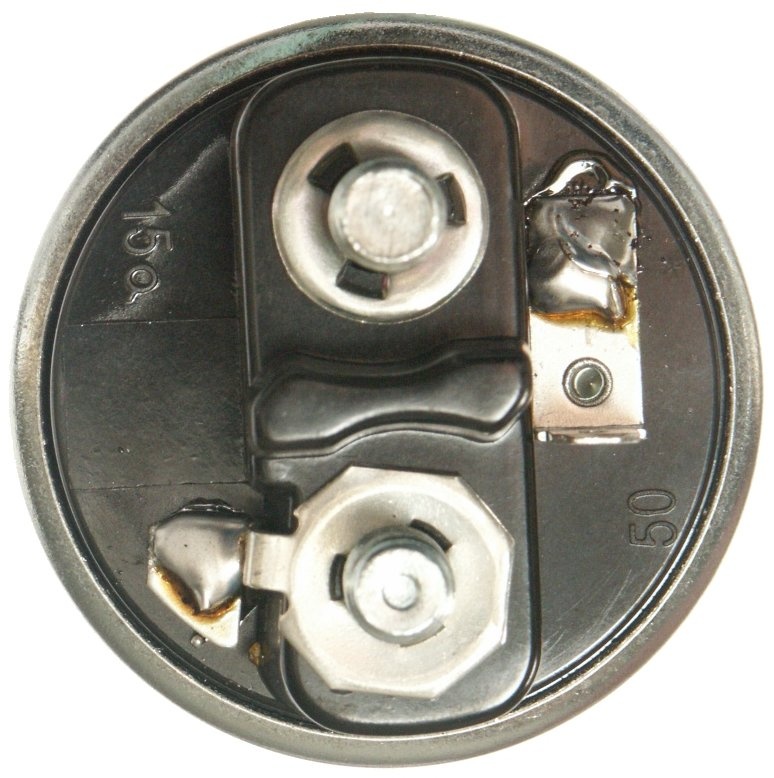

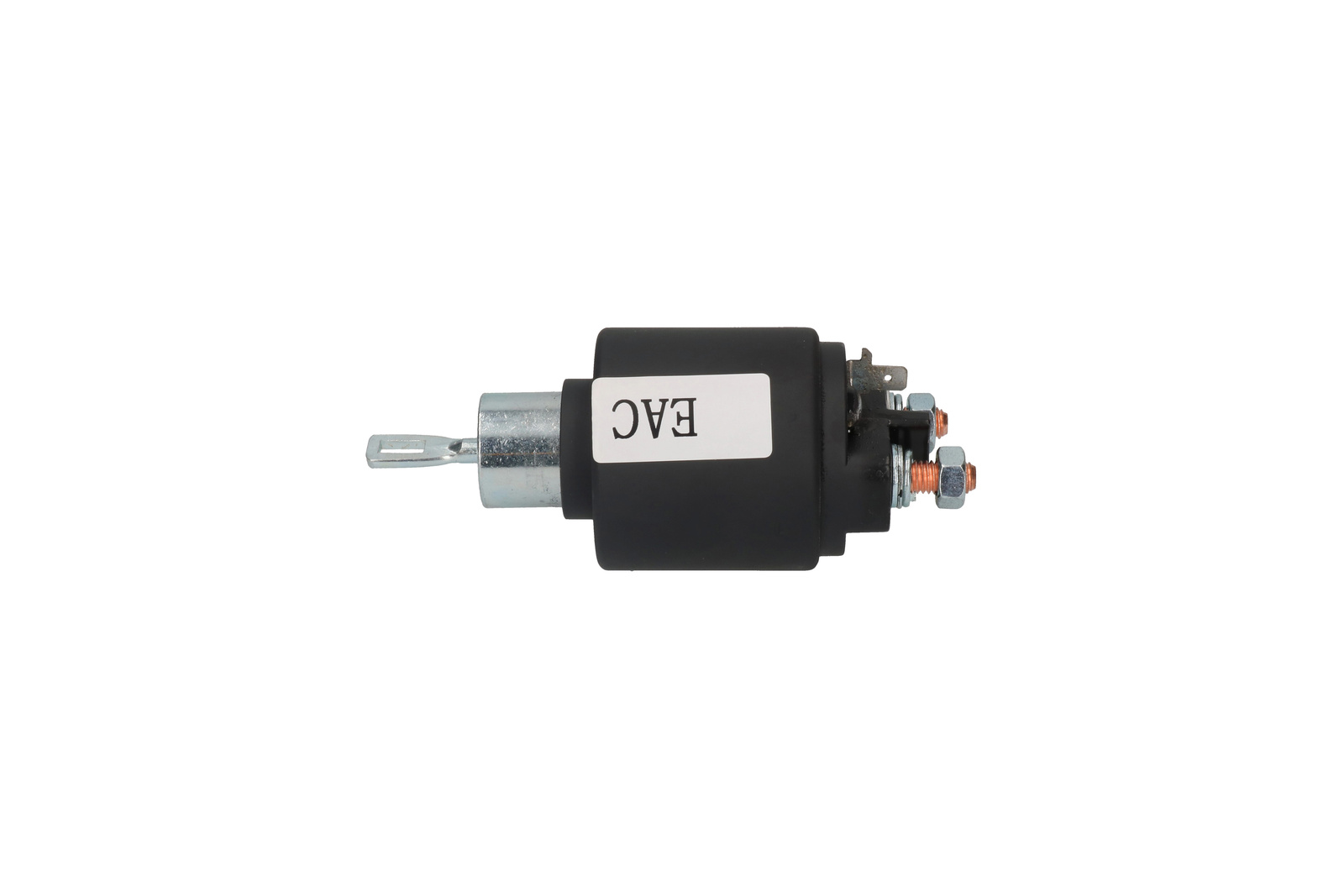

F032131143 - Solenoid Switch
Trade number 131143
Replacing and BOMs
OEM number
- 9936660FIAT
Competitor References
- 7853ACCURATE
- SS0011PAUTOSTARTER POLAND
- SS0146AUTOSTARTER POLAND
- SS0182BOSCHAUTOSTARTER POLAND
- 0331303006BOSCH
- 0331303026BOSCH
- 0331303506BOSCH
- 1986SE1570BOSCH
- 1986SE1661BOSCH
Trade number 131143
Details & description
Voltage 12, No./mount. holes 3, No./terminals 3, Terminal 50/mm 6.30, Coil Bolt Length 13.00, Plunger Inner Diameter 10.00, Eye Outer Diameter 10.50, Plunger Outer Diameter 26.75, Eye Inner Diameter 4.80, B+ M8, Terminal 50 Spade, B+ Height 17.00, Coil Bolt Diameter M8, Outer Diameter 56.30, Remarks Cap: HC-CARGO 131315., Length 63.00, Amount of Mounting Holes 3, Total Length 87.00
Product information
Electrical information
- Voltage12
Catalogue information
- RemarksCap: HC-CARGO 131315.
Physical information
- No./mount. holes3
- No./terminals3
- Coil Bolt Length13.00
- Eye Outer Diameter10.50
- Eye Inner Diameter4.80
- B+M8
- Terminal 50Spade
- Coil Bolt DiameterM8
- Outer Diameter56.30
Replacing and BOMs
OEM number
- 9936660FIAT
Competitor References
- 7853ACCURATE
- SS0011PAUTOSTARTER POLAND
- SS0146AUTOSTARTER POLAND
- SS0182BOSCHAUTOSTARTER POLAND
- 0331303006BOSCH
- 0331303026BOSCH
- 0331303506BOSCH
- 1986SE1570BOSCH
- 1986SE1661BOSCH
