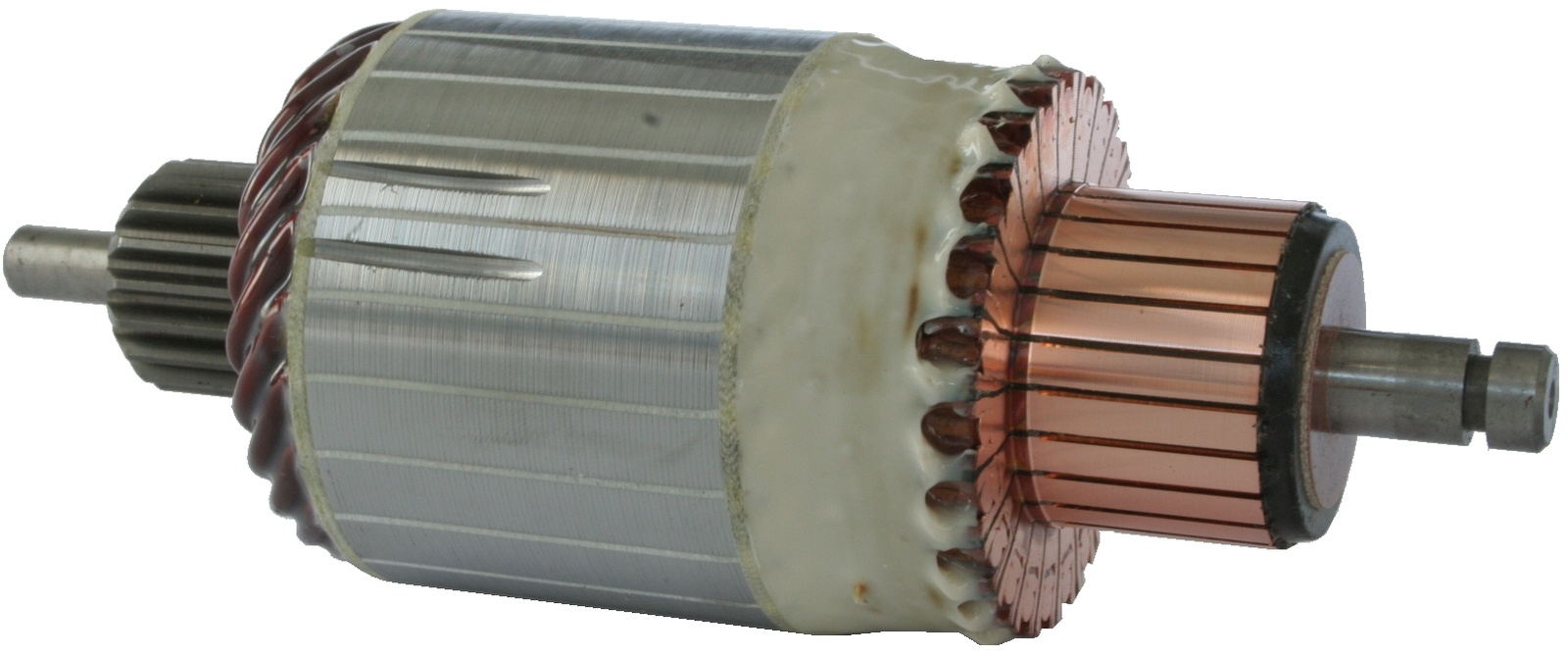

Details & description

kW 1.7, Voltage 12, Commutator Diameter 33.00, Commutator Distance 20.00, OD/spline/teeth 24.80, No./bars 23, Commutator Height 35.20, Bar length 5.50, Commutator Inner Diameter 12.90, Bar Distance 3.45, No./teeth 18, Core Diameter 59.00, Shaft length 163.00, Bar Cross Distance 41.20, Commutator End Shaft Diameter 10.00, Bar Lane Height 22.00, Spline Teeth Length 25.00, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 52.40, Rotation CW/CCW

Product information
