F032134369 - Armature

Trade number 134369
Product image - main
Trade number 134369

Details & description

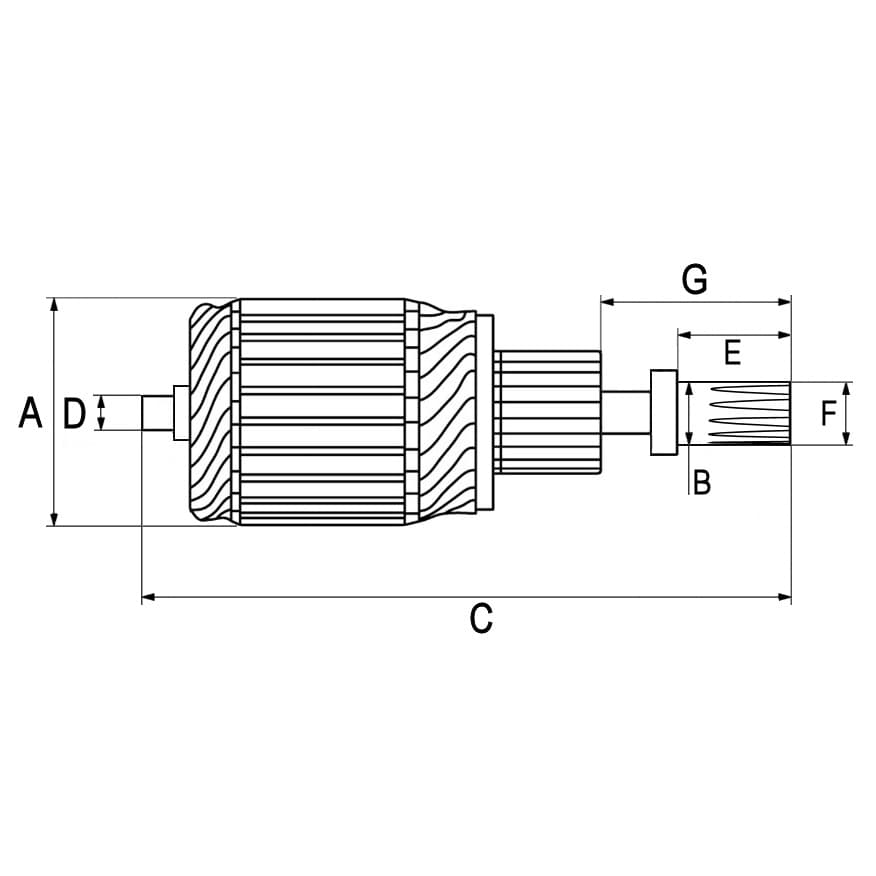

kW 2.0, Voltage 12, Commutator Diameter 36.00, Commutator Distance 27.60, OD/spline/teeth 9.80, No./bars 23, Commutator Height 42.30, Bar length 4.50, Commutator Inner Diameter 13.90, Bar Distance 2.35, No./teeth 19, Core Diameter 50.50, Shaft length 166.00, Bar Cross Distance 36.00, Commutator End Shaft Diameter 10.00, Bar Lane Height 32.50, Spline Teeth Length 17.00, Drive End Inside Shaft Diameter Outside 8.00, Commutator Outer Diameter 45.00, Rotation CW/CCW

Product information

Electrical information

  • kW2.0
  • Voltage12

Physical information

  • Commutator Diameter36.00
  • Commutator Distance27.60
  • OD/spline/teeth9.80
  • No./bars23
  • Commutator Height42.30
  • Commutator Inner Diameter13.90
  • Bar Distance2.35
  • No./teeth19
  • Core Diameter50.50

    • Suggested Products

    Replacing and BOMs

    OEM number

    • 5811210290ISUZU
    • RF0124705MAZDA
    • 1542563071SUZUKI
    • 2816054070TOYOTA
    • 2816054071TOYOTA
    • 2816087705TOYOTA

    Competitor References

    • SA6005AUTOSTARTER POLAND
    • F042S40054BOSCH
    • F042040054BOSCH
    • F042S40053BOSCH
    • F042040053BOSCH
    • 0282007430DENSO
    • 0282002140DENSO
    • 134369HC-CARGO
    • AM5001UNIPOINT
